Seat Belt Tensioner



Component Connector End Views - Continued

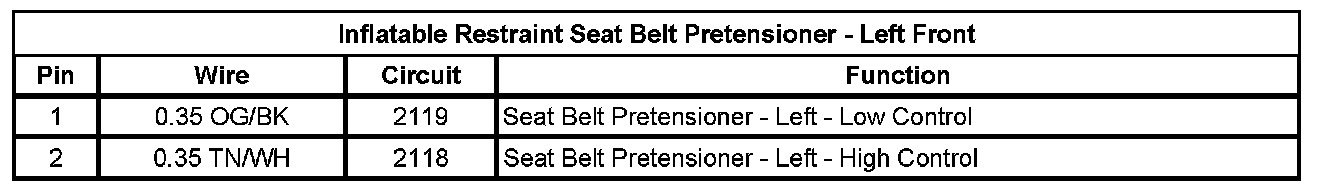

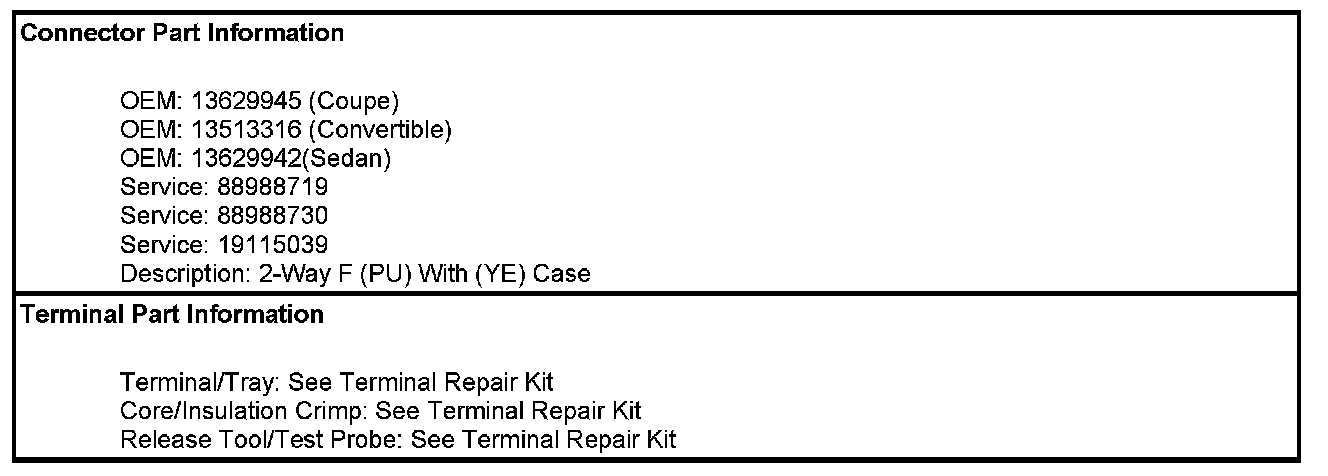

Inflatable Restraint Seat Belt Pretensioner - Left Front

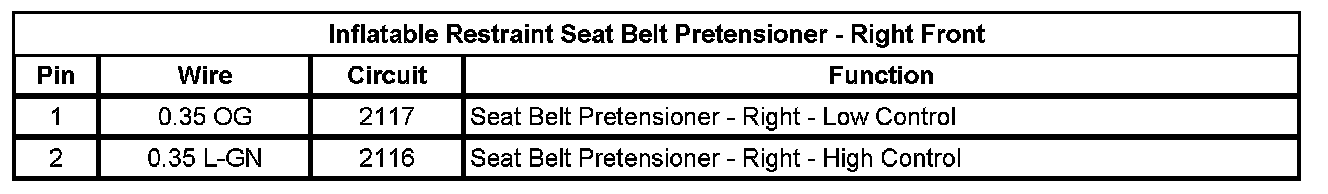

Inflatable Restraint Seat Belt Pretensioner - Right Front
