Electrical Diagrams
Engine Controls Schematics
Power, MIL, DLC, Ignition Switch and Ground
Engine Controls Diagram 1:

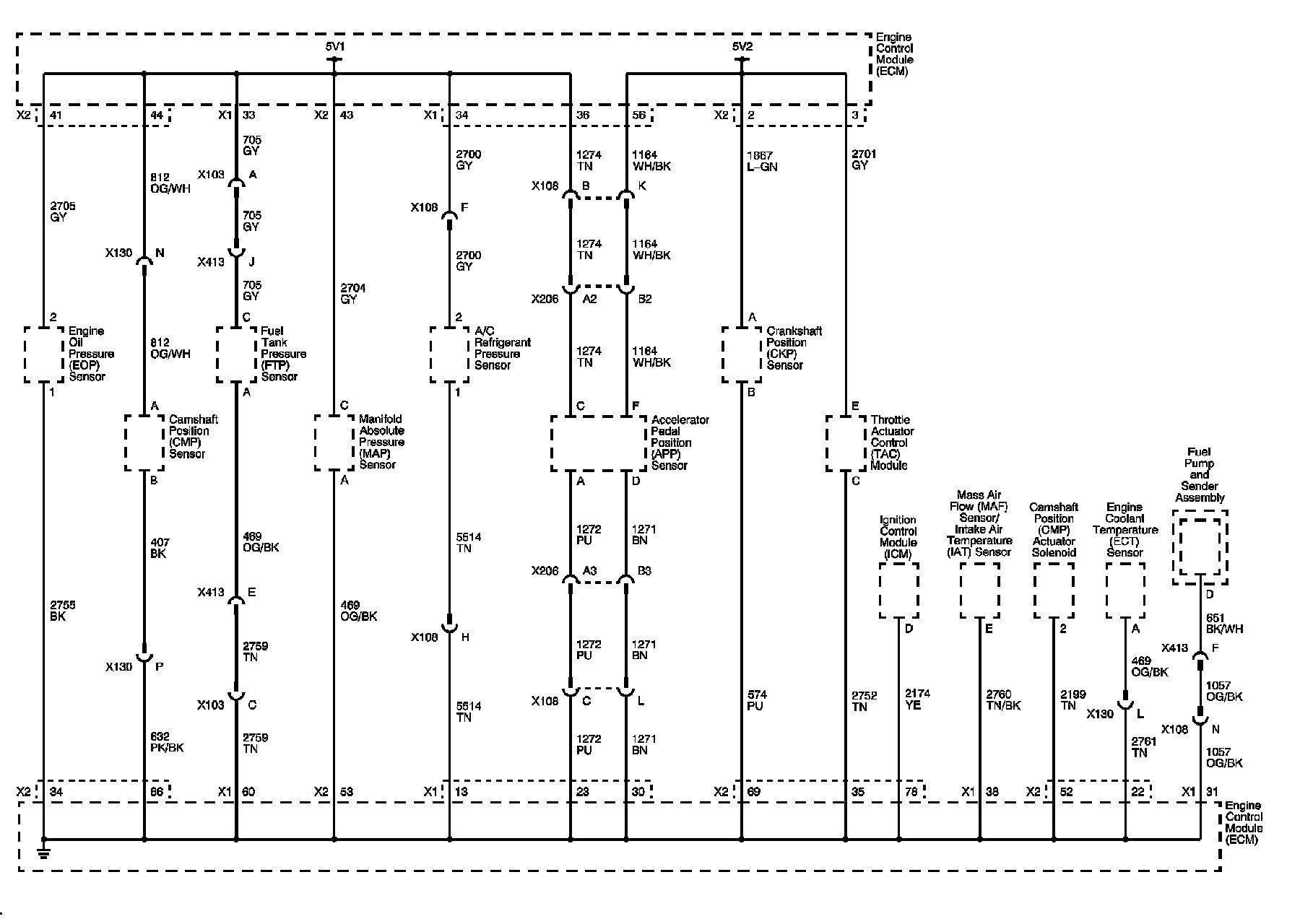

5-Volt and Low References
Engine Controls Diagram 2:

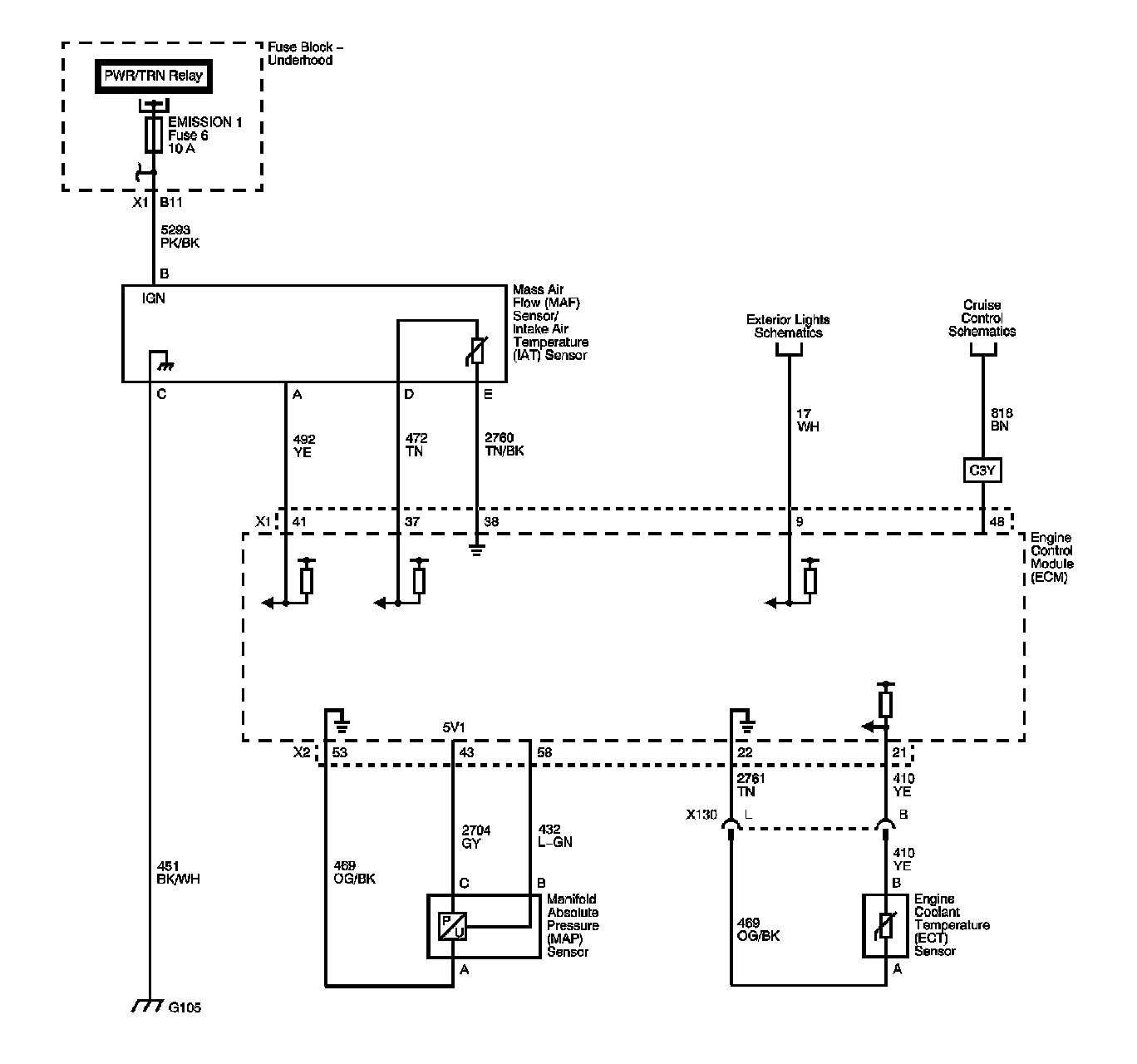

MAF/IAT, MAP, ECT Sensors
Engine Controls Diagram 3:
Heated Oxygen Sensors
Engine Controls Diagram 4:
Electronic Throttle Controls
Engine Controls Diagram 5:
Ignition System
Engine Controls Diagram 6:

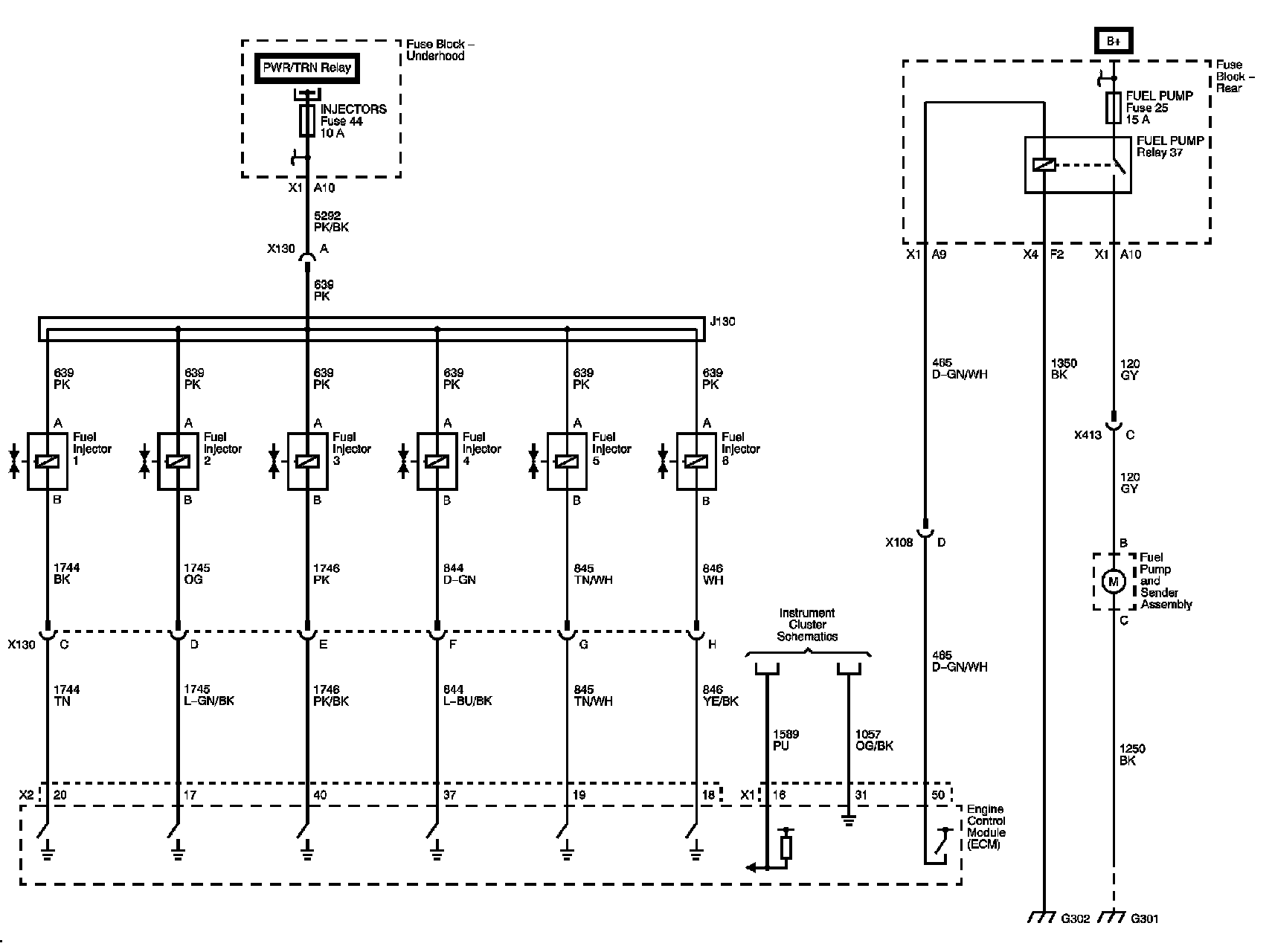

Fuel Injectors and Fuel Pump
Engine Controls Diagram 7:

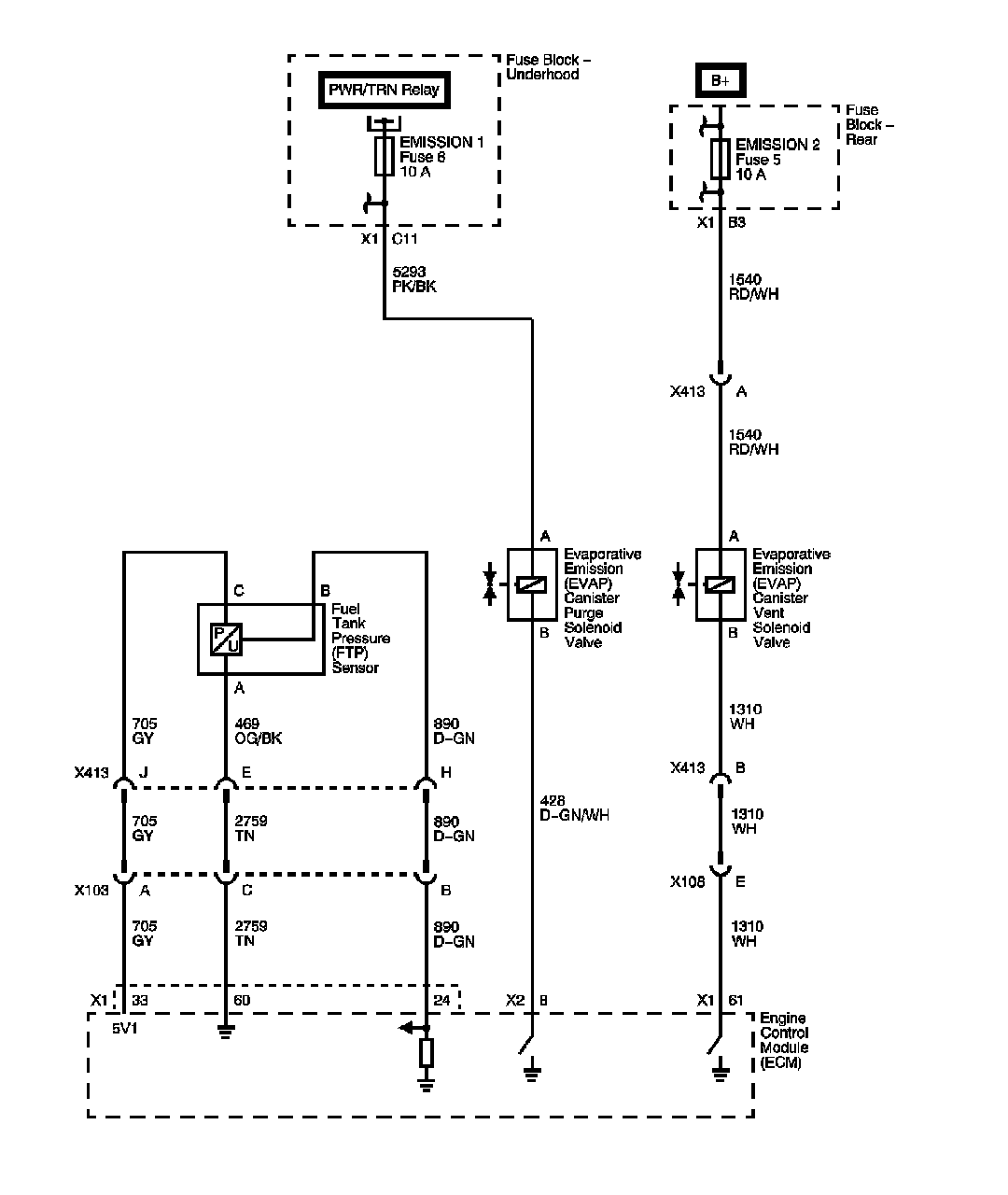

EVAP Controls and FTP Sensor
Engine Controls Diagram 8:

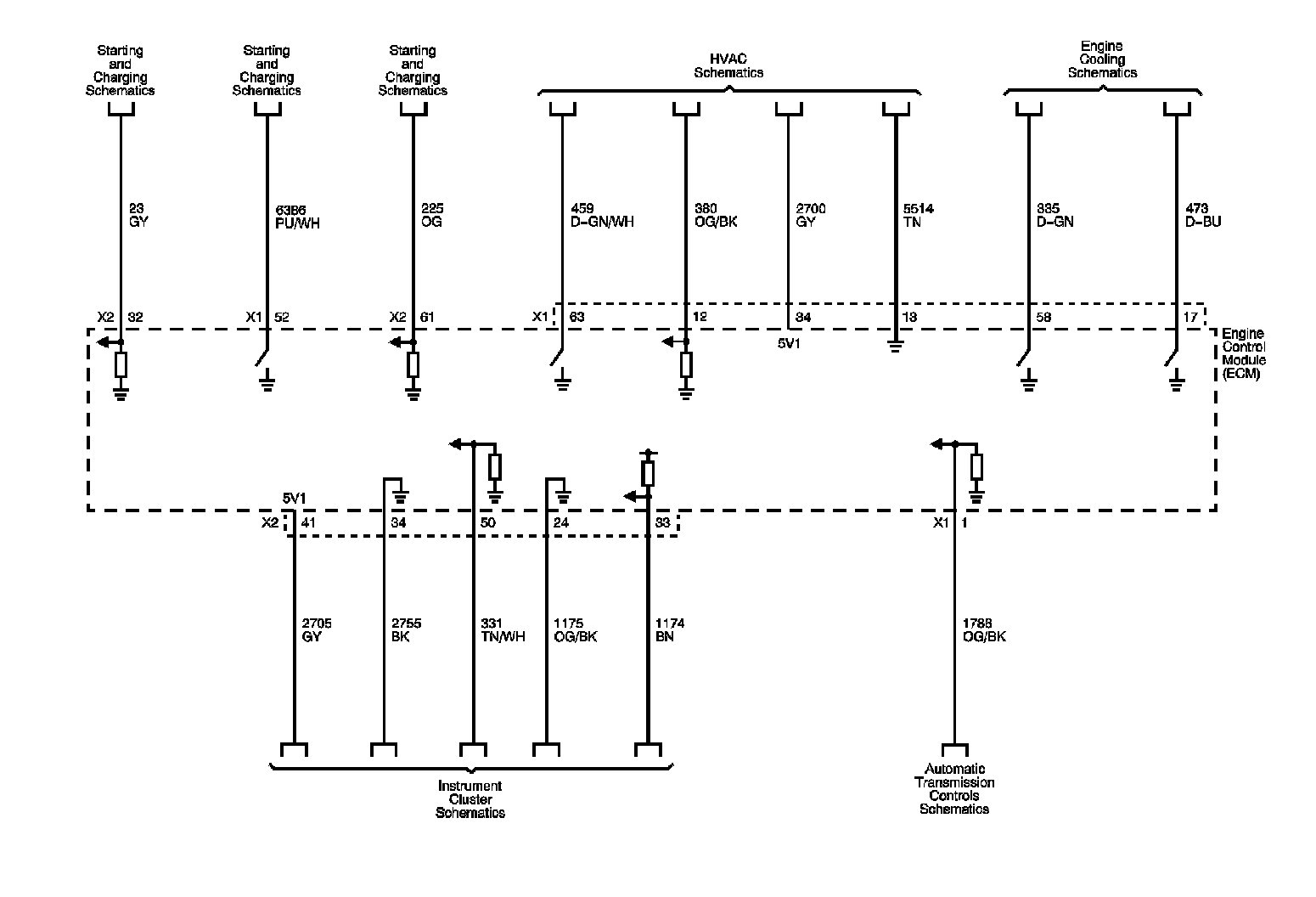

Controlled/Monitored Subsystem References
Engine Controls Diagram 9:
