Valve Deactivation Solenoid

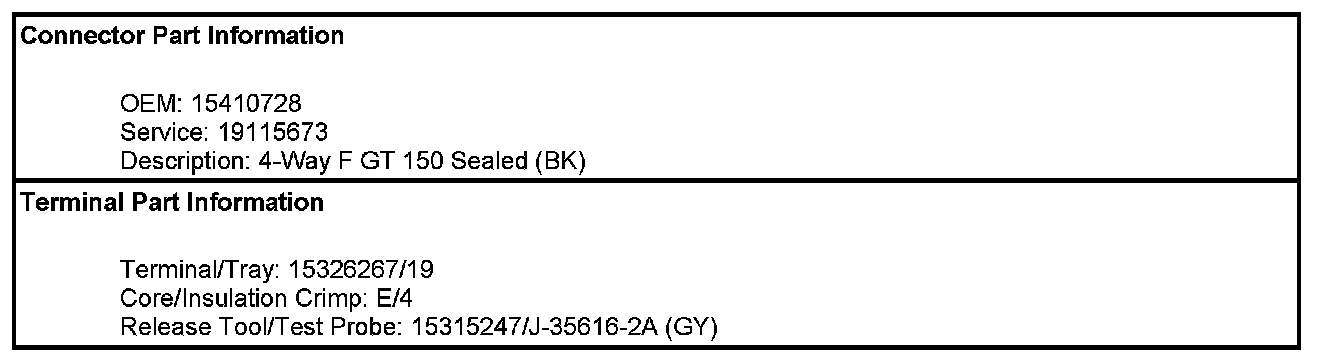

Component Connector End Views - Continued

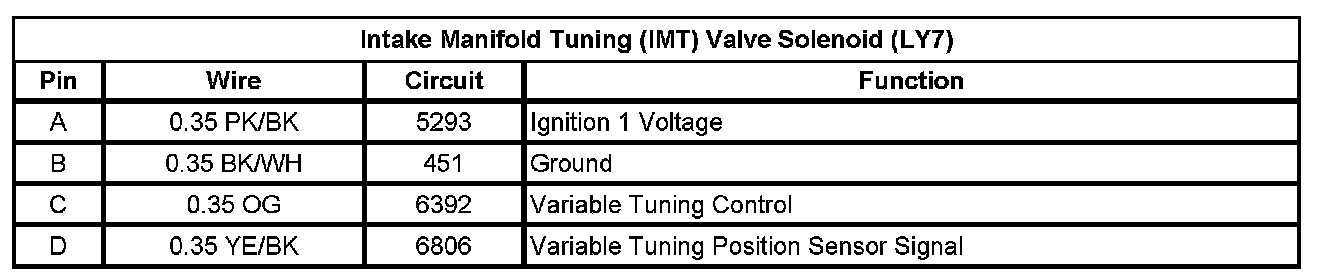

Intake Manifold Tuning (IMT) Valve Solenoid (LY7)
