Left Front Door Trim Pad

Harness Routing Views

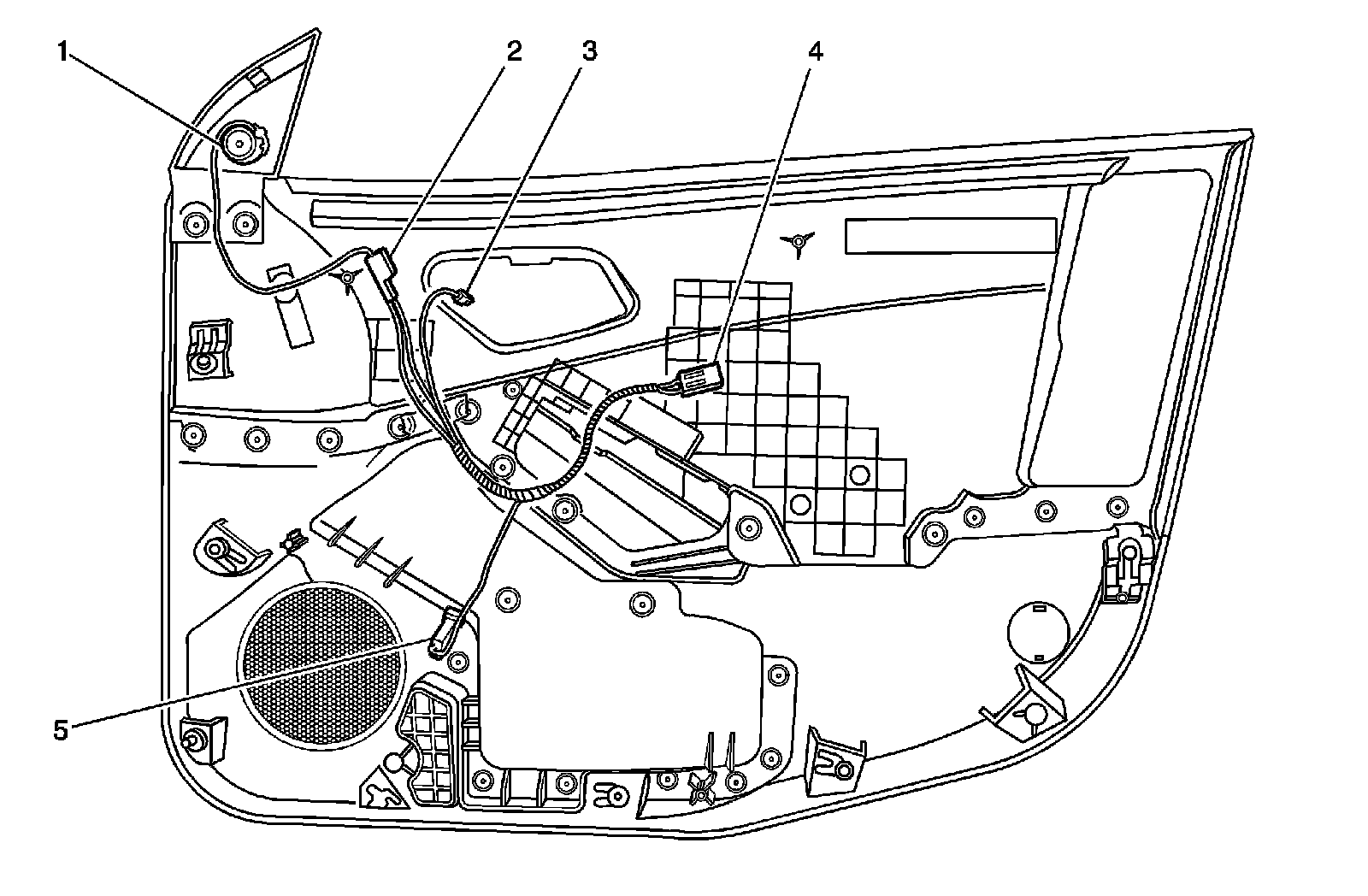

Left Front Door Trim Pad




1 - Speaker - Left Front Door Tweeter
2 - Speaker to Door Trim Pad Harness Connector
3 - Door Lock Switch - Driver
4 - X501
5 - Rear Compartment Lid Release Switch - Interior
