Headliner Harness (CF5)

Harness Routing Views

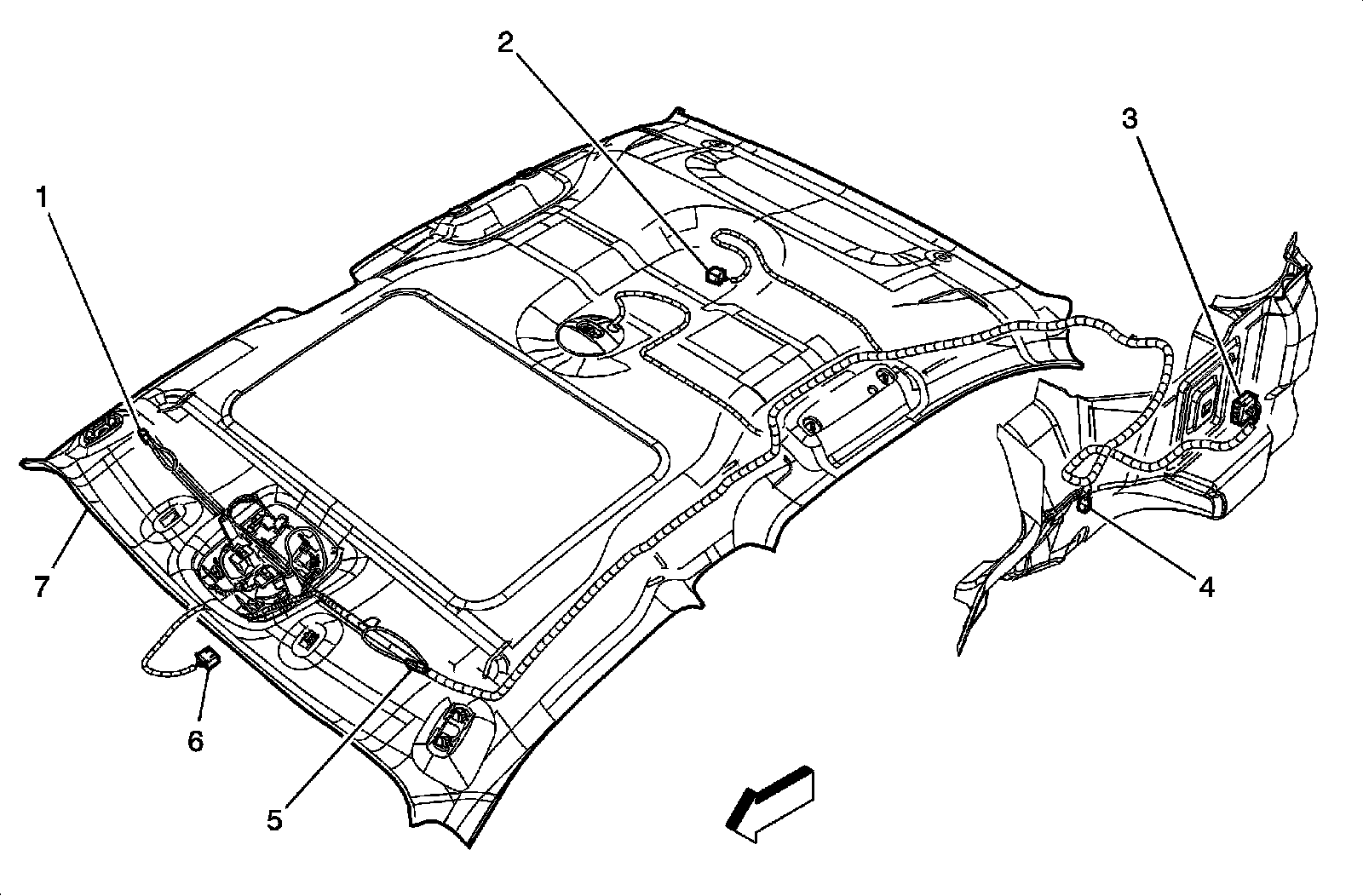

Headliner Harness (CF5)




1 - Vanity Mirror Lamp - Right Connector (DH6)
2 - Sunroof Module Connector (CF5)
3 - Fuse Block - Rear X3
4 - X351 (UE1)
5 - Vanity Mirror Lamp - Left Connector (DH6)
6 - Inside Rearview Mirror Connector (UE1)
7 - Headliner
