Center Mounted Brake Lamp: Diagrams



Component Connector End Views

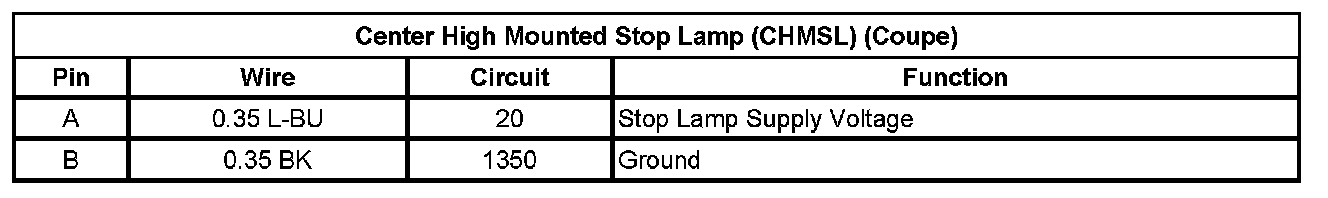

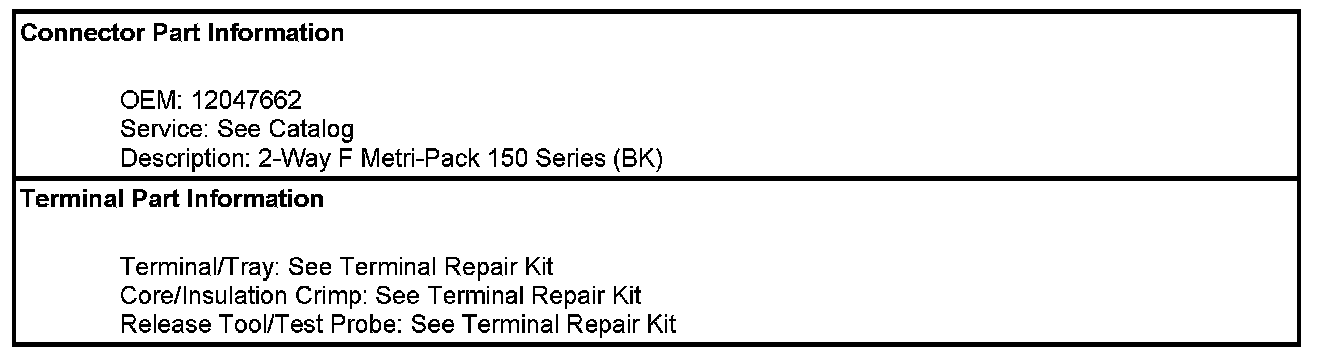

Center High Mounted Stop Lamp (CHMSL) (Coupe)

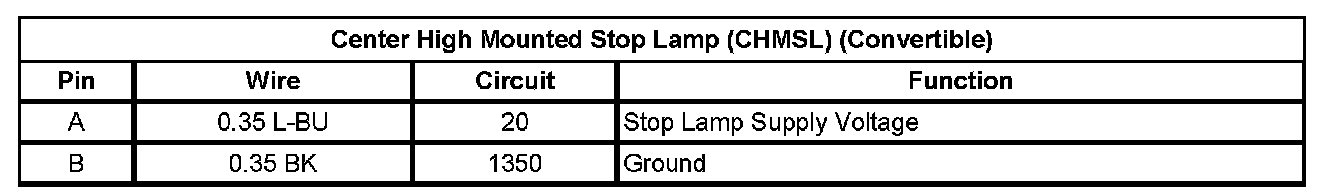

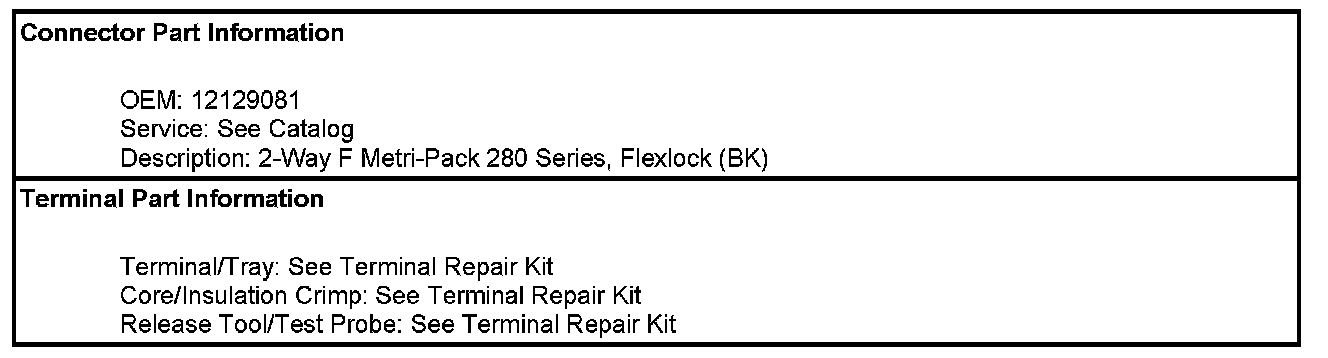

Center High Mounted Stop Lamp (CHMSL) (Convertible)

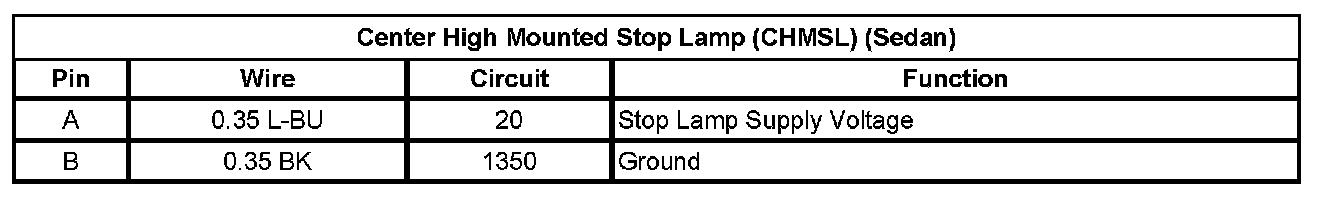

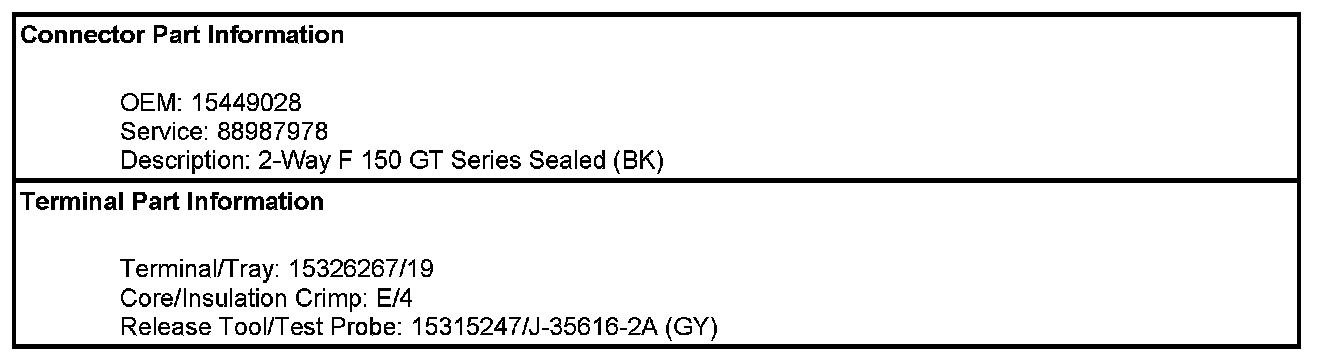

Center High Mounted Stop Lamp (CHMSL) (Sedan)
