Connector Views



Component Connector End Views - Continued

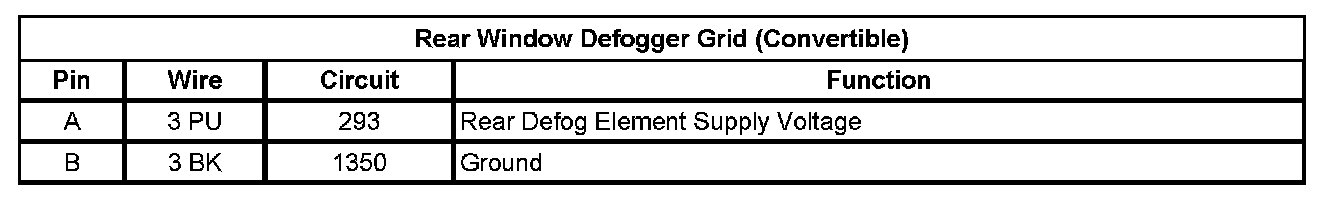

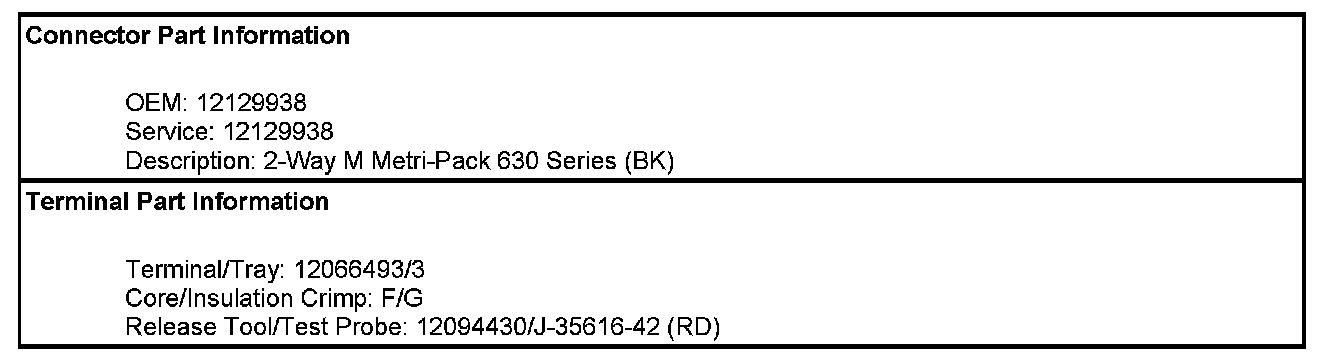

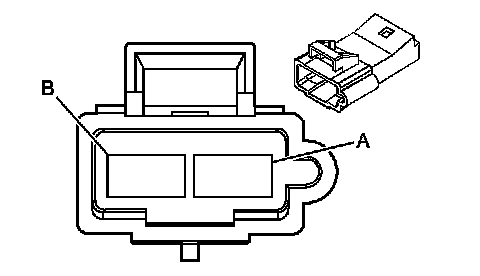

Rear Window Defogger Grid (Convertible)

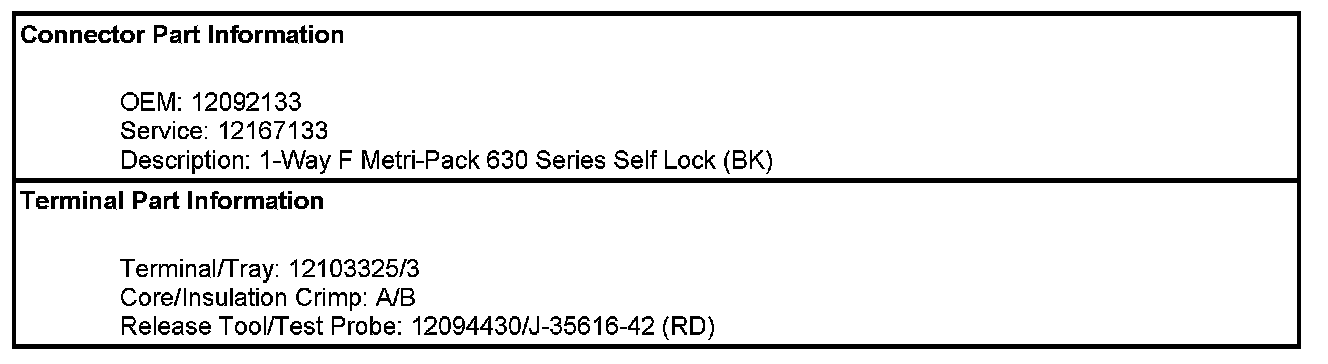

Rear Window Defogger Grid - X1 (Coupe/Sedan)

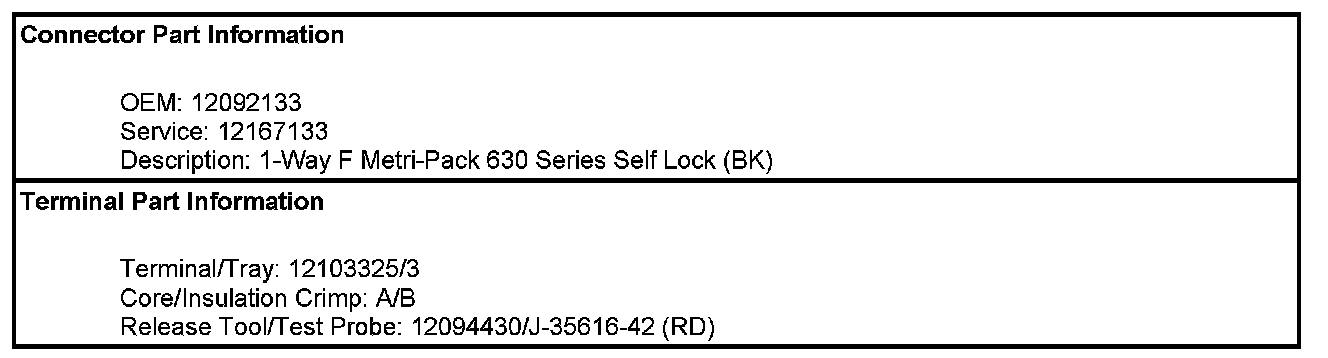

Rear Window Defogger Grid - X2 (Coupe/Sedan)
