Antitheft and Alarm Systems: Locations

Theft Deterrent System Component Views (SWBLHD)

Hood Latch Assembly, Trunk Latch Assembly, Front Door Latch Assembly and Rear Door Latch Assembly




1 - Hood Latch Assembly
2 - Trunk Latch Assembly
3 - Front Door Latch Assembly
4 - Rear Door Latch Assembly

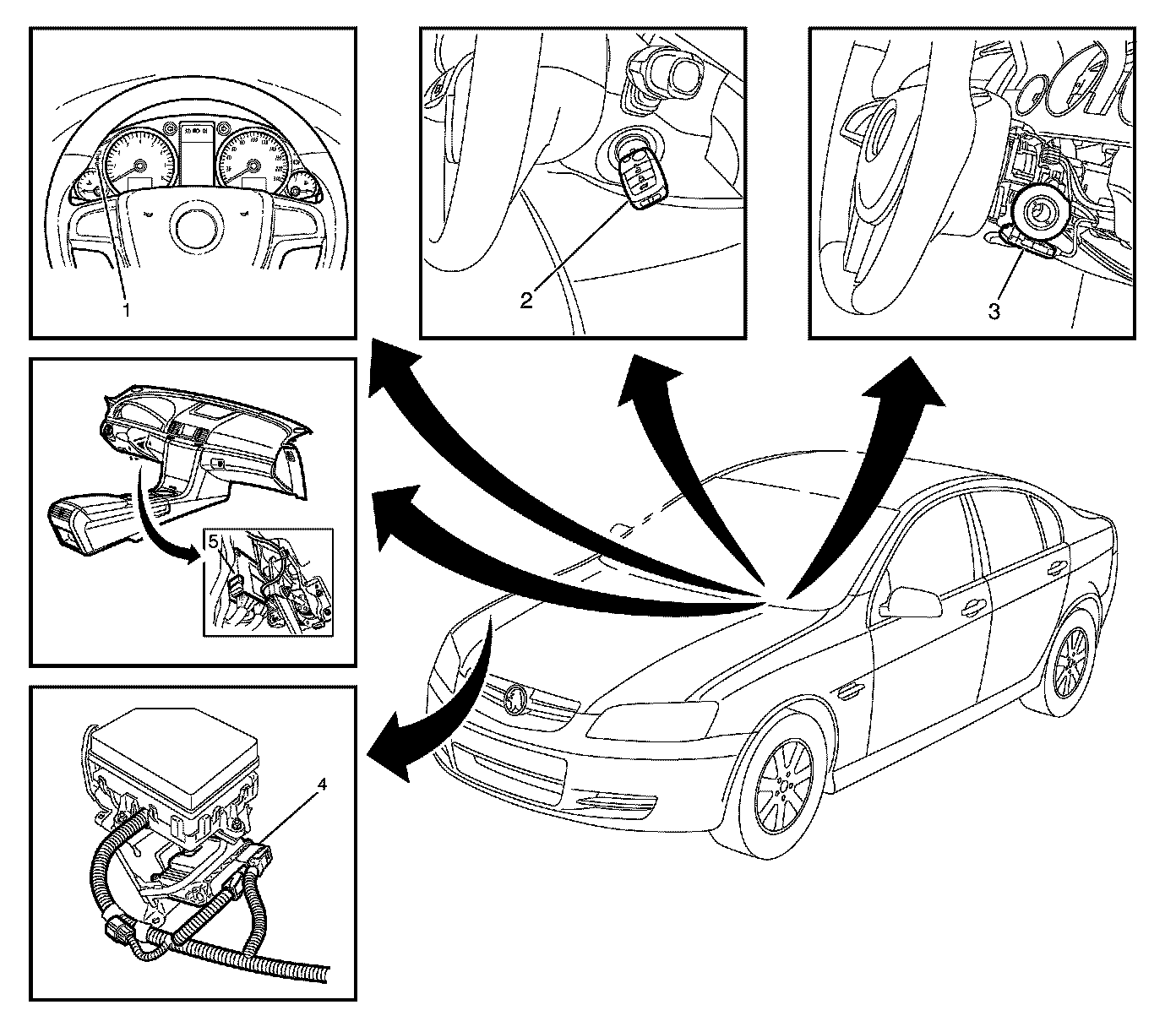

Security Warning Lamp, Ignition key (Transponder), Theft Deterrent Module (TDM), Engine Control Module (ECM) and Body Control Module (BCM)




1 - Security Warning Lamp
2 - Ignition Key (Transponder)
3 - Theft Deterrent Module (TDM)
4 - Engine Control Module (ECM)
5 - Body Control Module (BCM)
