Front Seat Belt Front Trim Cover Replacement

Front Seat Belt Front Trim Cover Replacement

Removal Procedure

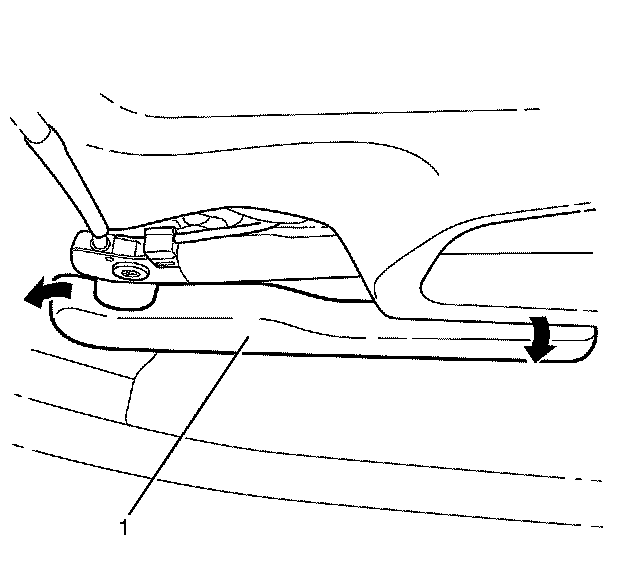

Important: Insert fingers under the anchorage pretensioner trim (1) and disengage the front retainer.


1. Move the front seat forward to obtain access to the anchorage pretensioner trim.
2. Remove the anchorage pretensioner trim from the anchorage pretensioner.
3. Slide the anchorage pretensioner trim towards the rear of the seat to disengage the retainer.
4. Remove the anchorage pretensioner trim.



Installation Procedure

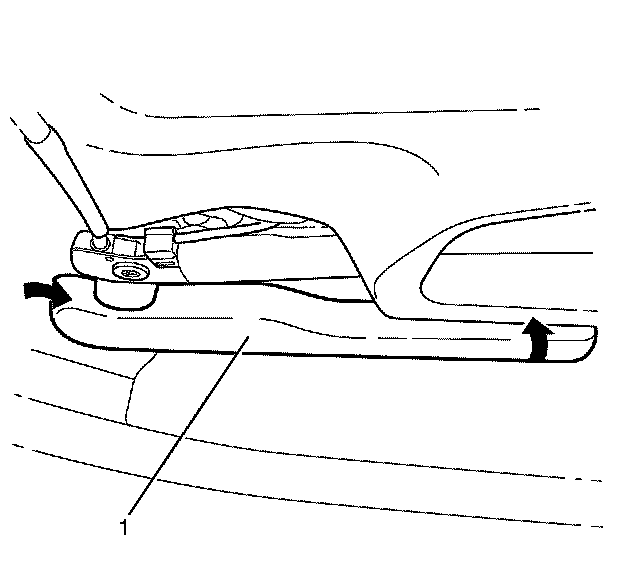

Important: Slide the anchorage pretensioner trim (1) forward to engage the rear retainer.


1. Install the anchorage pretensioner trim.
2. Grasp the front of the anchorage pretensioner trim and push to engage the retainer.
