Luggage Compartment/Rear of Vehicle Component Views
Luggage Compartment/Rear of Vehicle Component Views
Body Rear End Components
1 - Rear Compartment Lid Release Switch
2 - Rear Compartment Lid Release Cable
3 - Rear Compartment Lid Release Cable to Seat Back Retaining Screw
4 - Rear Compartment Lid Latch Striker
5 - Rear Compartment Lid Lock Actuator
6 - Rear Compartment Retaining Plate
7 - Rear Compartment Retaining Plate Captive Nuts
8 - Rear Compartment Lid Lock Actuator to Rear Compartment Retaining Bolts
9 - Rear Compartment Lid Latch Striker to Rear Compartment Lid Retaining Screw

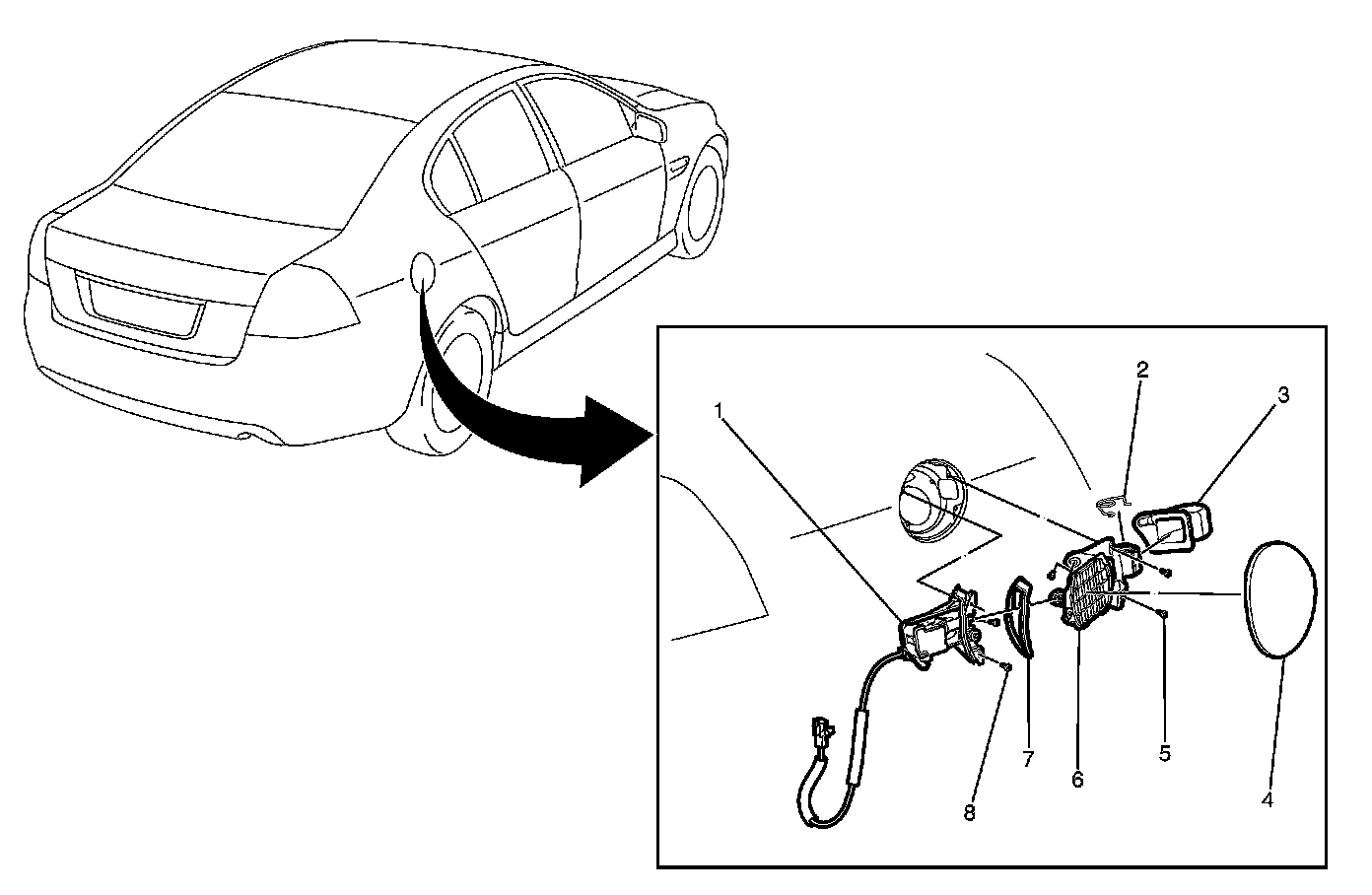

Fuel Tank Filler Door Component Views
1 - Fuel Tank Filler Door Lock Actuator
2 - Fuel Tank Filler Door Hinge Spring
3 - Fuel Tank Filler Door Hinge
4 - Fuel Tank Filler Door Panel
5 - Fuel Tank Filler Door and Hinge to Rear Quarter Panel Retaining Screws
6 - Fuel Tank Filler Door
7 - Fuel Tank Filler Door Lock Actuator Foam Gasket
8 - Fuel Tank Filler Door Lock Actuator to Rear Quarter Panel Retaining Screws

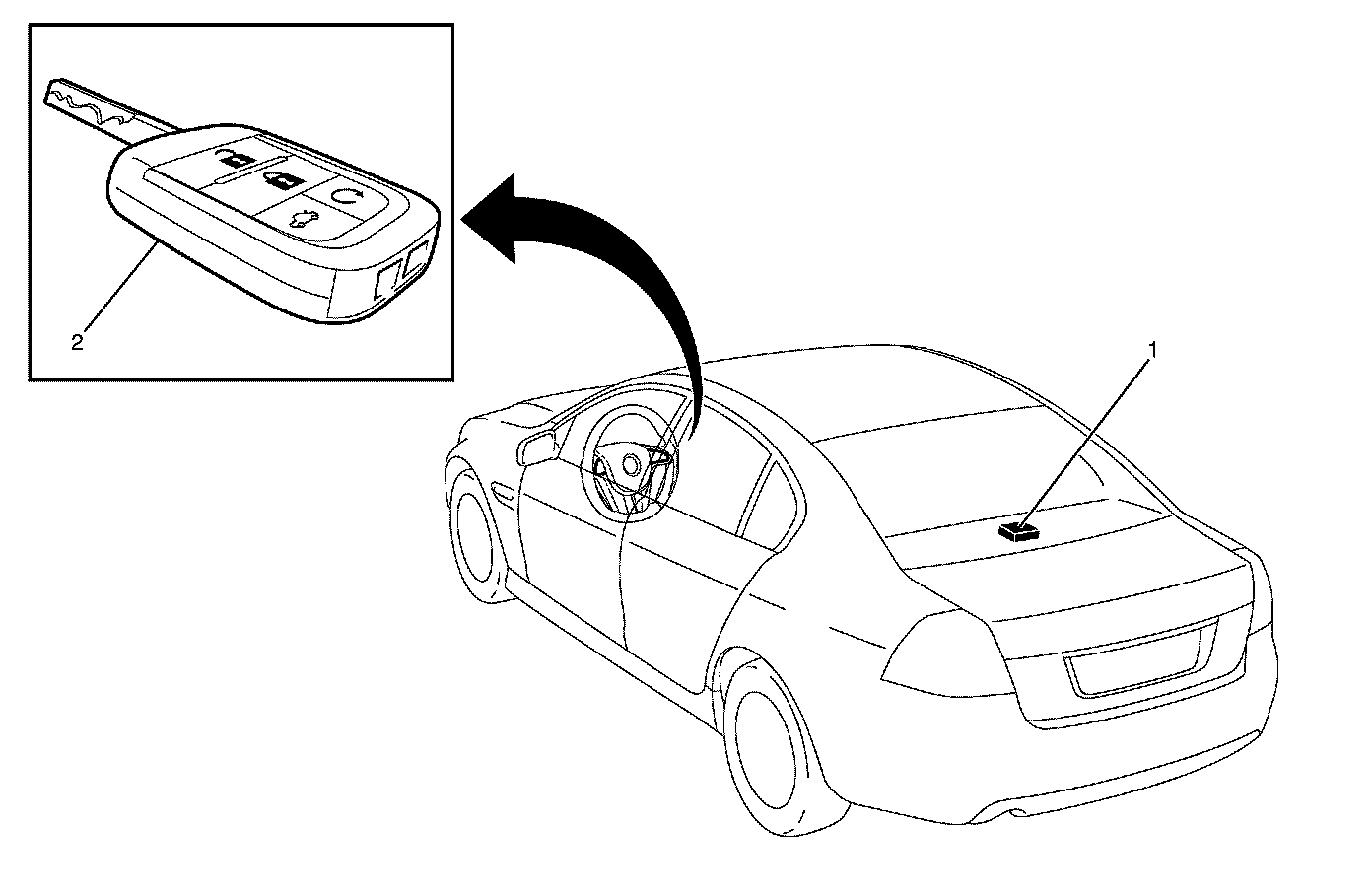

Rear of the Vehicle
1 - Remote Function Actuator
2 - Transmitter Key
Exterior Lamps - Rear View
1 - Centre High Mounted Stop Lamp (CHMSL)
2 - CHMSL Light Emitting Diode (LED) Assembly
3 - Tail Lamp Assembly
4 - Rear Side Marker LED
5 - Tail Lamp Assembly Electrical Connector
6 - Backup Lamp Bulb
7 - Rear Indicator Lamp Bulb
8 - Stop/Tail Lamp Bulb
9 - License Lamp Bulb
10 - License Lamp
G8 Rear Bumper Fascia Locator
1 - Rear Bumper Fascia Reflector
2 - Rear Bumper Fascia Reflector Retaining Screw
3 - Rear Bumper Fascia Moulding
4 - Rear Bumper Fascia Moulding Retaining Scrivet
5 - Rear Bumper Fascia
6 - Rear Bumper Fascia Extension
7 - Rear Bumper Fascia Extension Retaining Screw

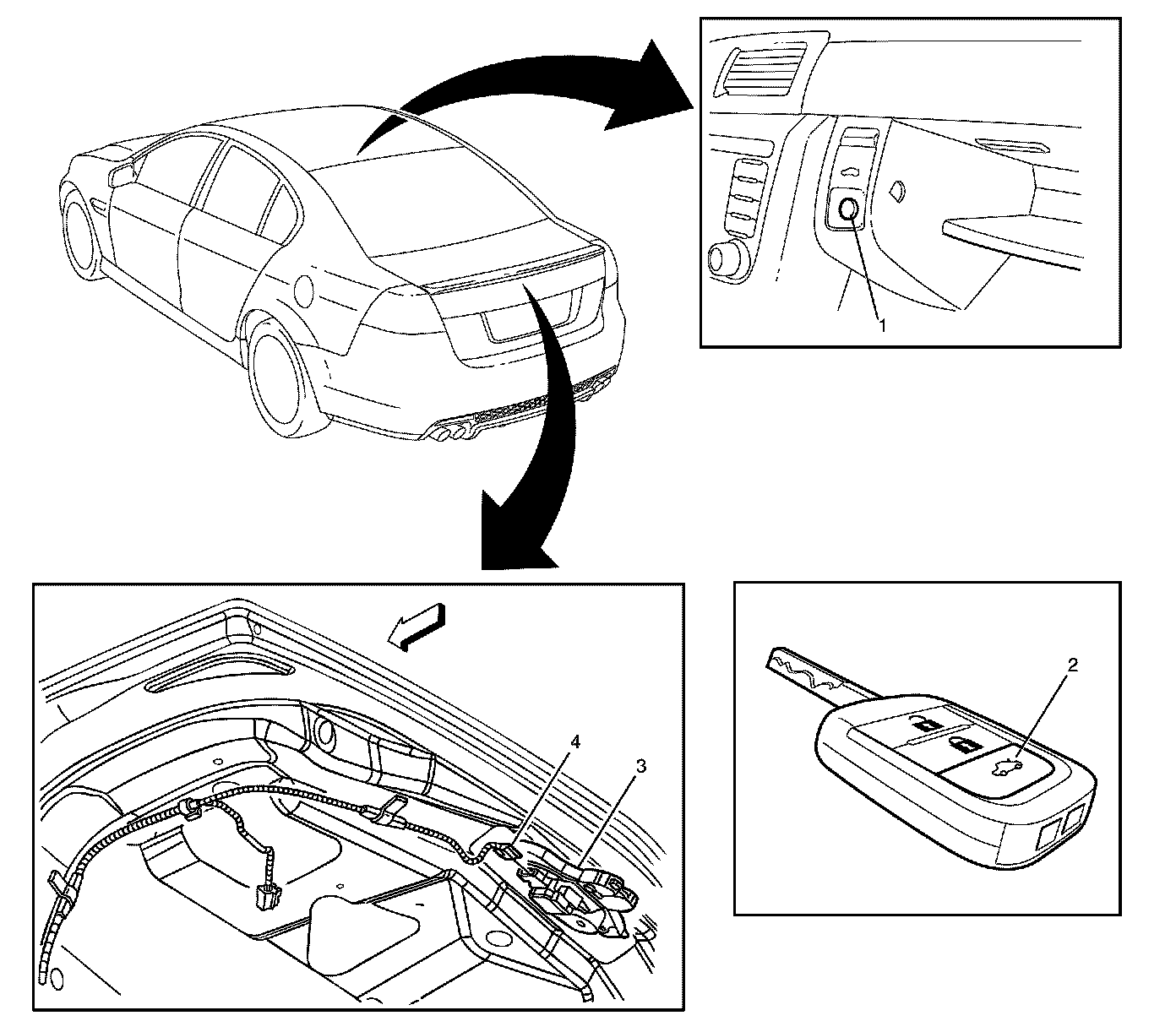

Body Rear End
1 - Rear Compartment Lid Release Switch
2 - Remote Rear Compartment Lid Release Switch
3 - Rear Compartment Lid Release Actuator
4 - Rear Compartment Lid Release Actuator Electrical Connector
Rear Exterior Trim Component Views G8 GT
1 - Rear Compartment Lid Emblem
2 - Rear Compartment Lid (G8)
3 - Rear Compartment Lid (PONTIAC)
4 - Rear Compartment Lid (GT)
Rear Exterior Trim Component Views G8
1 - Rear Compartment Lid Emblem
2 - Rear Compartment Lid (G8)
3 - Rear Compartment Lid (Pontiac)
Rear Exterior Trim G8
1 - Rear Spoiler
