Passenger Compartment/Roof Component Views
Passenger Compartment/Roof Component Views

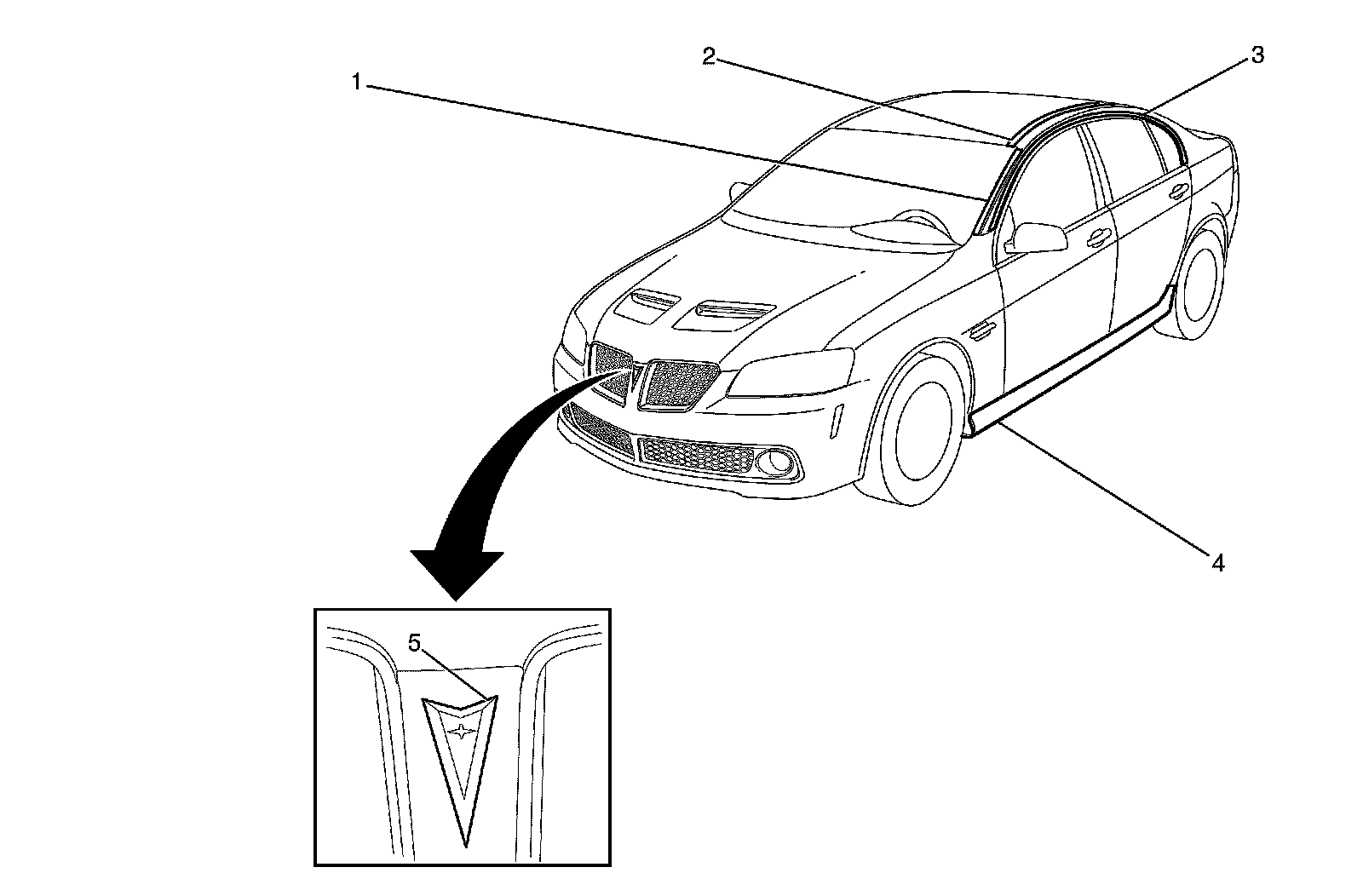

Exterior Trim G8
1 - Windshield Pillar Garnish Molding
2 - Roof Weld Joint Reveal Molding
3 - Body Side Roof Drip Molding
4 - Rocker Panel Molding
5 - Front Emblem/Nameplate
Windshield and Body Side Glass Component Views
1 - Rear Door Window Glass
2 - Datum Pin
3 - Foam Spacer
4 - Rearview Mirror Boss
5 - Rain Sensor Boss (If Fitted)
6 - Windshield
7 - VIN Viewing Area
8 - Front Door Window Glass
9 - Rear Door Stationary Window Glass
Hood Latch Assembly, Trunk Latch Assembly, Front Door Latch Assembly and Rear Door Latch Assembly
1 - Hood Latch Assembly
2 - Trunk Latch Assembly
3 - Front Door Latch Assembly
4 - Rear Door Latch Assembly
Roof Subsystem Components
1 - Sunroof Housing Front Drain Hose (Upper)
2 - Sunroof Control Switch
3 - Overhead Console
4 - Sunroof Module
5 - Sunroof Housing Rear Drain Hose (Upper)
6 - Sunroof Housing Rear Drain Hose (Lower)
7 - Sunroof Housing Front Drain Hose (Lower)
Infotainment Unit, Amplifier, Antenna and Speakers
���D:
1 - Subwoofer Amplifier
2 - Speaker - LR Subwoofer
3 - Diversity Antenna Module
4 - Speaker - LR Door
5 - Roof Antenna
6 - Speaker - LF Door
7 - Speaker - LF I/P Tweeter
8 - Speaker - I/P Centre
9 - Infotainment Assembly
10 - Speaker - RF I/P Tweeter
11 - Speaker - RF Door
12 - Speaker - RR Door
13 - Speaker - RR Subwoofer

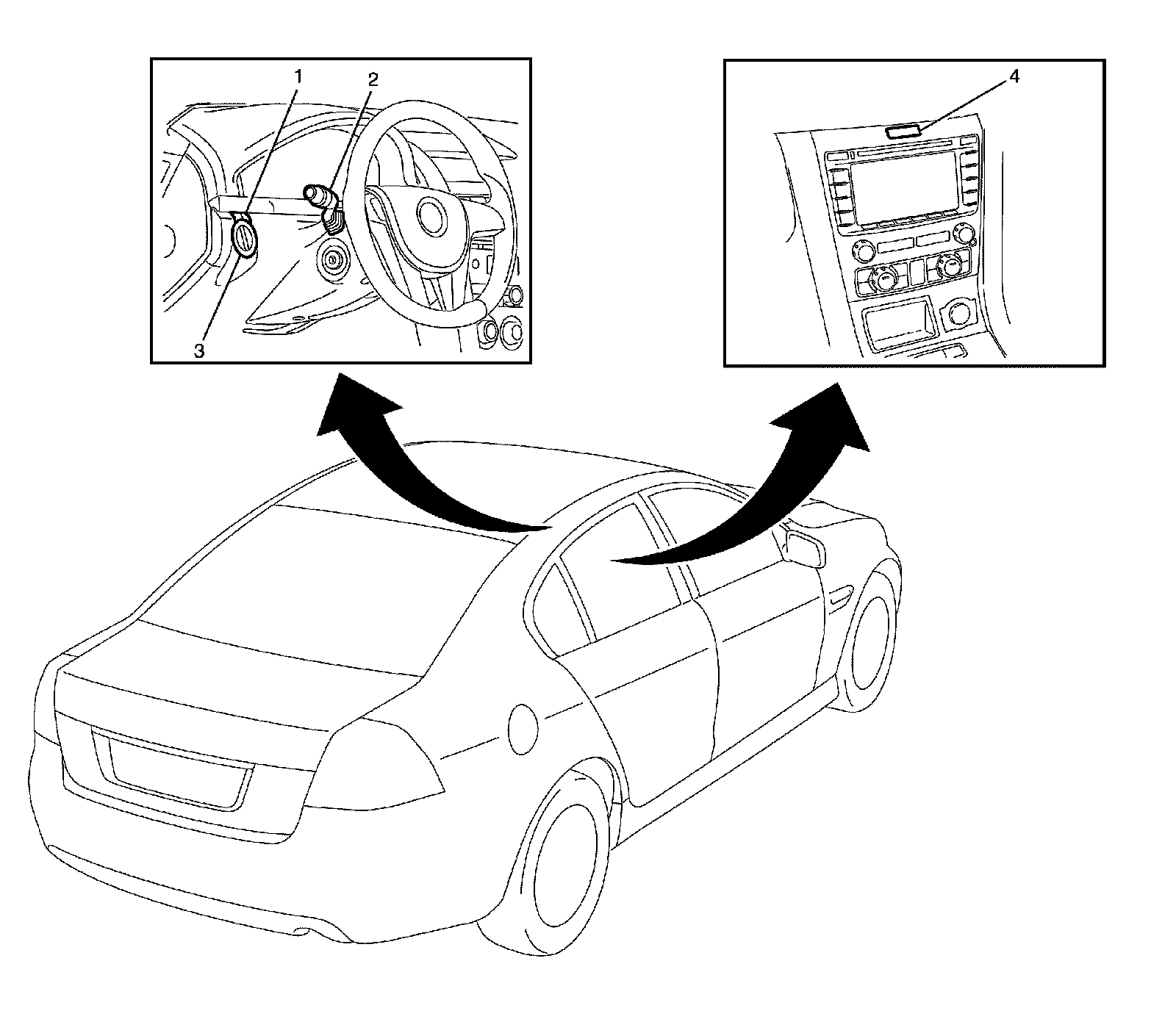

Lamp Switches
1 - Instrument Panel Dimmer Switch
2 - Turn Signal Switch
3 - Headlamp Switch
4 - Hazard Warning Switch
Interior Lamps
1 - Rear Dome Lamp Assembly
2 - Front Dome Lamp Assembly
3 - Transmission Floor Shift Control Indicator Lamp
4 - Rear Compartment Lamp Assembly

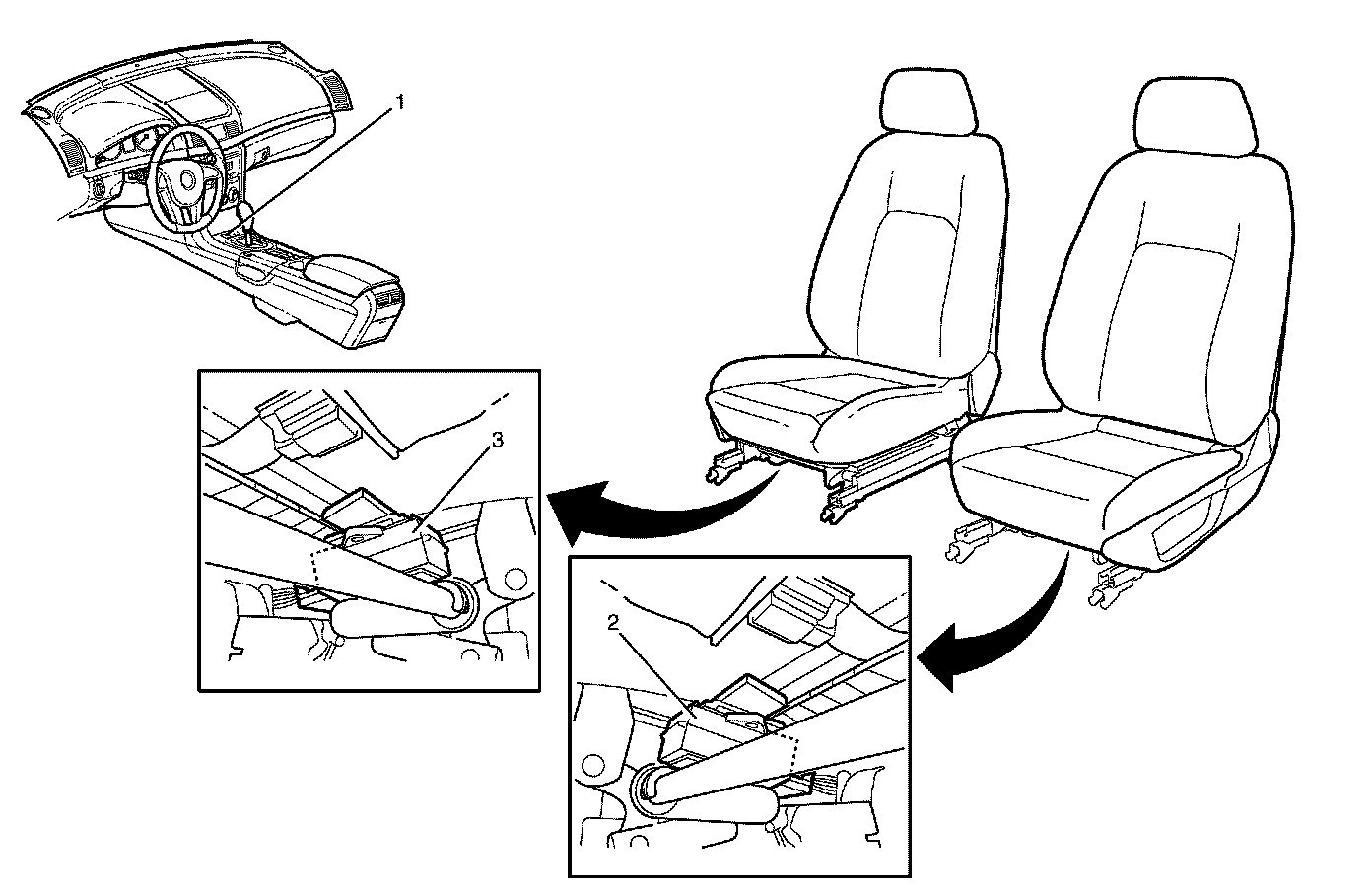

Heated Seat Component Views
1 - Heated Seat Switch (Multi Function)
2 - Right Heated Seat Module
3 - Left Heated Seat Module
Heated Seat Component Views
1 - Right Seat Back Heating Element
2 - Left Seat Back Heating Element
3 - Right Seat Cushion Heating Element
4 - Left Seat Cushion Heating Element
5 - Right Seat Heating Temperature Sensor
6 - Left Seat Heating Temperature Sensor
Passenger Presence System
1 - Front Seat Back
2 - Front Seat Cushion Pad
3 - Passenger Presence System Sensor Pad
4 - Front Seat Cushion Pad Frame
5 - Front Seat Cable Tray
6 - Passenger Presence System Module
SIR Component Location
1 - Inflatable Restraint Roof Rail Module (Left Side)
2 - Seat Belt Anchorage Pretensioner (Left Side)
3 - Inflatable Restraint Side Impact Module (Left Side)
4 - Inflatable Restraint Steering Wheel Module
5 - Inflatable Restraint Roof Rail Module (Right Side)
6 - Inflatable Restraint Front End Sensor (Left Side)
7 - Inflatable Restraint Instrument Panel Module
8 - Inflatable Restraint Front End Sensor (Right Side)
9 - Seat Belt Anchorage Pretensioner (Right Side)
10 - Seat Belt Retractor Pretensioner (Right Side)
11 - Inflatable Restraint Side Impact Sensor (Right Side)
12 - Inflatable Restraint Side Impact Module (Right Side)
13 - Sensing and Diagnostic Module (SDM)
14 - Inflatable Restraint Side Impact Sensor (Left Side)
15 - Seat Belt Retractor Pretensioner (Left Side)
4 Way Power Seat
1 - Seat Buckle
2 - Front Seat Cushion Inner Trim Panel
3 - Front Seat Back Cover Pad
4 - Front Seat Head Restraint
5 - Lumbar Adjuster Support
6 - Front Seat Back Frame
7 - Front Seat Back Trim
8 - Lumbar Adjuster Knob
9 - Front Seat Cushion Outer Trim Panel
9a - Front Seat Switch-Up/Down Tilt
10 - Recliner Adjustment Knob
11 - Front Seat Adjuster
11a - Seat Adjuster Motor - Horizontal
11b - Seat Adjuster Motor - Vertical
12 - Front Seat Adjuster
13 - Front Seat Cable Tray
14 - Front Seat Cushion Pad Frame
15 - Front Seat Cushion Pad
16 - Front Seat Belt SIR Anchorage
6 Way Power Seat
1 - Seat Buckle and Pretensioner
2 - Front Seat Cushion Inner Trim Panel
3 - Front Seat Back Cover Pad
4 - Front Seat Head Restraint
5 - Lumbar Adjuster Support
6 - Front Seat Back Frame
7 - Front Seat Back Trim
8 - Lumbar Adjuster Knob
9 - Front Seat Cushion Outer Trim Panel
9a - Front Seat Switch-Up/Down/Tilt Backwards/Forwards
10 - Recliner Adjustment Knob
11 - Front Seat Adjuster
11a - Seat Adjuster Motor - Horizontal
11b - Seat Adjuster Motor - Vertical
11c - Seat Adjuster Motor - Recliner
12 - Front Seat Adjuster
13 - Front Seat Cable Tray
14 - Front Seat Cushion Pad Frame
15 - Front Seat Cushion Pad
16 - Front Seat Belt SIR Anchorage
Steering Angle Sensor, Brake Pedal Position Sensor, ESP Switch and Yaw Rate/Lateral Accelerometer Sensor
1 - SRS Coil Assembly (Incorporates the Steering Angle Sensor, SRS Coil and Indicator Cancel Cam Assembly)
2 - ESP Switch
3 - Yaw Rate/Lateral Accelerometer Sensor
4 - Brake Pedal Position Sensor
