Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

Front Suspension

1 - Front Strut Assembly
2 - Stabiliser Bar
3 - Stabiliser Bar Insulator Bracket
4 - Subframe
5 - Stabiliser Bar Link
6 - Lower Control Arm
7 - Wheel Hub Assembly
8 - Steering Knuckle
9 - Front Caster Arm

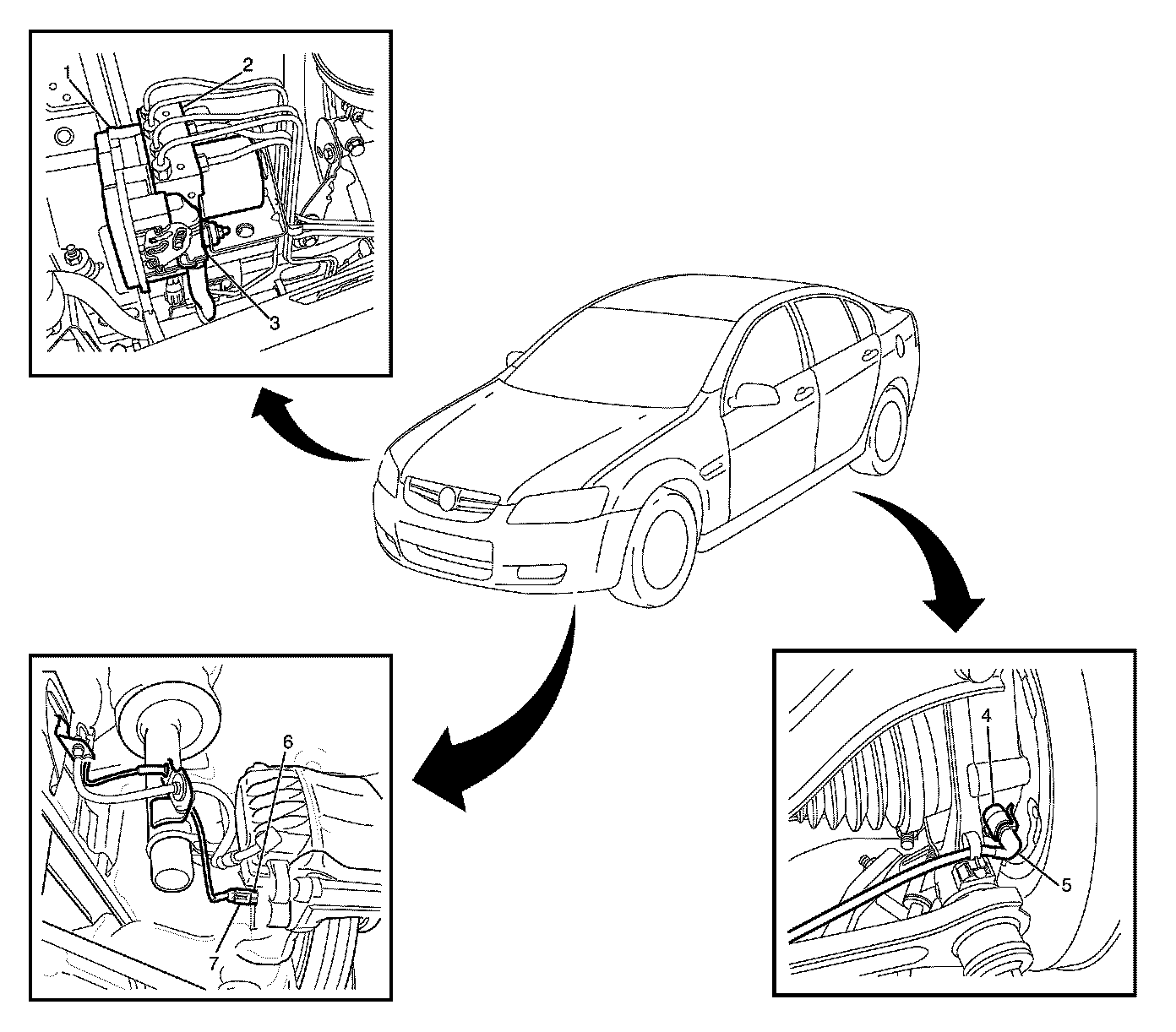

EBCM/BPMV Assembly and Wheel Speed Sensors

1 - Electronic Brake Control Module (EBCM)
2 - Brake Pressure Modulator Valve (BPMV)
3 - EBCM Connector
4 - Wheel Speed Sensor - LR (RR Same)
5 - Wheel Speed Sensor Connector - LR (RR Same)
6 - Wheel Speed Sensor (WSS) - LF (RF Same)
7 - Wheel Speed Sensor Connector - LF (RF Same)

EBCM/BPMV Assembly and Wheel Speed Sensors

1 - Wheel Hub Assembly
2 - Wheel Hub Knuckle
3 - Upper Control Arm
4 - Upper Control Arm Pivot Bushing and Bracket Assembly
5 - Subframe
6 - Stabiliser Bar
7 - Stabiliser Bar Link
8 - Strut Assembly
9 - Lower Control Arm
10 - I-Link
11 - Y-Link
