Alternator



Component Connector End Views

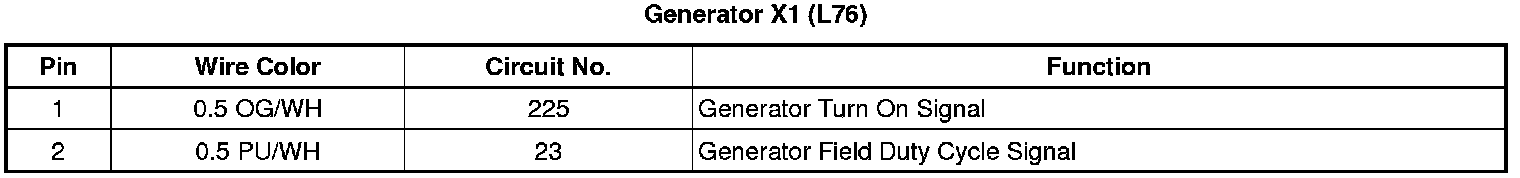

Generator X1 (L76 - Gas 8 Cyl, 6.0L SFI, V8)














Generator X1 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)

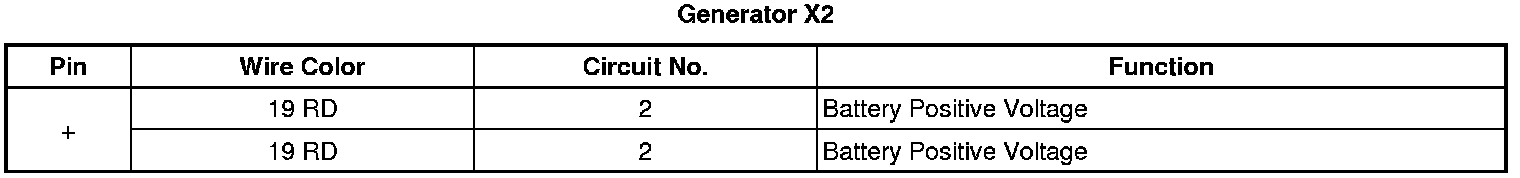

Generator X2
