Home
>>
Pontiac
>>
2008
>>
G8 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

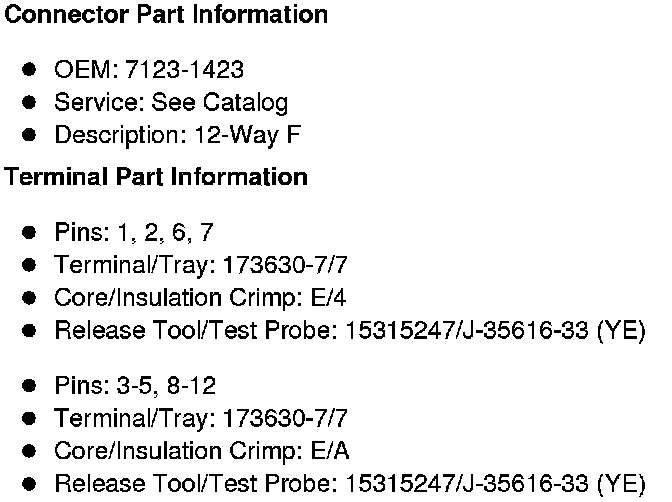

Component Connector End Views

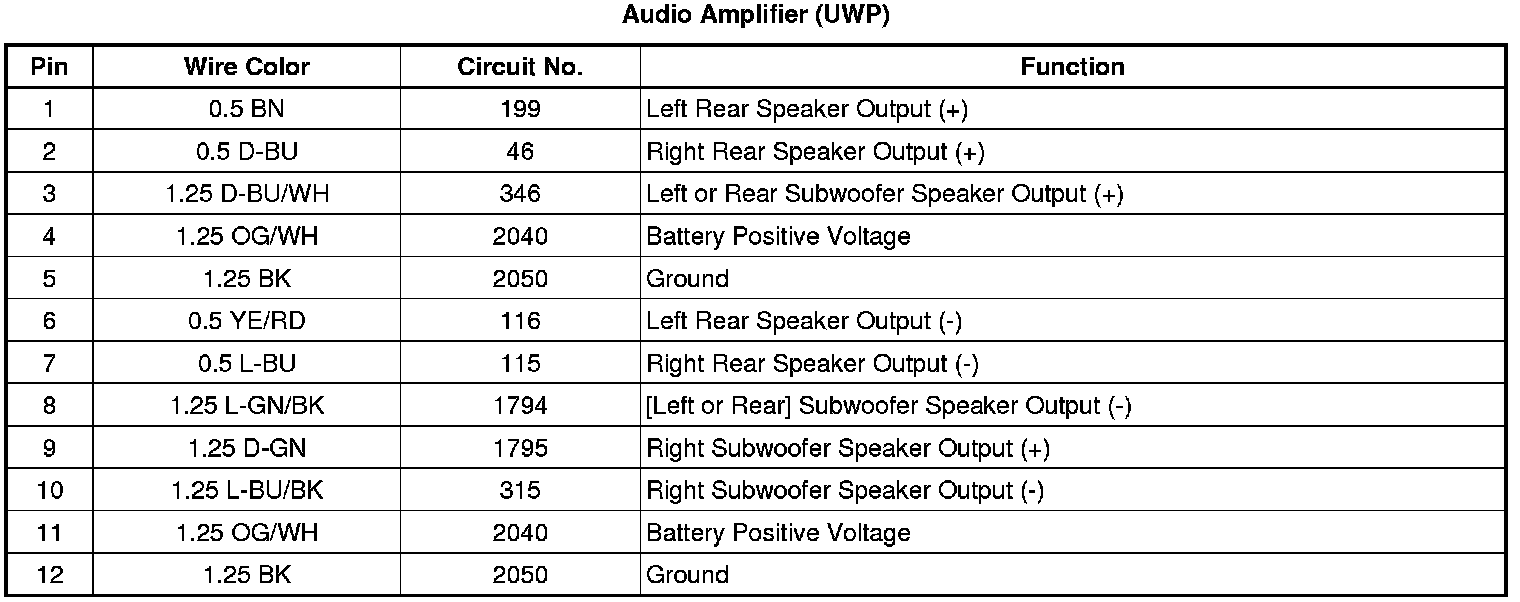

Audio Amplifier (UWP)
