Shift Solenoid, A/T



Component Connector End Views

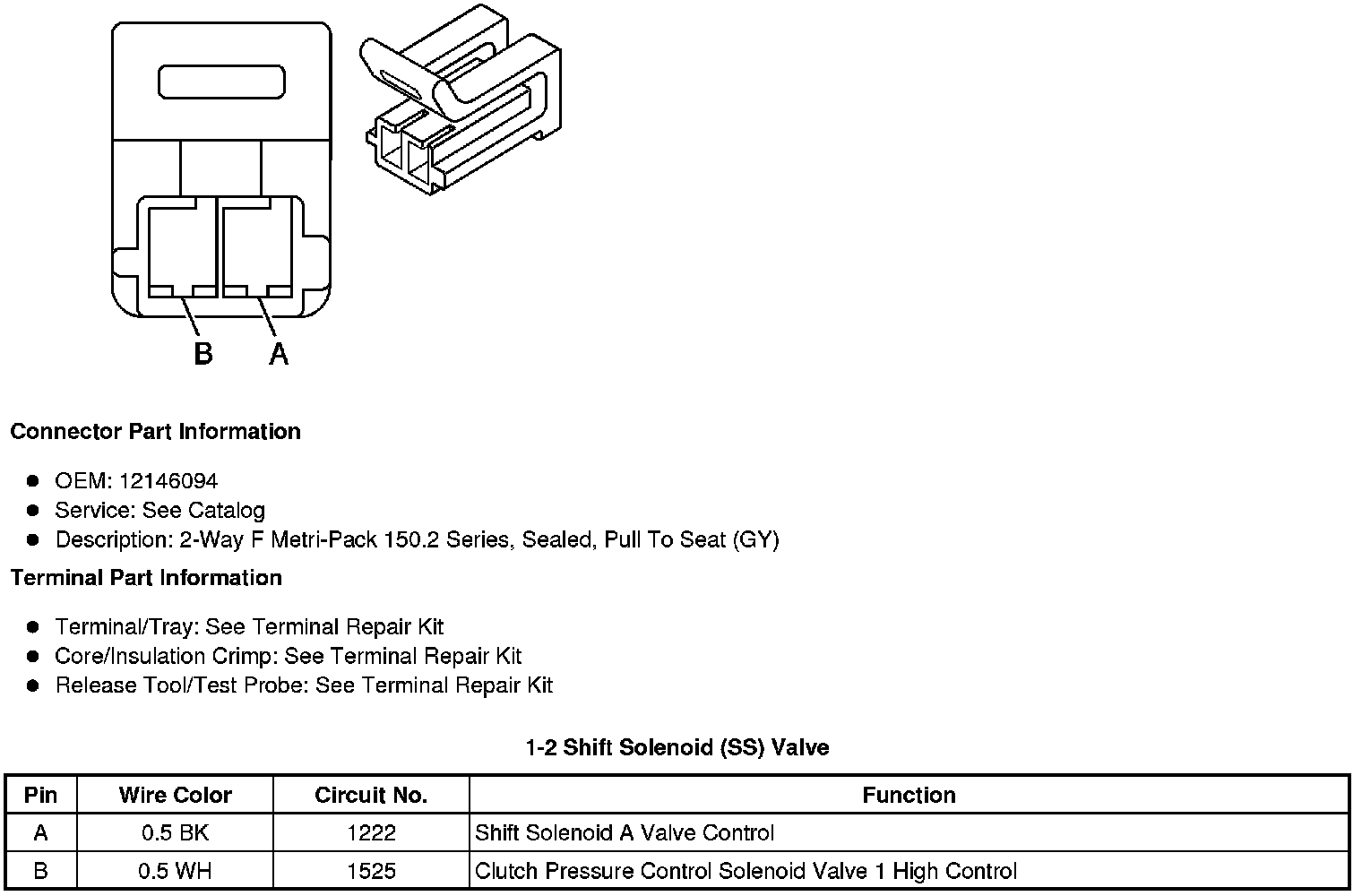

1-2 Shift Solenoid (SS) Valve

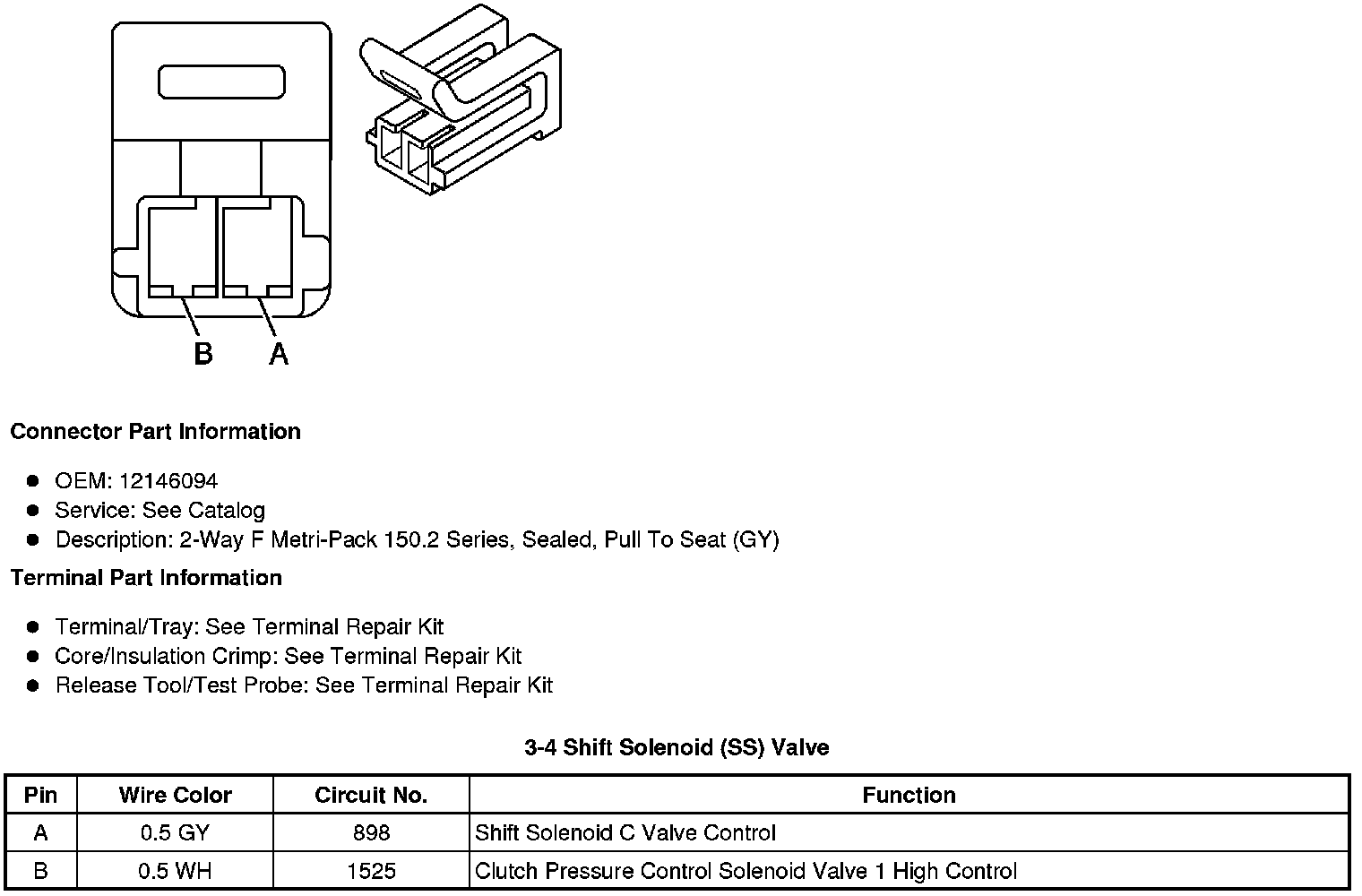

3-4 Shift Solenoid (SS) Valve






4-5 Shift Solenoid (SS) Valve
