Automatic Transmission/Transaxle
>>
Torque Converter Clutch Solenoid, A/T
Torque Converter Clutch Solenoid, A/T

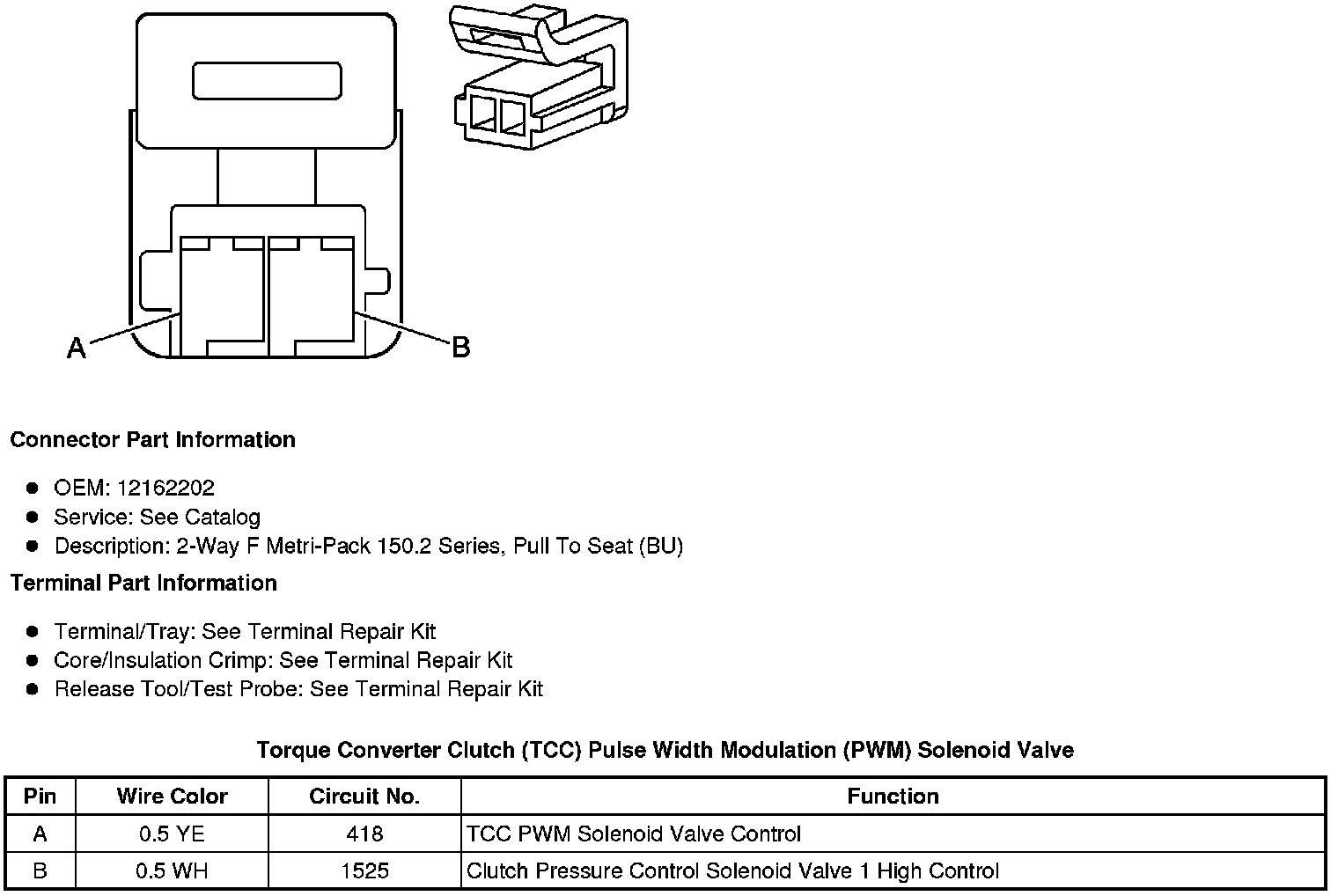

Component Connector End Views
Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve
