Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor

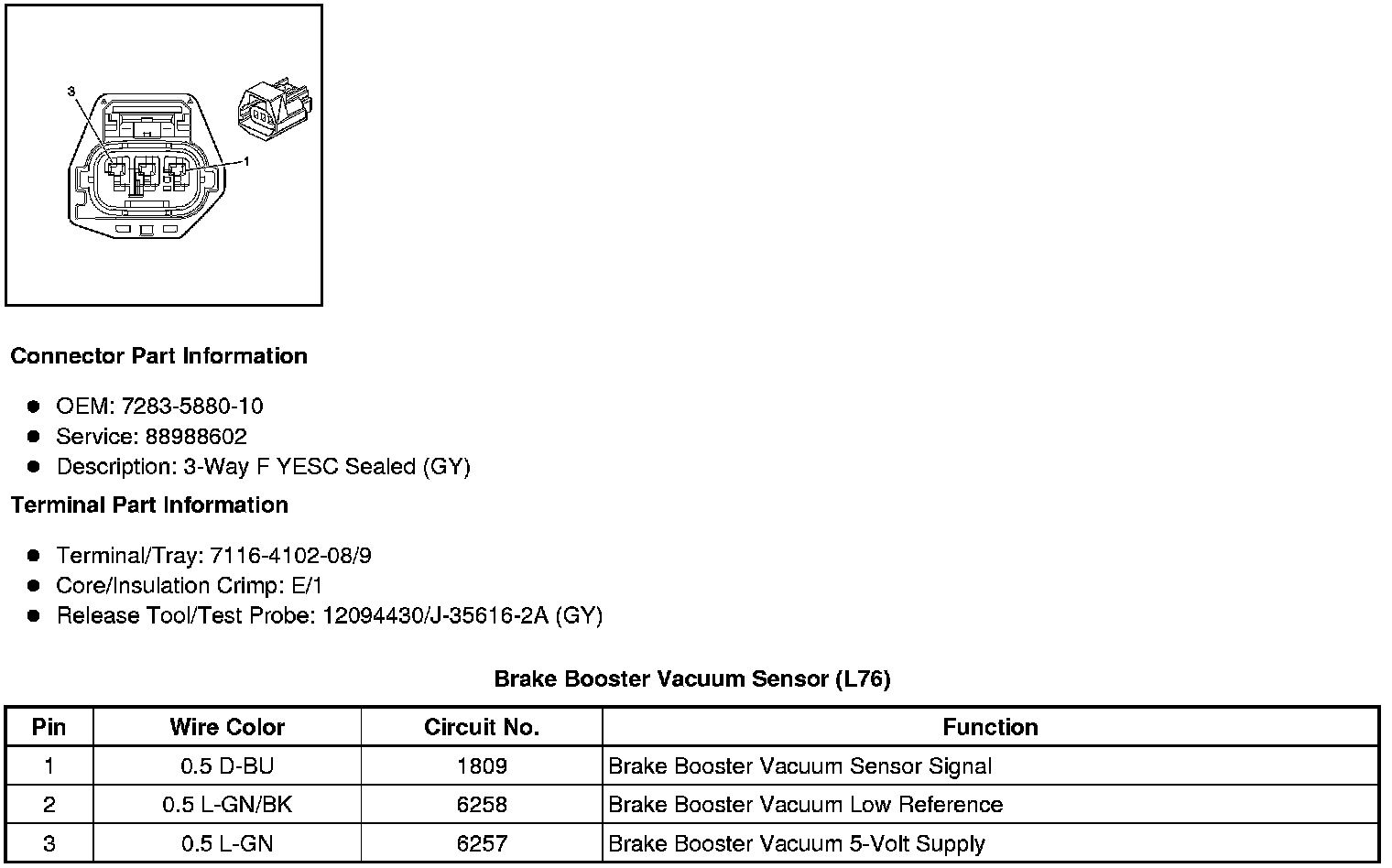

Component Connector End Views
Brake Booster Vacuum Sensor
(L76 - Gas 8 Cyl, 6.0L SFI, V8)
