Canister Purge Solenoid



Component Connector End Views

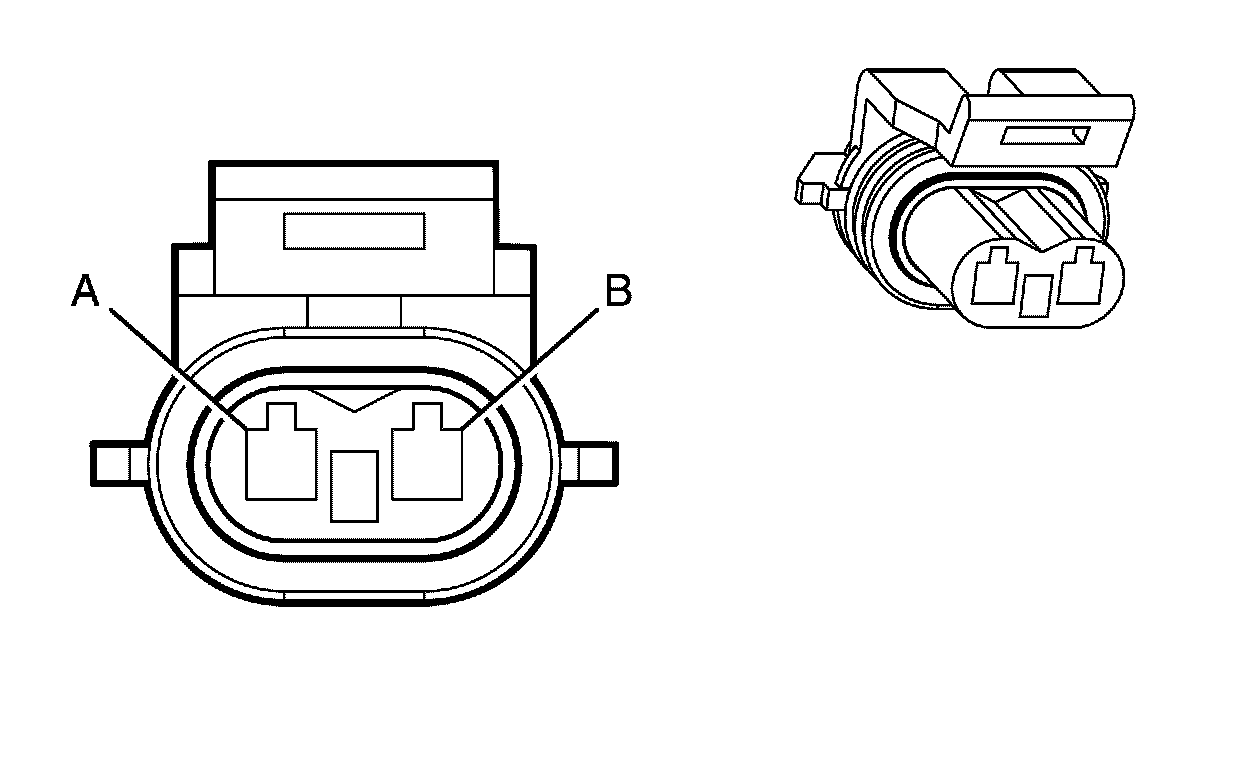

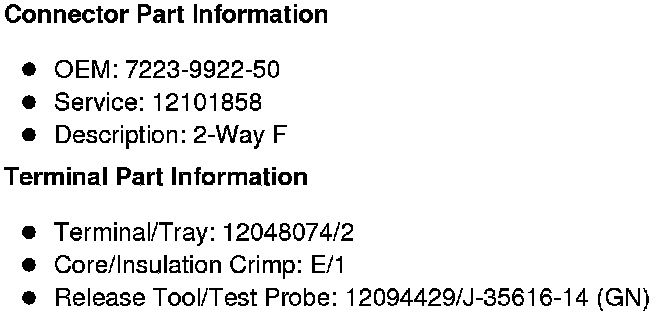

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (L76 - Gas 8 Cyl, 6.0L SFI, V8)

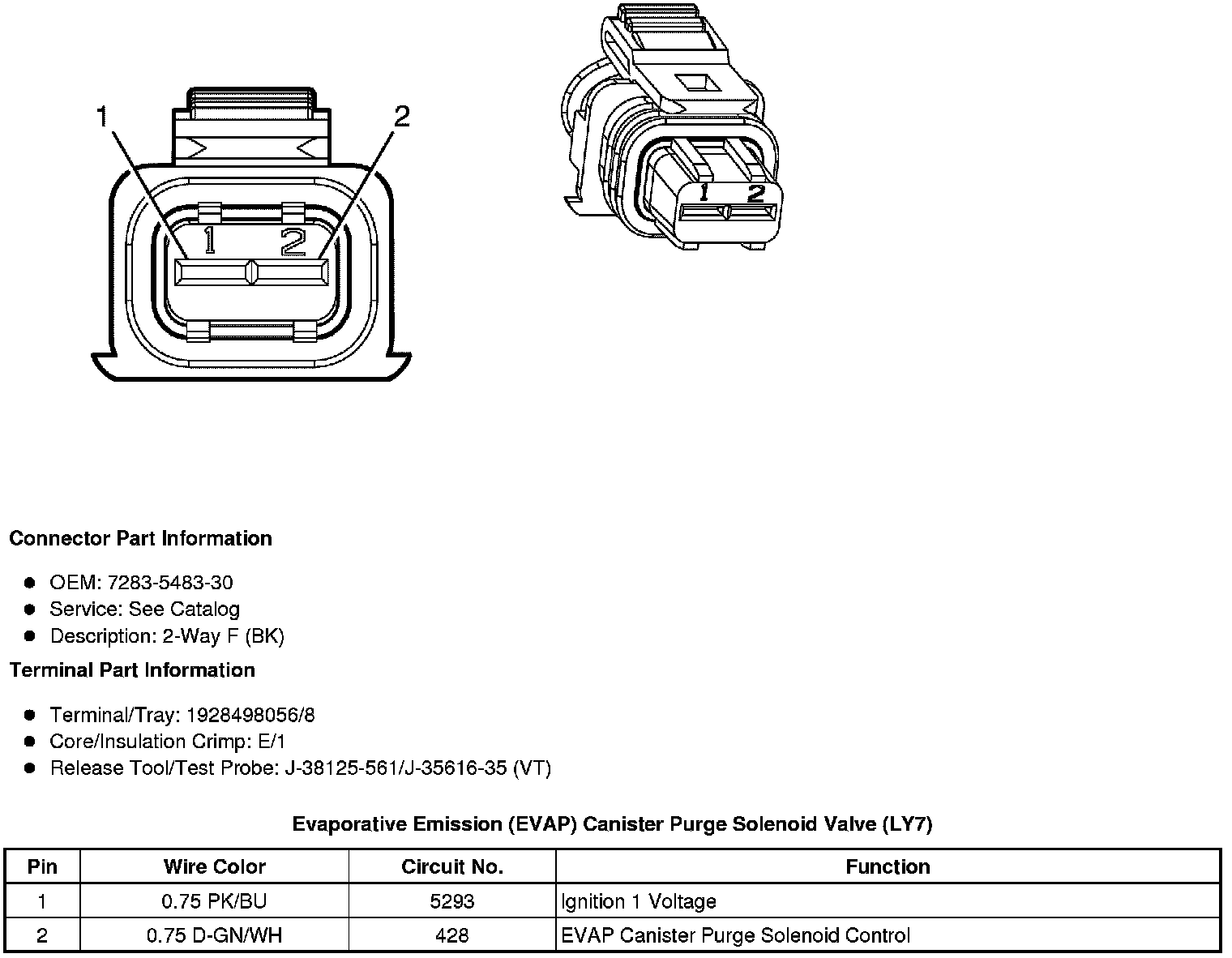

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)
