Engine - Coolant Temperature Sensor/Switch

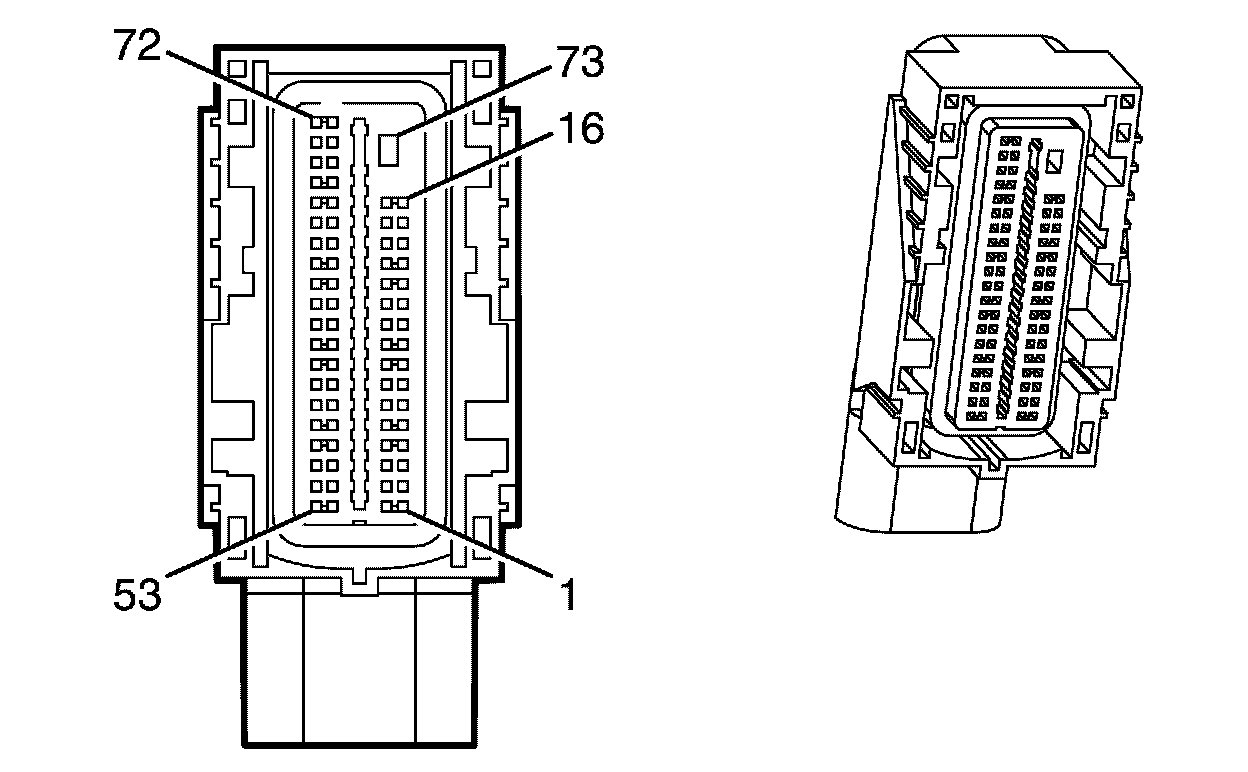

Component Connector End Views

Engine Control Module (ECM) (L76) X1

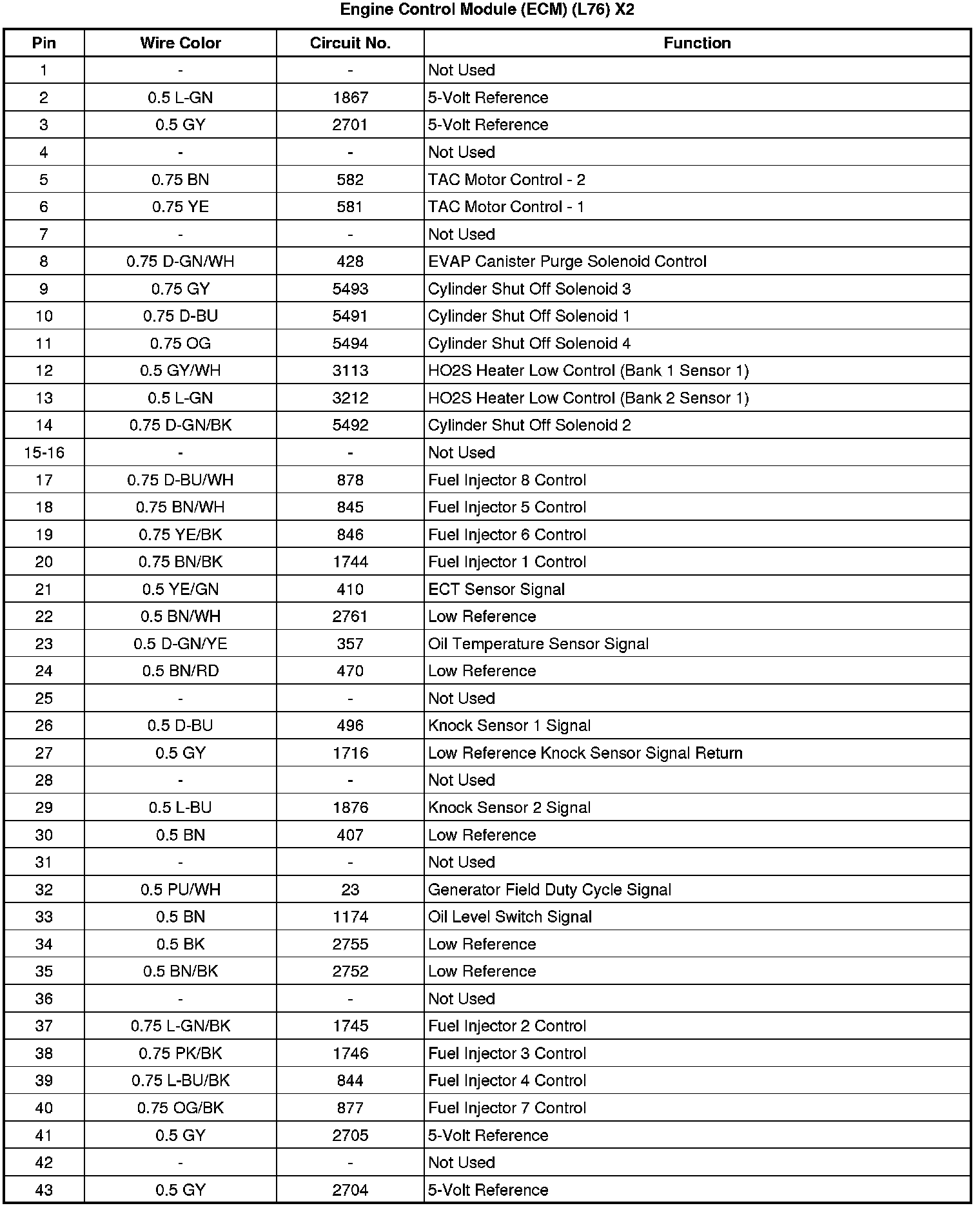

Engine Control Module (ECM) (L76) X2

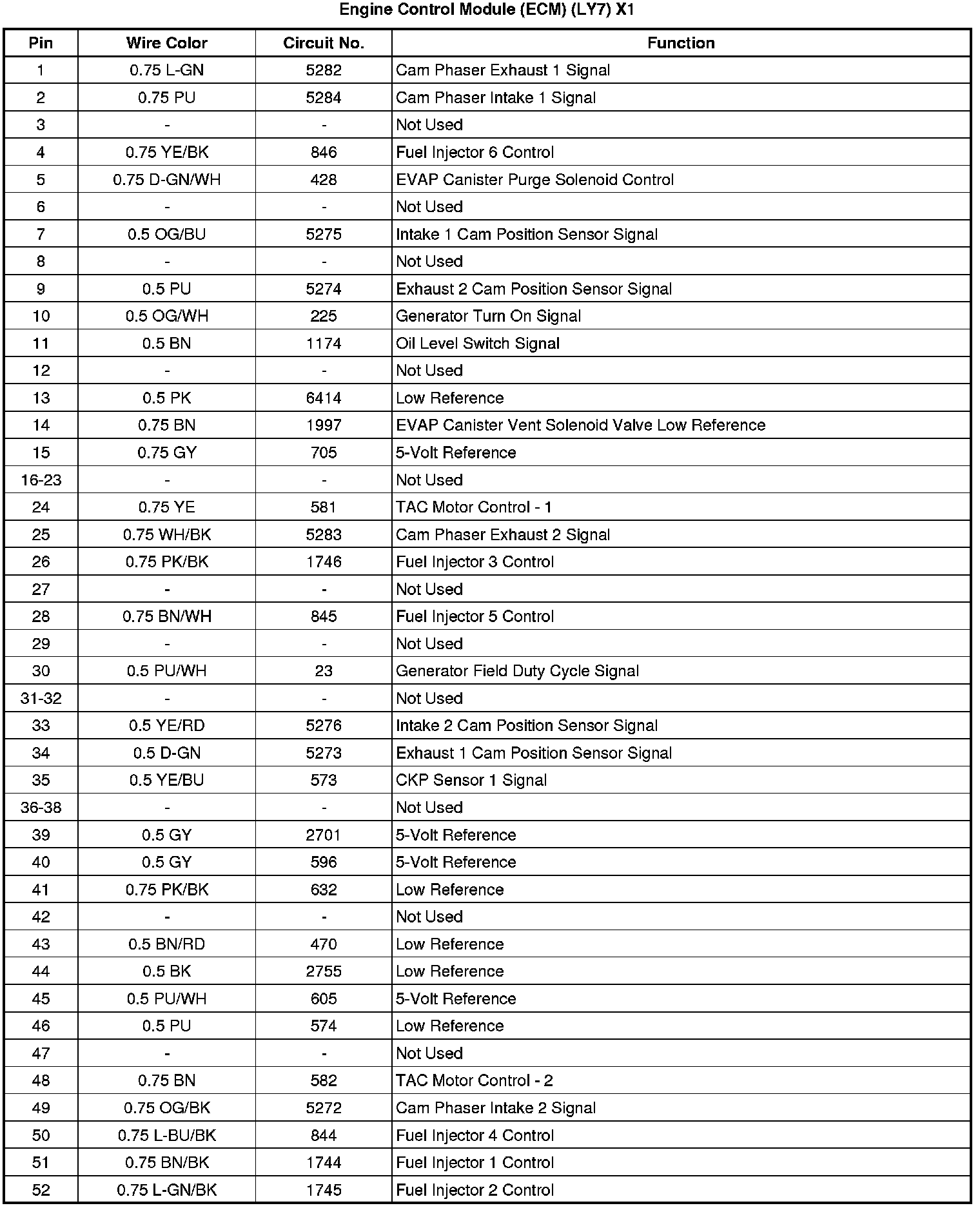

Engine Control Module (ECM) (LY7) X1

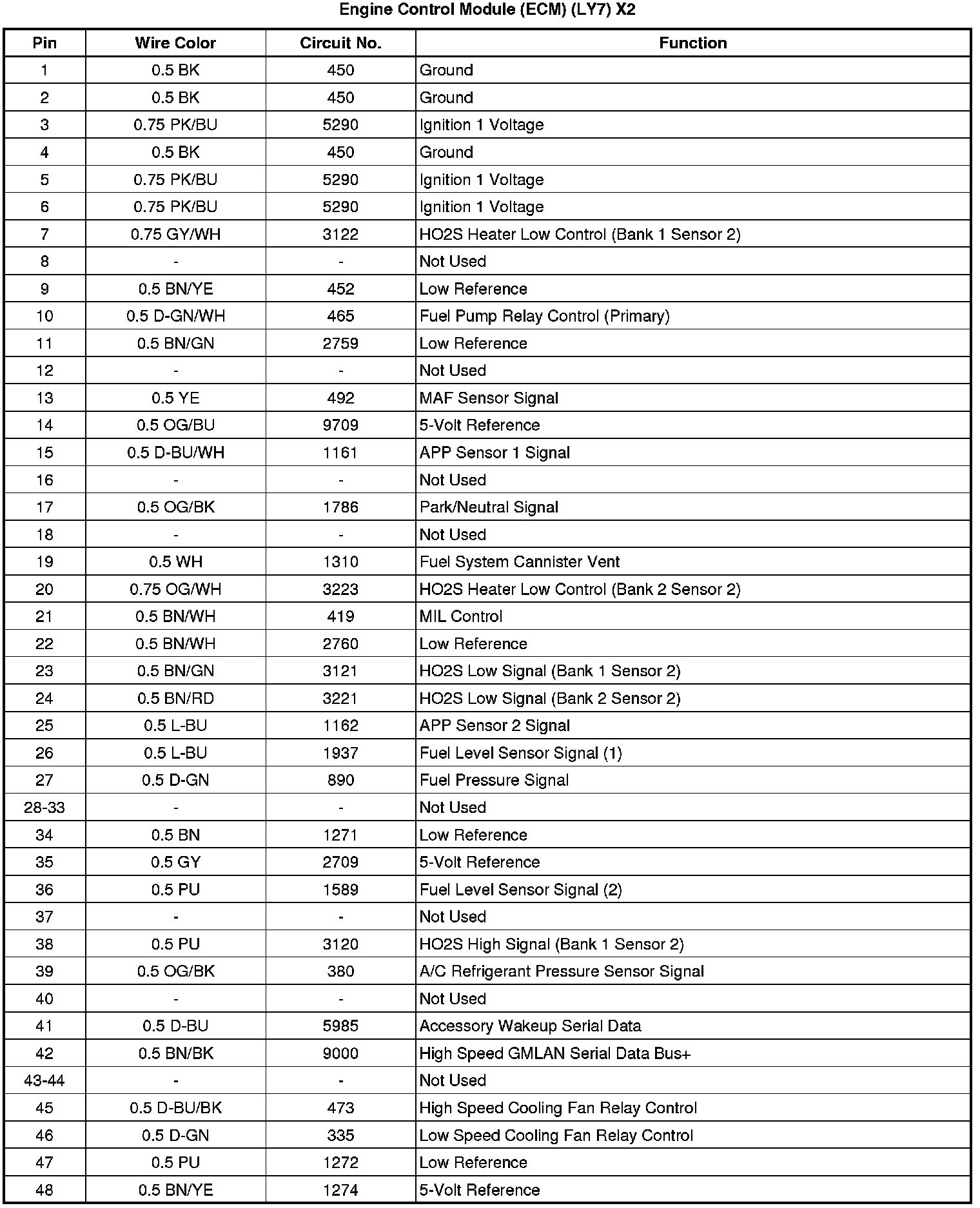

Engine Control Module (ECM) (LY7) X2
