Fuel Tank Pressure Release Valve
Fuel Tank Pressure Release Valve
Component Connector End Views

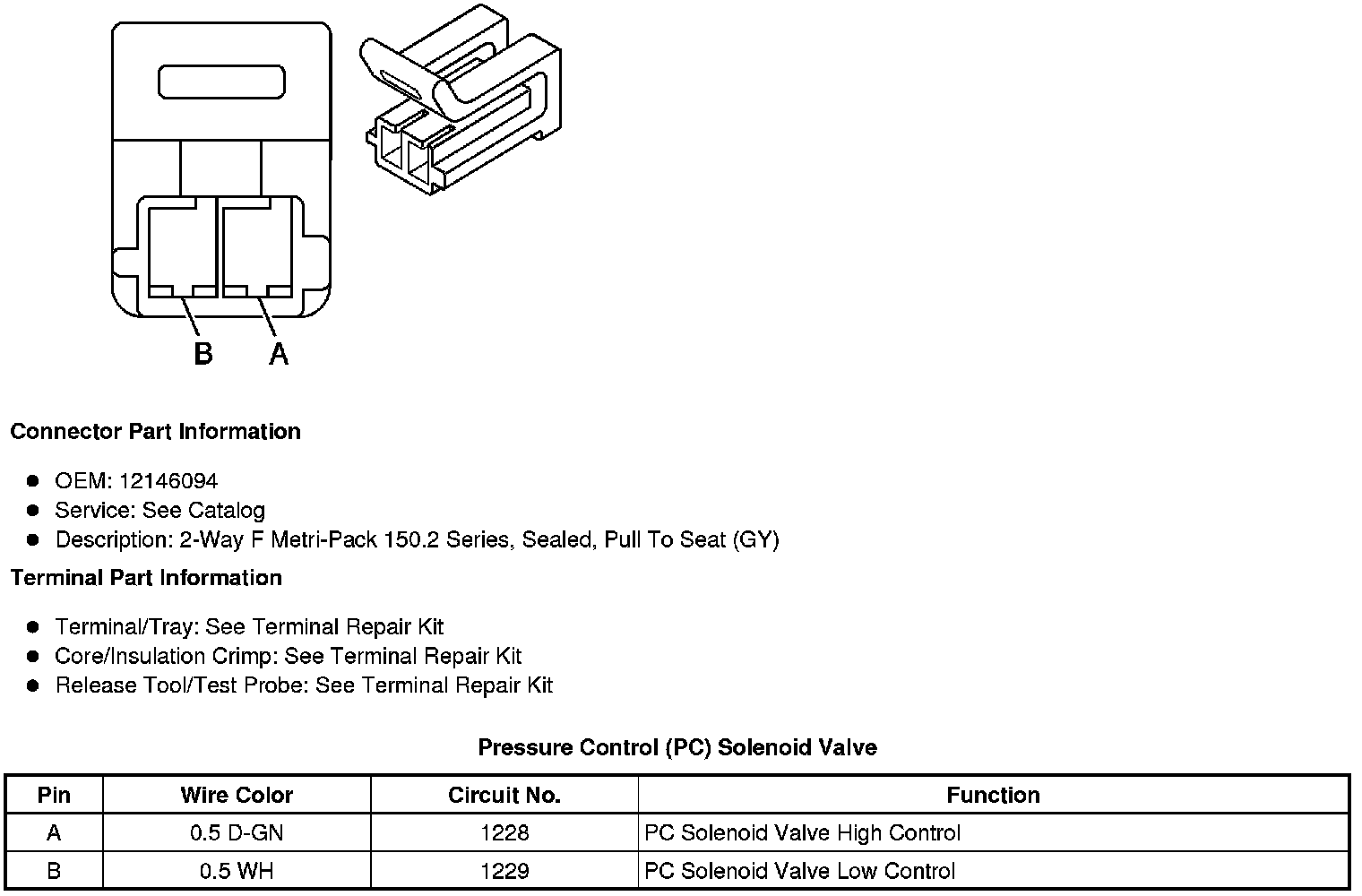

Pressure Control (PC) Solenoid Valve
