Ignition Switch



Component Connector End Views

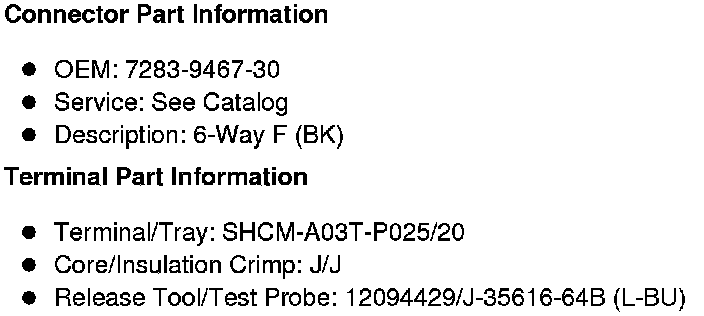

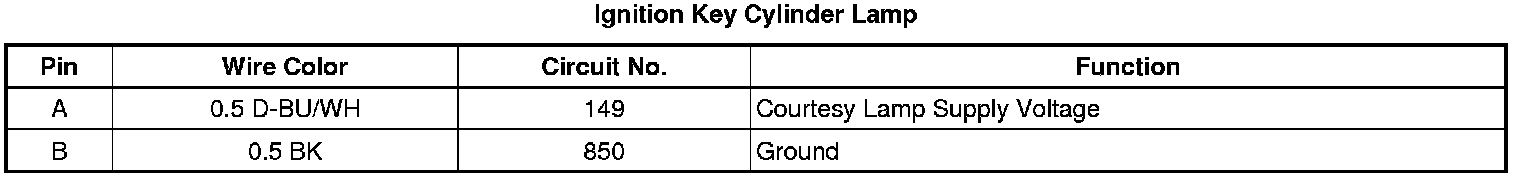

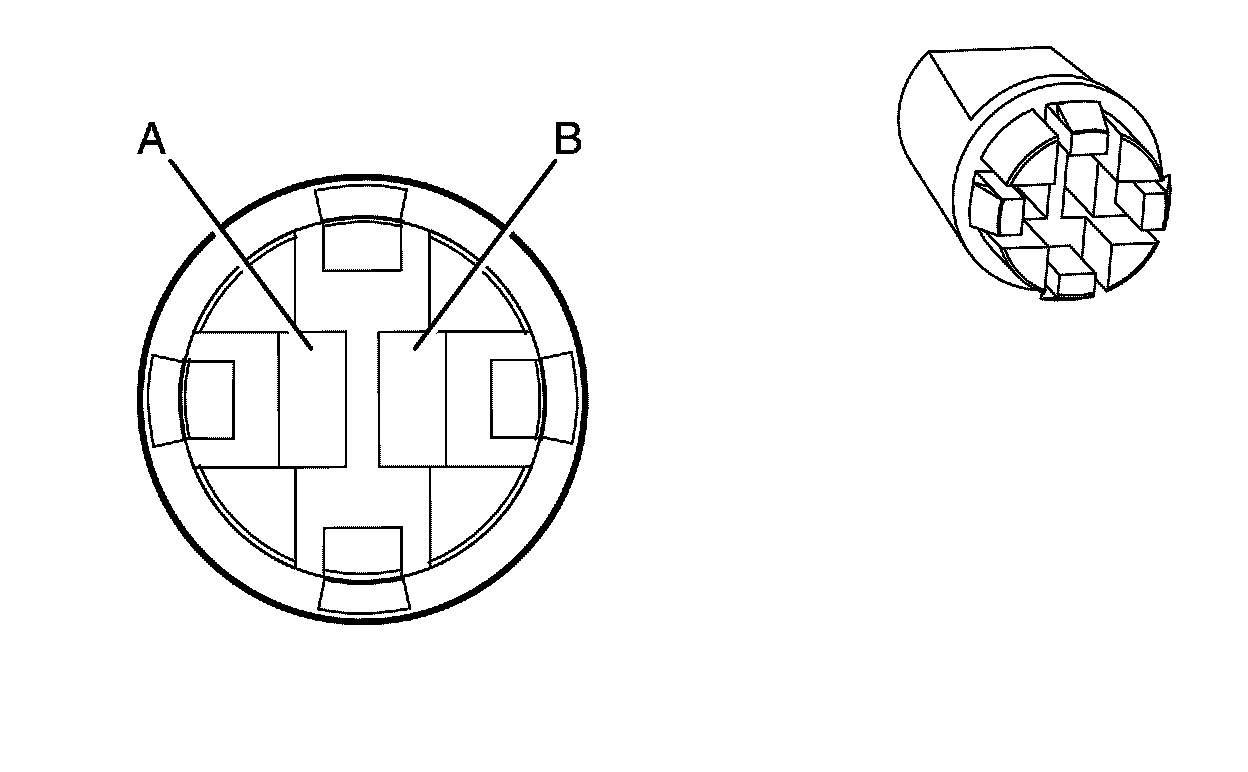

Ignition Key Cylinder Lamp













Ignition Key Cylinder Lamp

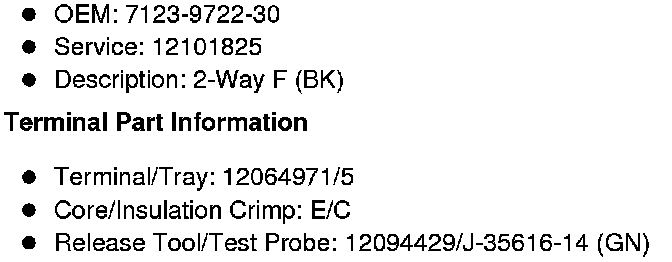

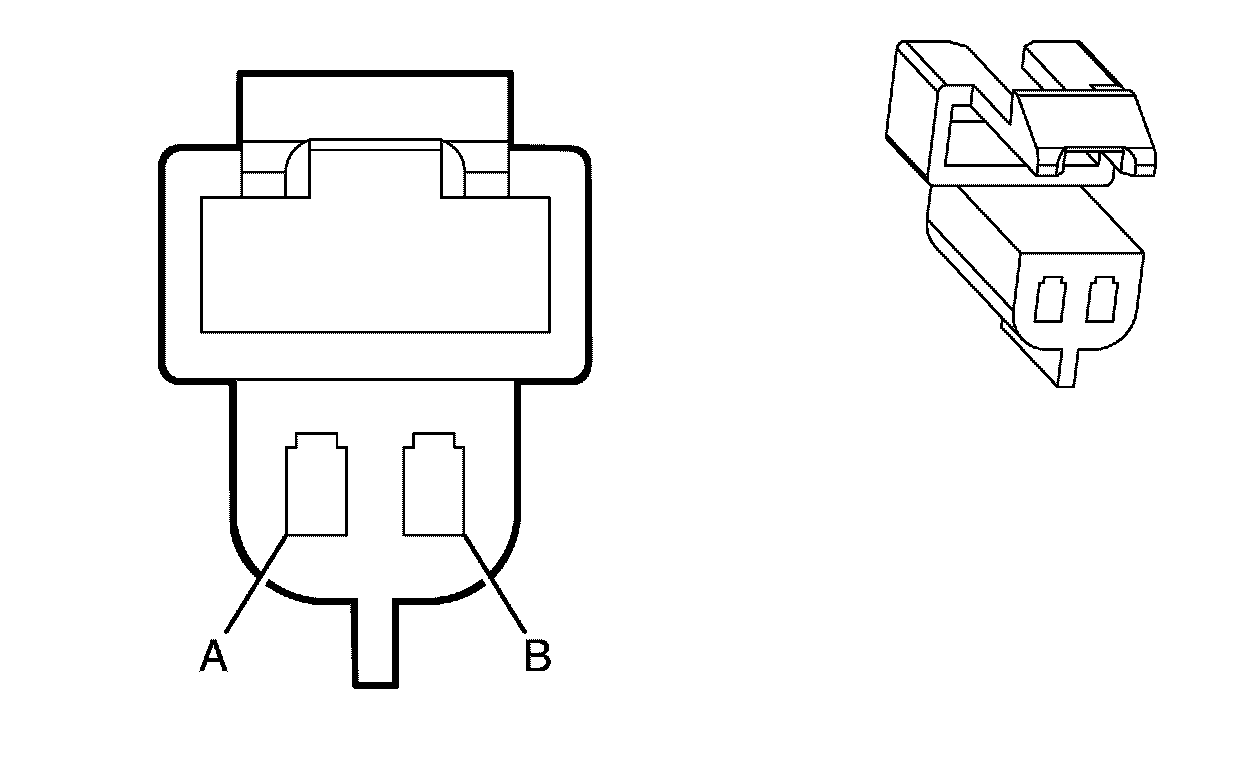

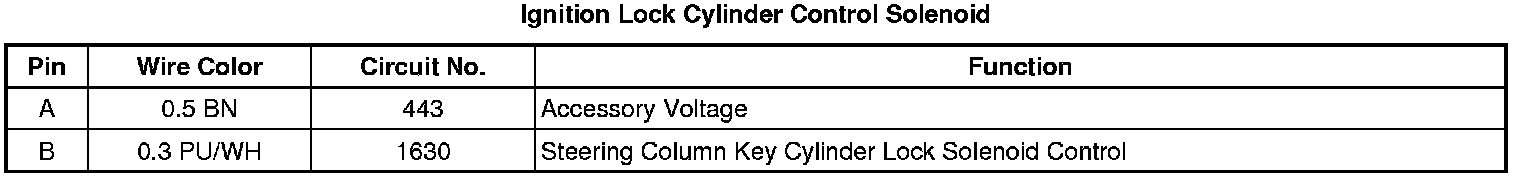

Ignition Lock Cylinder Control Solenoid














Ignition Switch
