Manifold Pressure/Vacuum Sensor



Component Connector End Views

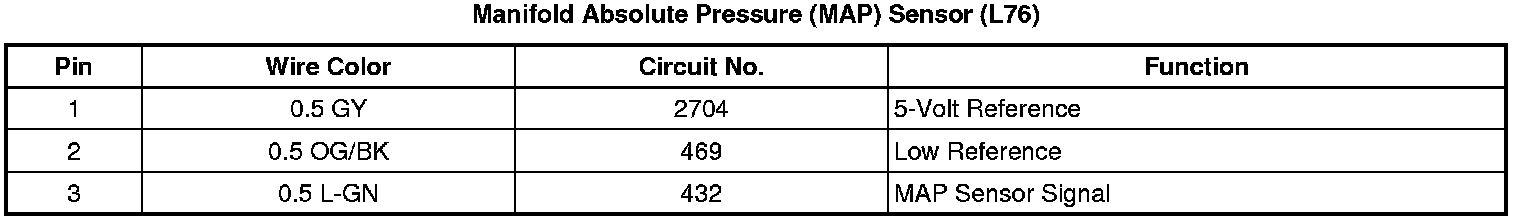

Manifold Absolute Pressure (MAP) Sensor (L76 - Gas 8 Cyl, 6.0L SFI, V8)
