Radio/Stereo



Component Connector End Views

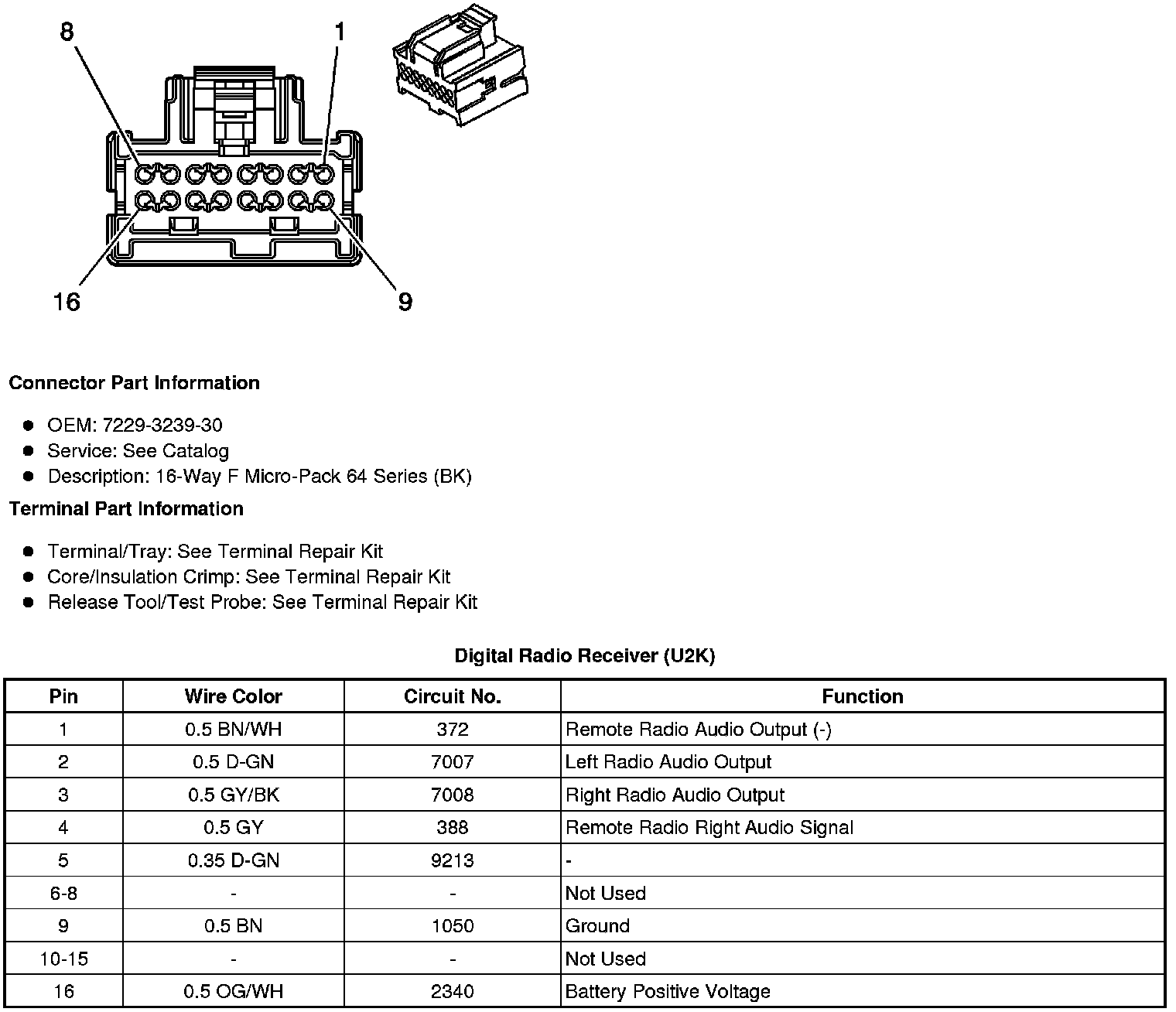

Digital Radio Receiver (U2K)







Component Connector End Views

Radio X1














Radio X2














Radio X4
