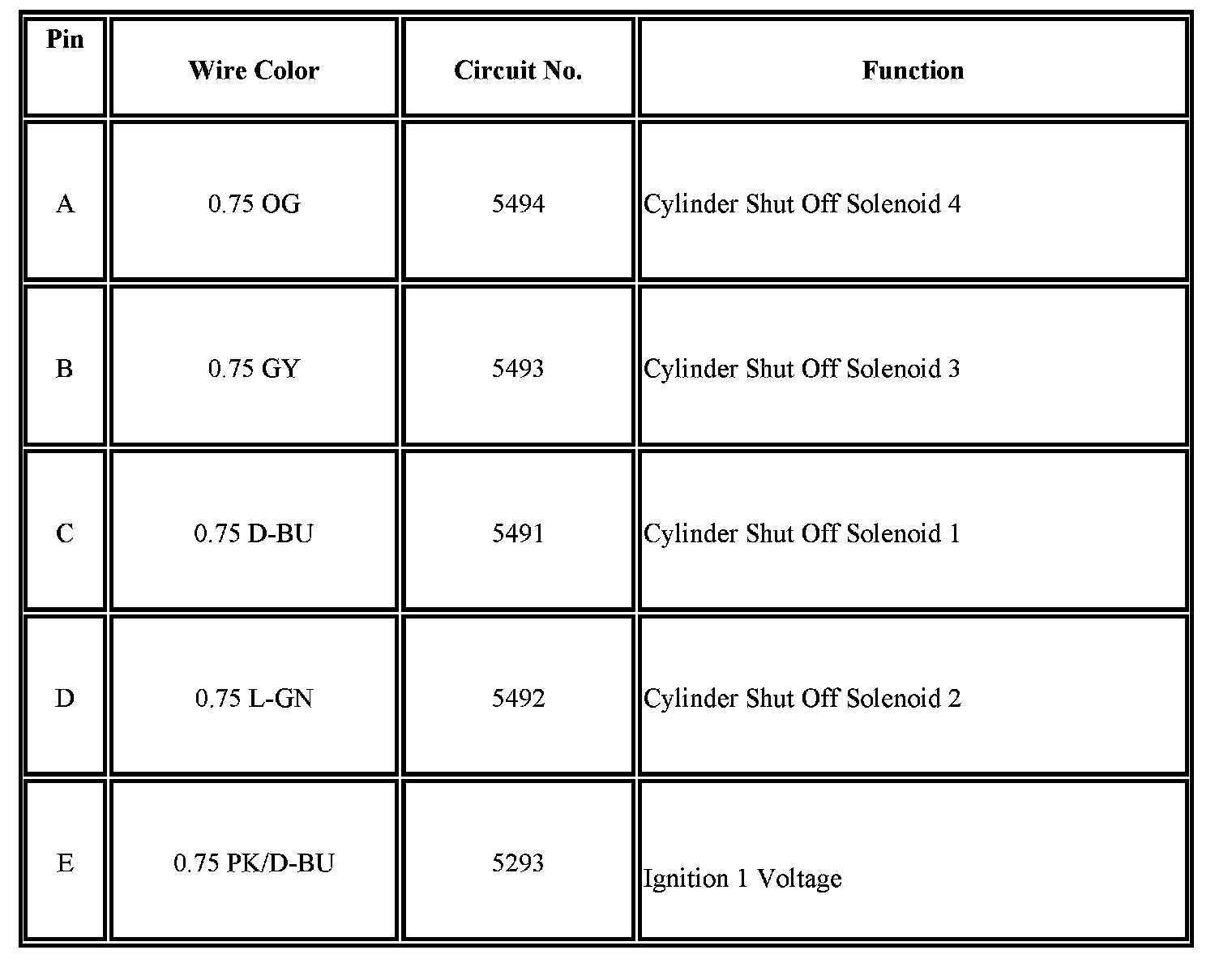

Valve Deactivation Solenoid

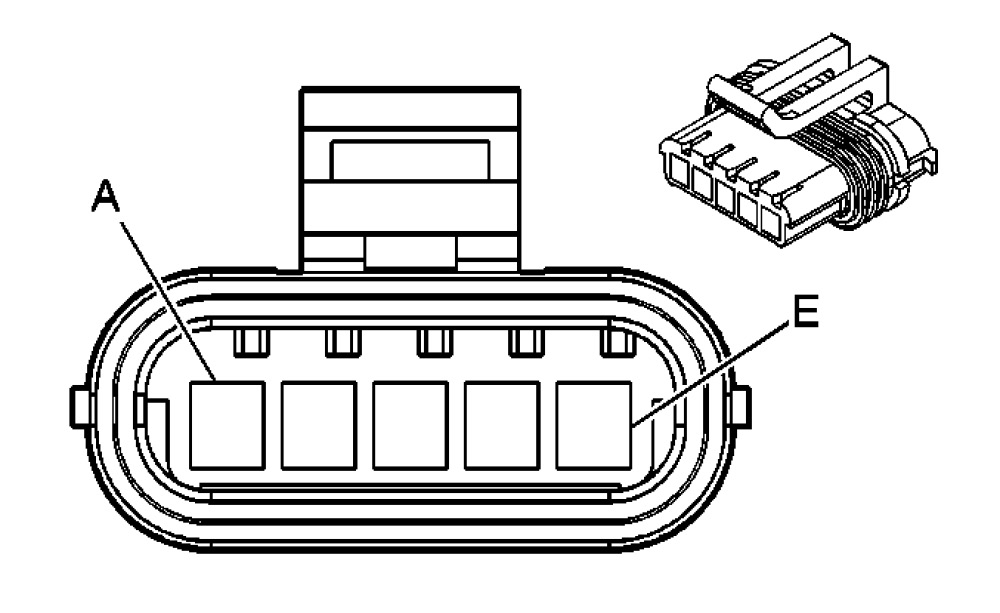

Component Connector End Views

Valve Lifter Oil Manifold (VLOM) Assembly






Connector Part Information

^ OEM: 12186057
^ Service Connector: 15306027
^ Description: 5-Way F Metri-Pack 150.2 Series Sealed (BK)


Terminal Part Information

^ Terminal/Tray: 12124075/5
^ Core/Insulation Crimp: E/C
^ Release Tool/Test Probe: 12180559-1/J-35616-14 (GN)
