Home >> Pontiac >> 2008 >> G8 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> 5L40-E/5L50- E Automatic Transmission

5L40-E/5L50- E Automatic Transmission

Automatic Transmission Controls Schematics

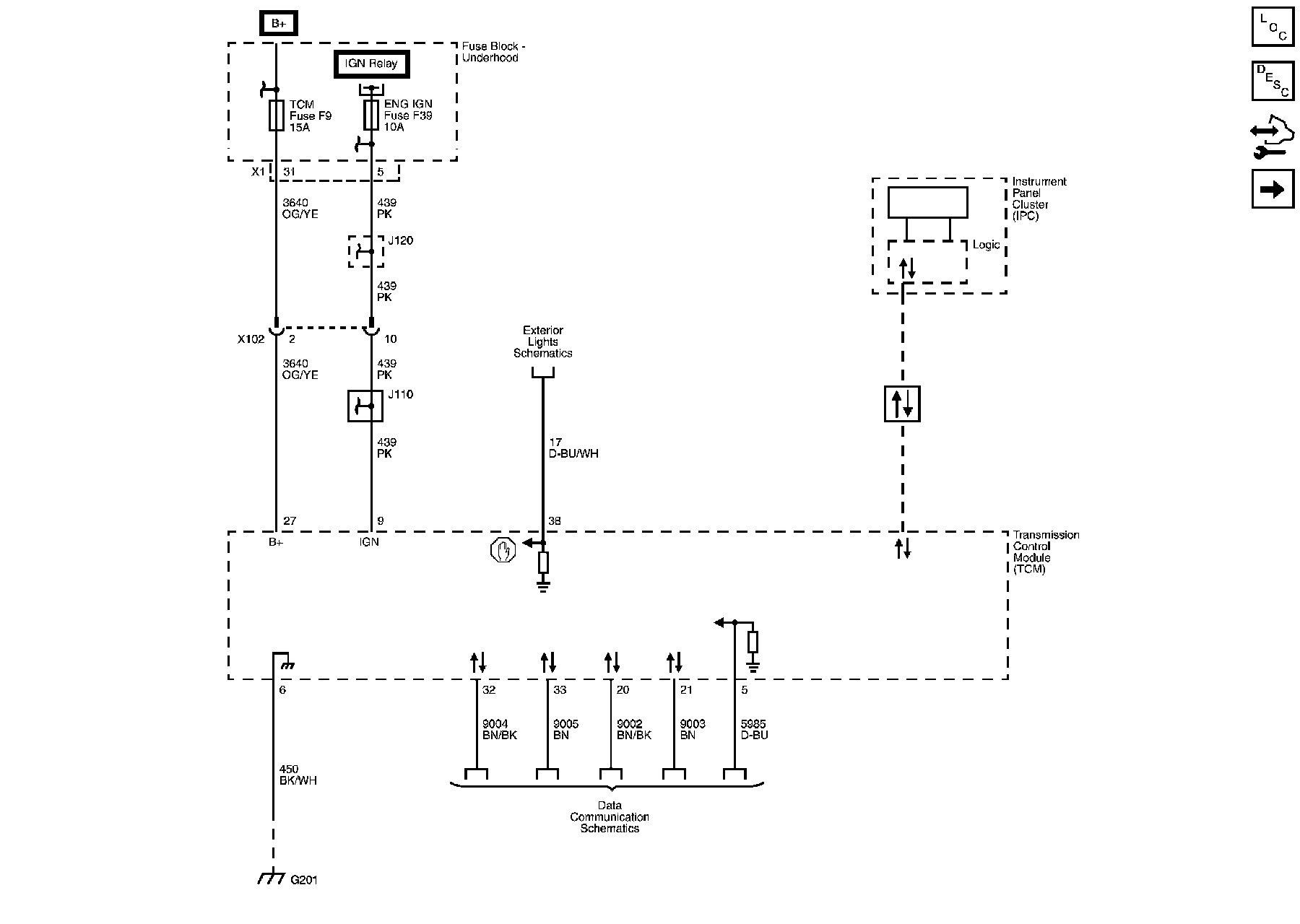

Power, Ground, and Serial Data

Shift Controls

Range and Driver Shift Request Controls
