5L40-E/5L50- E Automatic Transmission

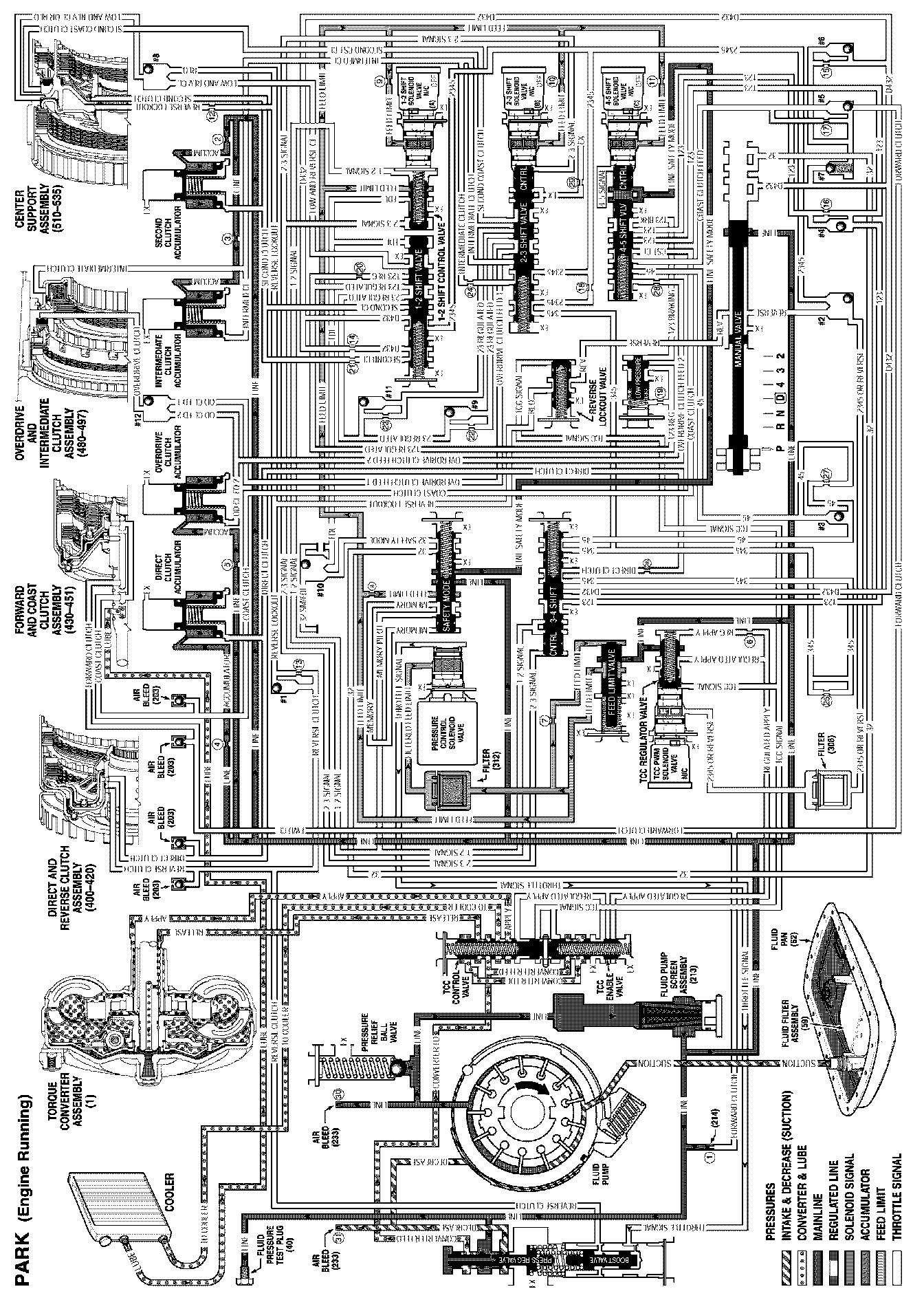

Park Engine Running

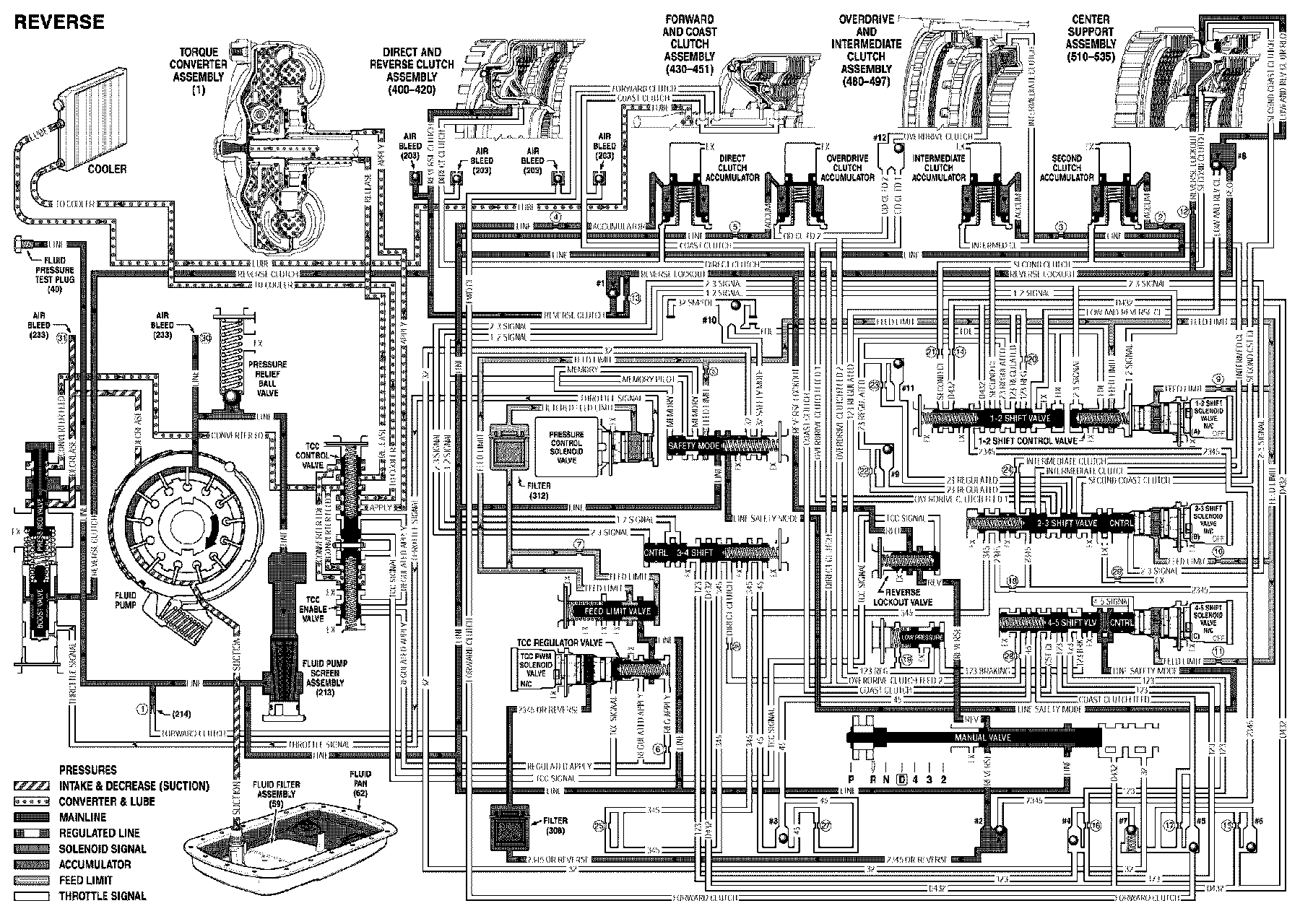

Reverse

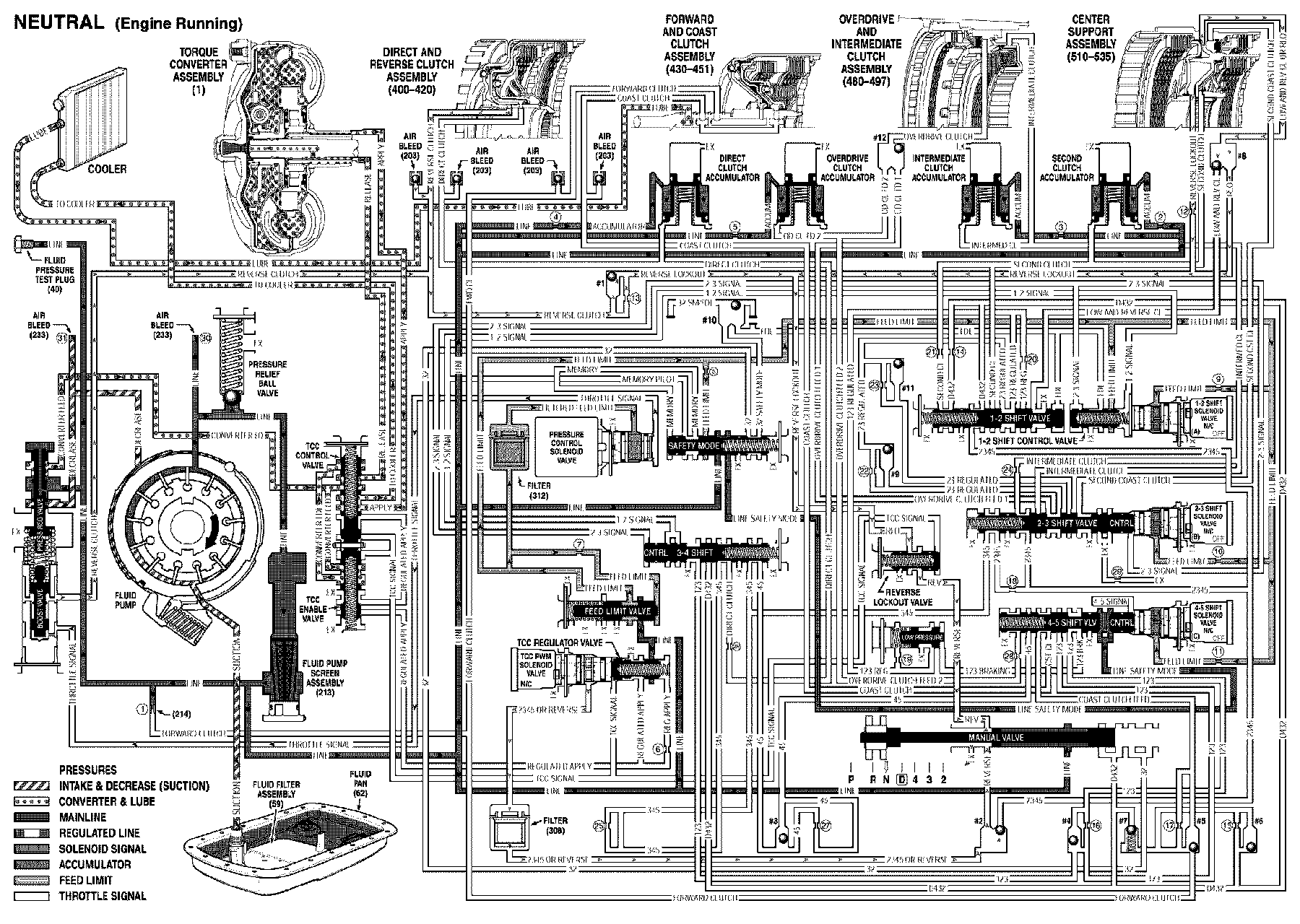

Neutral Engine Running
Overdrive Range, First Gear
Overdrive Range, First Gear
Overdrive Range, Second Gear

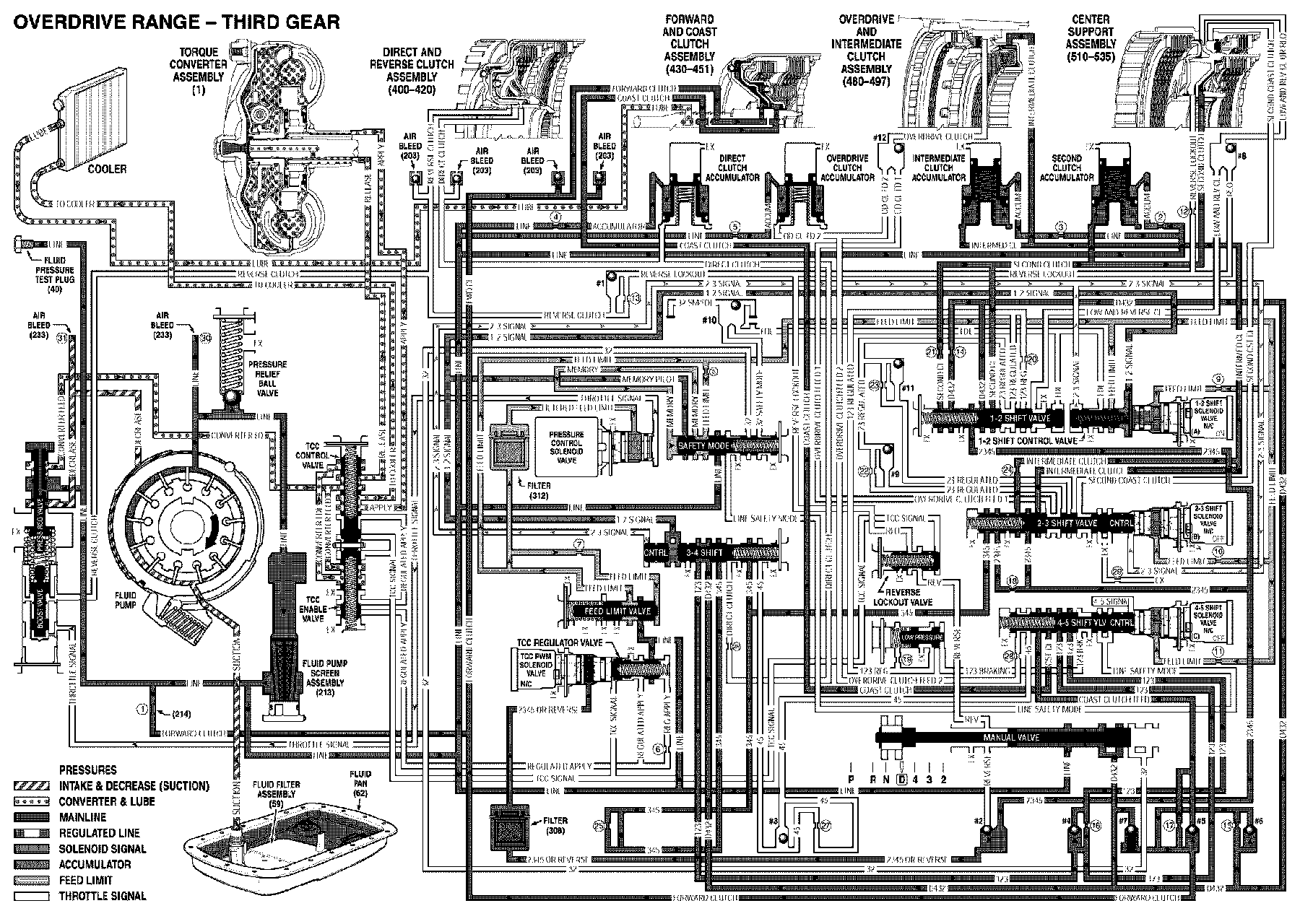

Overdrive Range, Third Gear - Torque Converter Clutch (TCC) Applied
Overdrive Range, Fourth Gear - Torque Converter Clutch (TCC) Applied

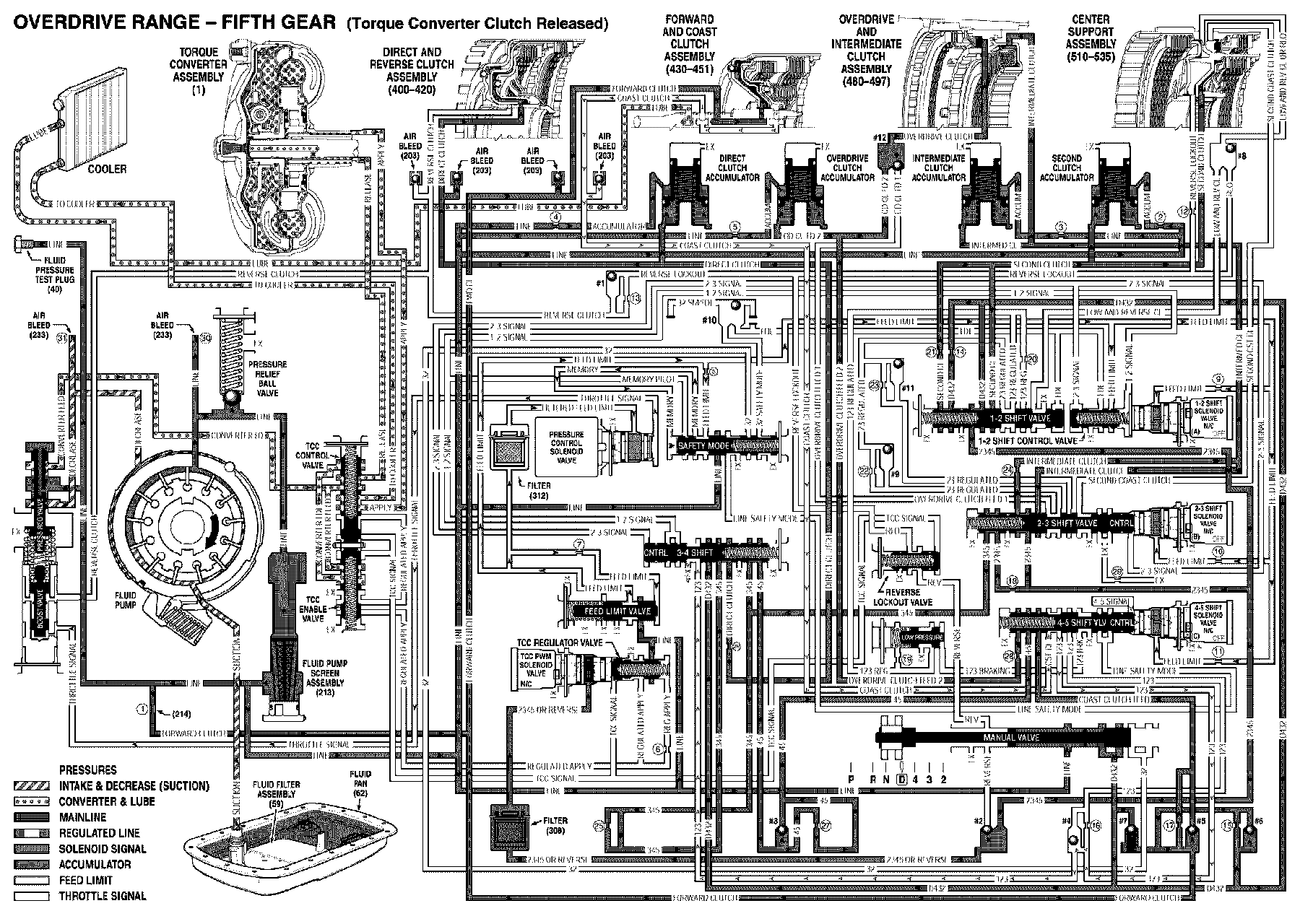

Overdrive Range, Fifth Gear - Torque Converter Clutch (TCC) Released

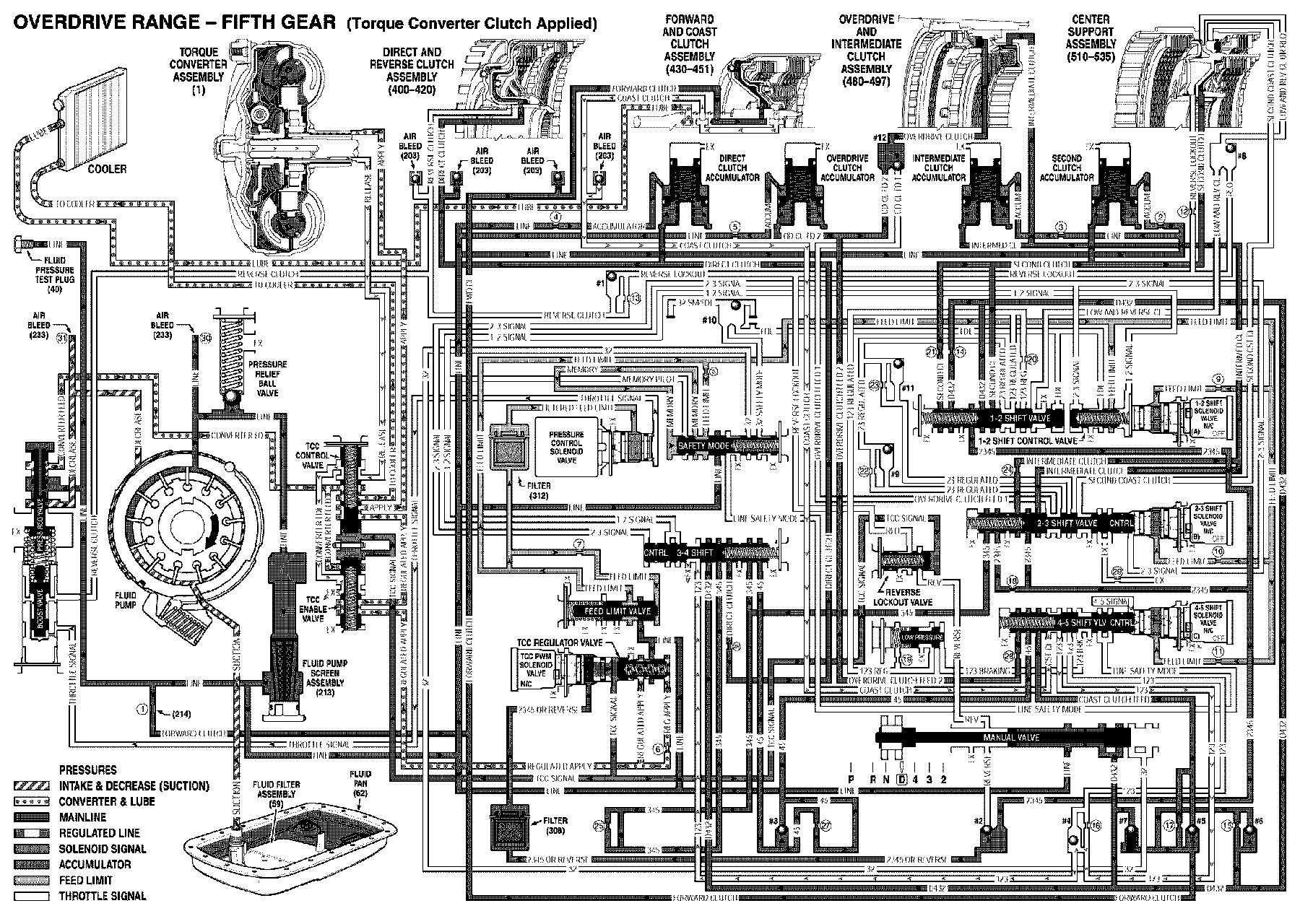

Overdrive Range, Fifth Gear - Torque Converter Clutch (TCC) Applied

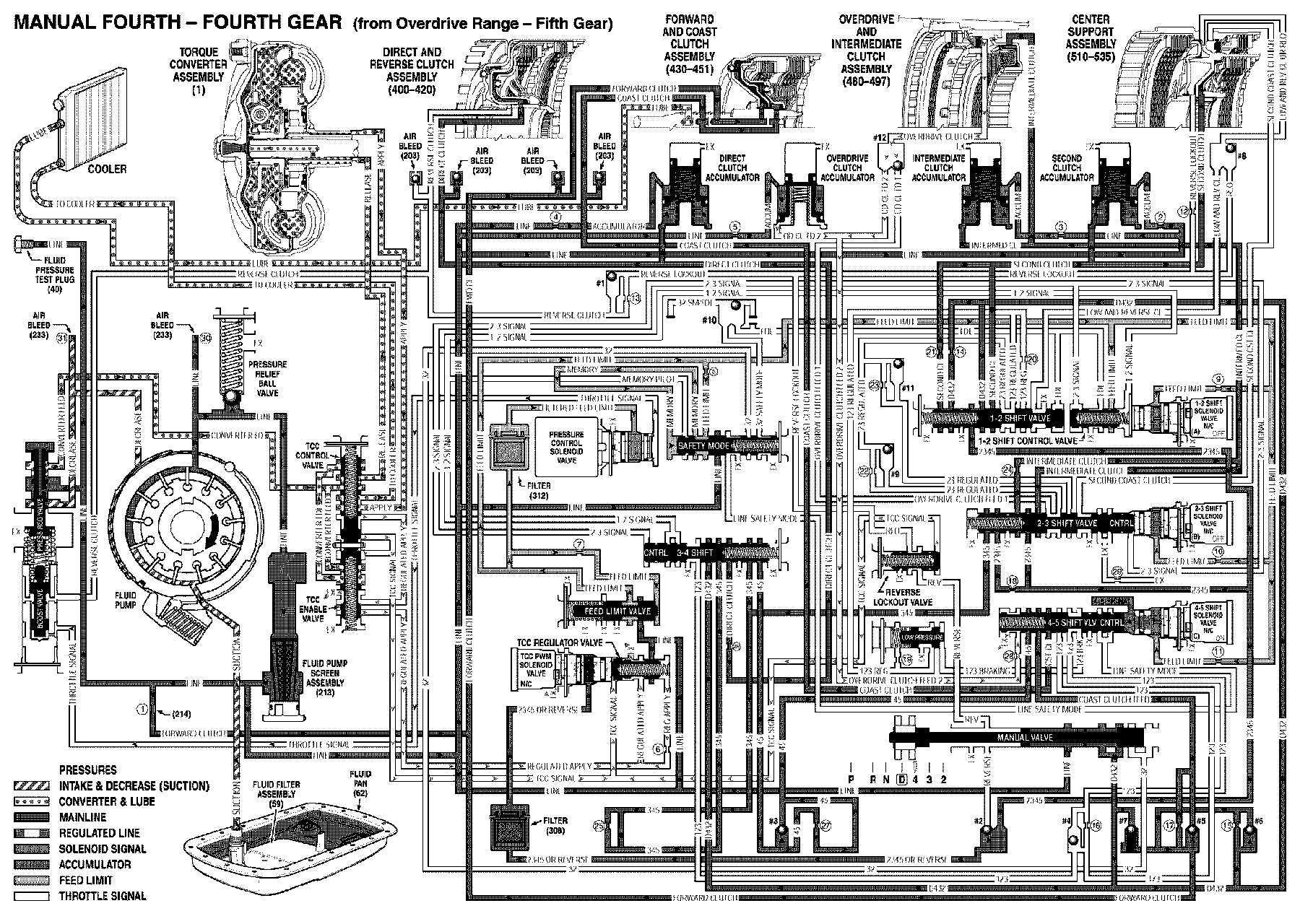

Manual Fourth

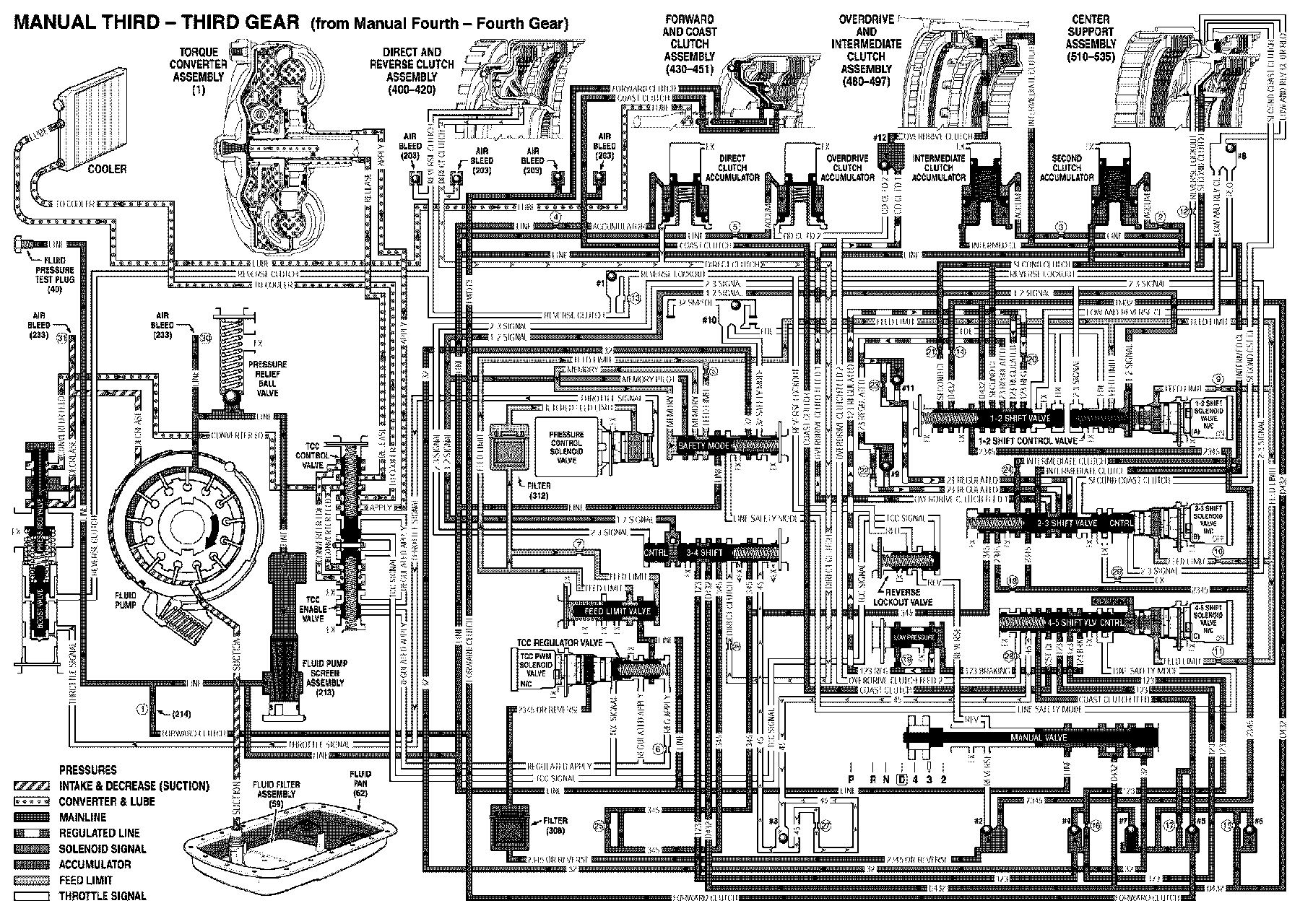

Manual Third

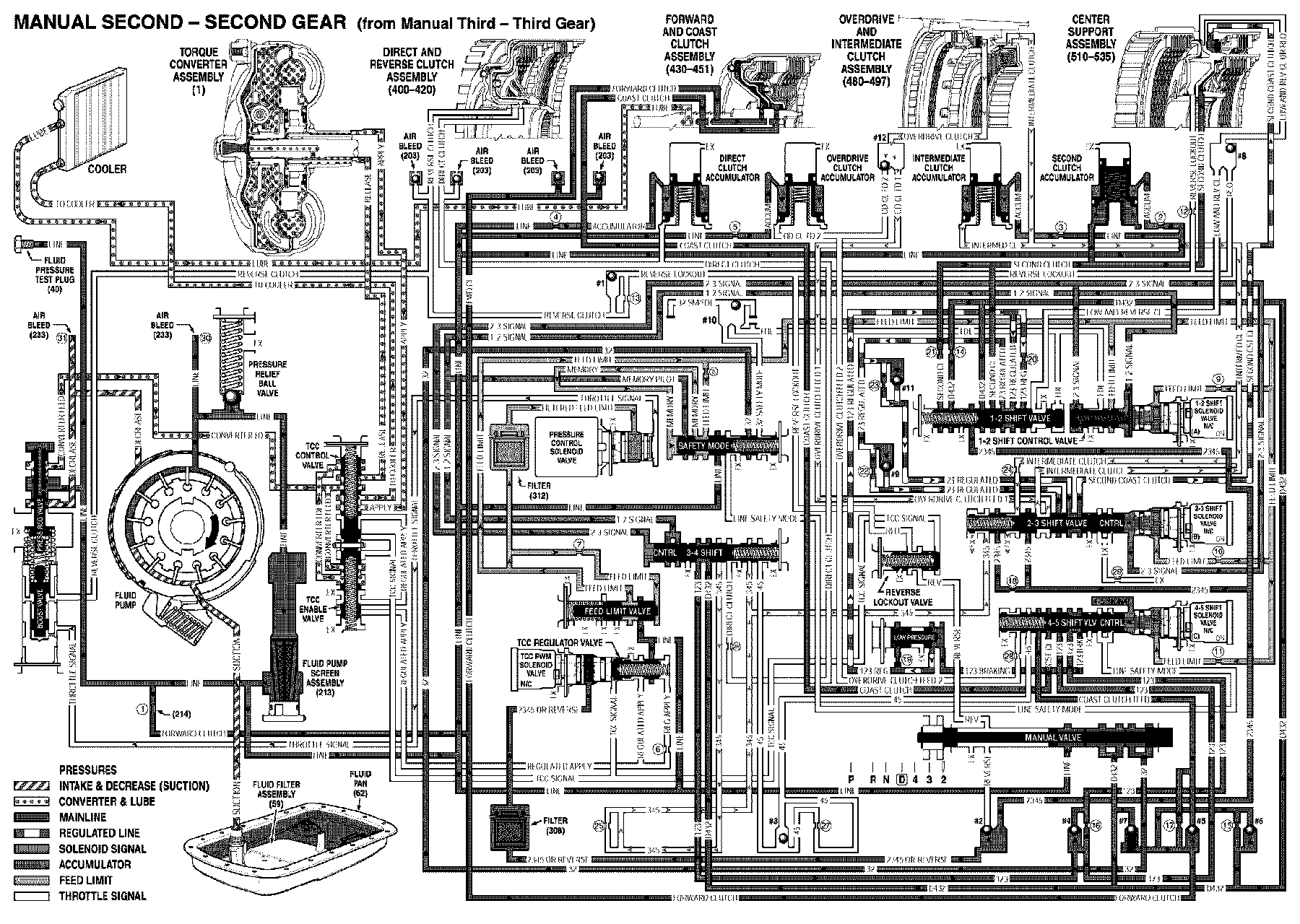

Manual Second Gear
Manual Second - First Gear
