Battery Wiring

Harness Routing Views

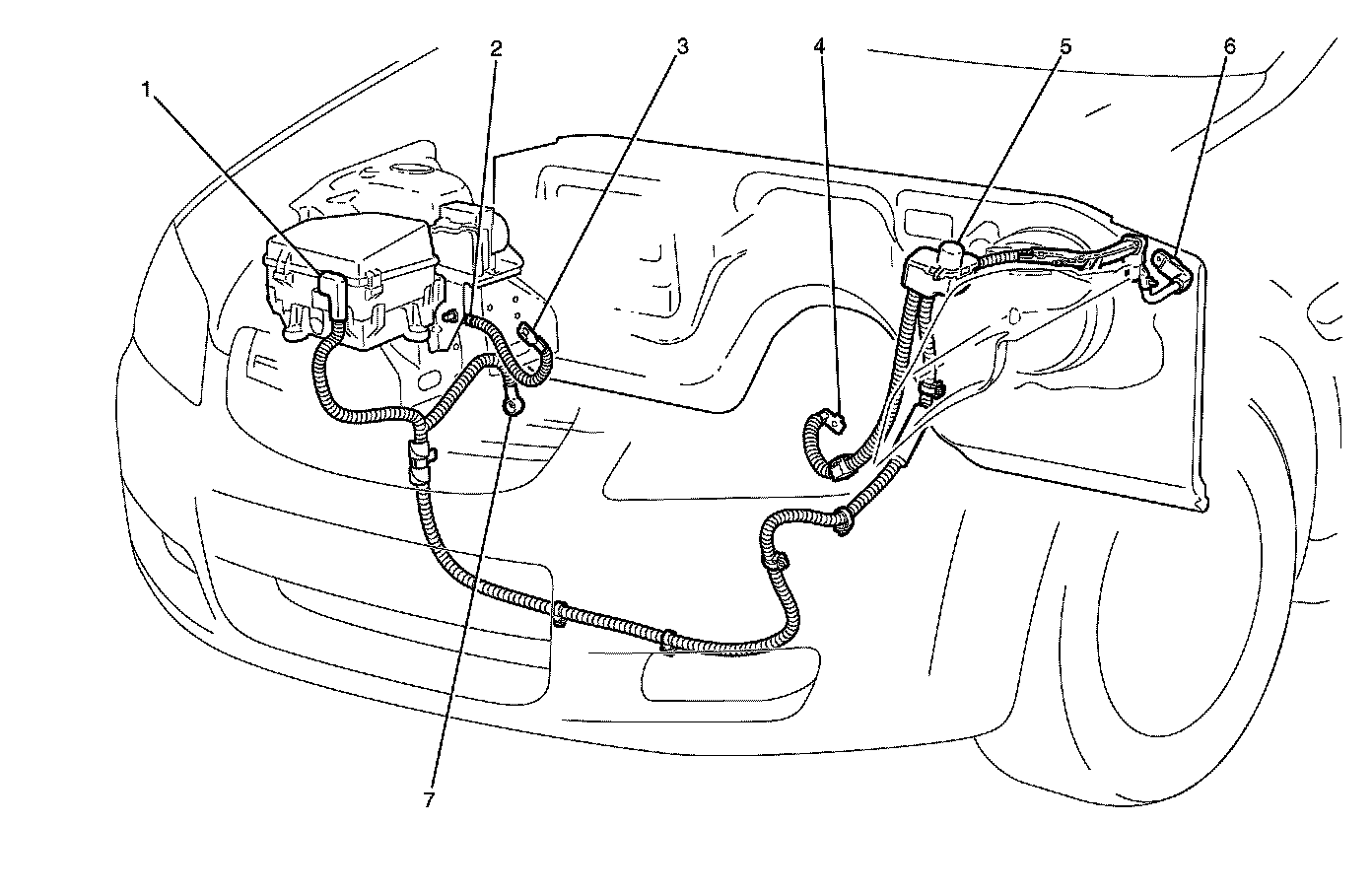

Battery Wiring (3.6L, Left Hand Drive)

1 - Fuse Block - Underhood - X124
2 - Body Ground - G103
3 - Engine Block Ground - G108
4 - Starter Connector - M15
5 - Jumpstart Positive Stud
6 - Dash Panel Grommet / Stud
7 - Generator Connector - G8-X2

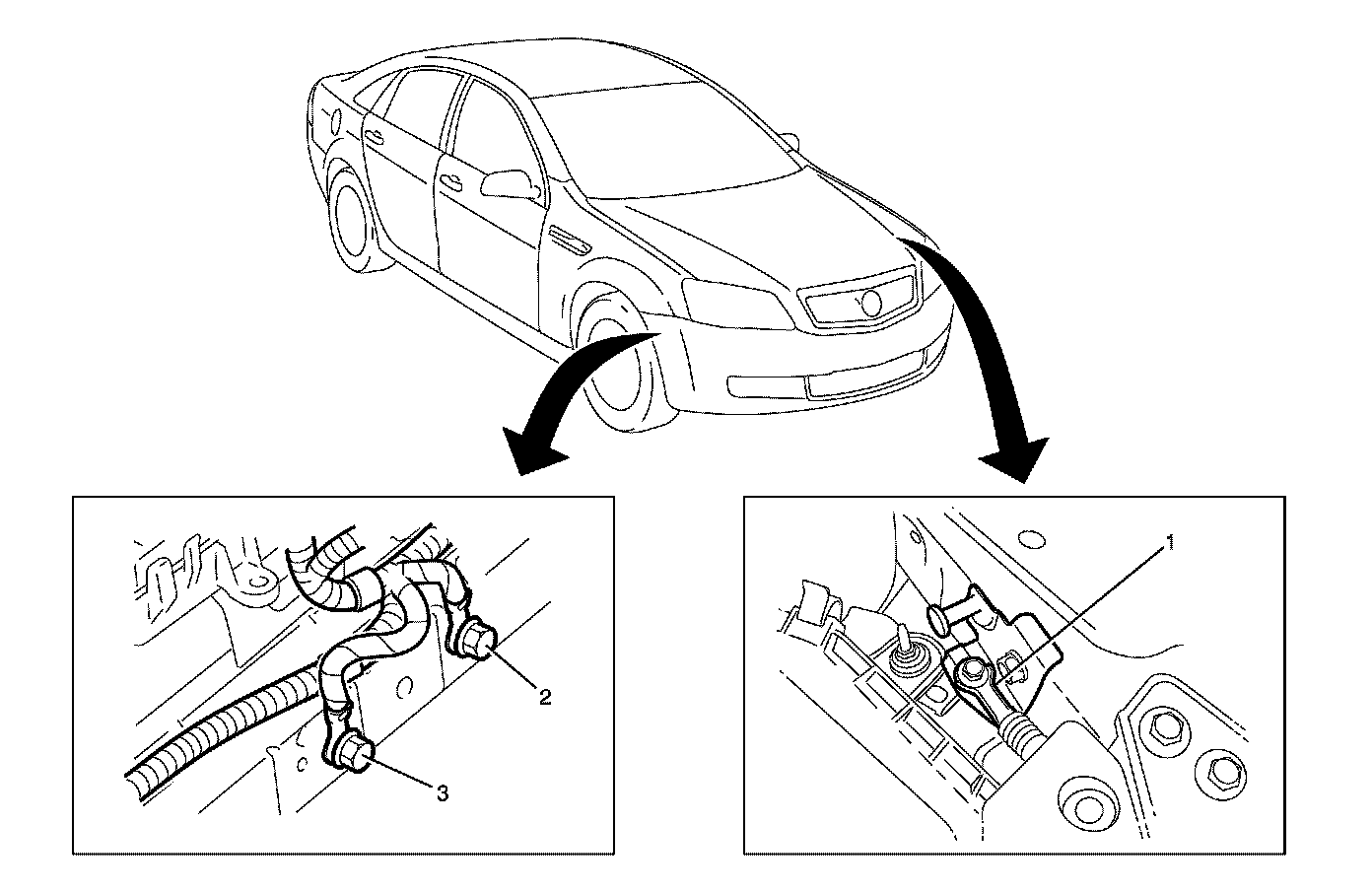

Battery Wiring (6.0L, Left Hand Drive)

1 - Ground Chassis Fender - G104 (Jumpstart Negative post)
2 - Ground Chassis Rail Right - G101
3 - Ground Chassis Rail Right - G102

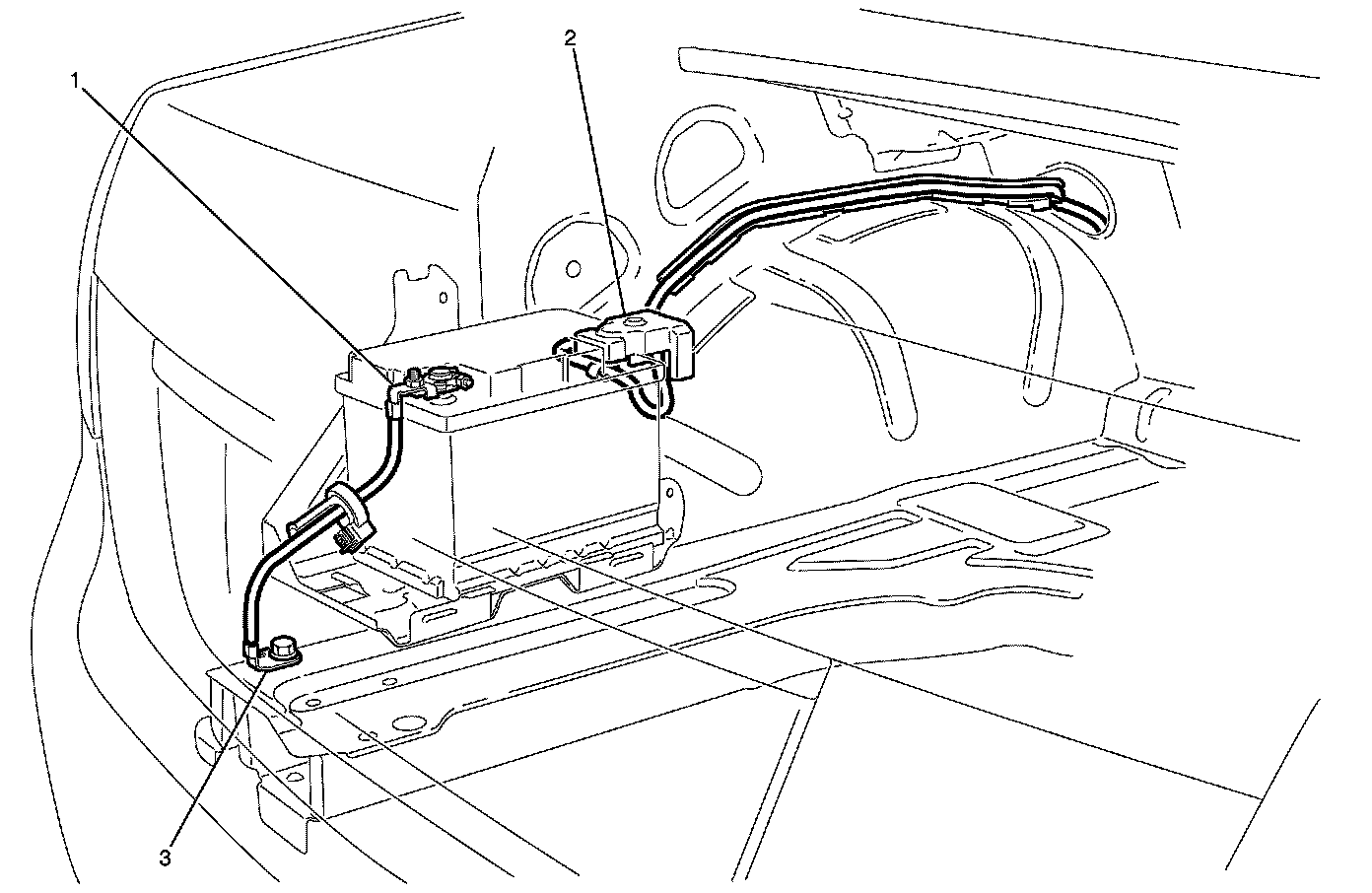

Battery Wiring - Rear

1 - Battery Negative Connector - G1-X2
2 - Battery Positive Connector - G1-X1
3 - Rear Battery Ground - G401
