Door Harness

Harness Routing Views

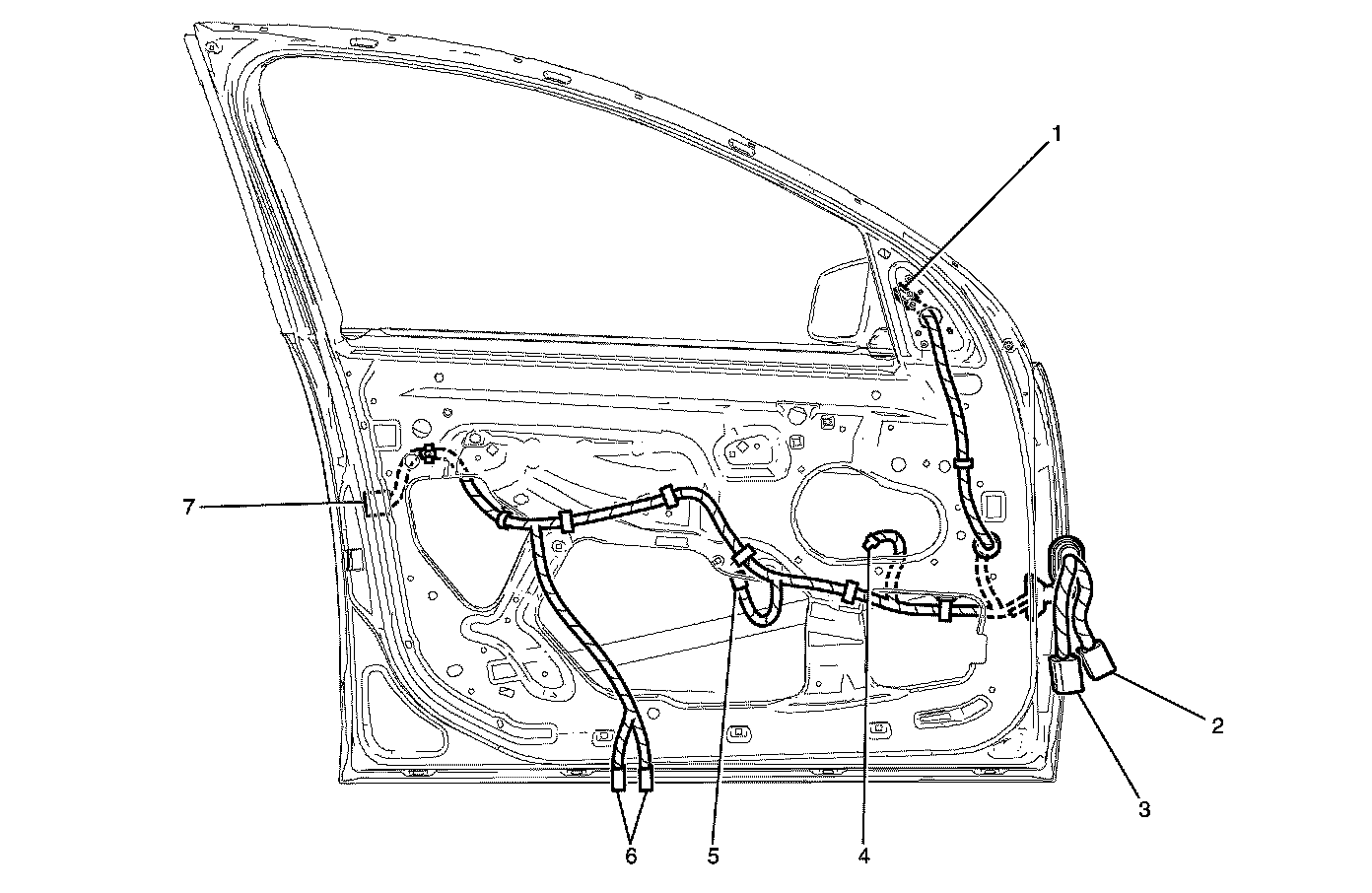

Front Door Wiring (Left Hand Drive)




1 - Outside Rear View Mirror Connector - M11
2 - Body Harness to Left Hand Front Door Harness Connector 2 - X307
3 - Body Harness to Left Hand Front Door Harness Connector 1 - X304
4 - Speaker - Door Connector - B108
5 - Window Motor - LF Connector - M10
6 - Courtesy Lamp - Door Connector - E72
7 - Door Latch Assembly Connector - Y13

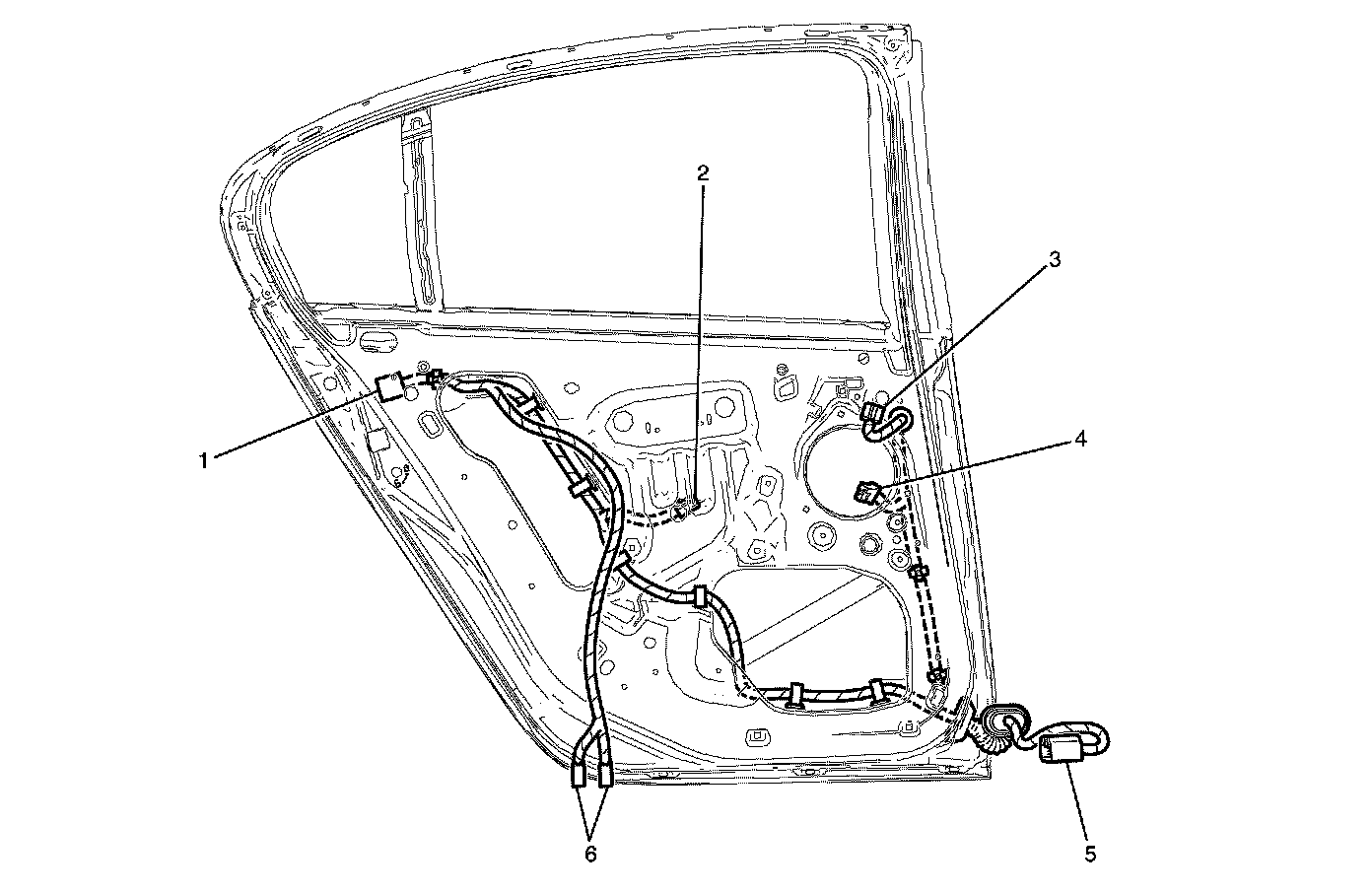

Rear Door Wiring (Short Wheel Base Left Hand Drive)




1 - Door Latch Assembly Connector - Y31
2 - Window Motor Connector - M14
3 - Rear Window Switch Connector - S221
4 - Speaker - Door Connector 1 - B117
5 - Body Harness to Right Hand Rear Door Harness Connector - X302
6 - Courtesy Lamp - Door Connector - E99
