Cooling System Draining and Filling (Static Fill)

Cooling System Draining and Filling

Draining Procedure (3.6L Engine)

Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution) .
1. Disconnect the battery ground cable from the battery. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair) . Caution: Refer to Radiator Cap Removal Caution (Service Precautions) .
Caution: Refer to Safety Glasses Caution (Safety Glasses Warning) .
Ensure engine is below 50 C before removing the Coolant pressure cap.
Caution: Refer to Vehicle Lifting Caution (Service Precautions) .
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .

3. Place a drain pan under the drain cock (1).

Important: If drain cock is not being replaced do not remove it from the radiator.

4. Loosen the drain cock until coolant flows out of the radiator.
5. Inspect the engine coolant for the following conditions:

* Discolored appearance - follow the flush procedure. Refer to Coolant System Flushing (Service and Repair) .
* Normal in appearance - follow the filling procedure. Refer to Cooling System Draining and Filling .

Filling Procedure

1. Tighten the drain cock (1).
2. Lower the vehicle.
3. With the engine off, remove the coolant filler cap.

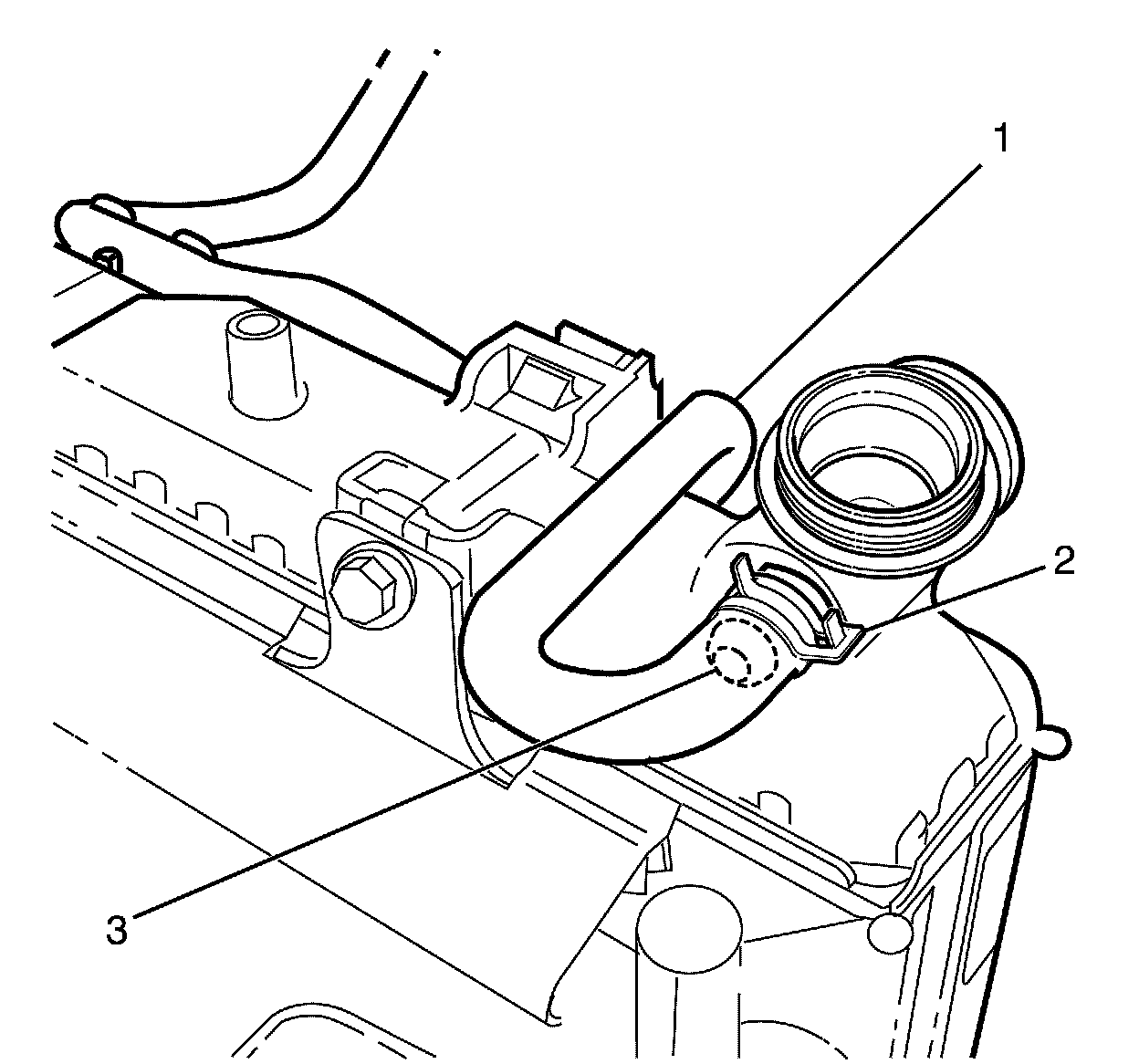

4. Remove the engine coolant air bleed hose (1) by releasing retaining hose clamp (2) and remove it from the radiator spigot (3).

Non Registered Notice: Refer to PSD SIE TITLE Error: SIE linked to empty Cell ID 120919

Notice: When pouring coolant take care not to spill any coolant on to the accessory drive belts. If spills occurs, rinse belts immediately.

5. Slowly fill the cooling system with a mixture of 50/50 dex cool and water until coolant flows out of air bleed hose spigot. Refit air bleed hose.
6. Continue to fill the system until full. Wait several seconds and "top up" if levels drops.
7. Start engine.
8. With engine idling top up coolant until full, wait for several seconds and "top up" if level drops.
9. Stop engine, wait several seconds and "top up" if level drops.
10. When full, fit coolant filler cap and switch off engine.

11. Check coolant in coolant recovery reservoir. Adjust coolant in the reservoir to the top of the graphic mark (A) on the dipstick.

Draining Procedure (6.0L Engine)

Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution) .
1. Disconnect the battery ground cable from the battery. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair) . Caution: Refer to Radiator Cap Removal Caution (Service Precautions) .
Caution: Refer to Safety Glasses Caution (Safety Glasses Warning) .
Ensure engine is below 50 C before removing the Coolant pressure cap.
Caution: Refer to Vehicle Lifting Caution (Service Precautions) .
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .

1. Tighten the drain cock (1).
2. Lower the vehicle.
3. With the engine off, remove the coolant filler cap.

Non Registered Notice: Refer to PSD SIE TITLE Error: SIE linked to empty Cell ID 120919 .

Notice: When pouring coolant take care not to spill any coolant on to the accessory drive belts. If spills occurs, rinse belts immediately.

4. Slowly fill the cooling system with a mixture of 50/50 Dex Cool and water until full, wait several seconds and "top up" if level drops.

Non Registered Notice: Refer to PSD SIE TITLE Error: SIE linked to empty Cell ID 120919 .

Notice: Lift the radiator top hose underneath the air intake tube, to release air bubble in hose, top up if level drops.

5. Start engine.
6. With engine idling top up coolant until full, wait for several seconds and "top up" if level drops.
7. When full, fit coolant filler cap and switch off engine.

8. Check coolant level in coolant recovery reservoir. Adjust coolant level in the reservoir to the top of graphic mark (A) on the dipstick.
