Instrument Cluster Trim Panel Replacement

Instrument Cluster Trim Panel Replacement

Removal Procedure

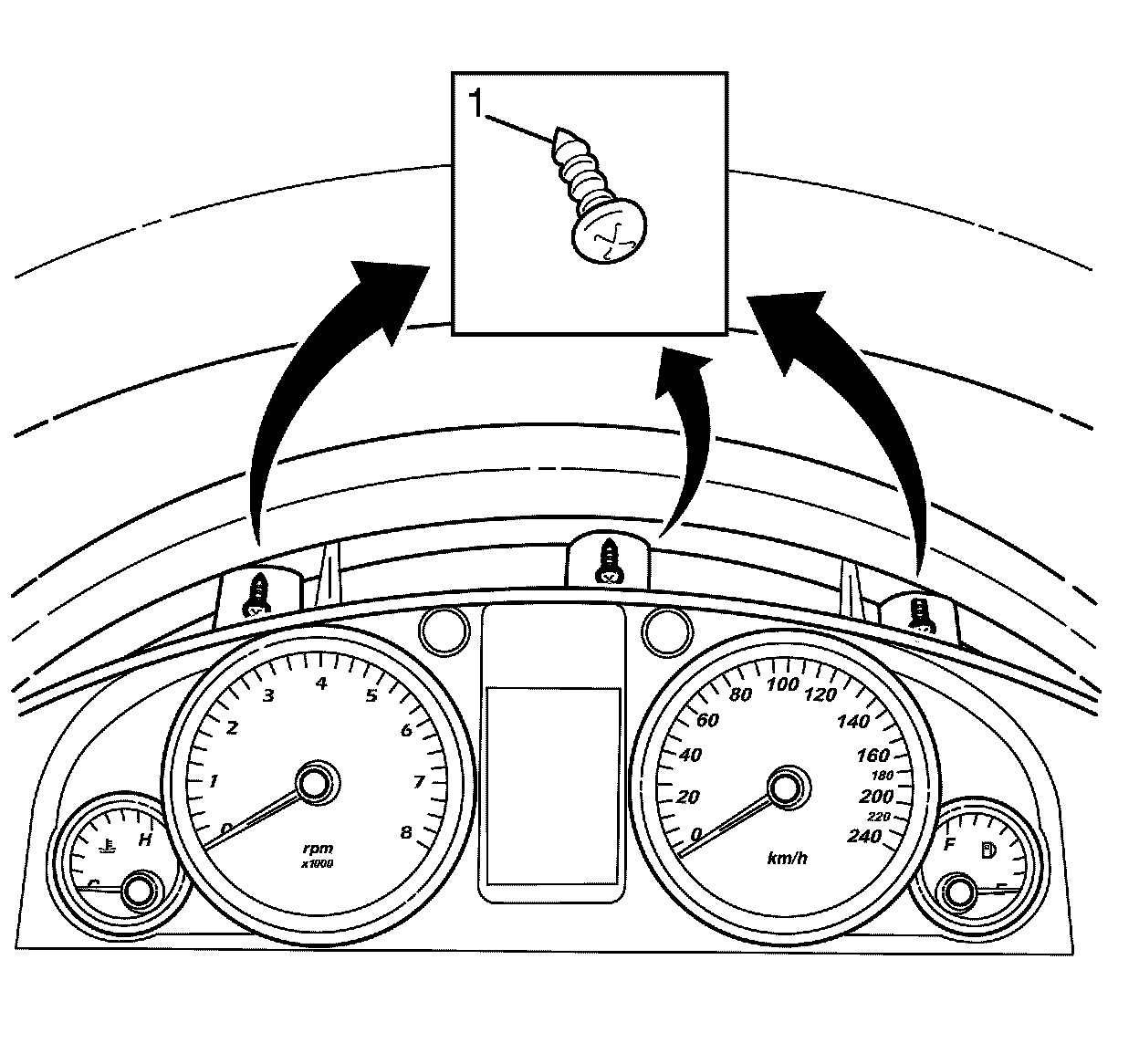

1. Remove the upper instrument cluster trim panel to I/P trim pad retaining screws (1).

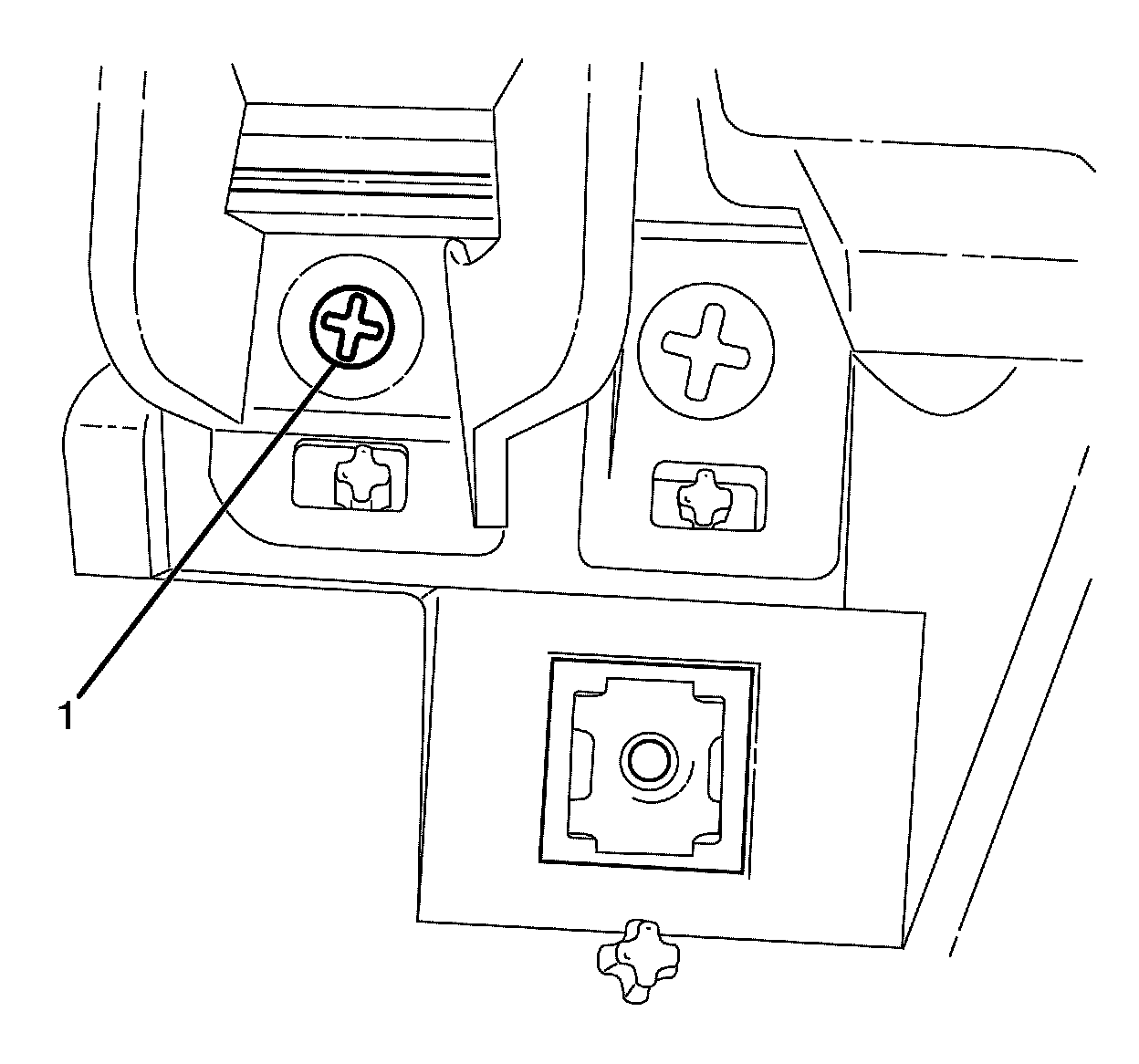

2. Remove the lower instrument cluster to I/P pad retaining screws (1), located on either side of the instrument cluster trim panel.
3. Using a suitable tool, carefully remove the top of the trim panel toward the steering wheel.
4. Remove the instrument cluster trim panel.



Installation Procedure

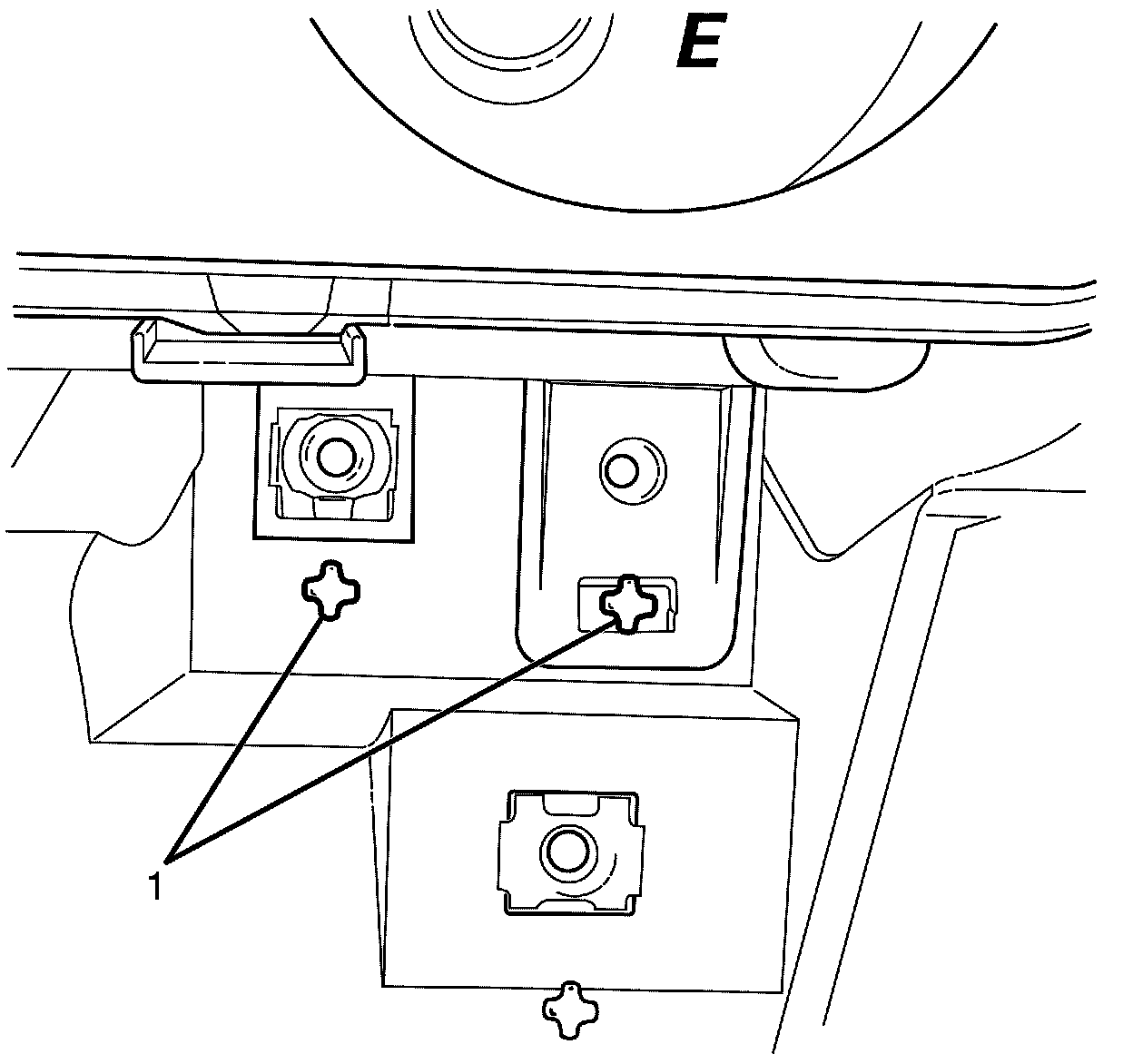

1. When installing the instrument cluster trim panel, make sure the locating lugs (1) are correctly located.
2. Install the instrument cluster trim panel.





Notice: Refer to Fastener Notice (Fastener Notice) .

3. Install the lower instrument cluster trim panel to I/P pad retaining screws (1).

Tighten the screws (1) to 2 N.m (18 lb in).






Notice: Refer to Fastener Notice (Fastener Notice) .

4. Install the upper instrument cluster trim panel to I/P trim pad retaining screws (1).

Tighten the screws (1) to 2 N.m (18 lb in).
