Instrument Panel Trim Panel Replacement

Instrument Panel Trim Panel Replacement

Removal Procedure






Notice: When removing the trim panel care should be undertaken to ensure minimal damage to the trim panel.


Notice: The trim panel is removed and installed in two parts.

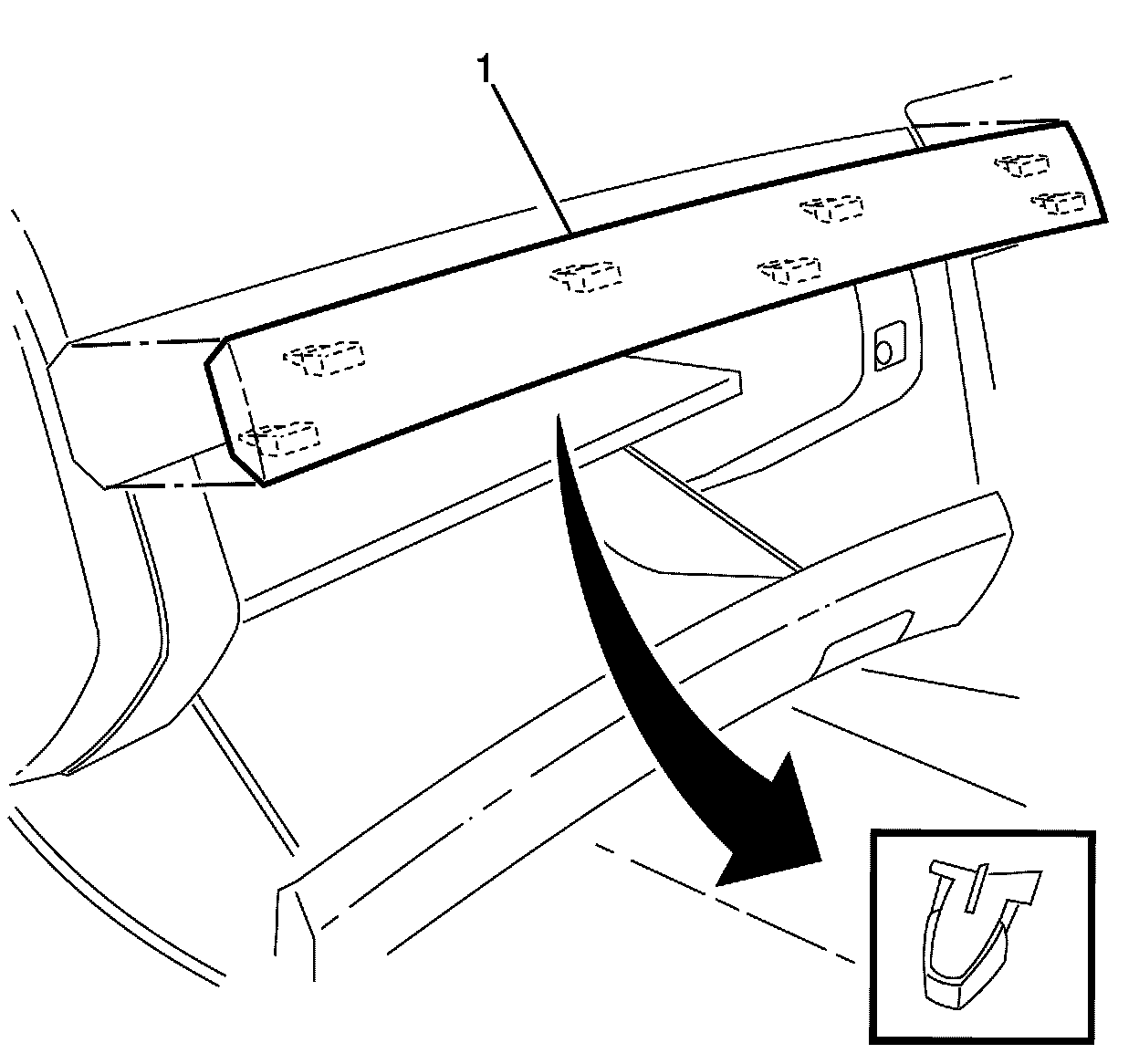

1. Using a suitable tool disengage the trim panel (1) retaining clips.
2. Remove the trim panel (1) from the I/P pad.
3. If required, repeat for opposite side



Installation Procedure





1. Align the trim panel (1) with the I/P pad.
2. Install the trim panel (1) to the I/P pad by engaging the retaining clips.
3. Ensure the trim panel (1) is flush with the I/P pad.
4. If required, repeat for opposite side
