Interior Lights Dimming Schematics
Interior Lights Dimming Schematics
Interior Lights Dimming Schematics

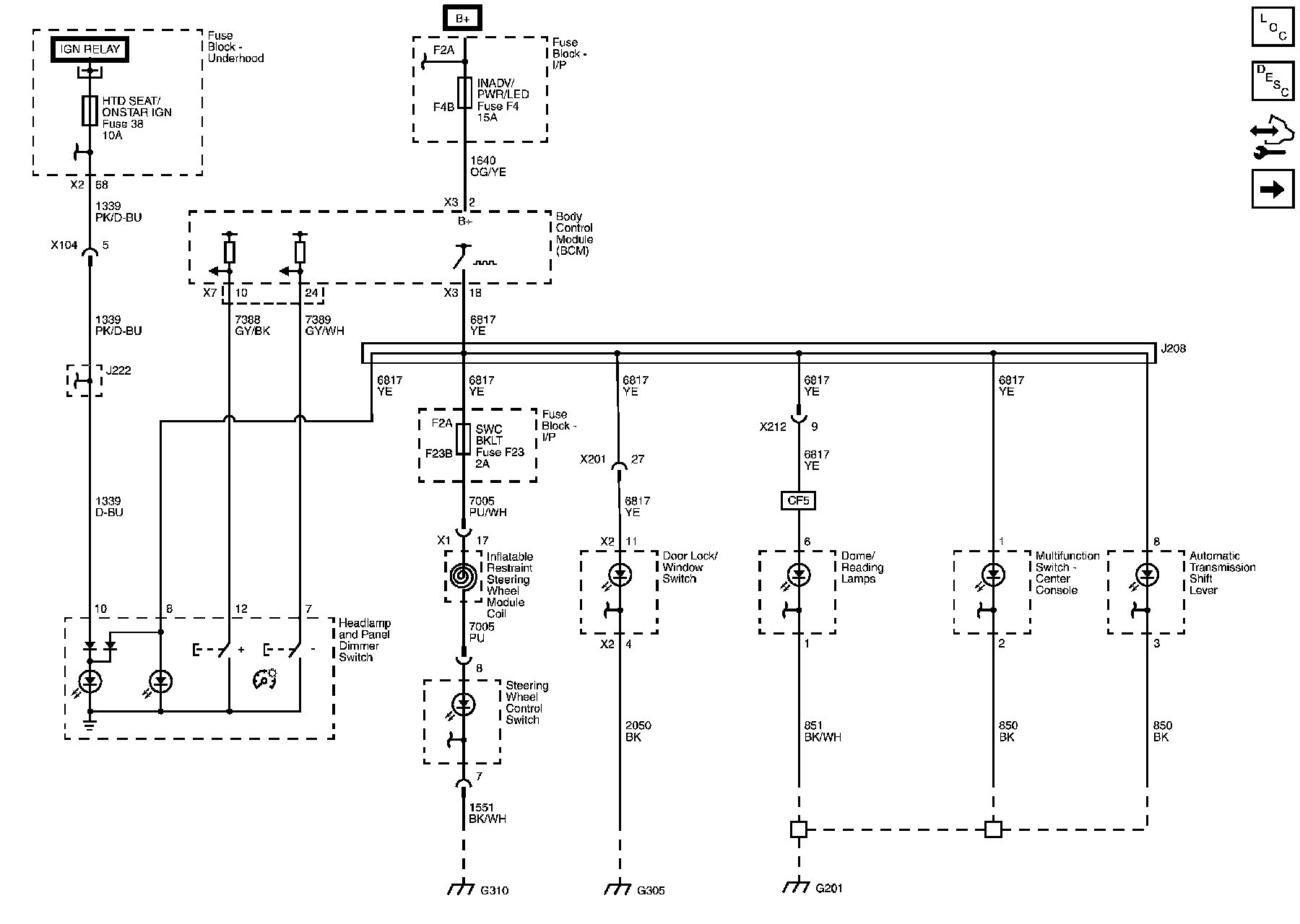

Dimming Control and LED Dimming 1 of 2
LED Dimming 2 of 2
