Marker Lamp: Service and Repair

Front Side Marker Lamp Replacement

Removal Procedure

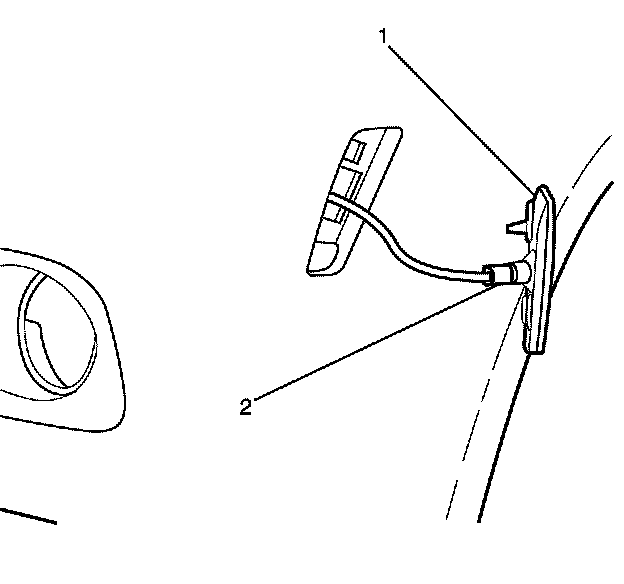

Important: Detach the front side marker lamp assembly (1) at the top.


1. Using a suitable tool detach the front side marker lamp assembly (1) from the front fascia (2).




2. Disconnect the front side marker lamp connector (2) from the front side marker lamp assembly (1).



Installation Procedure





1. Connect the front side marker lamp connector (2) to the front side marker lamp assembly (1).





Important: Listen for an audible click to confirm correct installation of the front side marker lamp assembly (1).


2. Install the front side marker lamp assembly (1) to the front fascia (2).
