Turn Signal Lamp: Diagrams

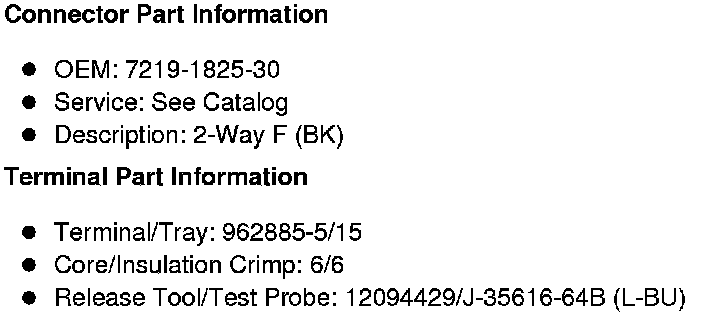

Component Connector End Views

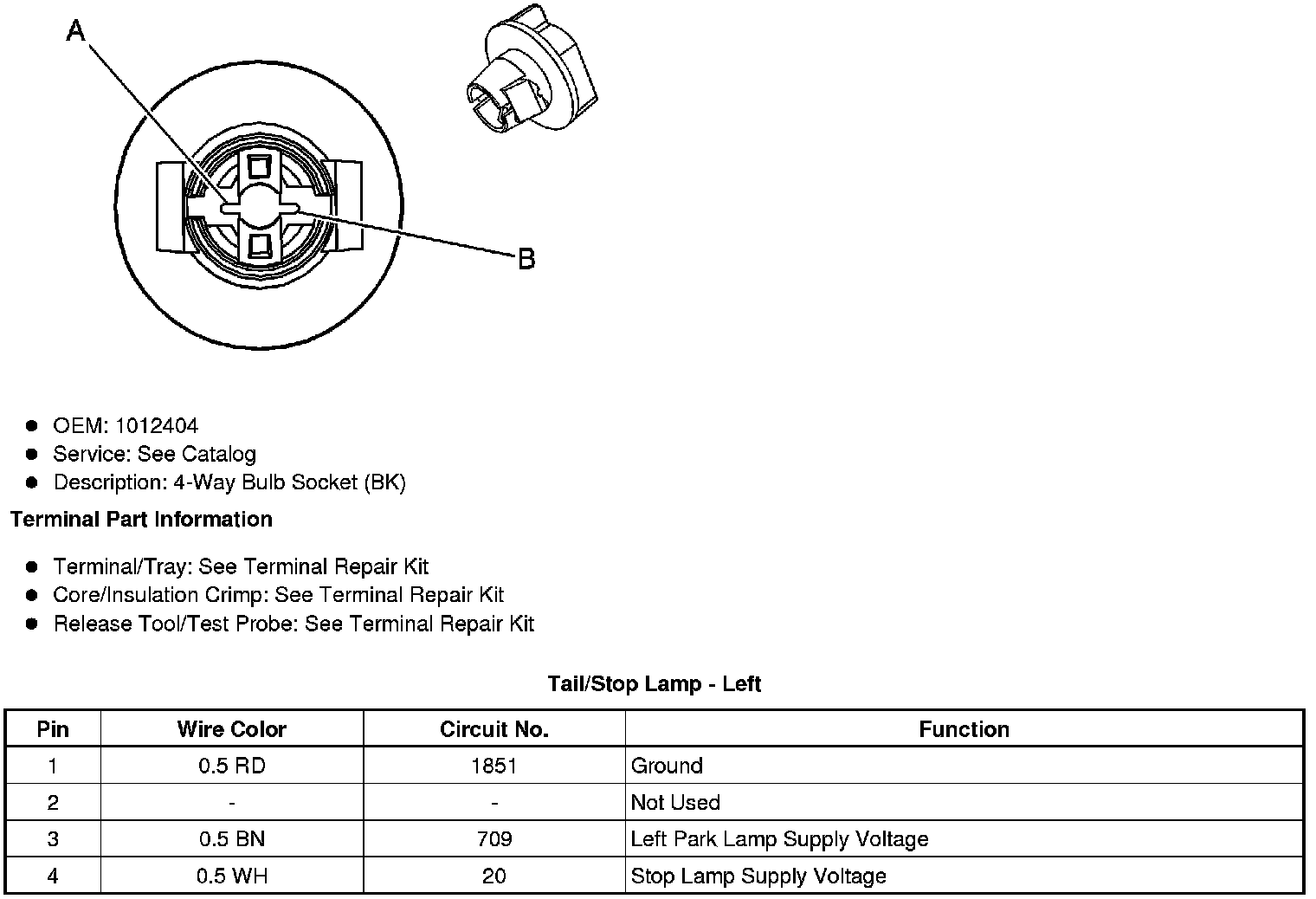

Tail/Stop Lamp - Left

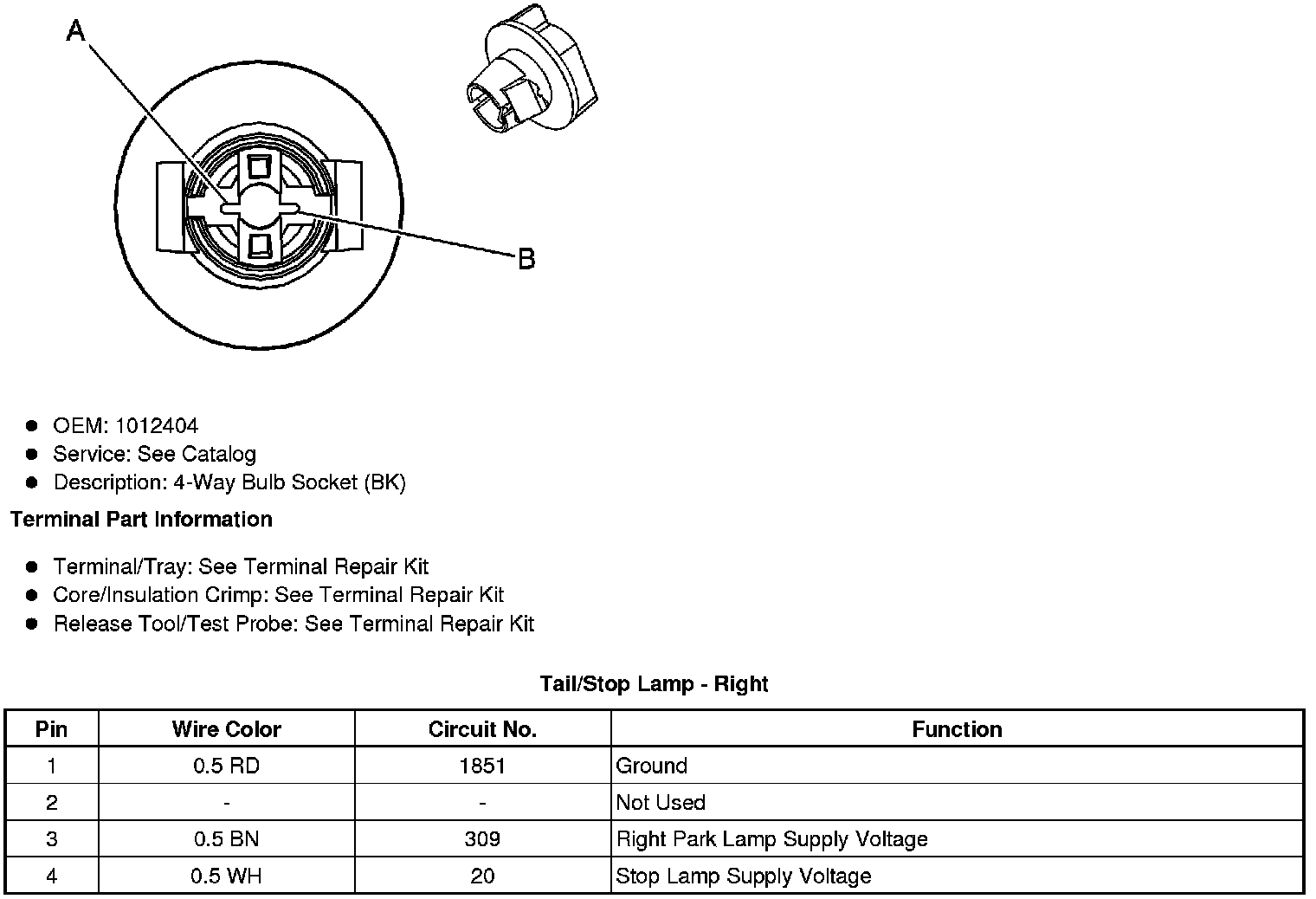

Tail/Stop Lamp - Right
Component Connector End Views

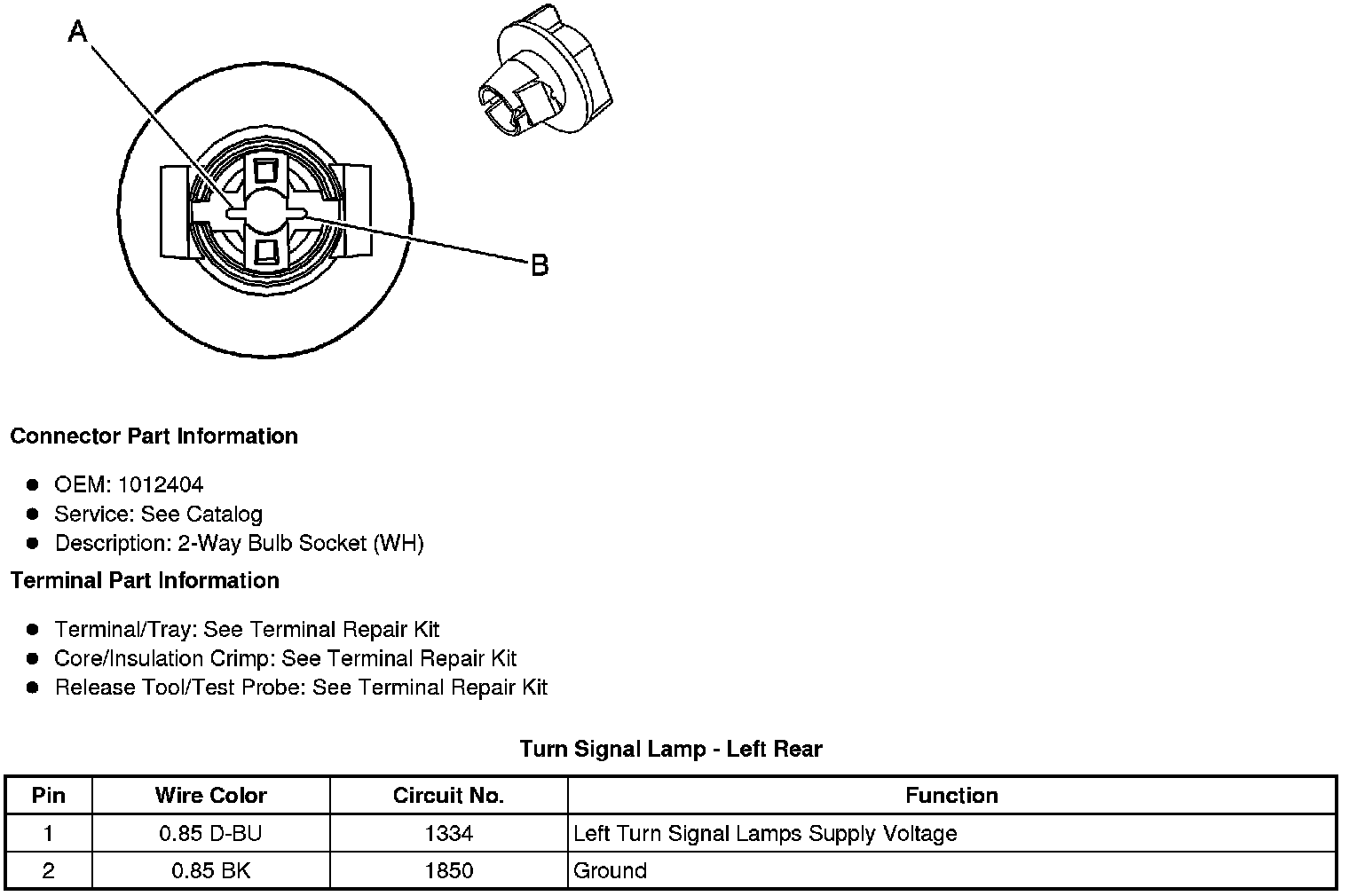

Turn Signal Lamp - Left Rear

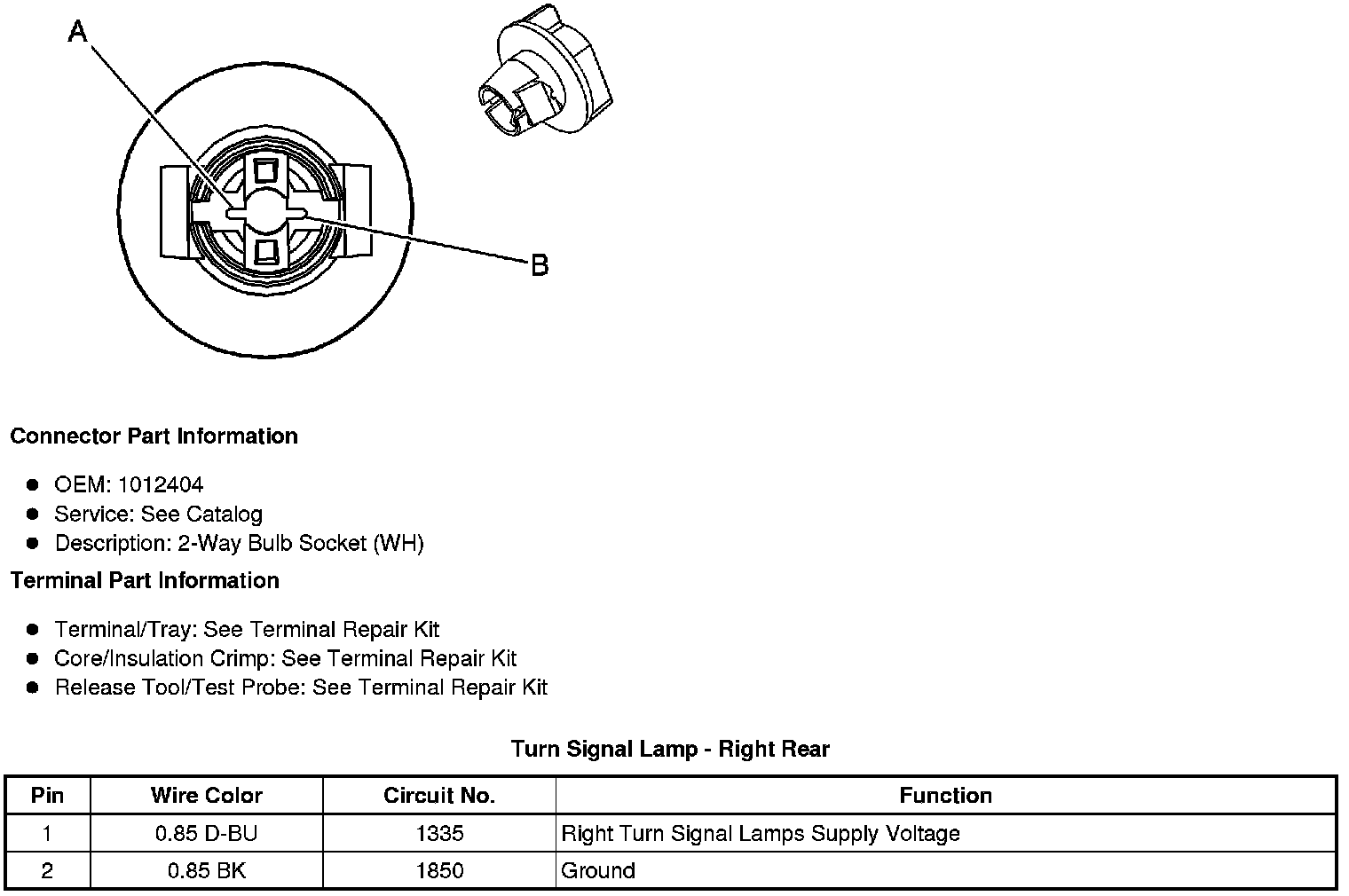

Turn Signal Lamp - Right Rear

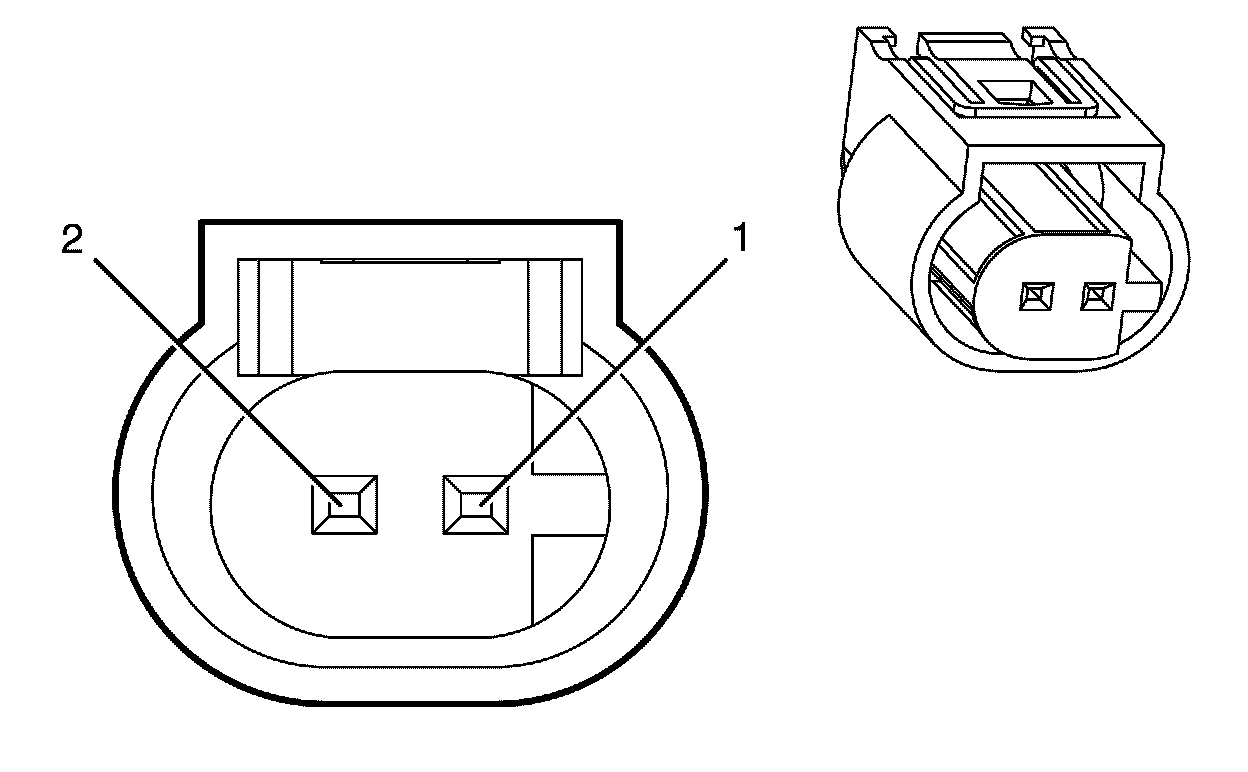

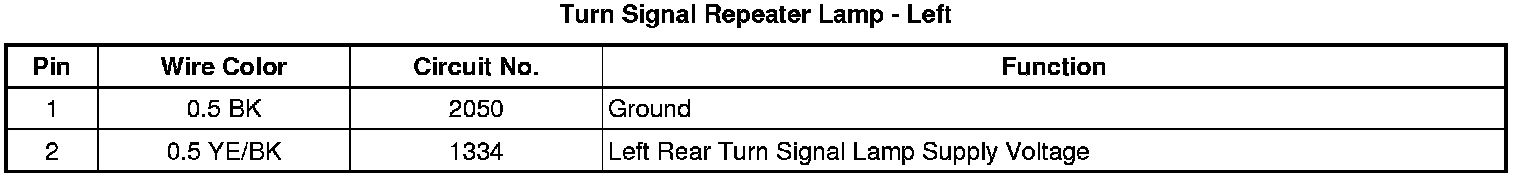

Turn Signal Repeater Lamp - Left
Turn Signal Repeater Lamp - Right
