X307

Harness Routing Views

Instrument Panel Compartment Wiring




1 - Rear Compartment Lid Release Switch Connector - S195
2 - I/P Compartment Lamp Connector - E82
3 - Navigation Module Connector - A139
4 - I/P Compartment Lamp Switch Connector - S142
5 - Navigation Gateway Module Connector - A156
6 - I/P Harness Connector - X205

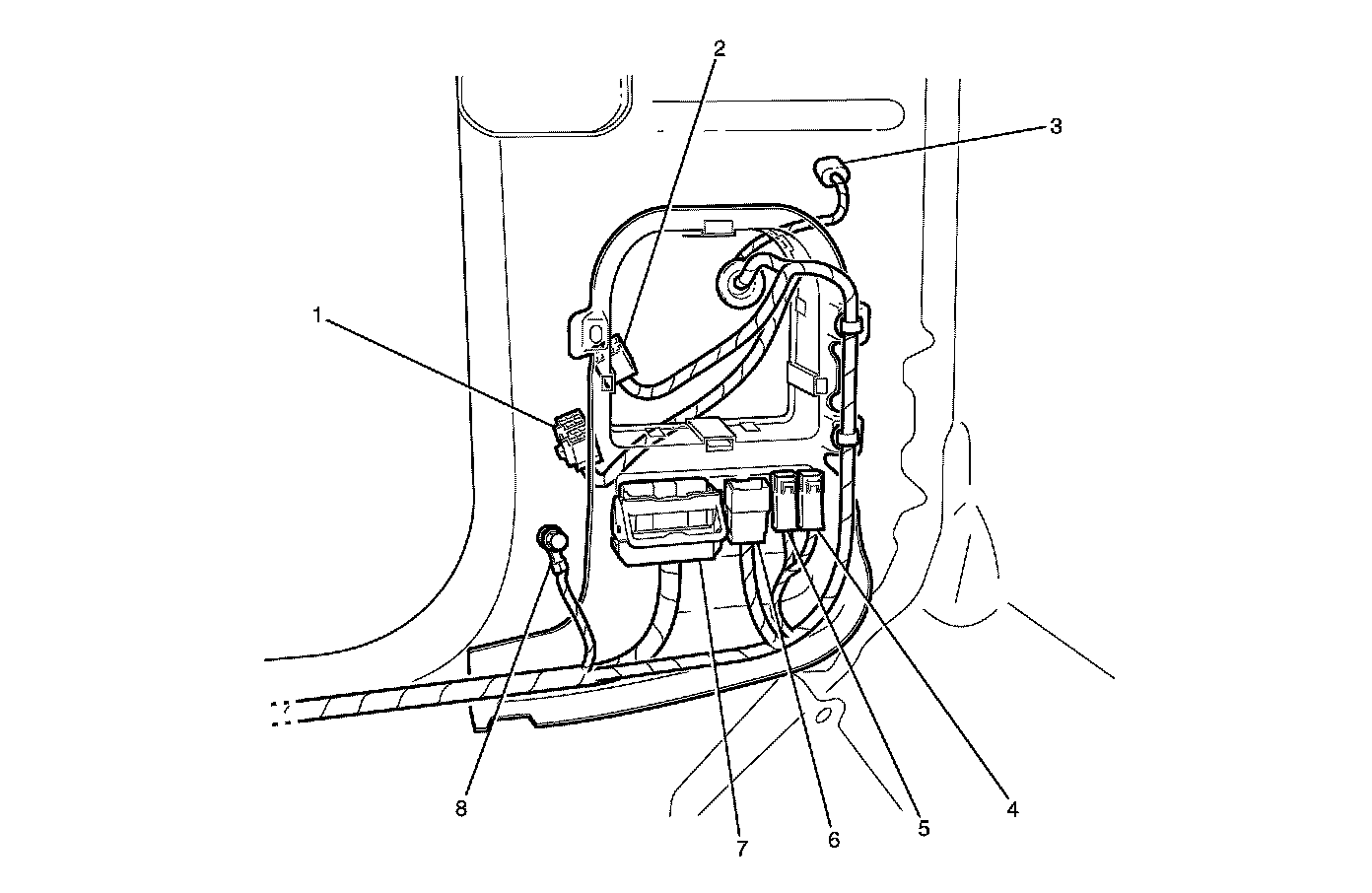

Body Wiring - Left Kick Panel (Left Hand Drive)




1 - Body Harness to Left Hand Front Door Harness Connector 1 - X304
2 - Body Harness to Left Hand Front Door Harness Connector 2 - X307
3 - Repeater Lamp - Left Connector - E75
4 - Antenna Diversity Harness to Diversity Coaxial Harness Connector - X367
5 - Antenna Quad Harness to Coaxial Harness Connector - X328
6 - Left Hand Instrument Panel Connector 2 - X220
7 - Left Hand Instrument Panel Connector 1 - X202
8 - Left Hand A Pillar Ground - G305

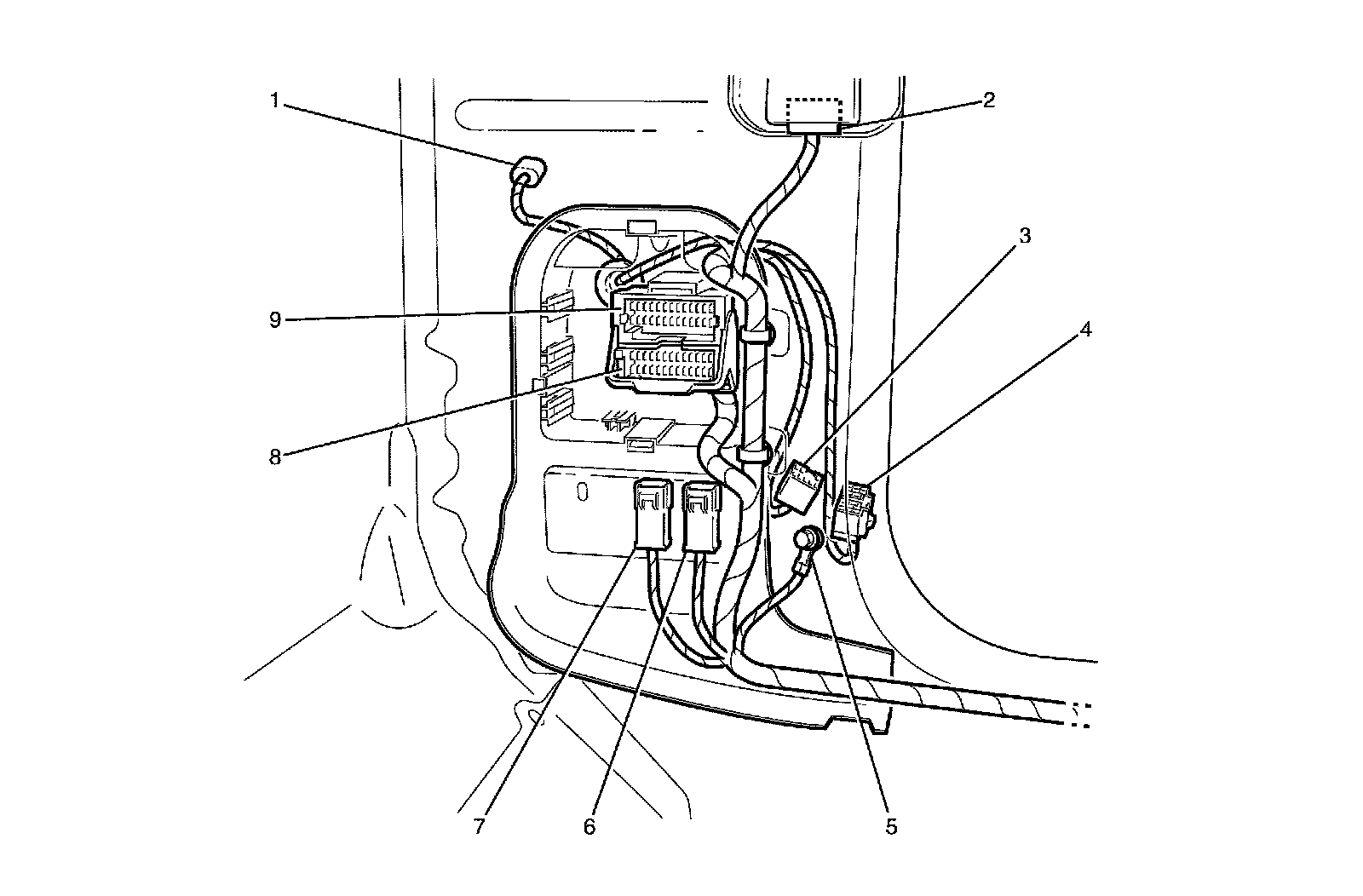

Body Wiring - Right Kick Panel




1 - Repeater Lamp - Right Connector - E75
2 - Express Down Window Module - A54
3 - Body Harness to Right Hand Front Door Harness Connector 2 - X308
4 - Body Harness to Right Hand Front Door Harness Connector 1- X303
5 - Right Hand A Pillar Ground Connector - G304
6 - Right Hand Instrument Panel Connector 3 - X254
7 - Right Hand Instrument Panel Connector 2 - X253
8 - Right Hand Instrument Panel Connector 1 - X201
9 - Body Front Wiring Connector - X206



Harness Routing Views

Headliner Wiring (Left Hand Drive)




1 - Centre High Mounted Stop Lamp (CHMSL) Connector - E79
2 - Digital Video Player (DVD) Connector - A152
3 - Dome Lamp - Rear Connector - E94
4 - Sunroof Switch Connector - S228
5 - Sunroof Control Module Connector - A108
6 - Dome Lamp Connector - E67
7 - Left Sunshade Connector - E120
8 - Headliner to I/P Harness Connector - X212
9 - Headliner to I/P Harness Connector - X213
10 - Outside Moisture Sensor Connector - A121
11 - Right Sunshade Connector - E120
