Hydraulic Brake System Flushing
Hydraulic Brake System Flushing
Caution: Refer to Brake Dust Caution (Brake Dust Caution) .
Caution: Refer to Brake Fluid Caution (Brake Fluid Caution) .
Caution: Refer to Brake Fluid Irritant Caution (Brake Fluid Irritant Caution) .
Notice: Refer to Adding Fluid to the Brake System Notice (Adding Fluid to the Brake System Notice) .
Notice: Refer to Brake Fluid Effects on Paint and Electrical Components Notice (Brake Fluid Effects on Paint and Electrical Components Notice) .
1. Clean the brake master cylinder brake master cylinder reservoir, brake line connections and reservoir cap.
2. Inspect the brake fluid for the following conditions, indicating brake fluid contamination:
* Fluid separation indicates 2 types of fluid are present. A substance other than the recommended brake fluid has been introduced into the brake hydraulic system.
- Swirled appearance = oil-based substance.
- Layered appearance = silicone-based substance.
* Fluid discolouration, indicating the presence of moisture or particles that have been introduced into the brake hydraulic system.
- Cloudy appearance = moisture.
- Dark appearance/suspended particles in fluid = dirt, rust, corrosion and/or brake dust.
3. Inspect the master cylinder reservoir cap diaphragm and the reservoir-to-master cylinder grommets for swelling, indicating brake fluid contamination.
4. If the brake fluid WAS contaminated with an oil-based or a silicone-based substance, indicated by fluid separation and/or a swollen master cylinder reservoir cap diaphragm and/or swollen reservoir to master cylinder grommets, perform the following:
1. Remove ALL of the following components listed from the vehicle. Each component contains internal rubber seals/linings which have been contaminated by the contaminated brake fluid in the brake hydraulic system.
Refer to the procedures indicated:
* Master Cylinder Replacement (Master Cylinder Replacement).
* Front Brake Hose Replacement (Front Brake Hose Replacement).
* Rear Brake Hose Replacement (Rear Brake Hose Replacement).
* Front Brake Caliper Replacement (Front Brake Caliper Replacement).
* Rear Brake Caliper Replacement (Rear Brake Caliper Replacement).
* Brake Pressure Modulator Valve Assembly Replacement (Service and Repair).
2. Clean out all the hydraulic brake pipes using denatured alcohol, or equivalent.
3. Dry the brake pipes using non-lubricated, filtered air.
4. Replace ALL of the following components listed and install them to the vehicle. Each component contains internal rubber seals/linings which have been contaminated by the contaminated brake fluid in the brake hydraulic system.
Refer to the procedures indicated:
* Master Cylinder Replacement (Master Cylinder Replacement) .
* Replace the brake master cylinder reservoir cap diaphragm.
* Front Brake Hose Replacement (Front Brake Hose Replacement).
* Rear Brake Hose Replacement (Rear Brake Hose Replacement).
* Front Brake Caliper Replacement (Front Brake Caliper Replacement) .
* Rear Brake Caliper Replacement (Rear Brake Caliper Replacement) .
* Brake Pressure Modulator Valve Assembly Replacement (Service and Repair).
5. If the brake fluid WAS NOT contaminated with an oil-based or a silicone-based substance, but was contaminated with water or dirt, rust, corrosion, and/or brake dust, replace the brake master cylinder reservoir cap diaphragm.
6. Place a clean suitable container under the master cylinder.

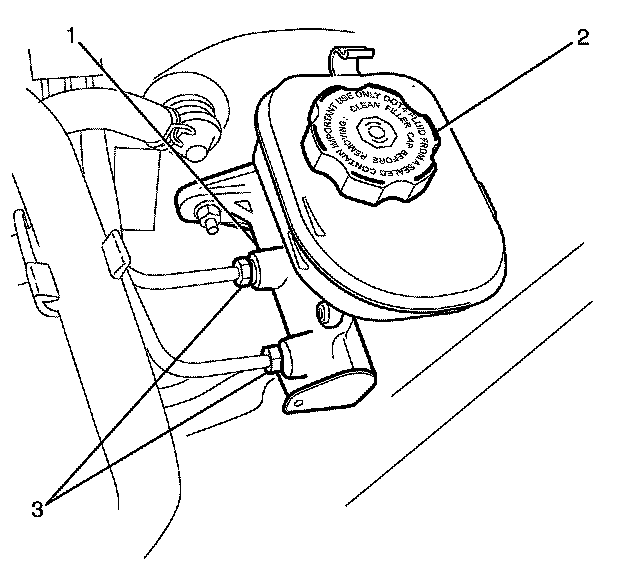

7. Disconnect brake lines (3) from the master cylinder (1), then remove master cylinder reservoir cap (2).
8. Allow the master cylinder (1) to drain into the container until empty.
Notice: Refer to Fastener Notice (Fastener Notice) .
9. Install the brake lines (3) to master cylinder (1).
Tighten the brake pipe fitting to 15 Nm (11 lb ft).
Caution: Refer to Safety Glasses Caution (Safety Glasses Warning) .
Caution: Refer to Vehicle Lifting Caution (Service Precautions) .
10. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .
11. Remove all the wheels. Refer to Tire and Wheel Removal and Installation (Service and Repair) .

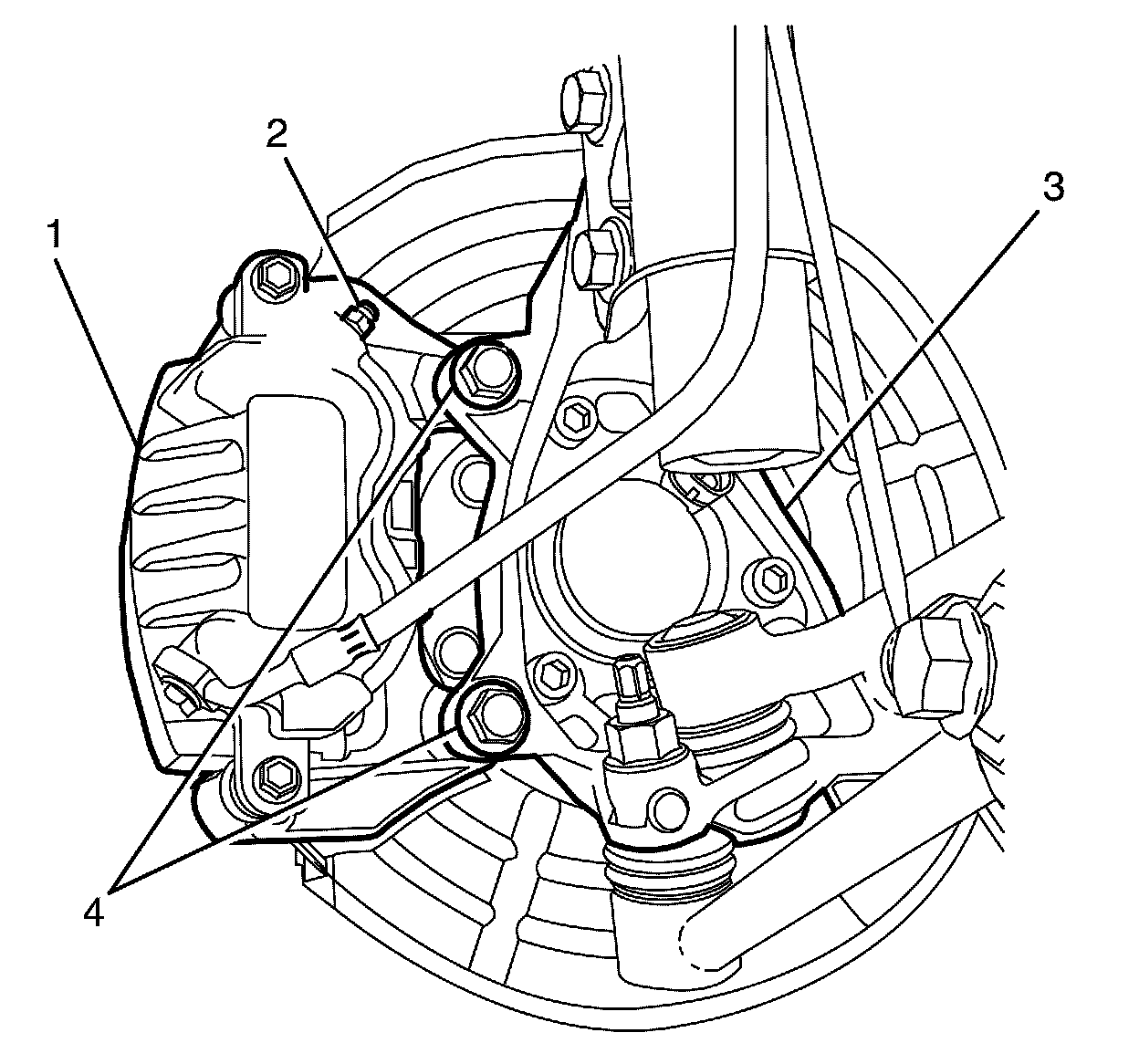

12. Loosen the left-side front brake calliper bleed screw (2).
Important: Bolts with micro-encapsulated thread sealant must be replaced after removal.
13. Remove the left-side front brake calliper anchor plate to knuckle retaining bolts (4).
Discard the bolts.
Notice: Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
14. Detach the brake calliper (1) from the knuckle (3).
15. Suspend the brake calliper (1) upside down with heavy mechanics wire or equivalent.
16. Remove the bleed screw (2) to drain contents of the brake calliper (1) into suitable receptacle.
17. Tighten the bleed screw (2) and reinstall the brake calliper (1) to the knuckle (3).
Notice: Refer to Fastener Notice (Fastener Notice) .
18. Install the NEW brake calliper anchor plate to knuckle retaining bolts (4).
Tighten the front brake calliper anchor plate bolt to 60 Nm +120° (44 lb ft +120°).
19. Repeat steps 12-18 for the right hand front brake calliper.
20. Repeat steps 12-17 for the rear brake calliper assemblies.
21. Install the rear brake calliper to knuckle with NEW retaining bolts.
Tighten the bolts to 110 Nm (81 lb ft).
22. Bleed brake system.Hydraulic Brake System Bleeding (Manual) (Service and Repair)Hydraulic Brake System Bleeding (Pressure) (Service and Repair) .
23. Install the wheels. Refer to Tire and Wheel Removal and Installation (Service and Repair) .
24. Lower the vehicle to the ground.
