Powertrain Management: Locations

Engine Controls Component Views

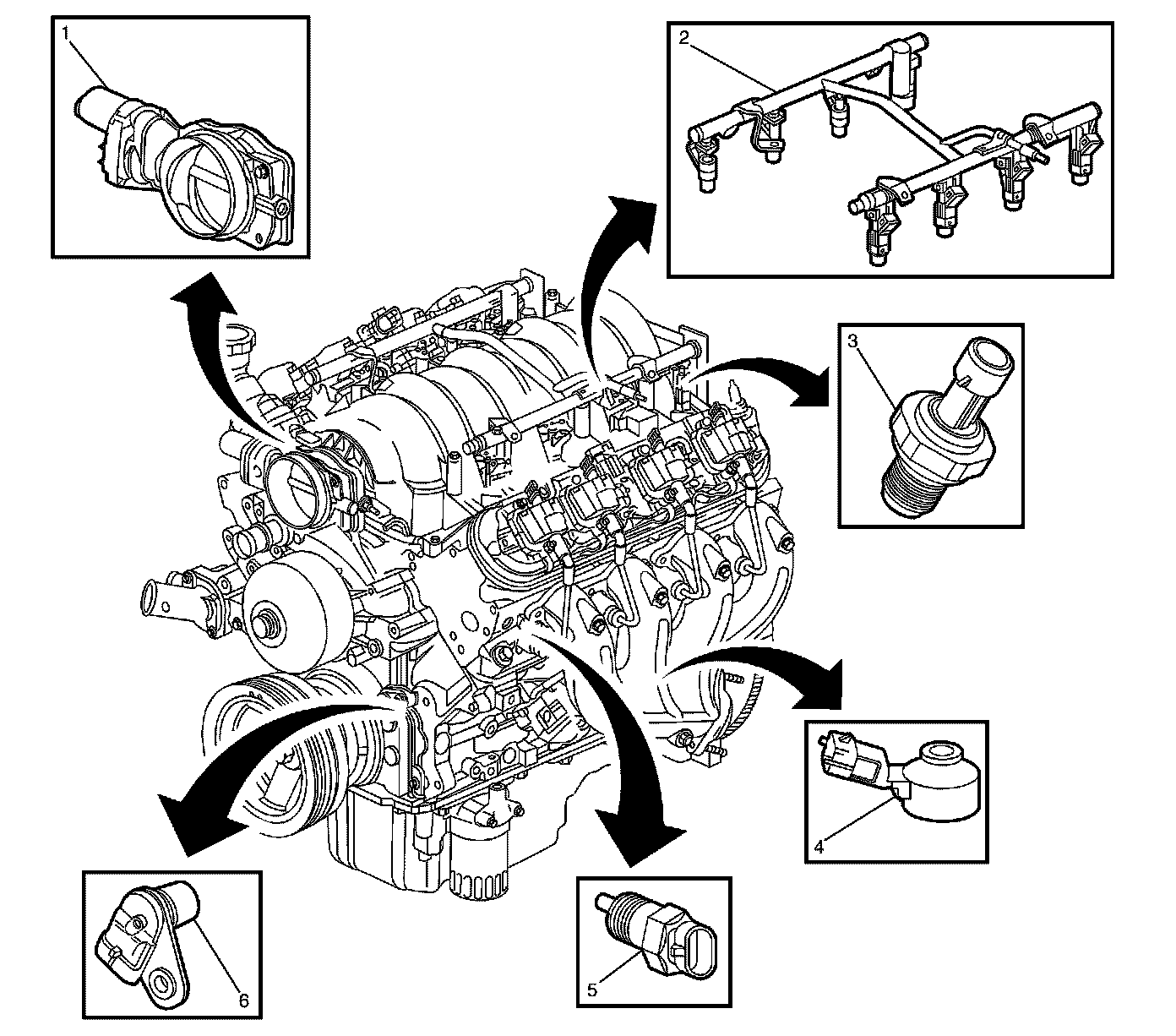

Sensor Locations




1 - Throttle Body Assembly
2 - Fuel Injectors
3 - Oil Pressure Sensor
4 - Knock Sensor-Left
5 - Engine Coolant Temperature Sensor
6 - Camshaft Position Sensor

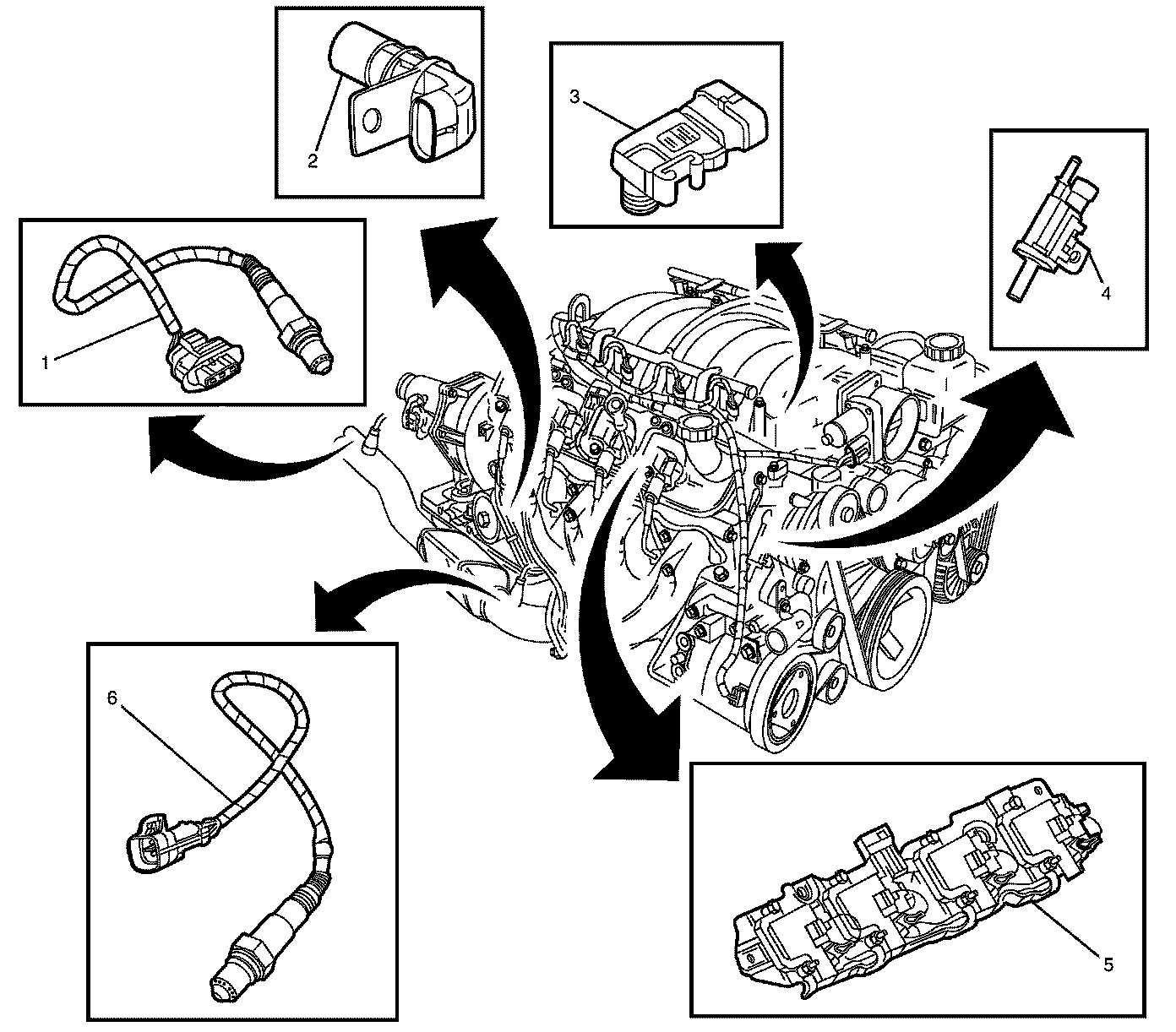

Engine Sensors 2




1 - HO2S Sensor Bank 2
2 - Crankshaft Position Sensor
3 - MAP Sensor
4 - EVAP Canister Purge Valve
5 - Ignition Coil Assembly
6 - HO2S Sensor Bank 1

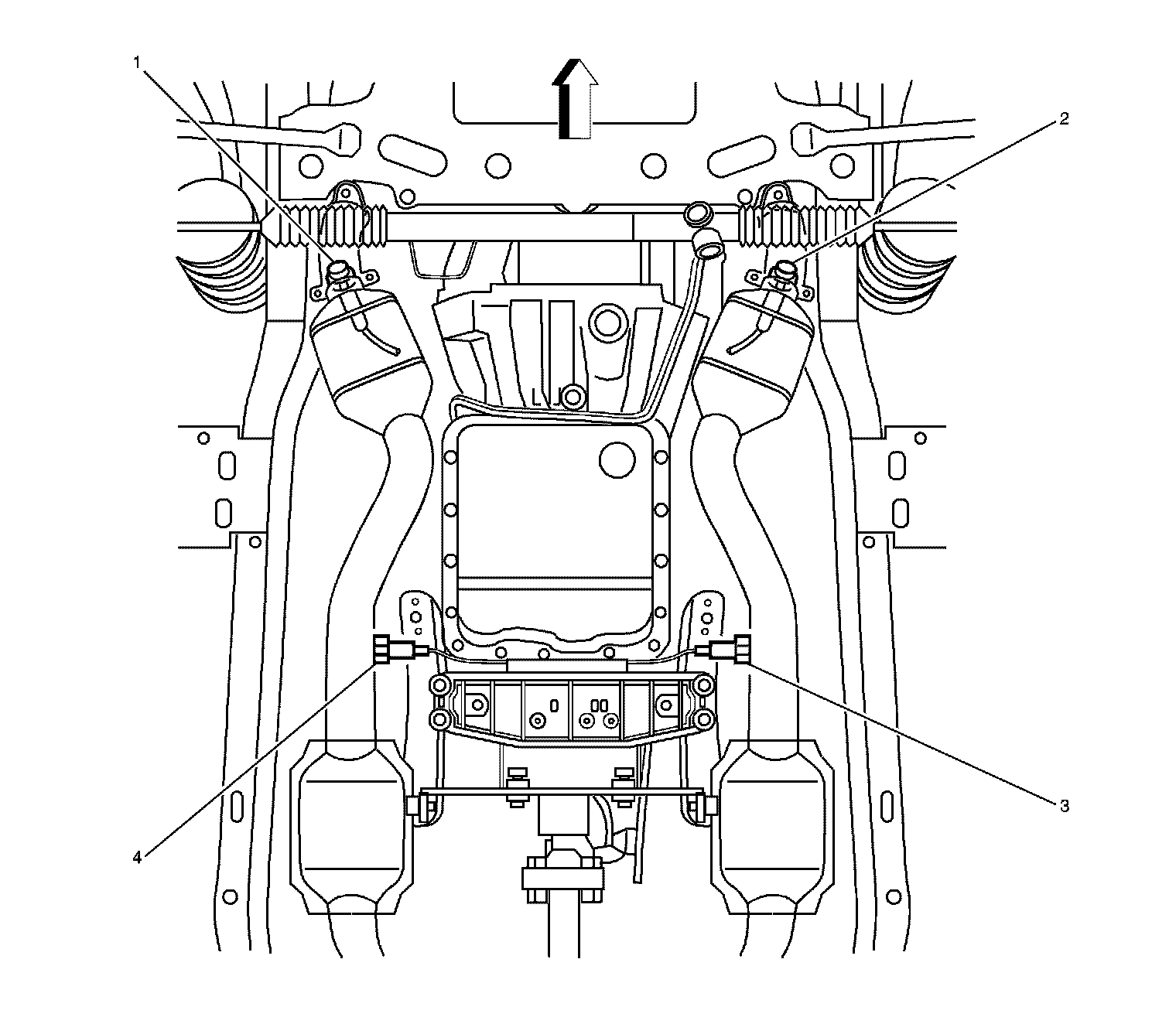

Heated Oxygen Sensors




1 - Heated Oxygen Sensor Bank 1 Sensor 1
2 - Heated Oxygen Sensor Bank 2 Sensor 1
3 - Heated Oxygen Sensor Bank 2 Sensor 2
4 - Heated Oxygen Sensor Bank 1 Sensor 2

Pedal Switches and Sensors




1 - Accelerator Pedal Position Sensor
