Air Bag: Diagrams
Component Connector End Views
Inflatable Restraint I/P Module X1

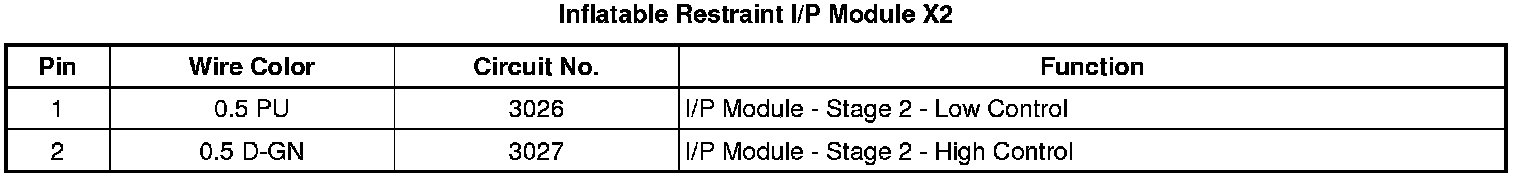

Inflatable Restraint I/P Module X2

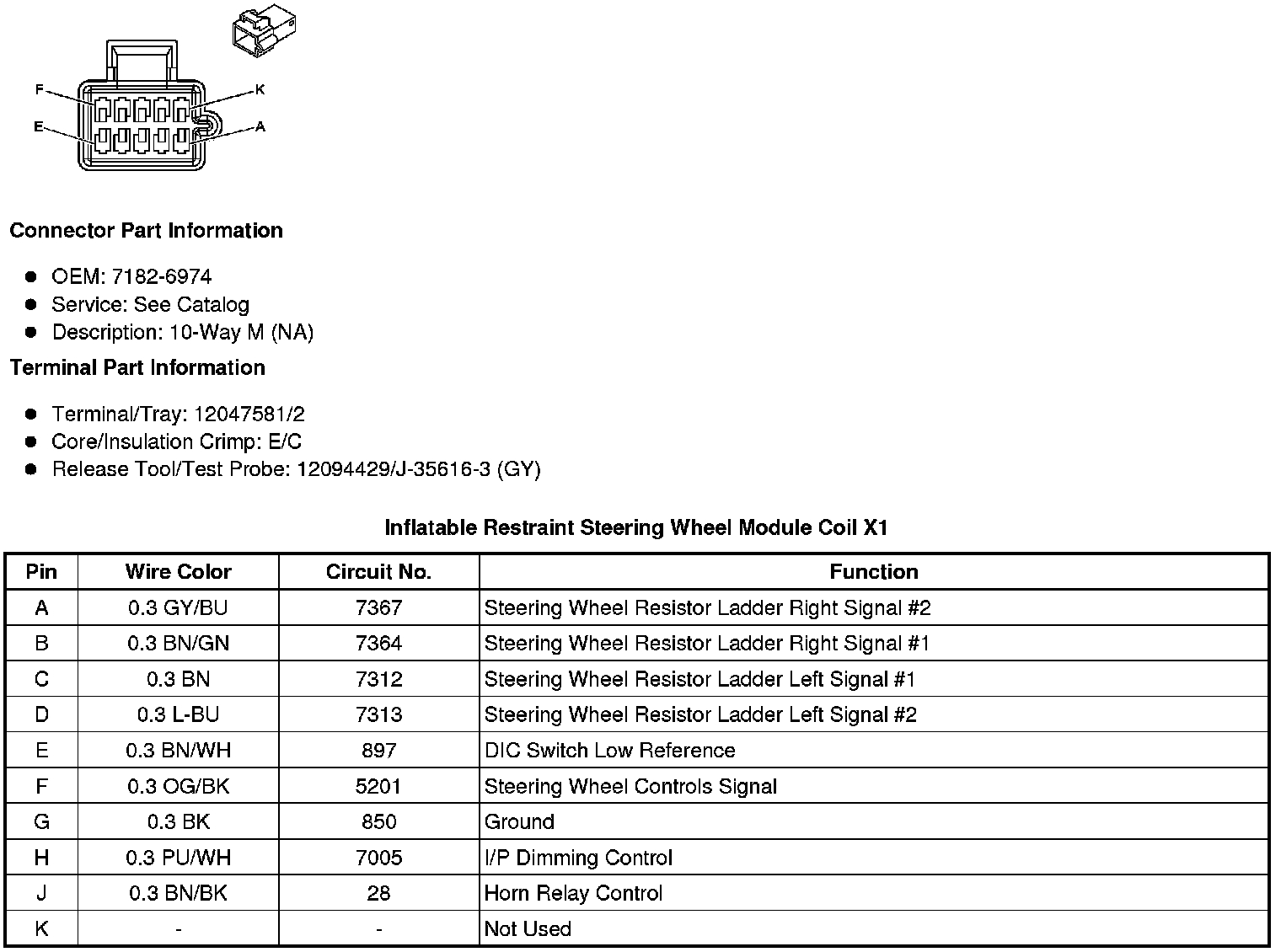

Inflatable Restraint Steering Wheel Module Coil X1

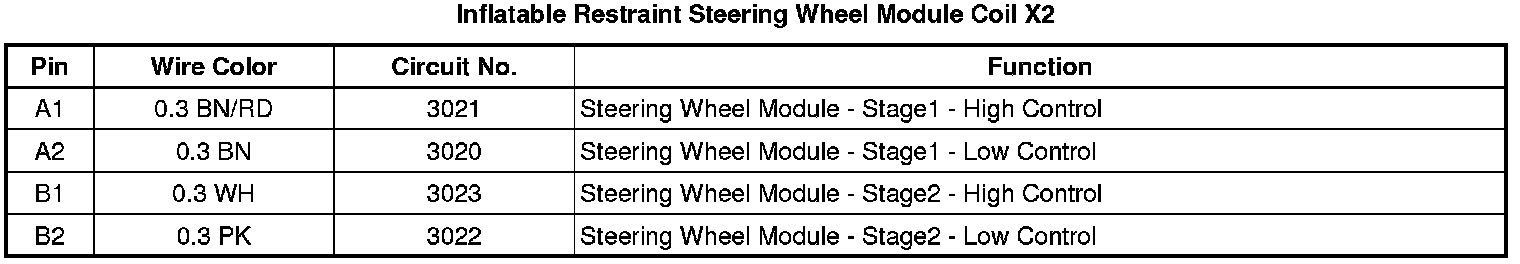

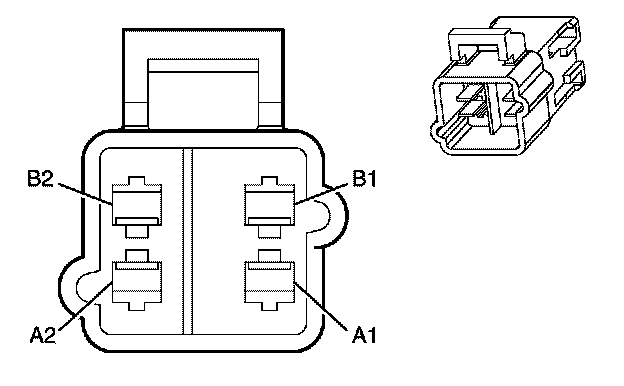

Inflatable Restraint Steering Wheel Module Coil X2

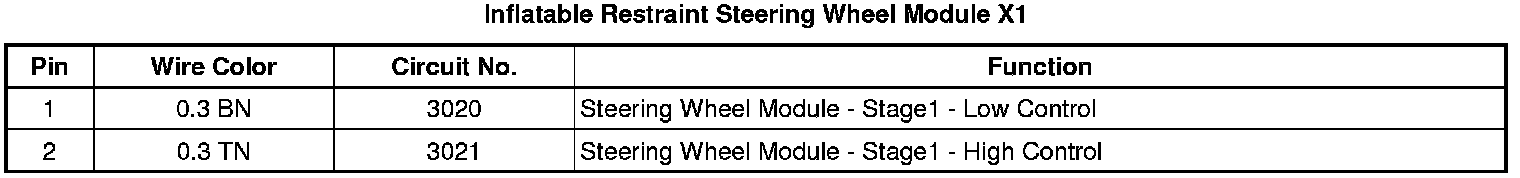

Inflatable Restraint Steering Wheel Module X1

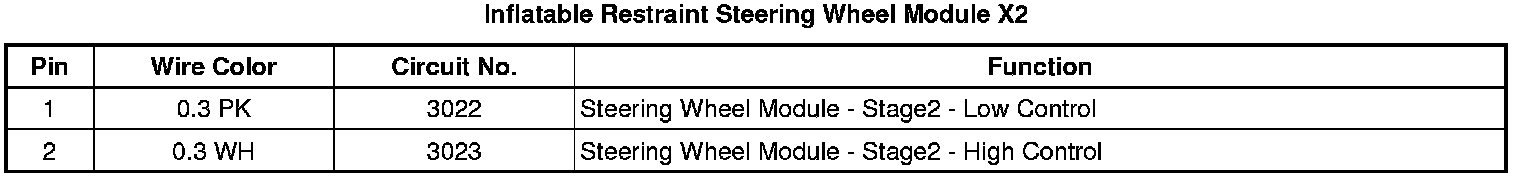

Inflatable Restraint Steering Wheel Module X2

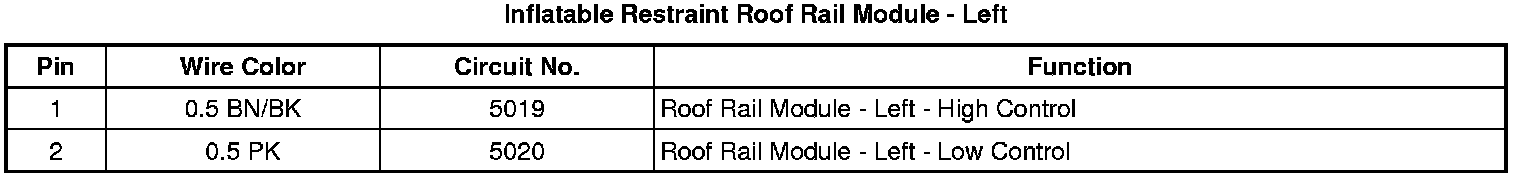

Inflatable Restraint Roof Rail Module - Left

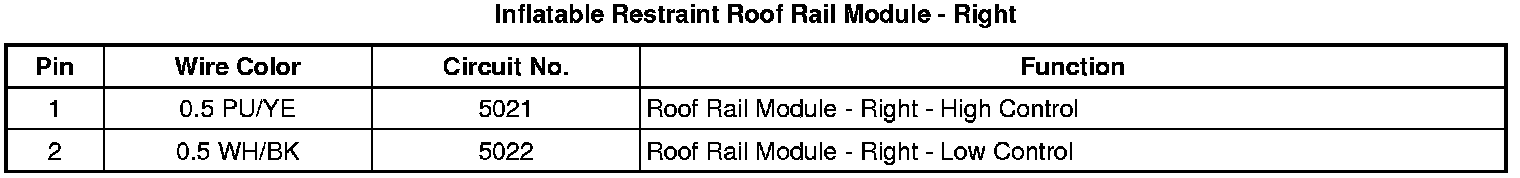

Inflatable Restraint Roof Rail Module - Right

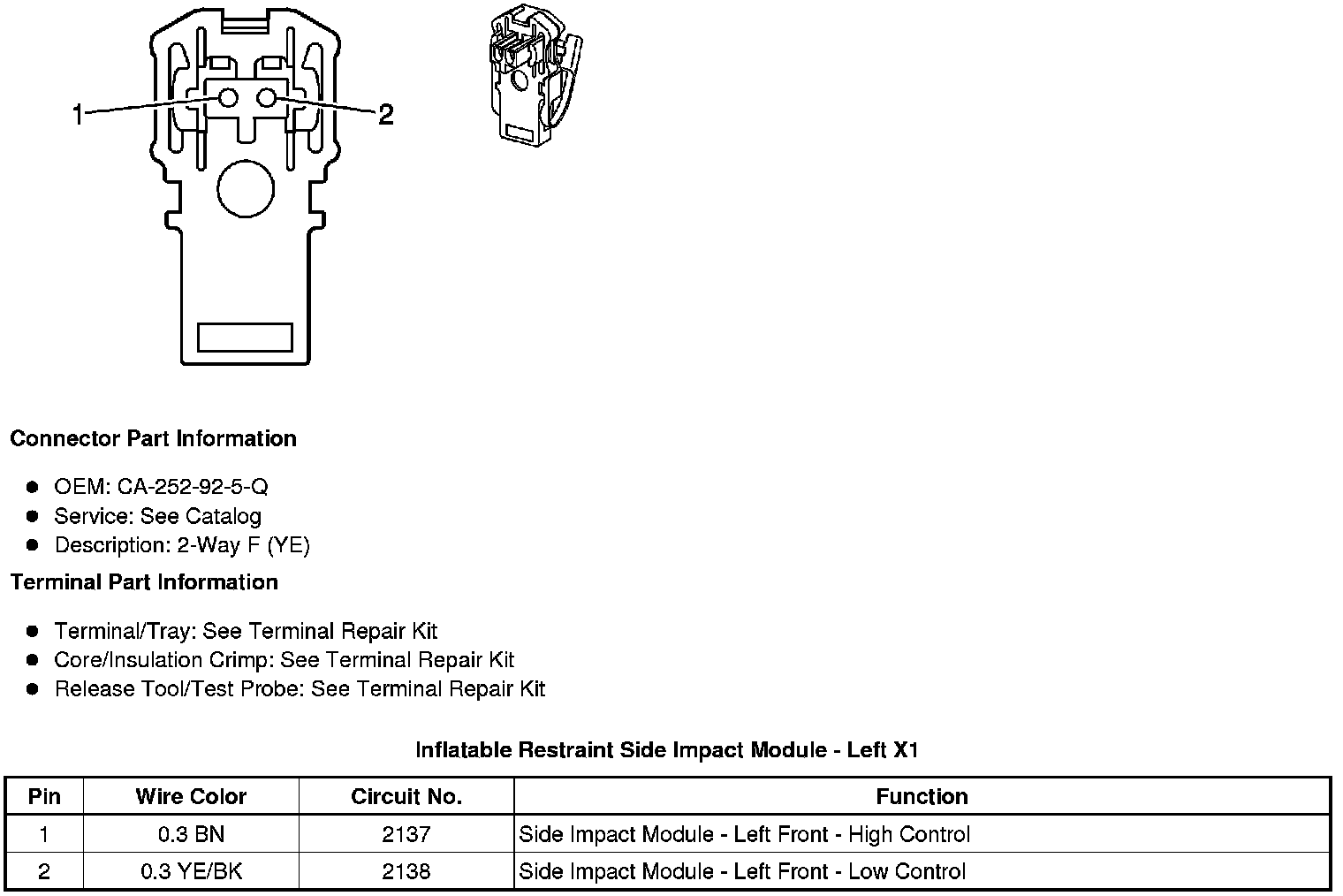

Inflatable Restraint Side Impact Module - Left X1

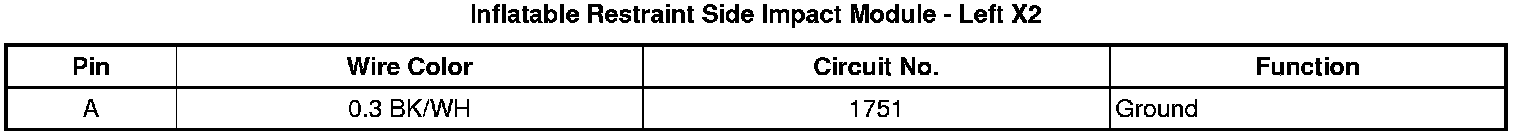

Inflatable Restraint Side Impact Module - Left X2
Inflatable Restraint Side Impact Module - Right X1

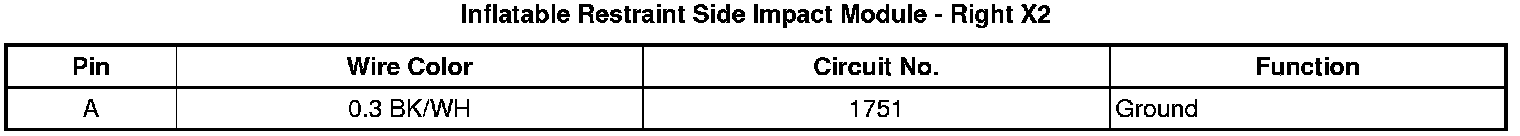

Inflatable Restraint Side Impact Module - Right X2
