Power Locks: Diagrams

Door Lock - Driver

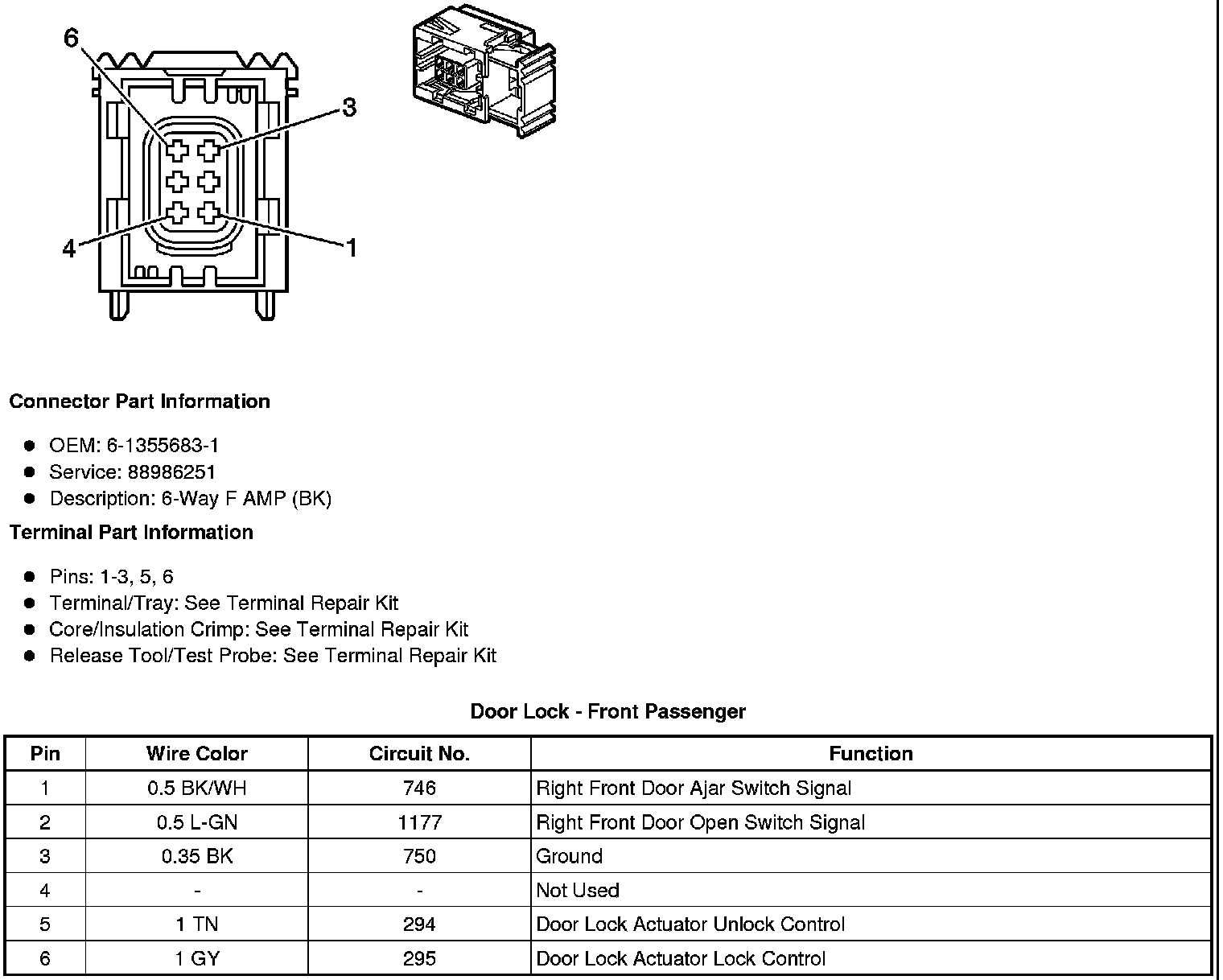

Door Lock - Front Passenger

Door Lock - Left Rear

Door Lock - Right Rear

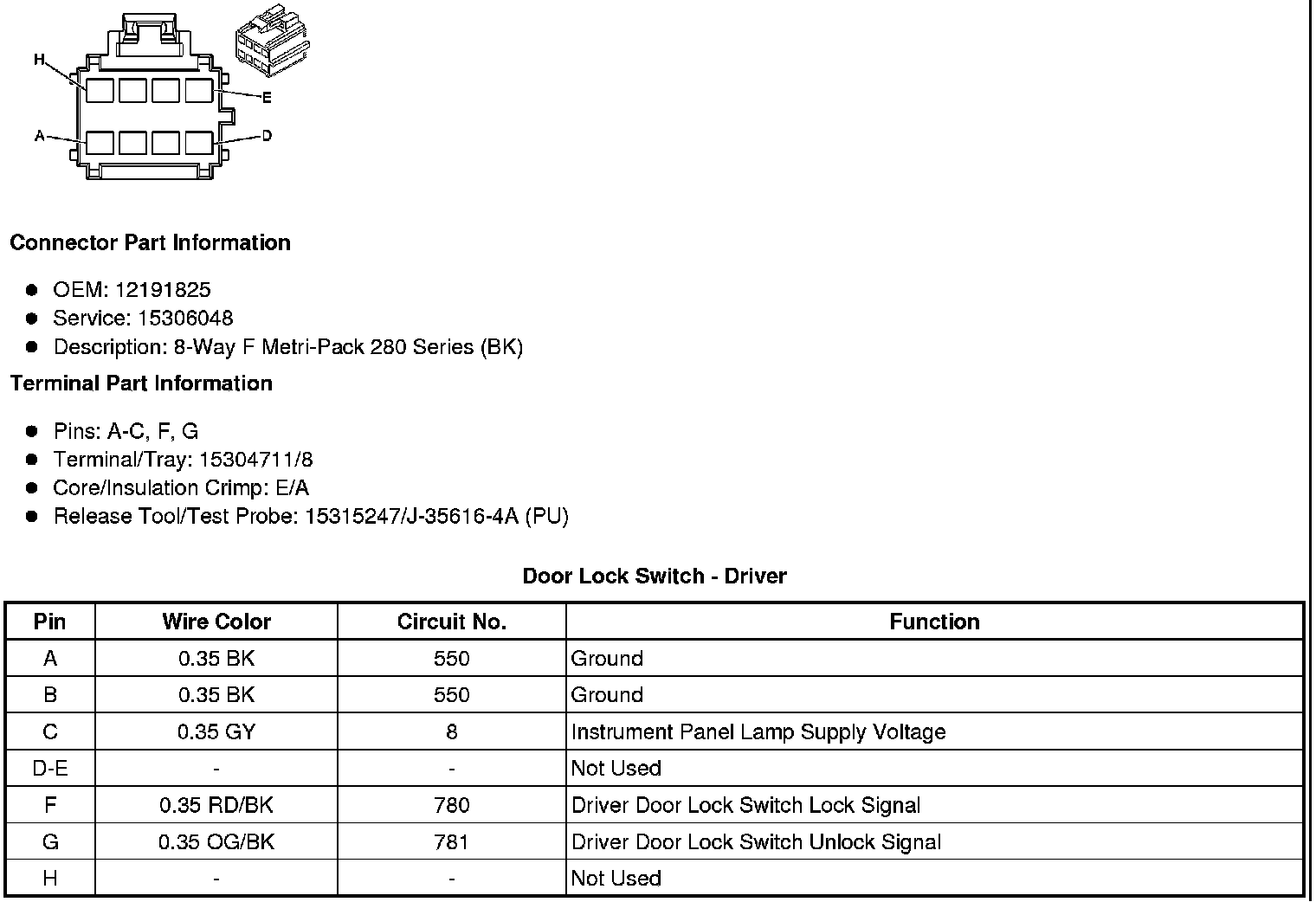

Door Lock Switch - Driver

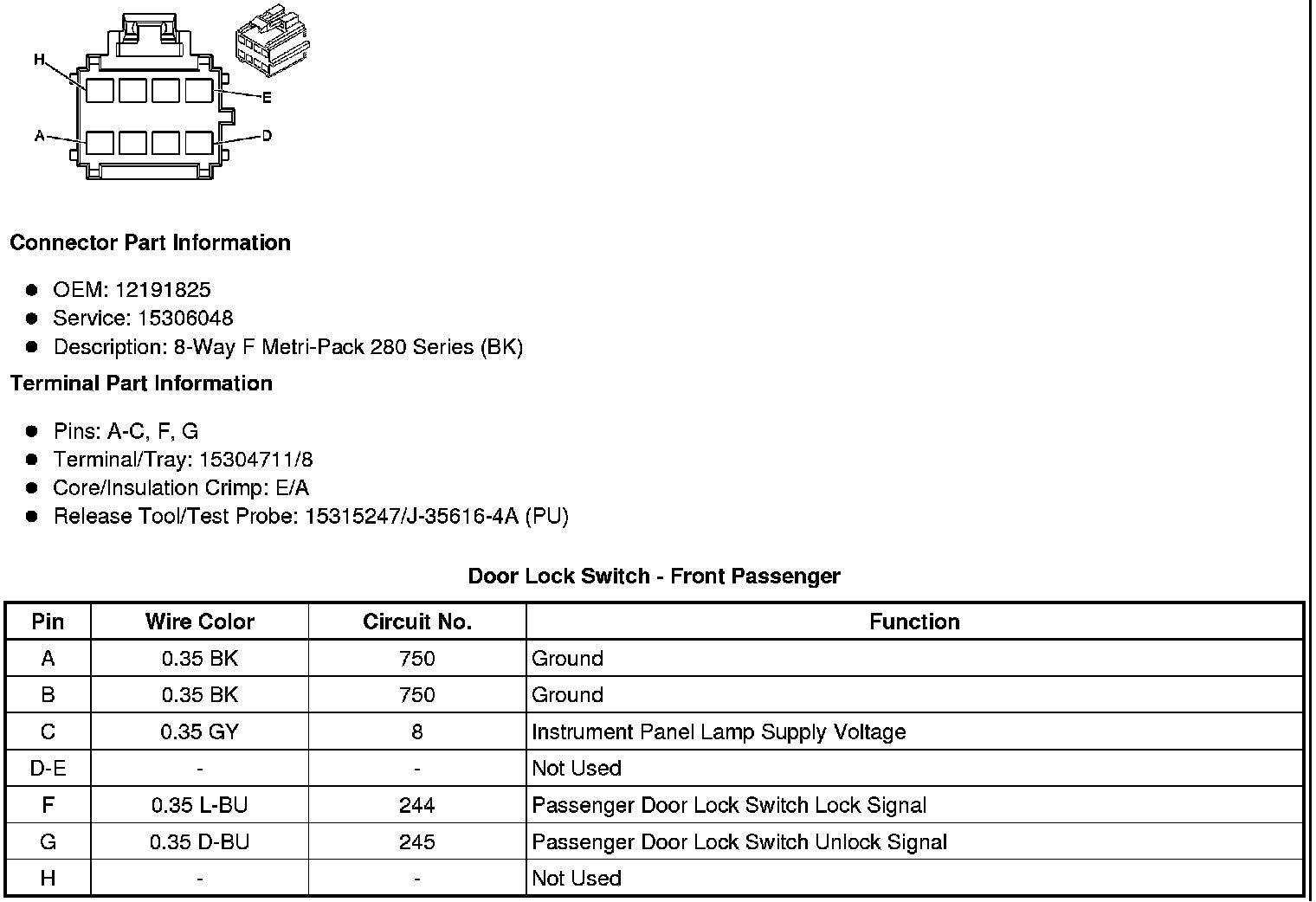

Door Lock Switch - Front Passenger

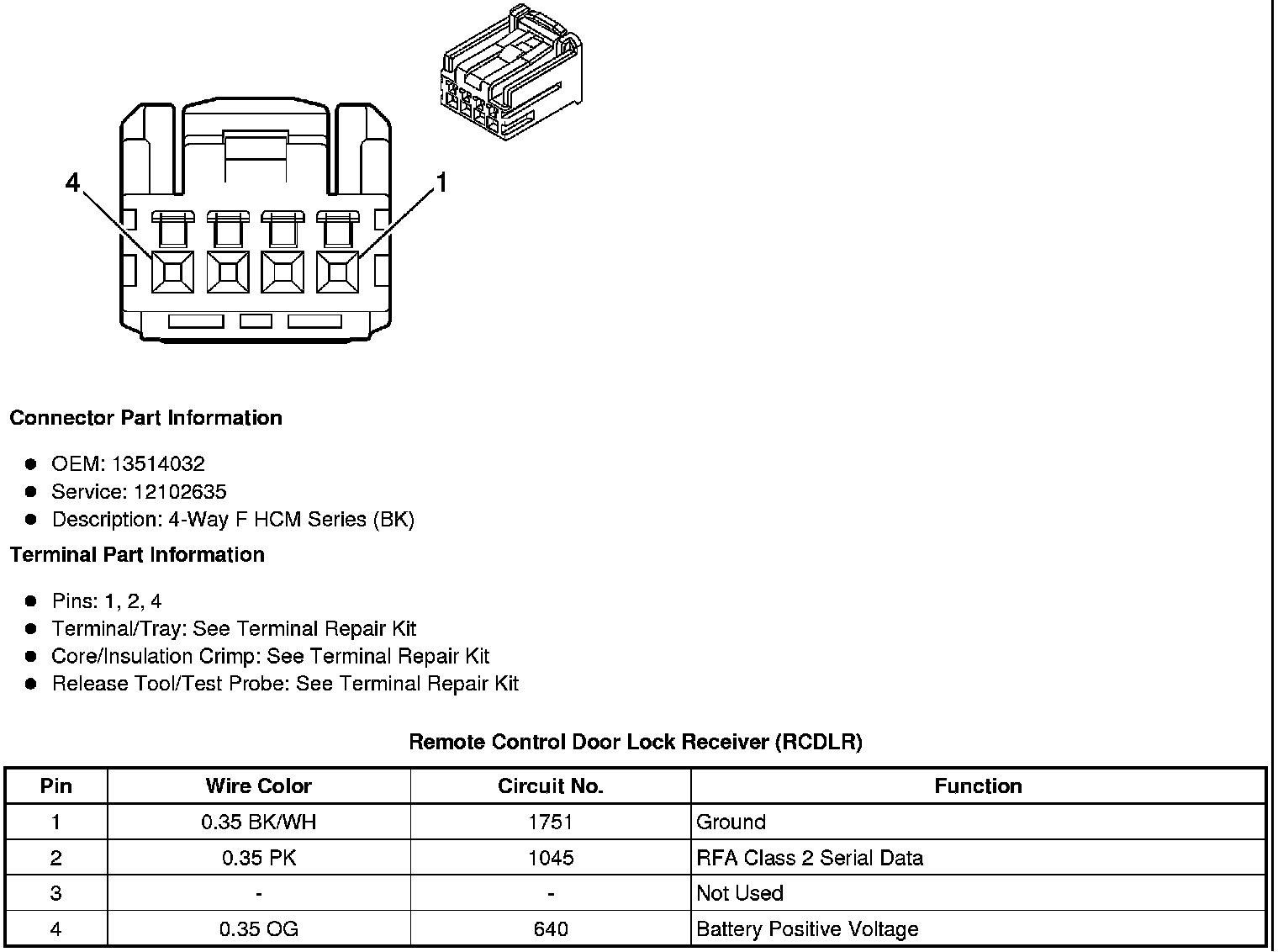

Remote Control Door Lock Receiver (RCDLR)
