Home >> Pontiac >> 2008 >> Grand Prix V8-5.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Compass >> Diagrams

Compass: Diagrams

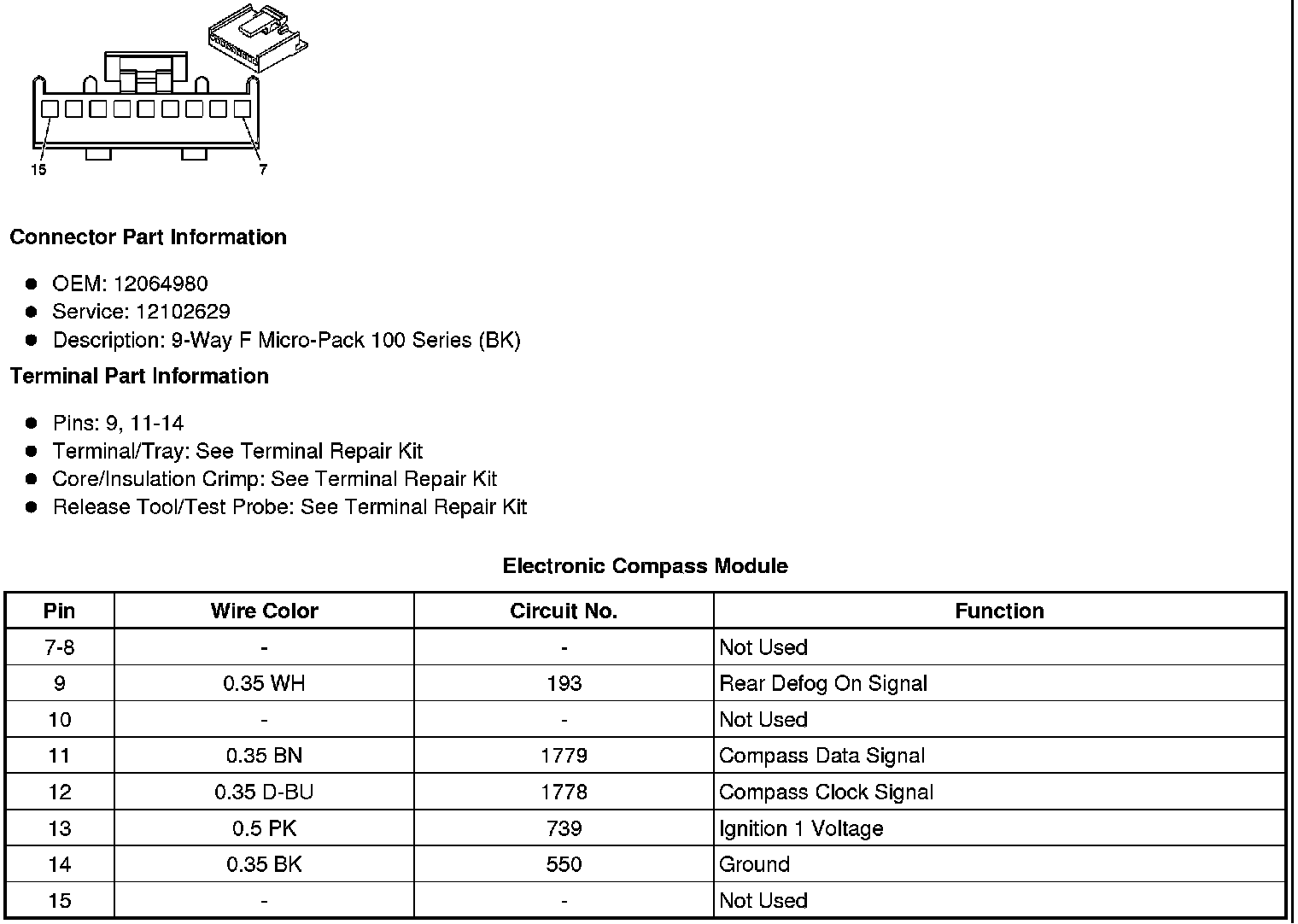

Electronic Compass Module
