Connector Views



Theft Deterrent System Connector End Views

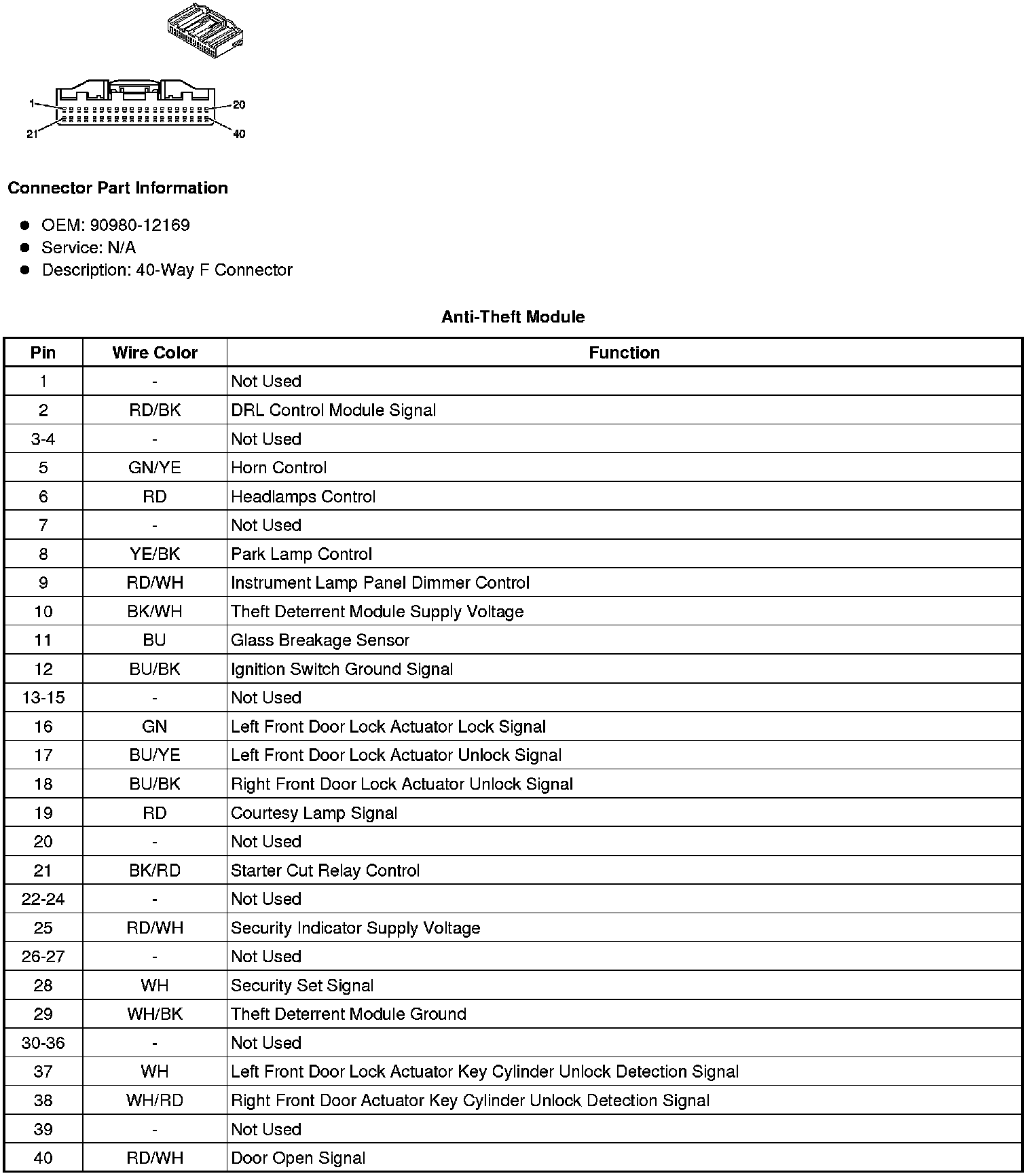

Anti-Theft Module






Starter Cut Relay

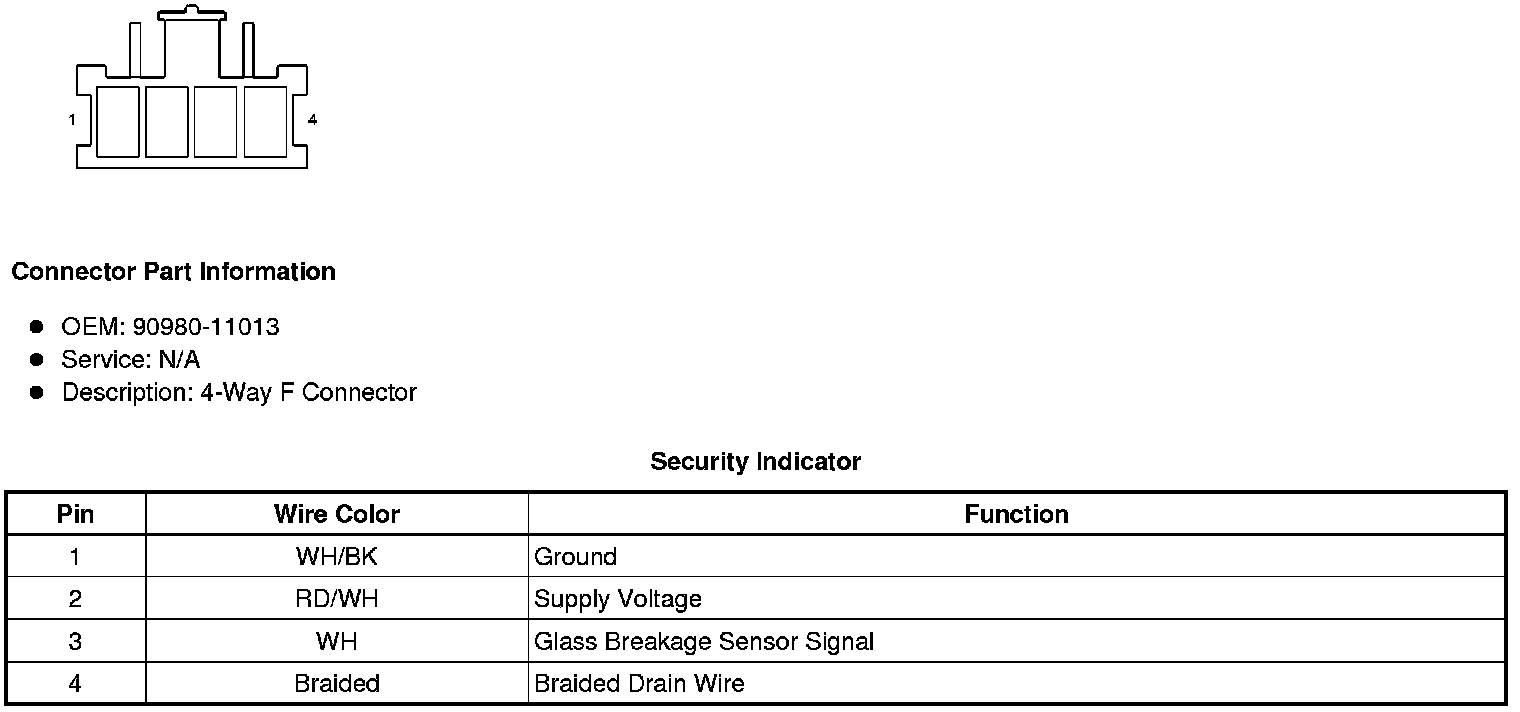

Security Indicator






Glass Breakage Sensor
