OnStar Schematics



OnStar Schematics

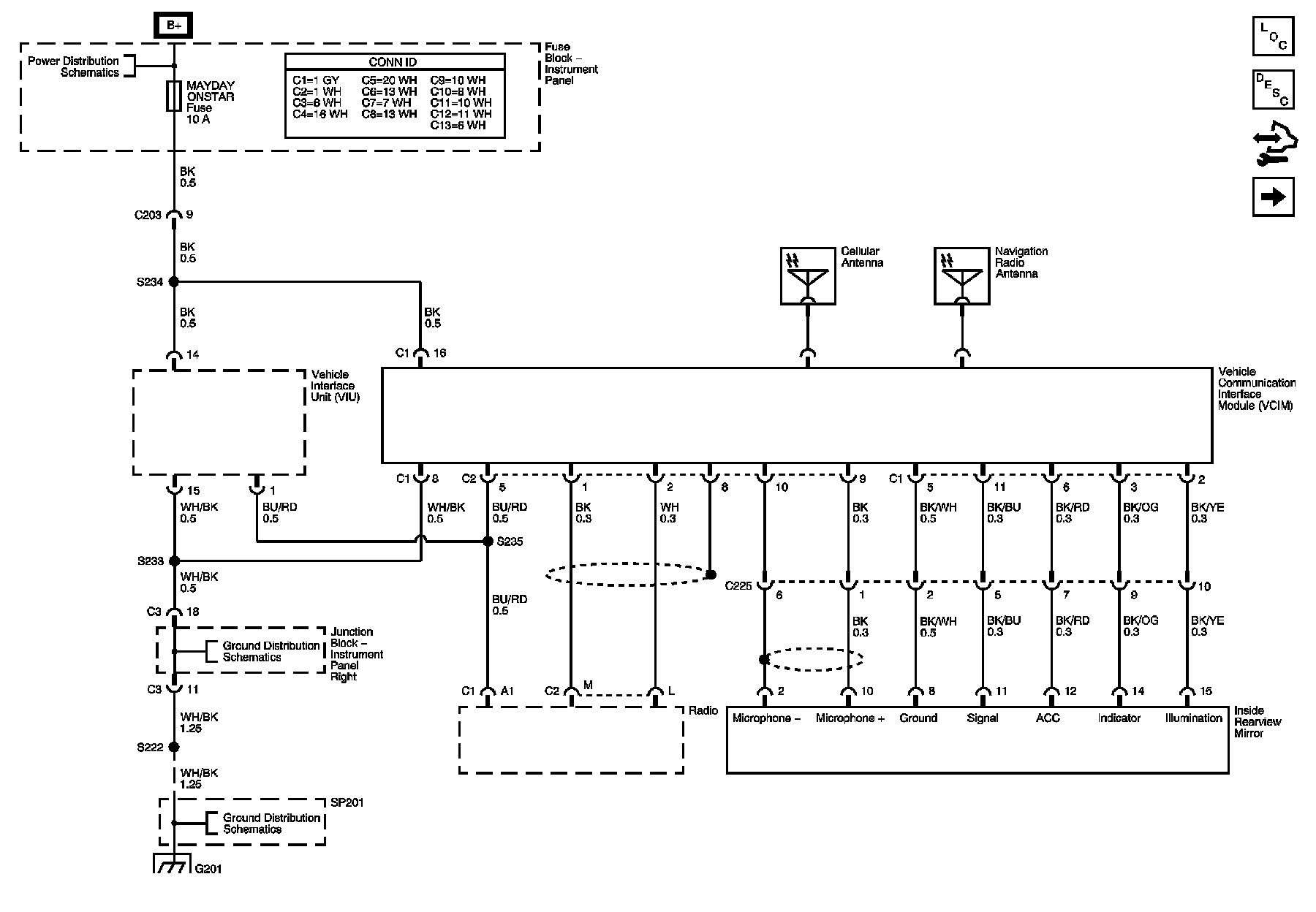

Vehicle Communication Interface Module (VCIM), Power and Ground, Inside Rearview Mirror





Vehicle Interface Unit (VIU), Data Link Connector (DLC)

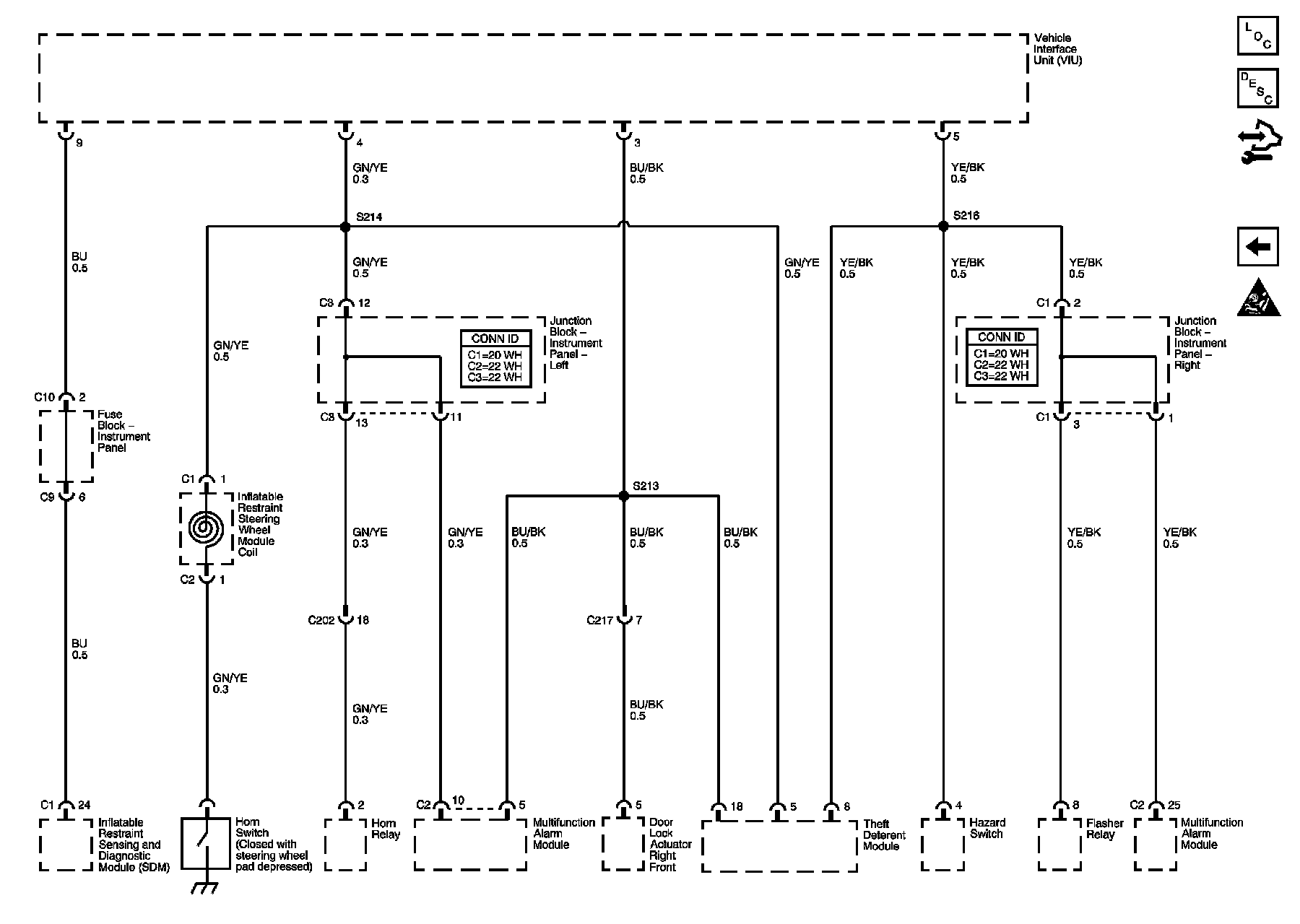

Vehicle Interface Unit (VIU)
