Radio/Navigation System Schematics
Radio/Navigation System Schematics

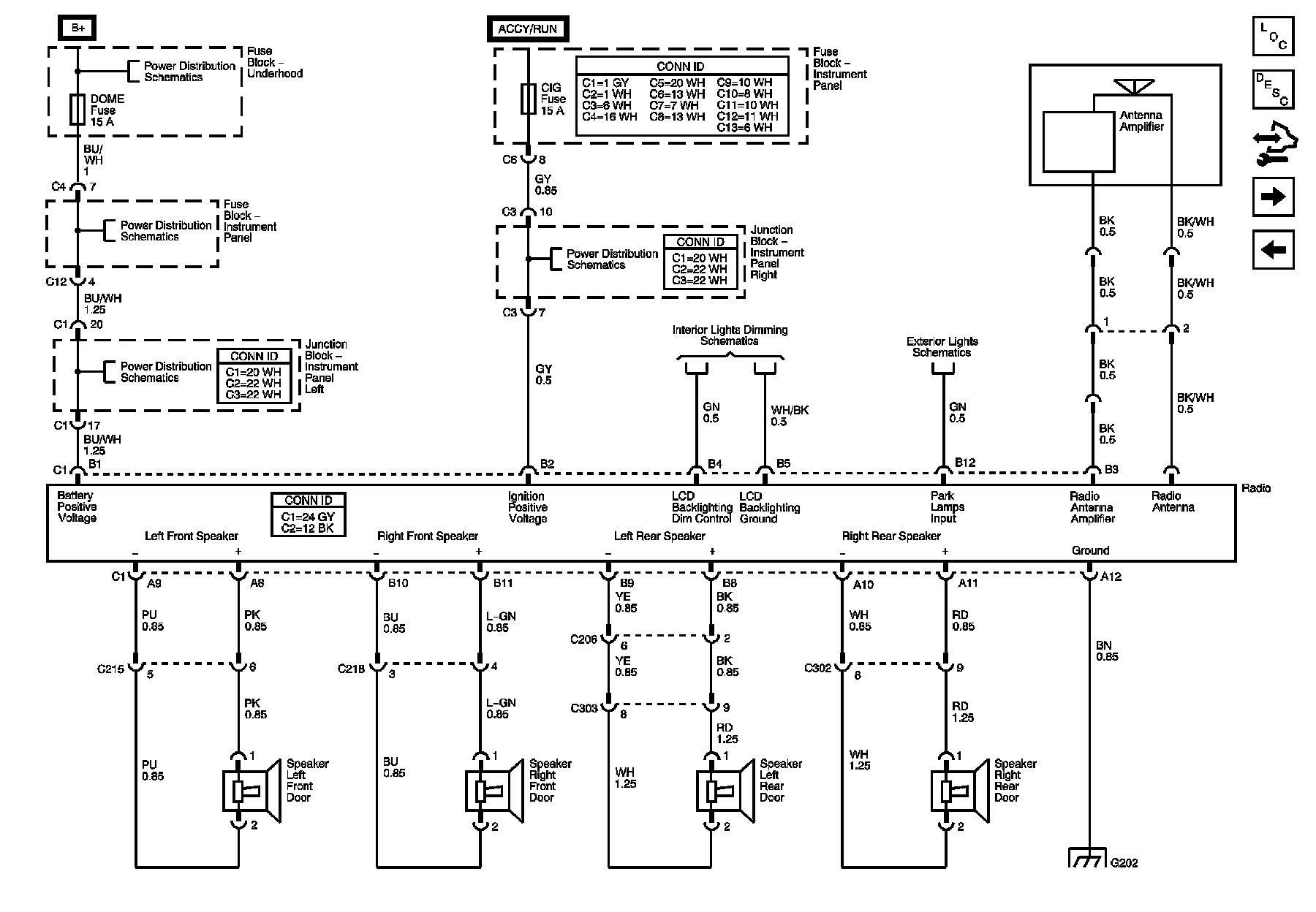

Radio UC6, US8, Speakers UW4

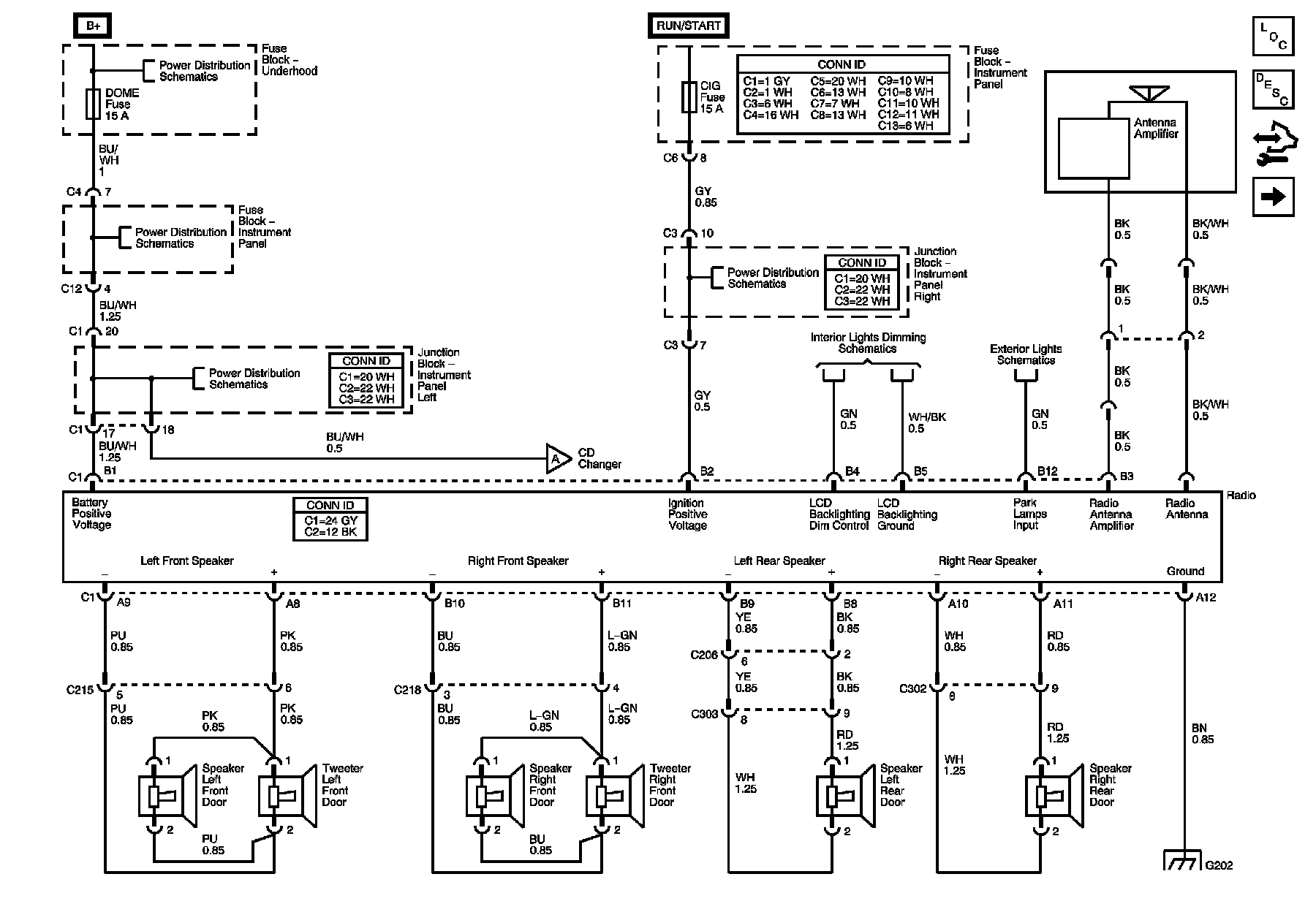

Radio U1P, Speakers UW4
Radio Monsoon U1P, Speakers U65

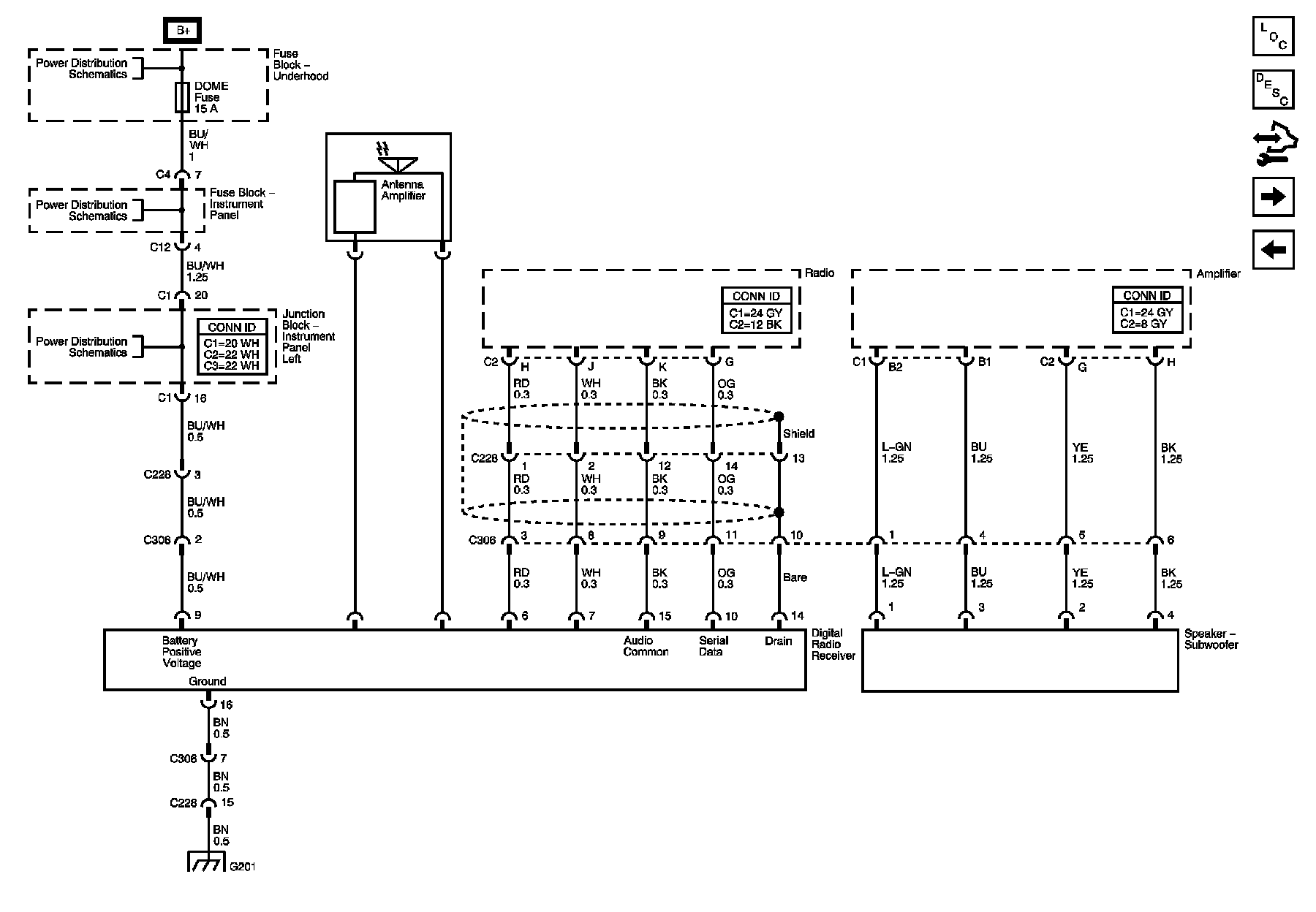

Digital Radio Receiver and Subwoofer U1P, U2K, U65

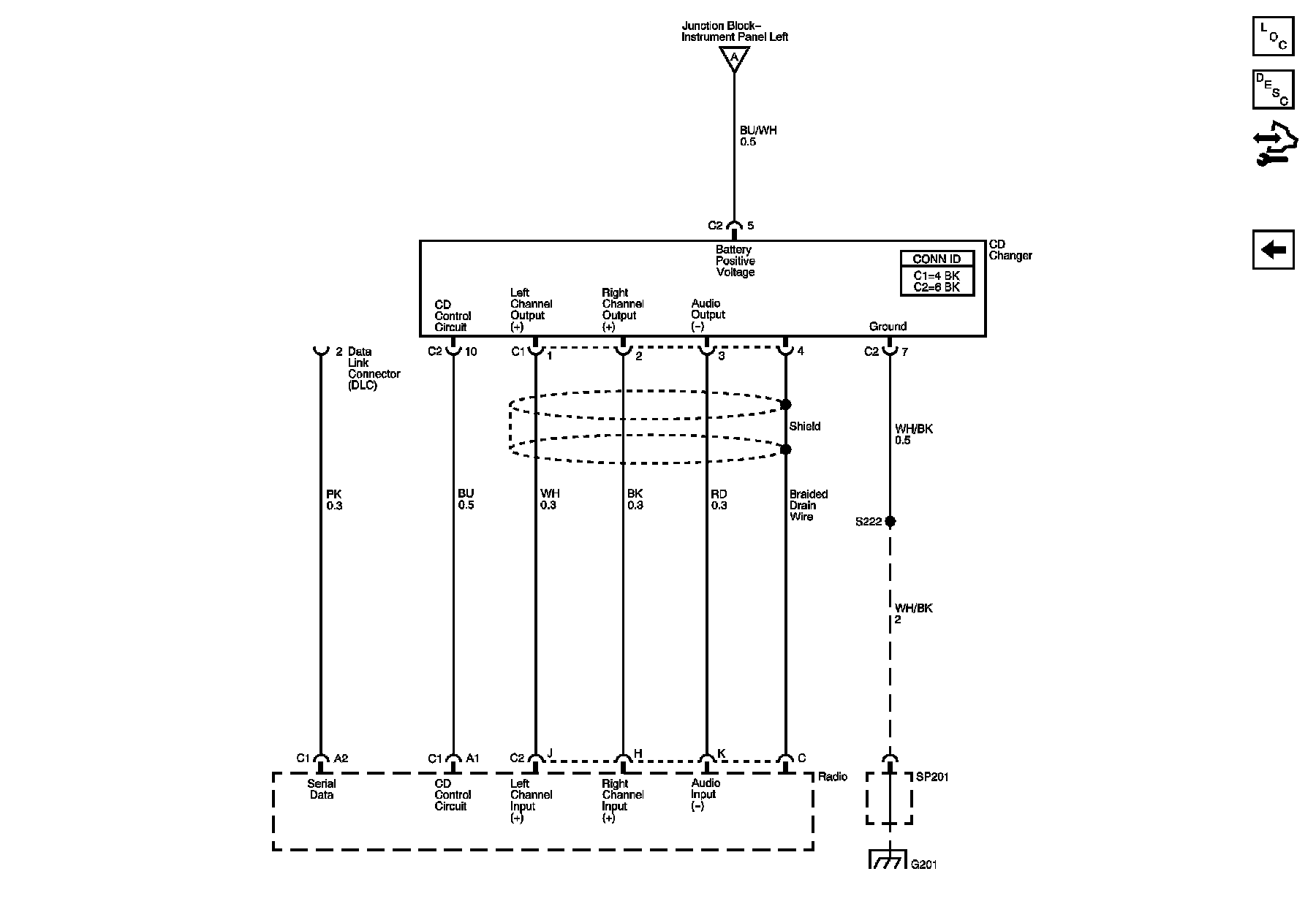

Radio and Remote CD Changer UC6
Radio/Navigation System Schematics
Radio UC6, US8, Speakers UW4
Radio U1P, Speakers UW4
Radio Monsoon U1P, Speakers U65
Digital Radio Receiver and Subwoofer U1P, U2K, U65
Radio and Remote CD Changer UC6
