Front Seat Replacement - Bucket

Front Seat Replacement - Bucket

Removal Procedure





Caution: Refer to SIR Caution (SIR Caution).
1. Disable the SIR system, if equipped with side impact inflatable restraint modules. Refer to SIR Disabling and Enabling (Service and Repair).
2. Disconnect the side impact inflatable restraint module electrical connector (1), if equipped. The electrical connector is located beneath the seat cushion.

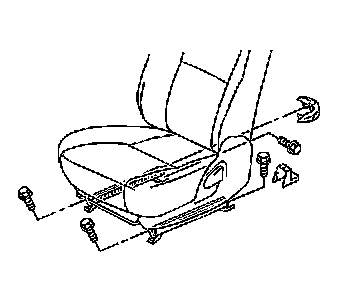

3. Remove the following components from the vehicle:

* The seat bolt finish covers
* The 4 bolts
* The front seat assembly




Installation Procedure






Notice: Refer to Fastener Notice .

1. Install the front seat assembly to the vehicle. Secure the seat with the 4 bolts.

Tighten the front seat assembly bolts to 47 N.m (35 lb ft).

2. Install the seat bolt finish covers.




3. Connect the side impact inflatable restraint module electrical connector (1), if equipped.
4. Enable the SIR system, if disabled. Refer to SIR Disabling and Enabling (Service and Repair).
5. Perform the Passenger Presence Rezeroing procedure. Refer to Passenger Presence System Rezeroing (Programming and Relearning).
