Pontiac
>>
2008
>>
Vibe L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
Components

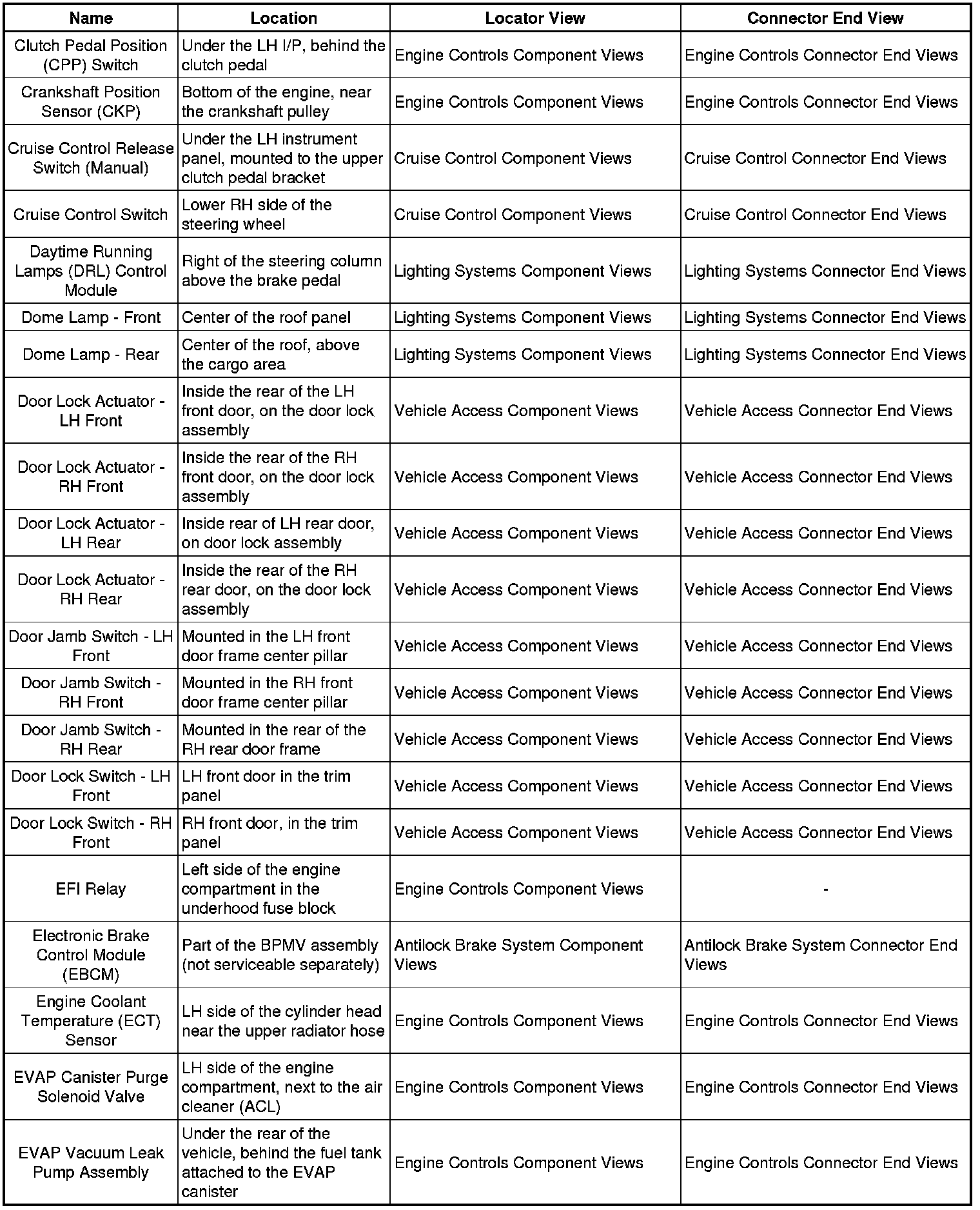

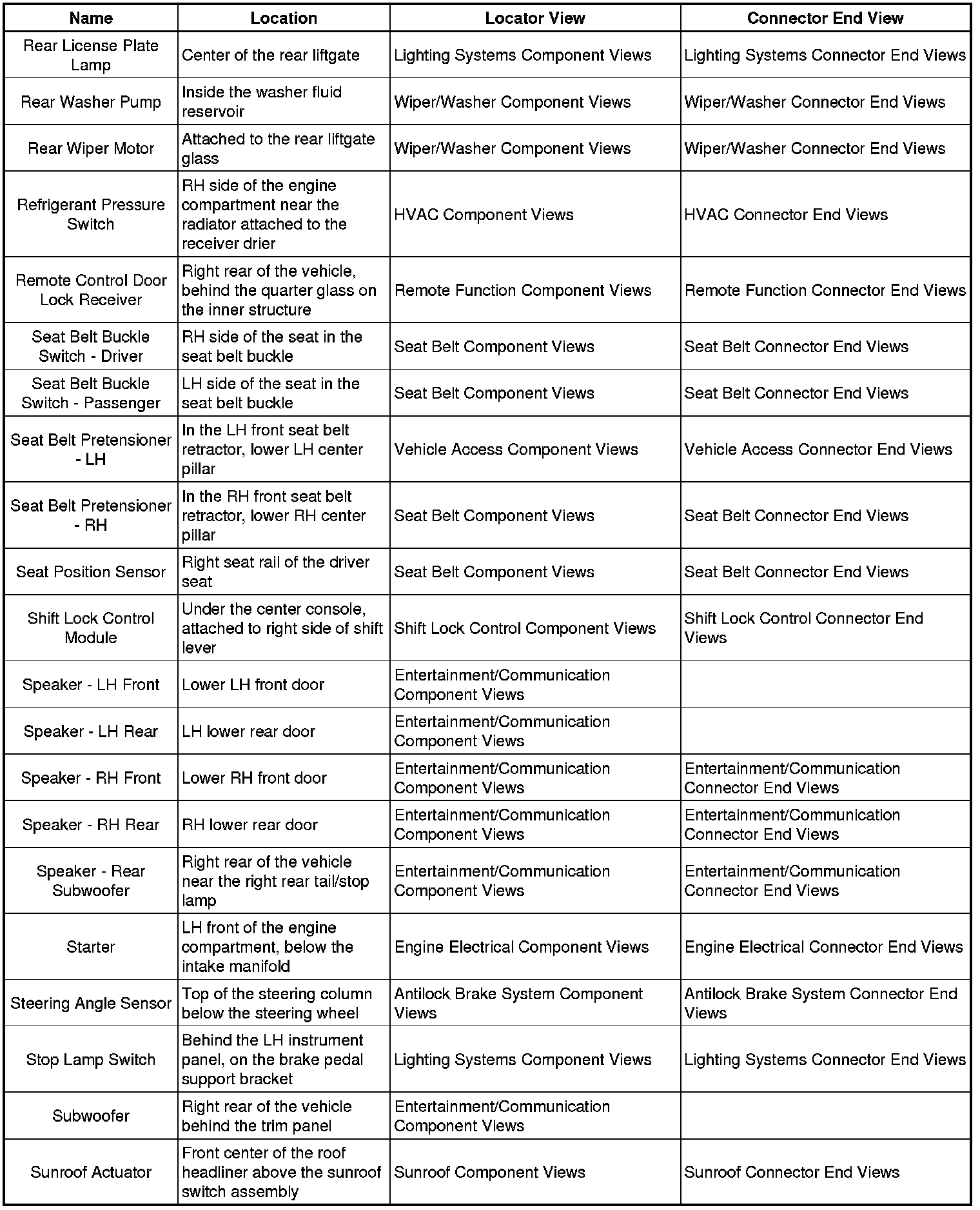

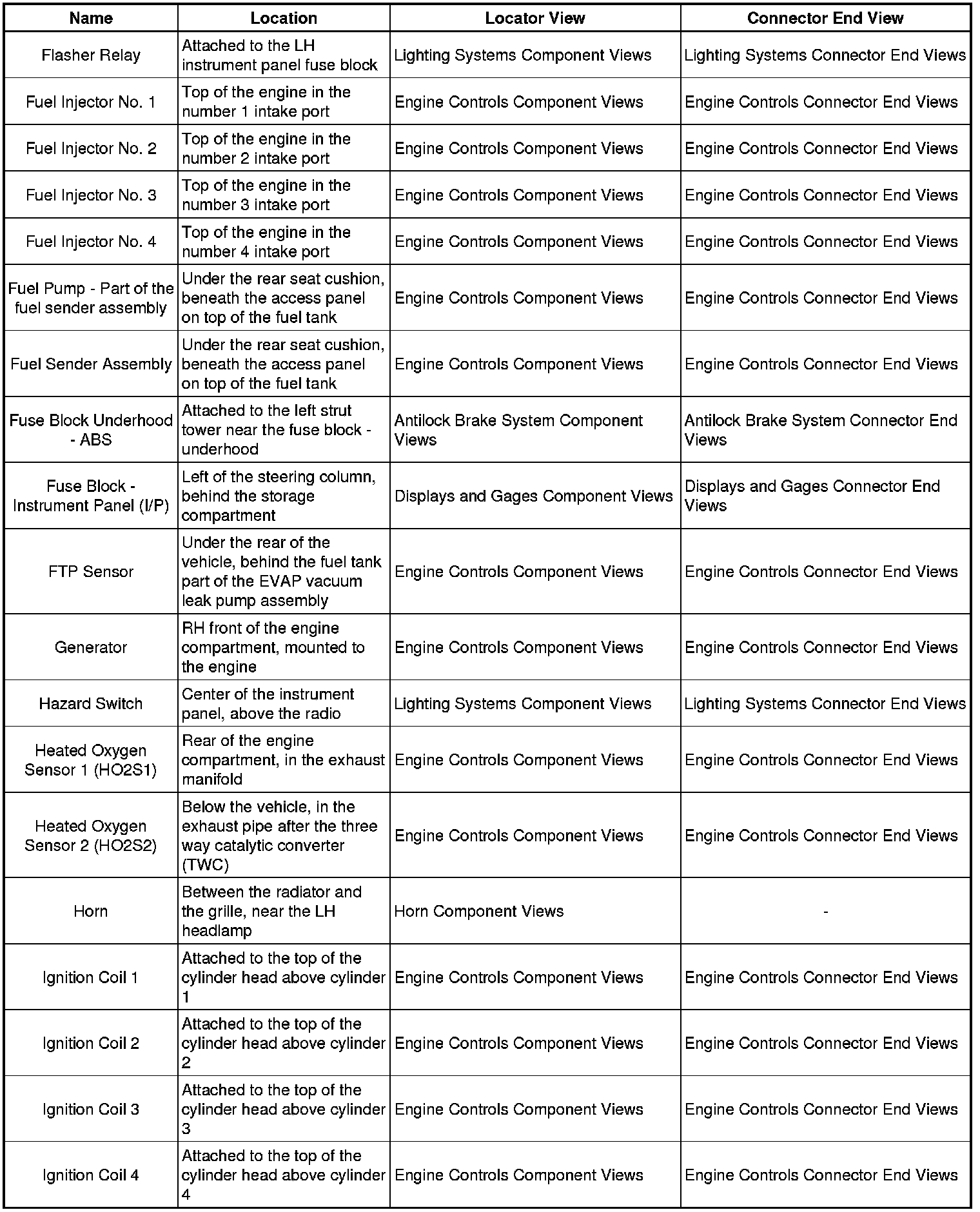

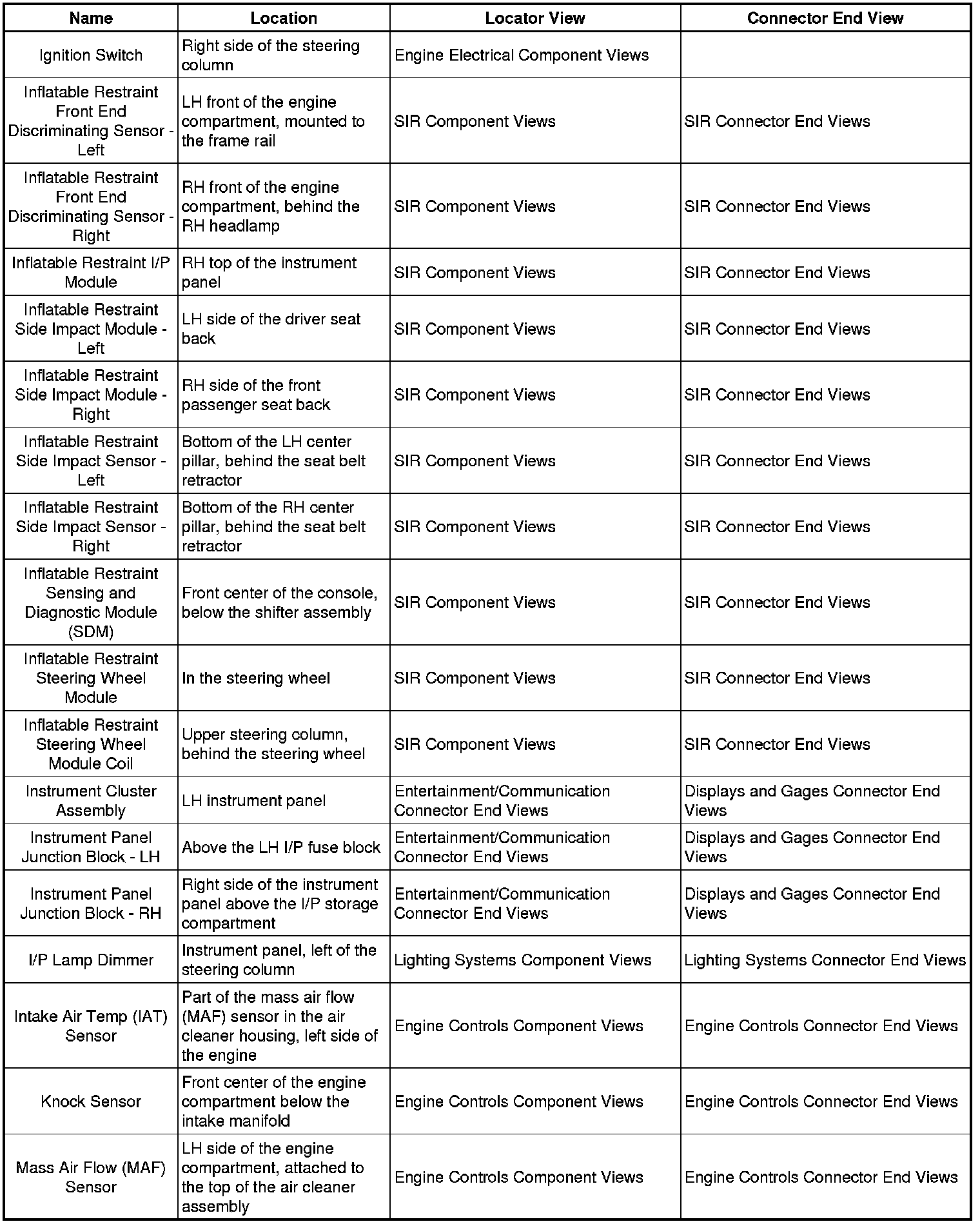

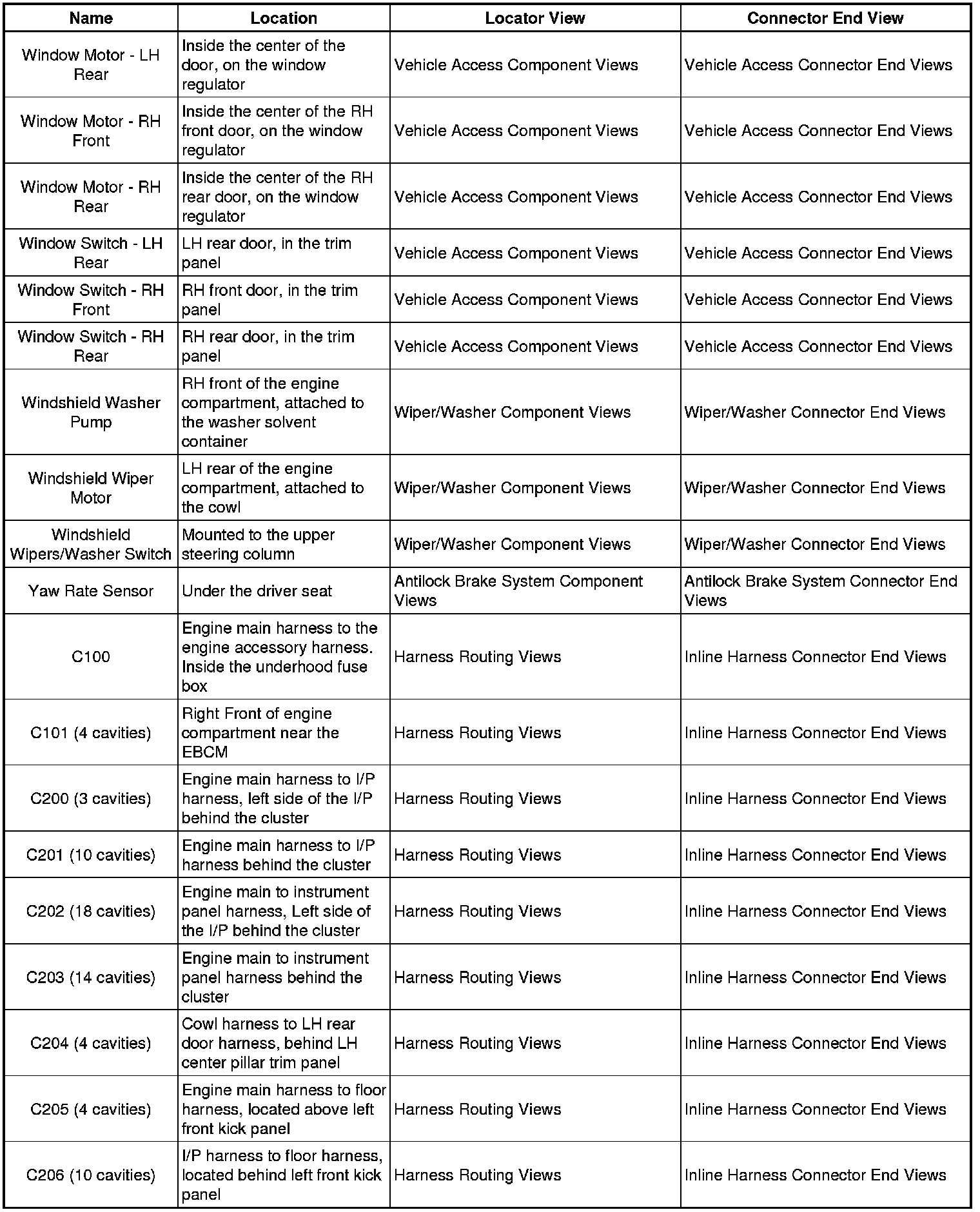

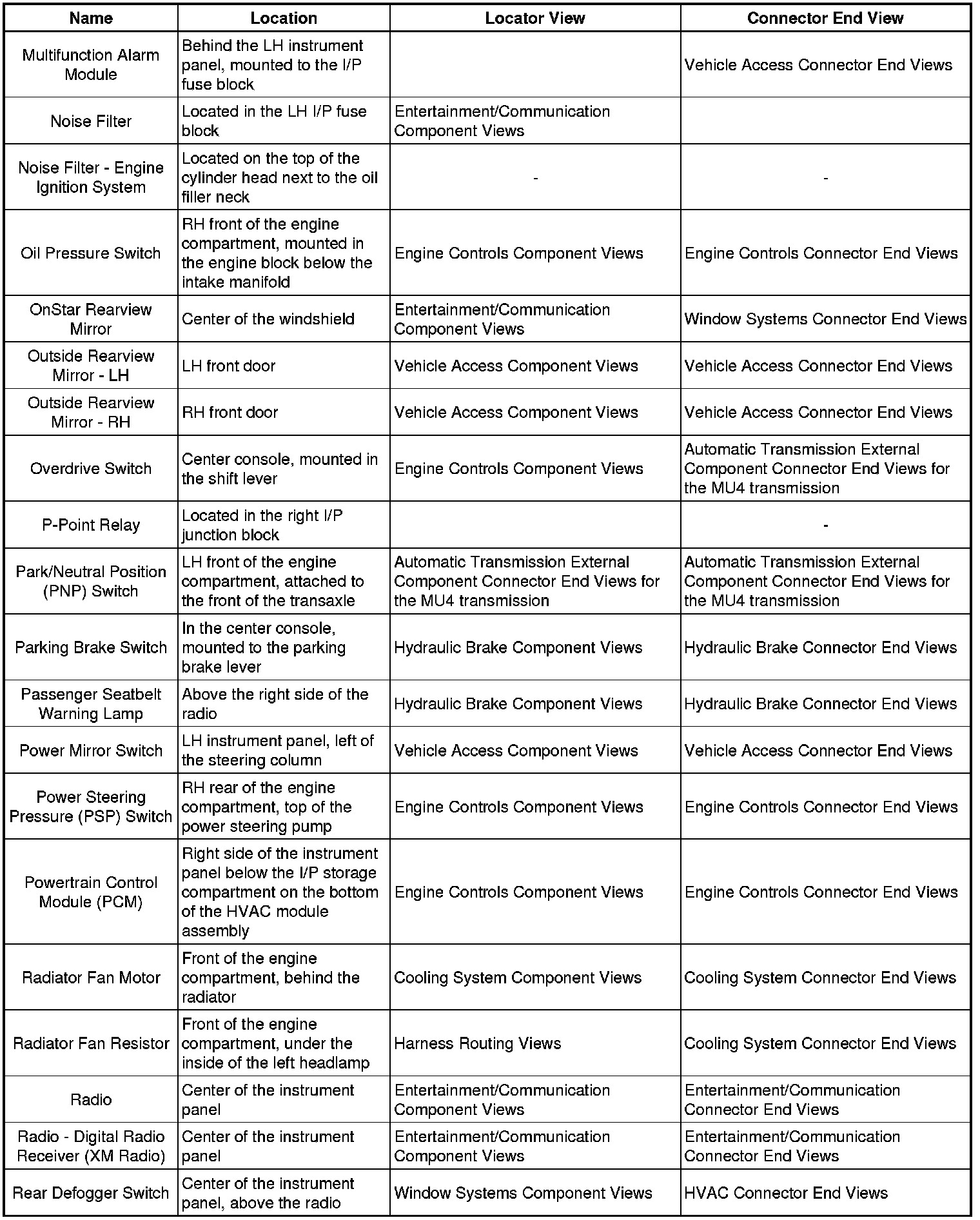

Master Electrical Component List
AC Comp - Cir:
Clu - EVAP:
Fla - Ign:
Ign - Ma:
Mul - Rea:
Rea - Sun:
Sun - Win:
Win - C202:

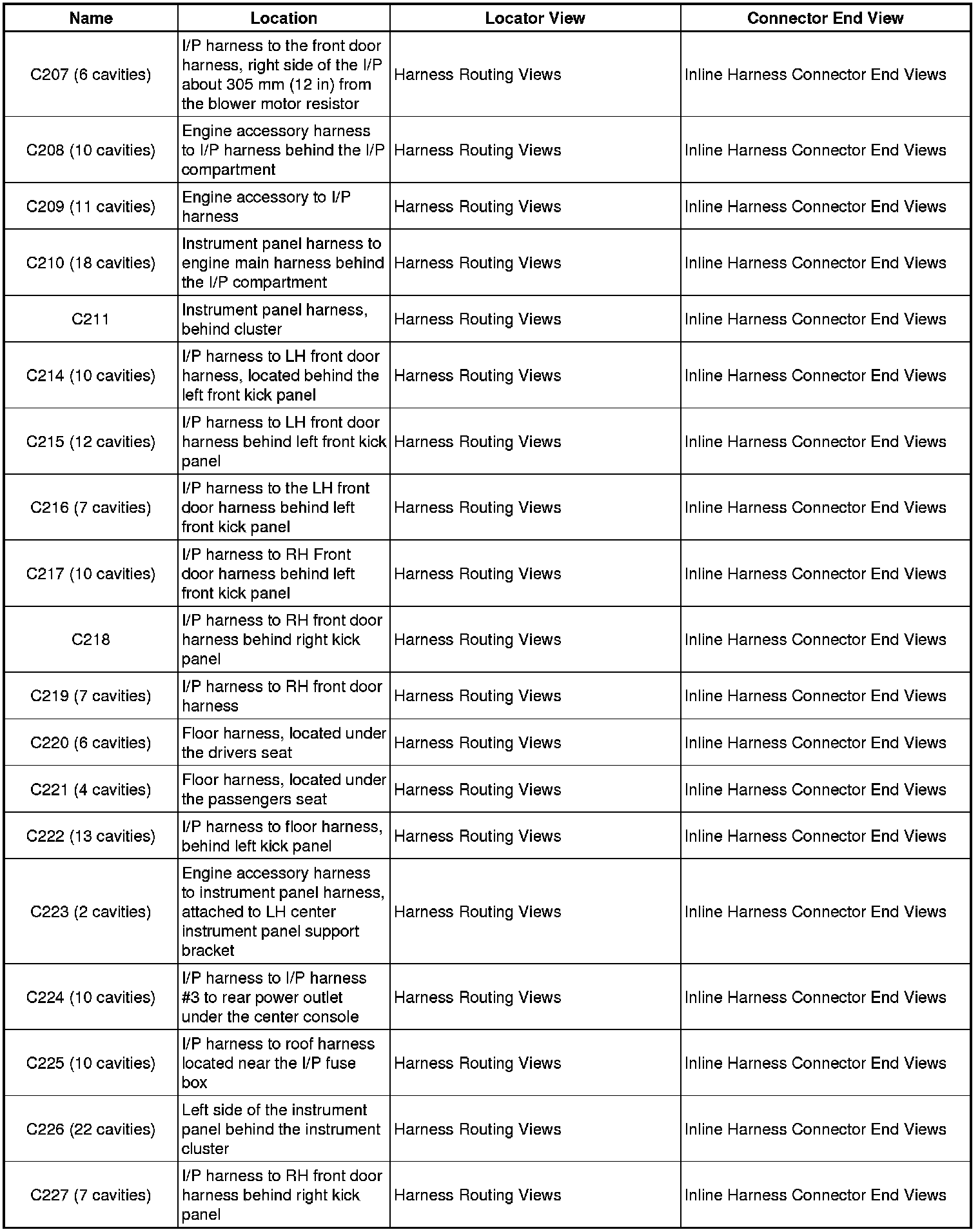

C207 - C227:
C300 - G201:
G202 - SP100:

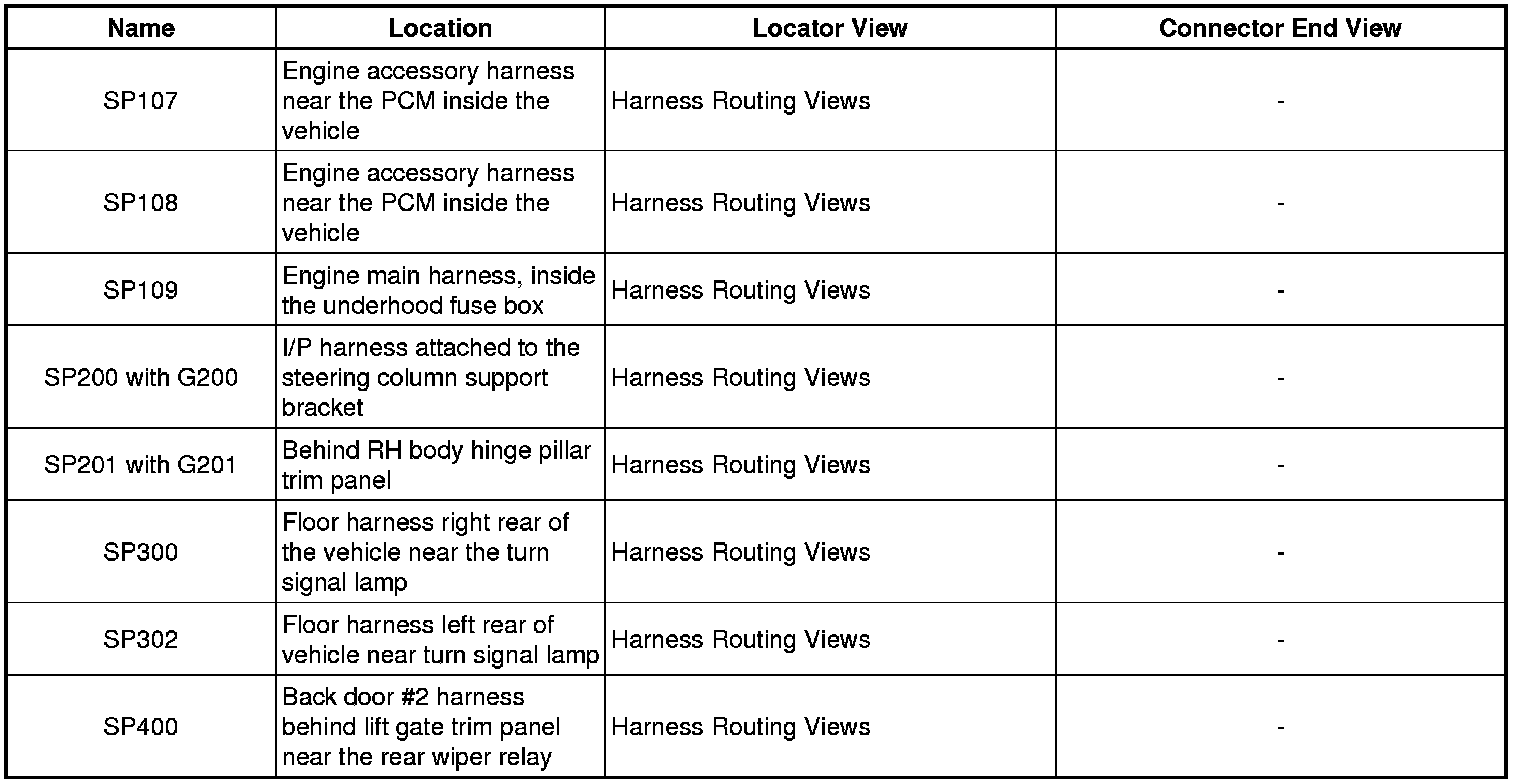

SP107 - SP400:
