System Diagram
Entertainment/Communication Connector End Views

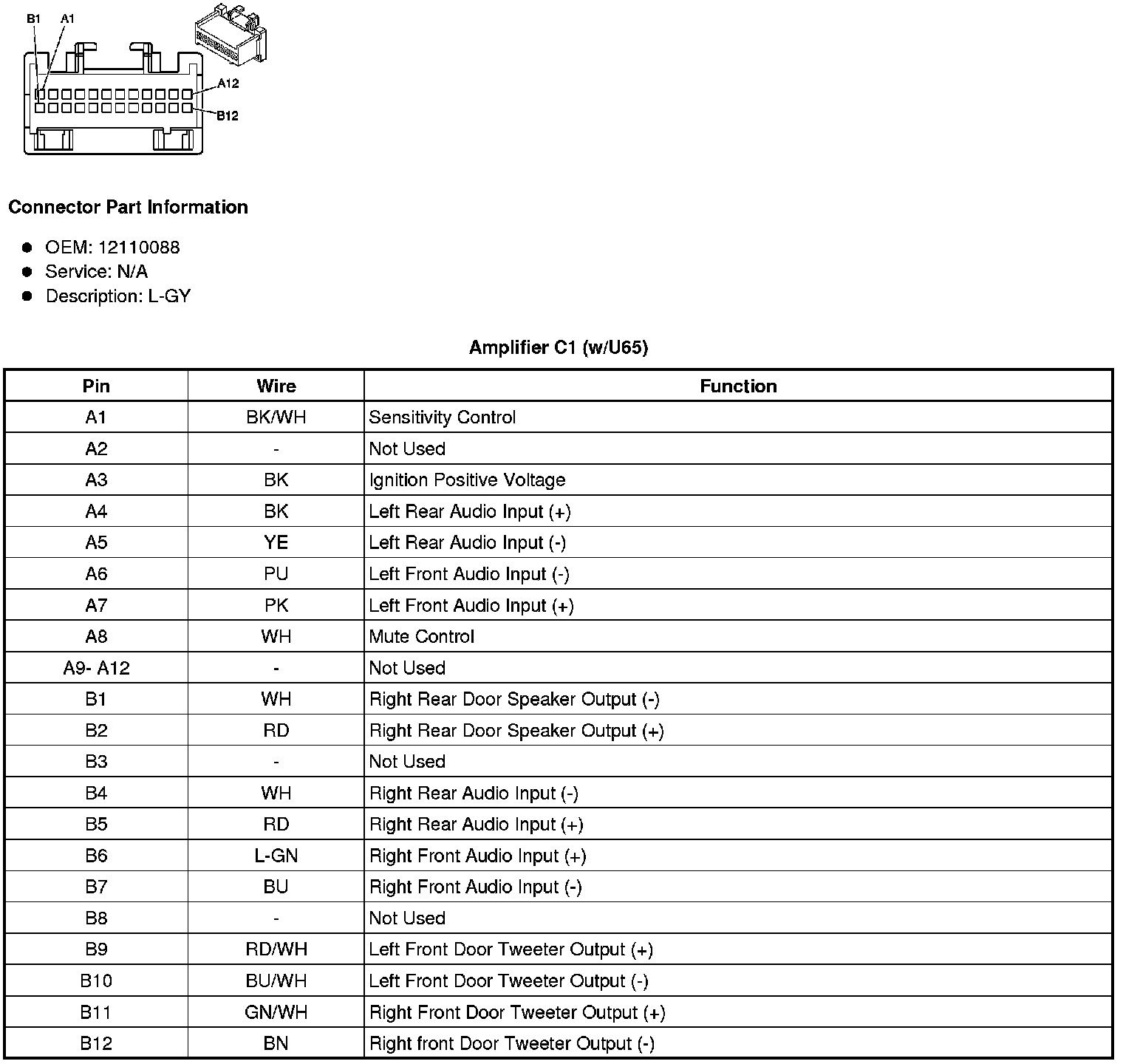

Amplifier C1 (w/U65)
Amplifier C2 (w/U65)
Digital Radio Receiver
Remote CD Changer C1 (w/UC6)
Remote CD Changer C2 (w/UC6)
Noise Filter

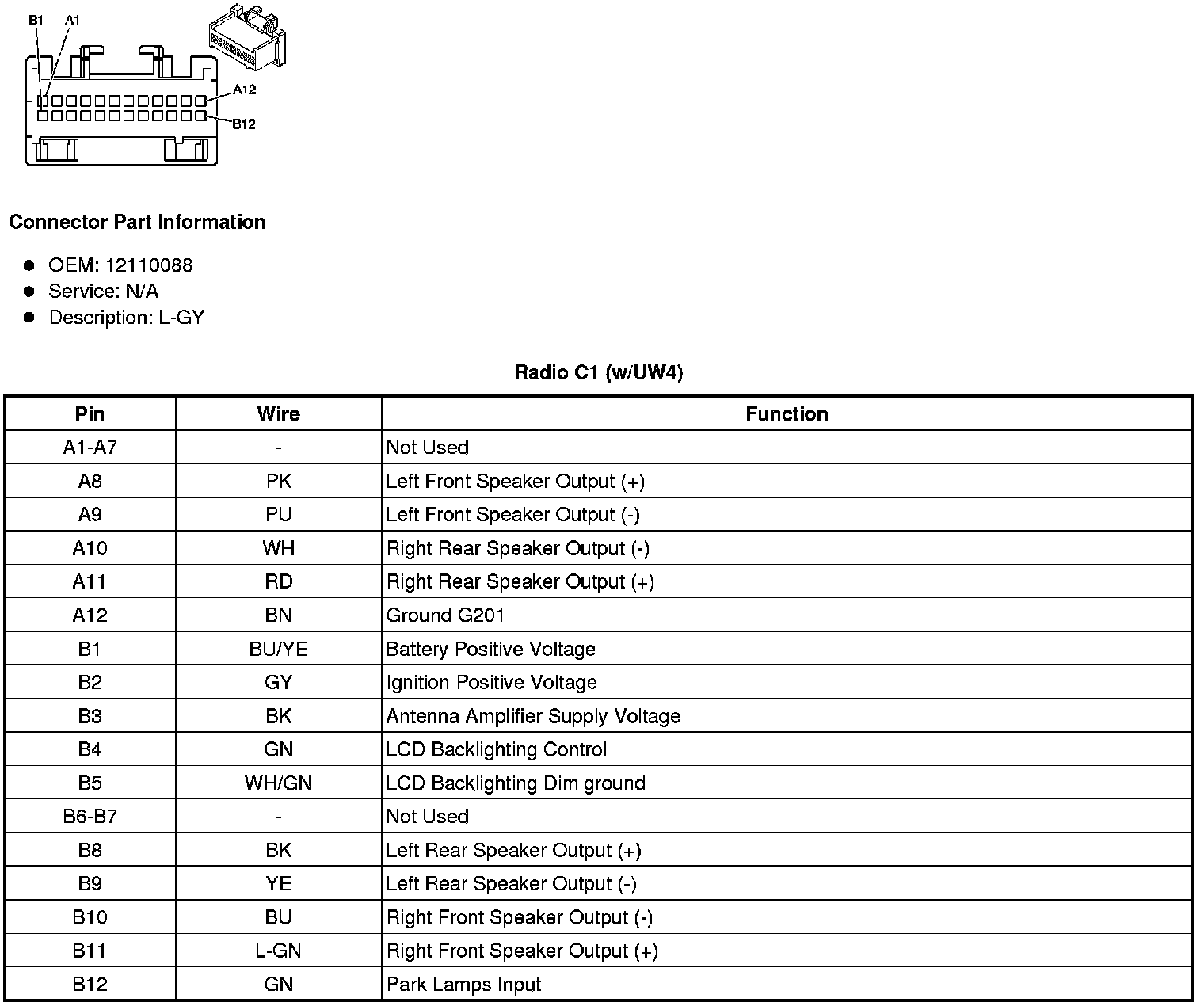

Radio C1 (w/UW4)
Radio C1 (w/U65 - Amplifier)

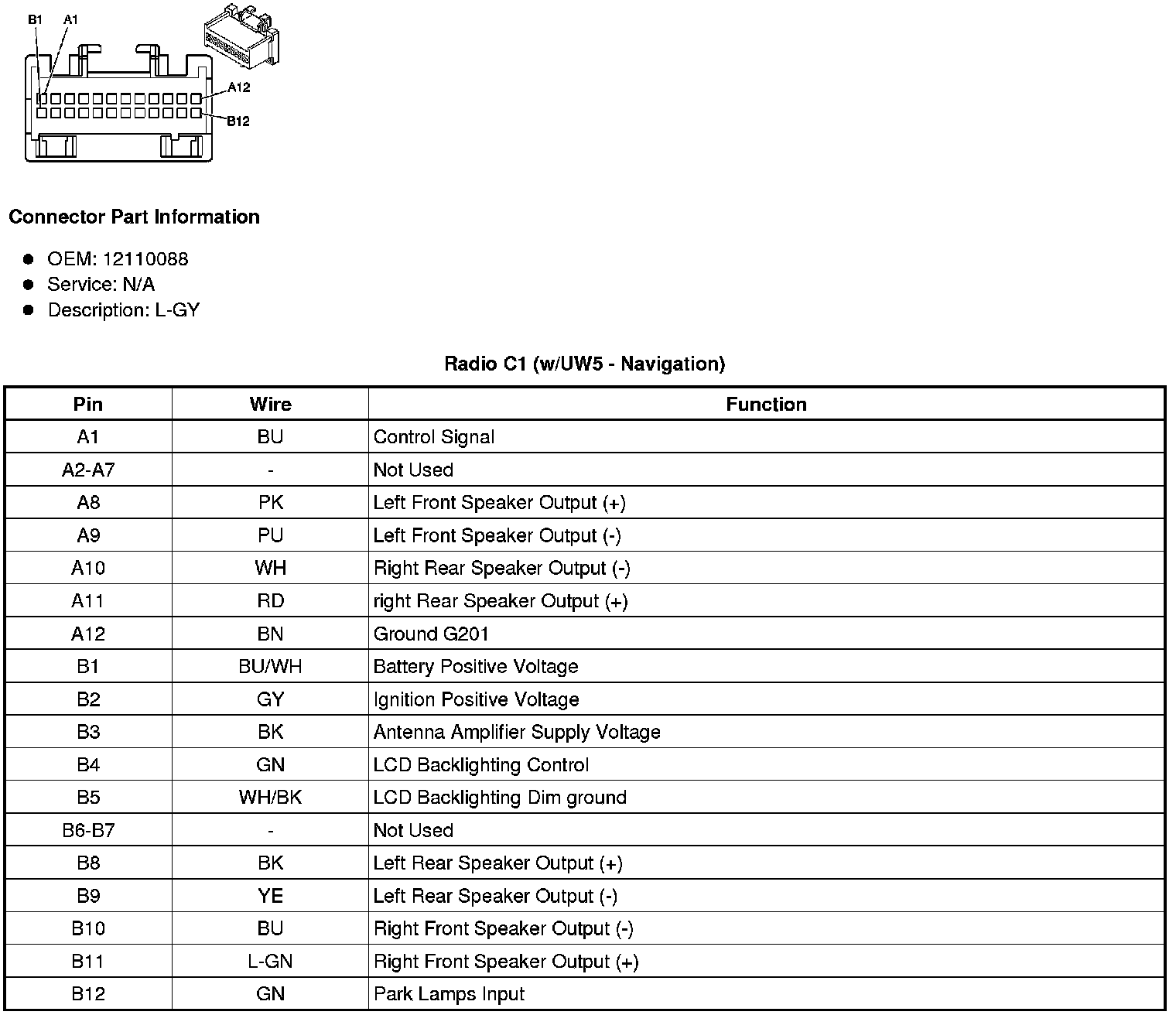

Radio C1 (w/UW5 - Navigation)

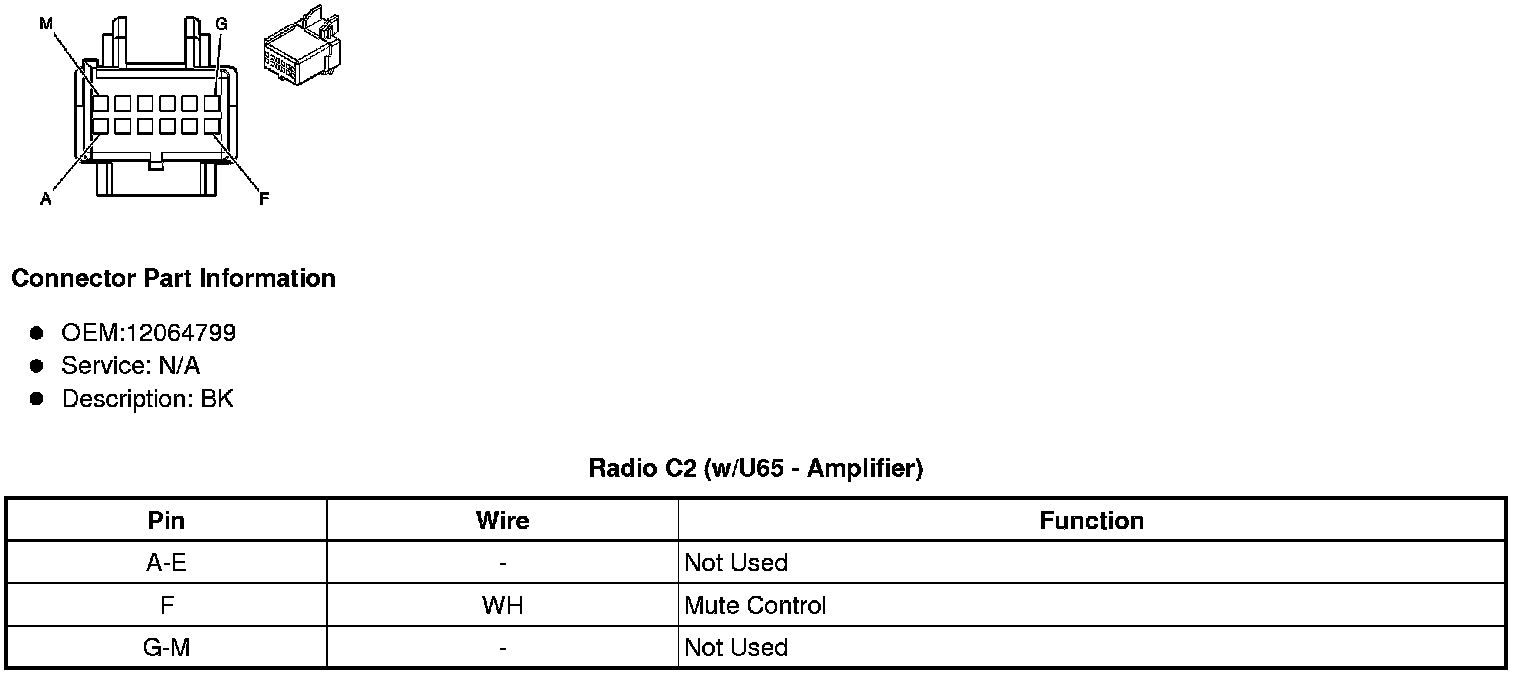

Radio C2 (w/U65 - Amplifier)

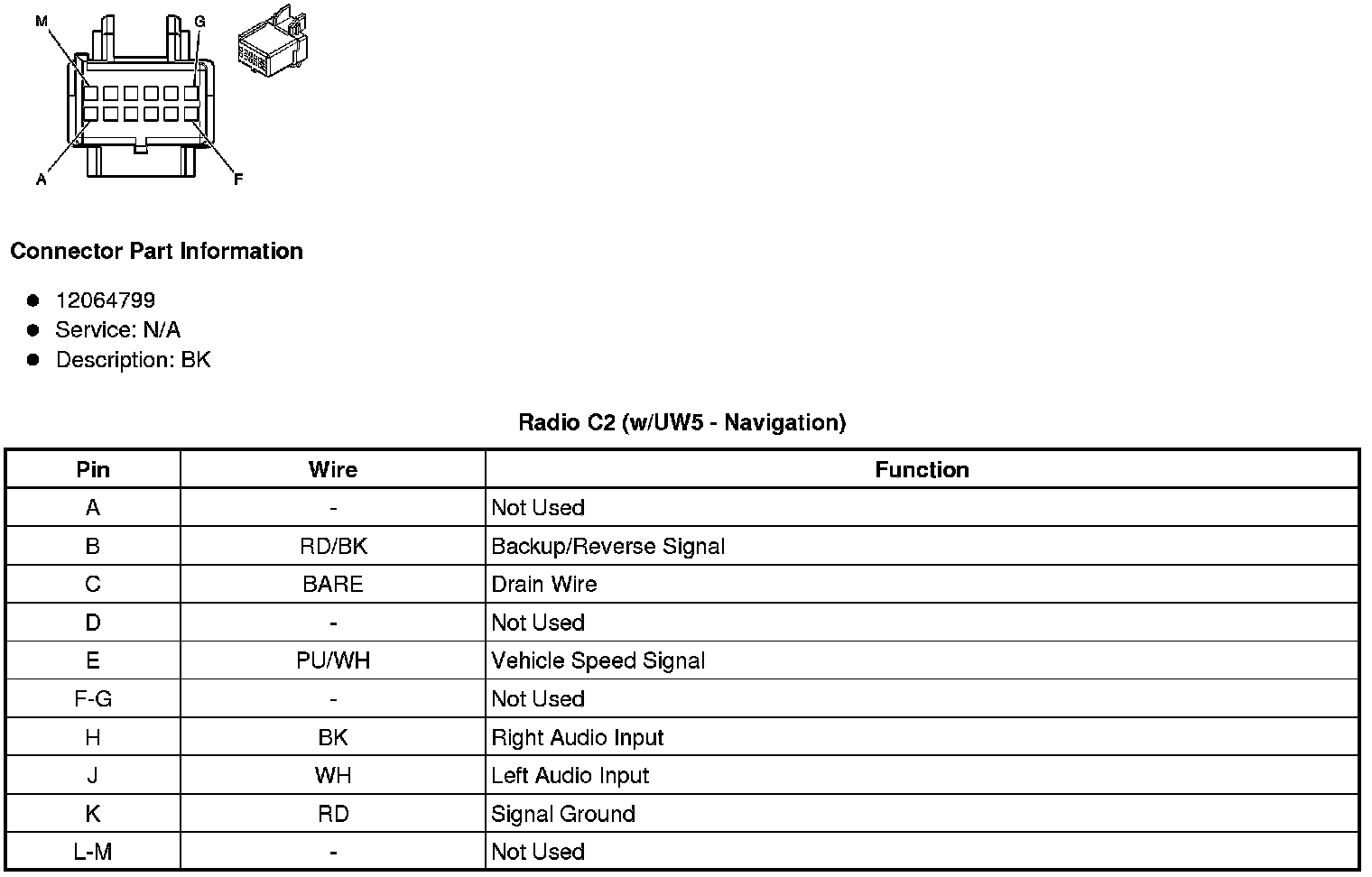

Radio C2 (w/UW5 - Navigation)

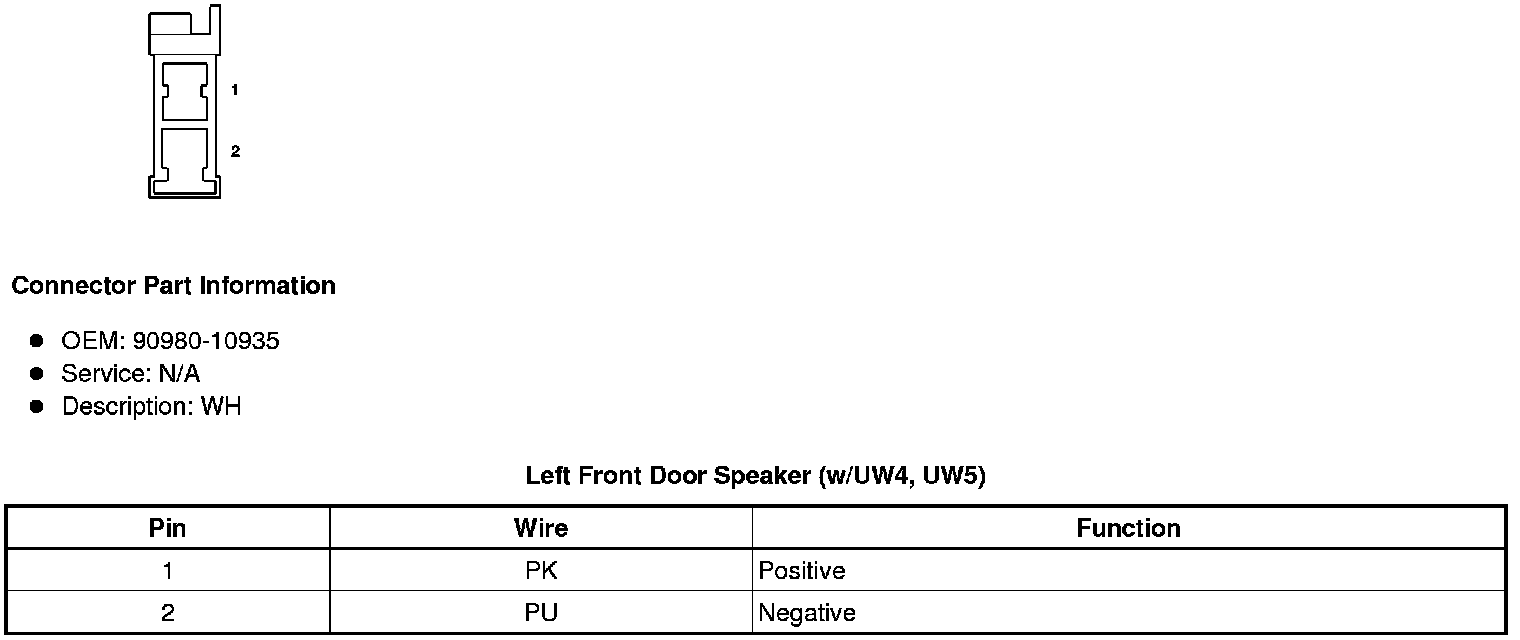

Left Front Door Speaker (w/UW4, UW5)
Left Front Door Speaker (w/U65)
Left Front Door Tweeter (w/U65)

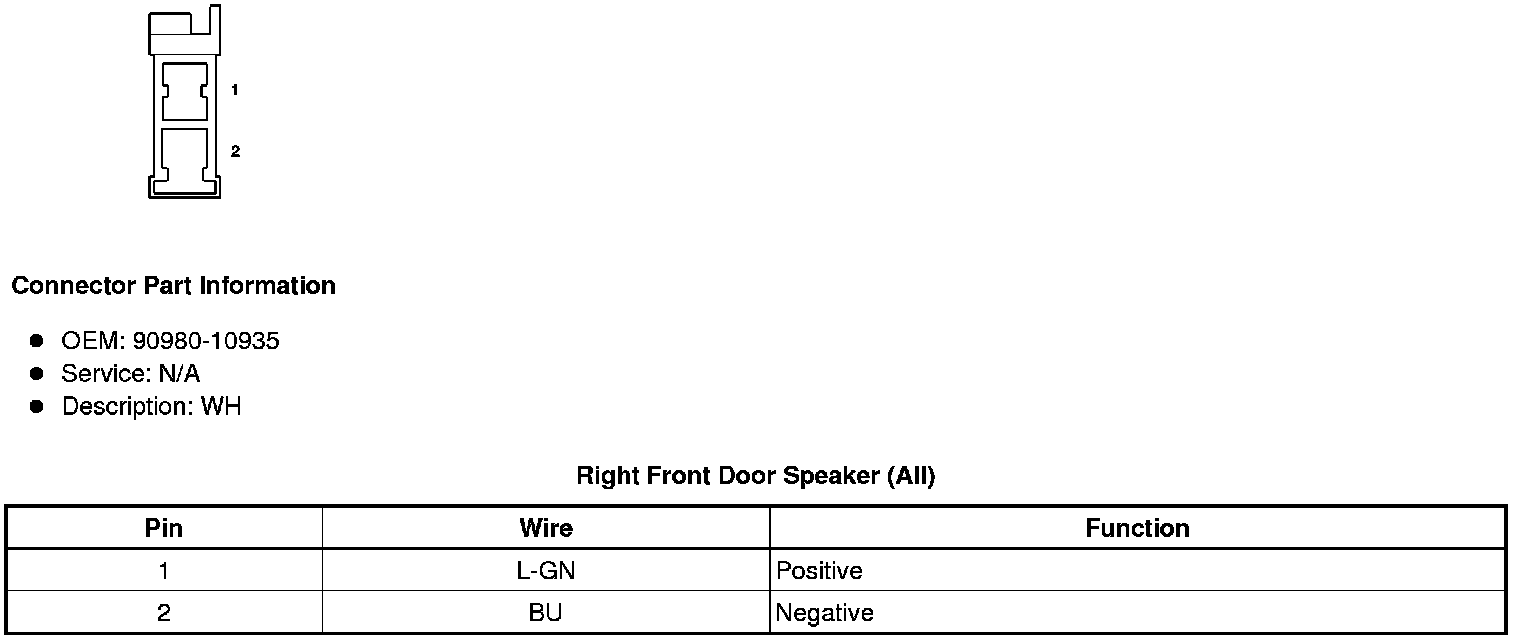

Right Front Door Speaker (All)

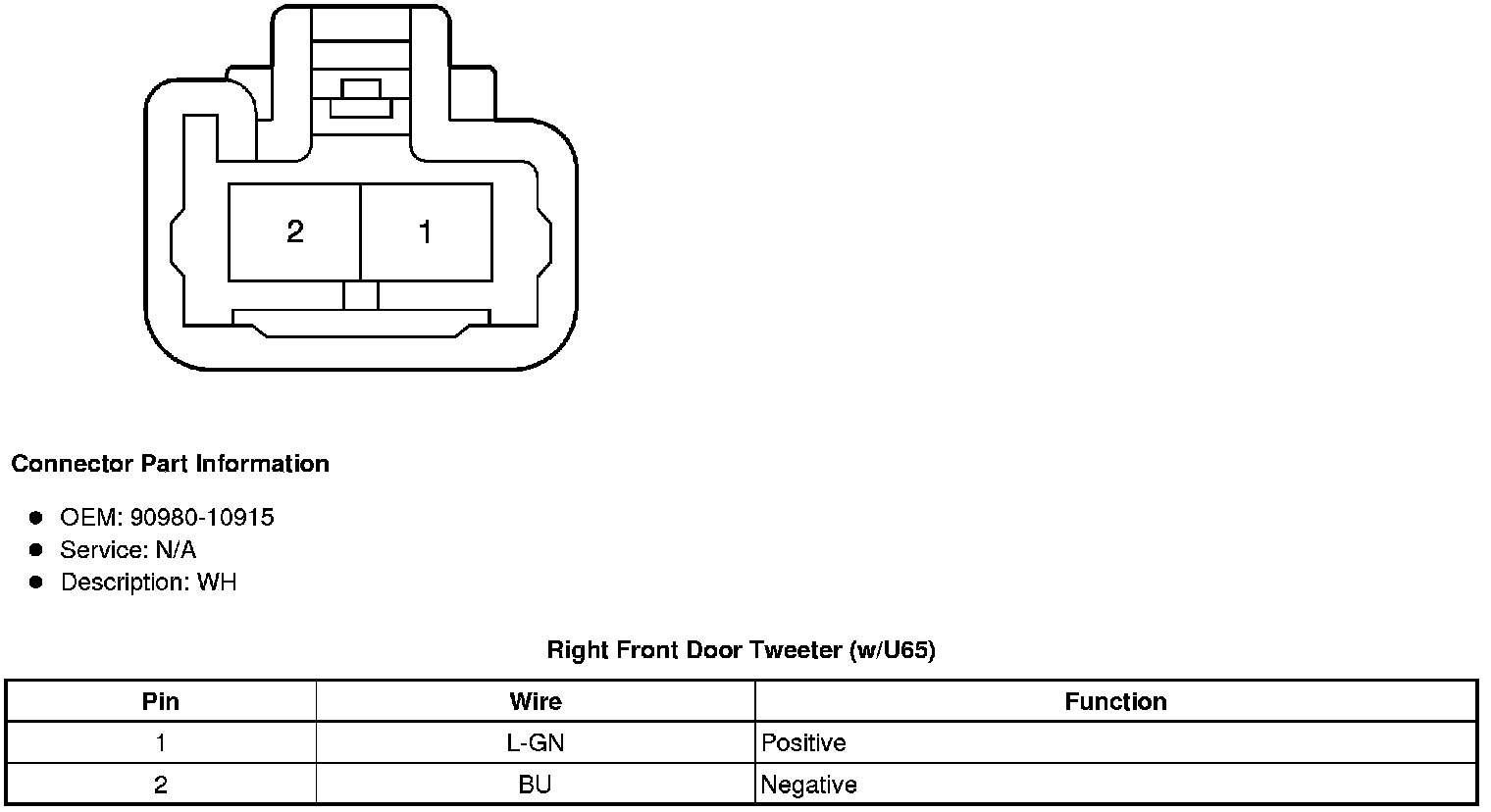

Right Front Door Tweeter (w/U65)

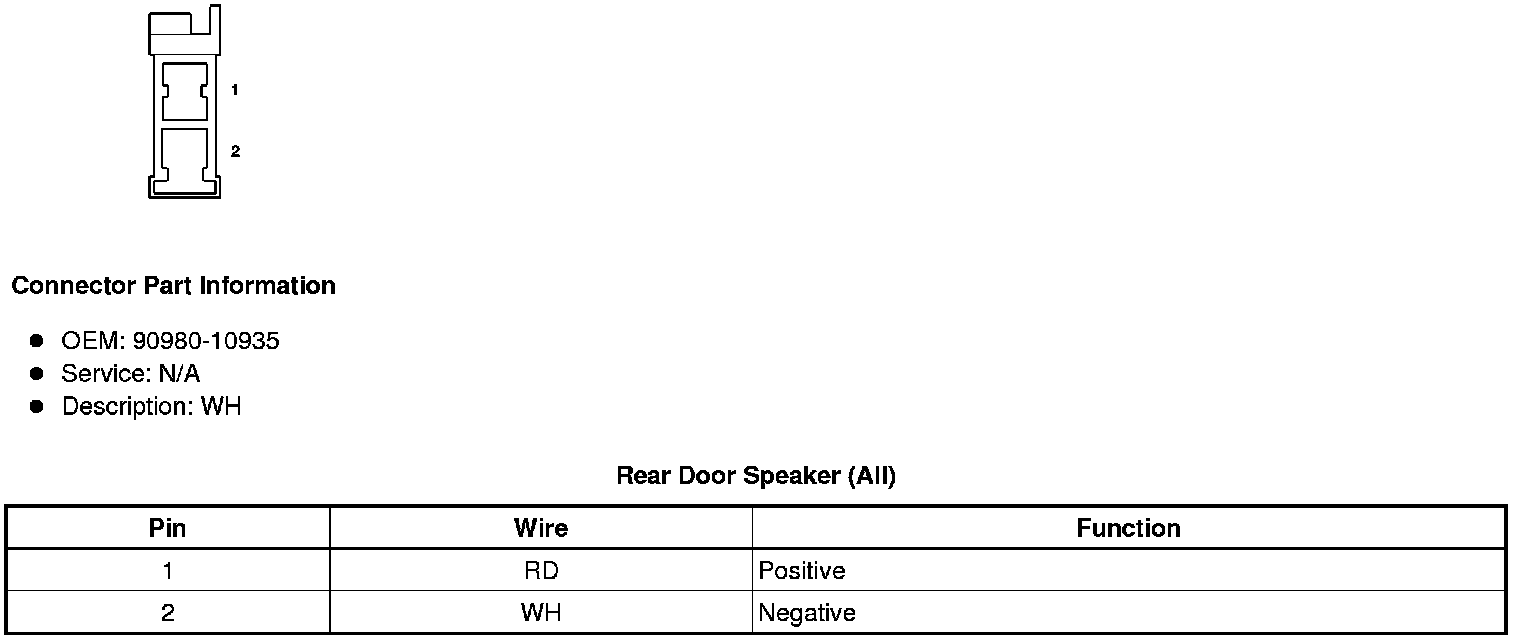

Rear Door Speaker (All)

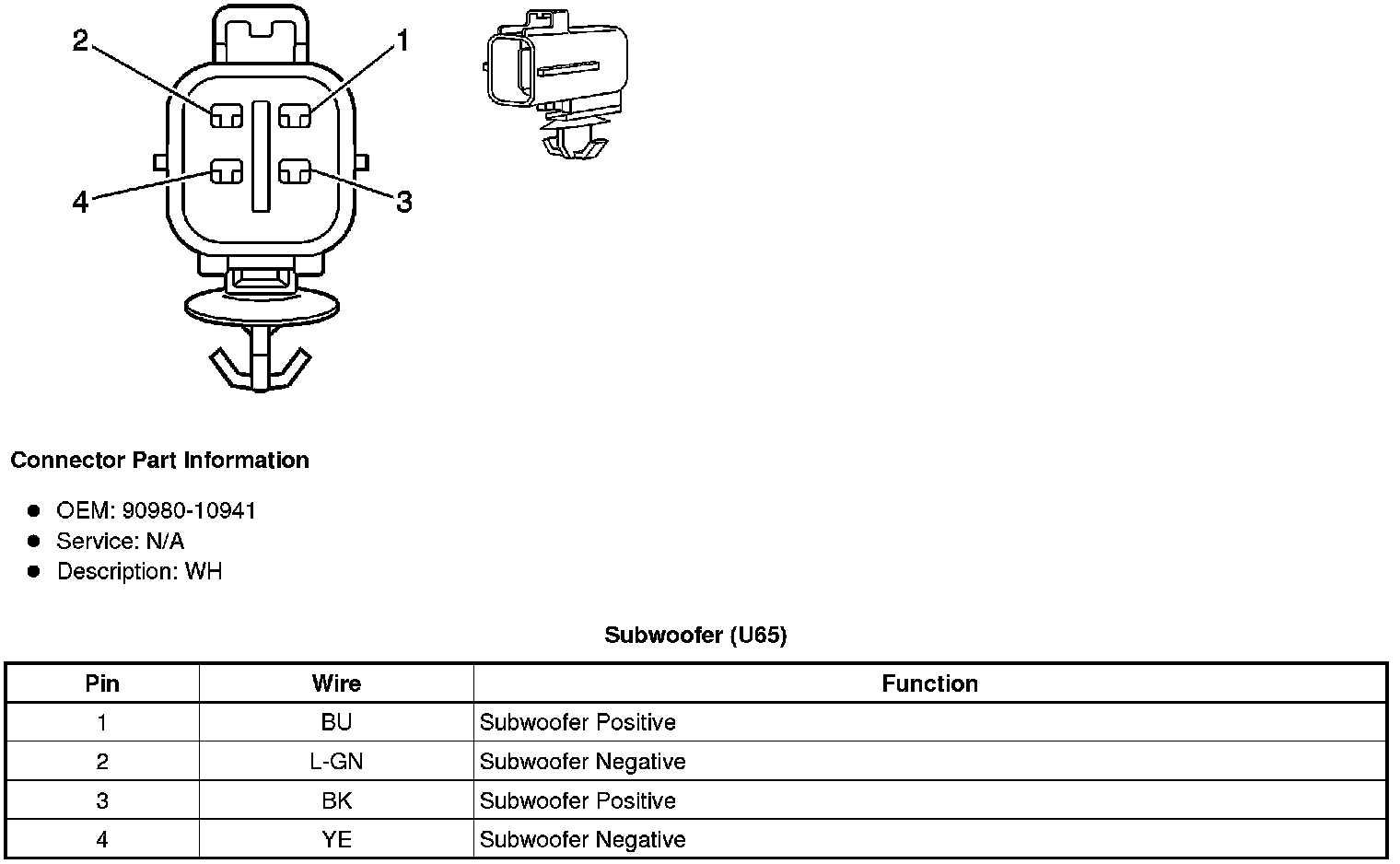

Subwoofer (U65)

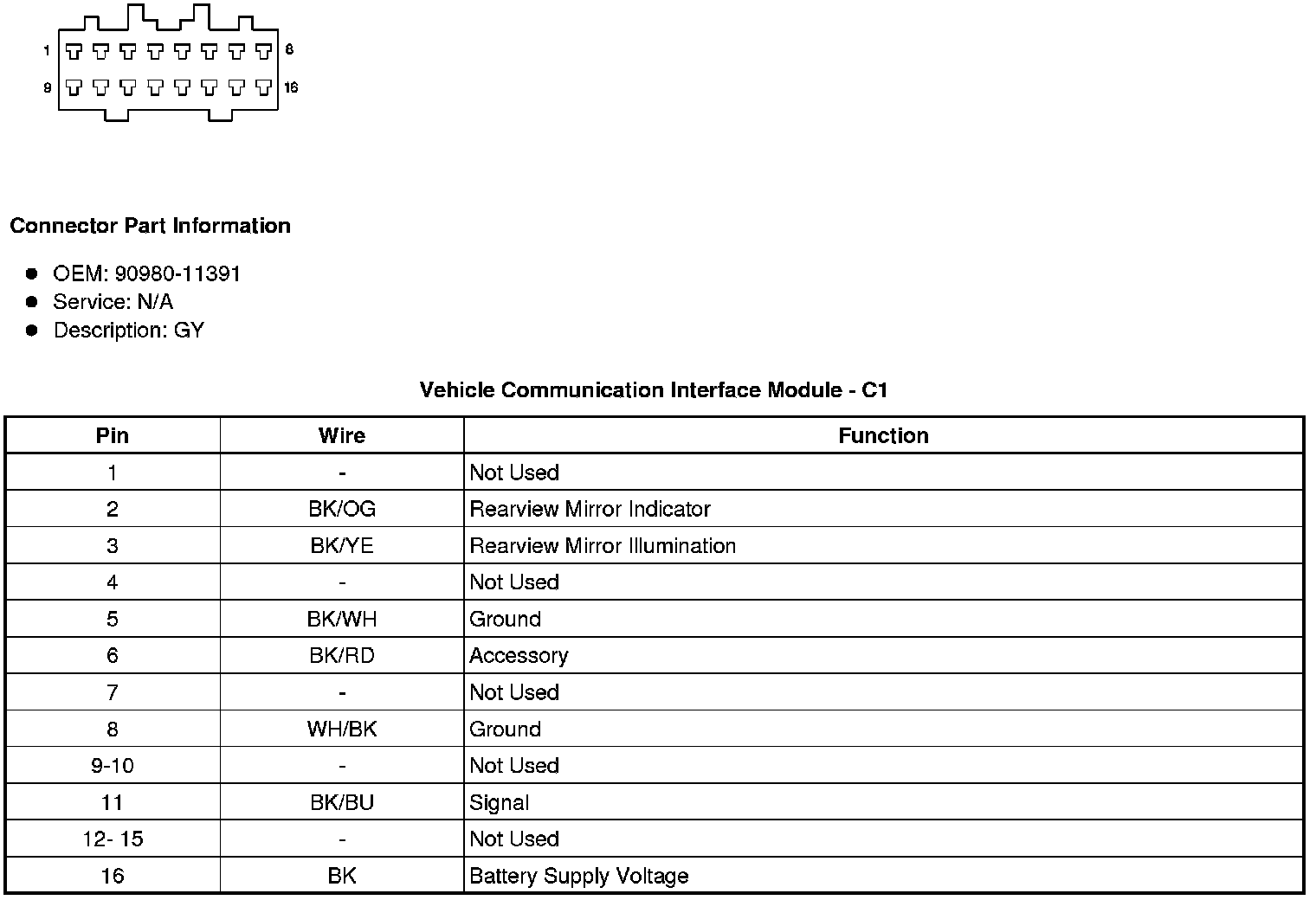

Vehicle Communication Interface Module - C1

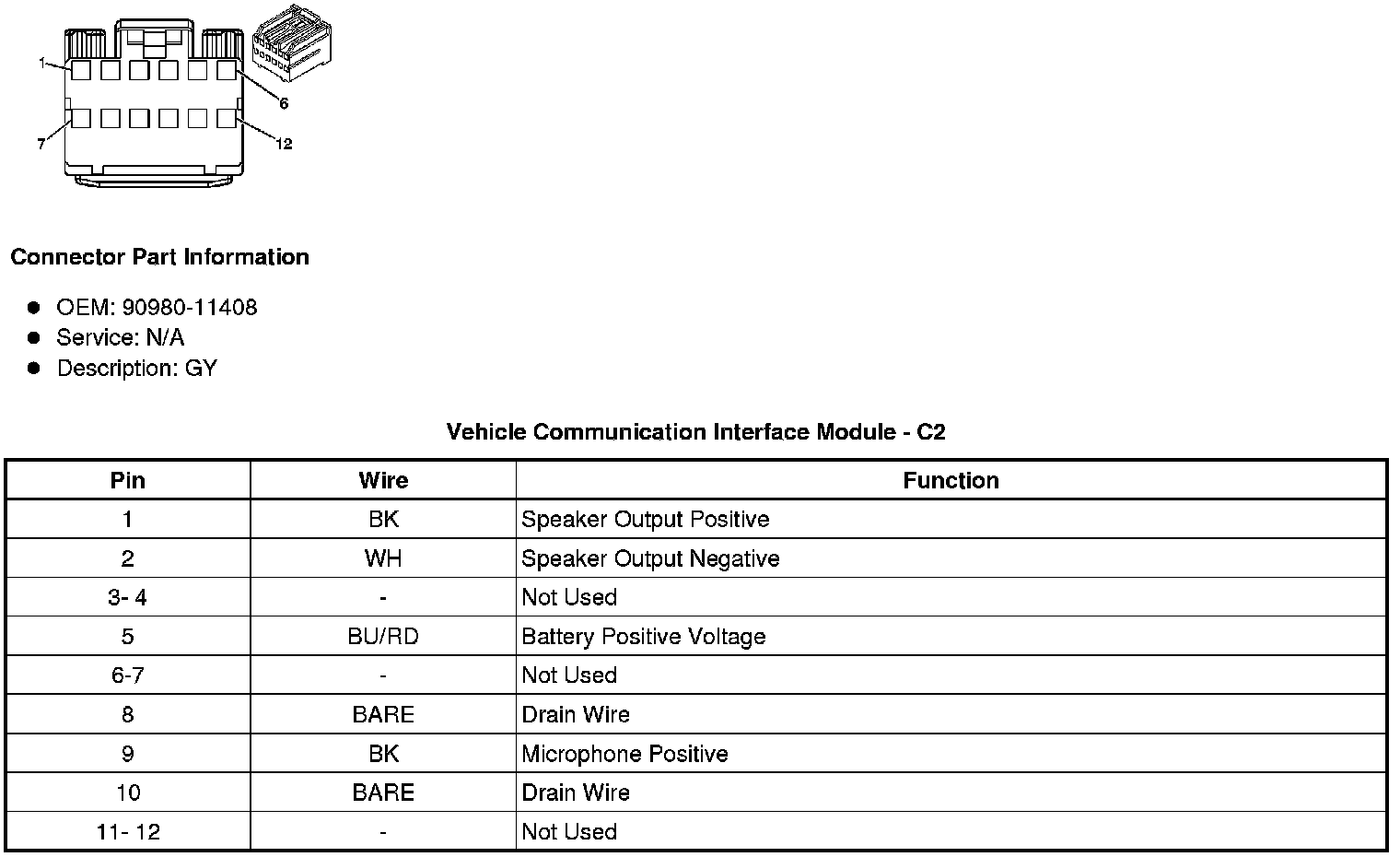

Vehicle Communication Interface Module - C2
Vehicle Interface Unit
