System Diagram



Cruise Control Connector End Views

Cruise Control Release Switch

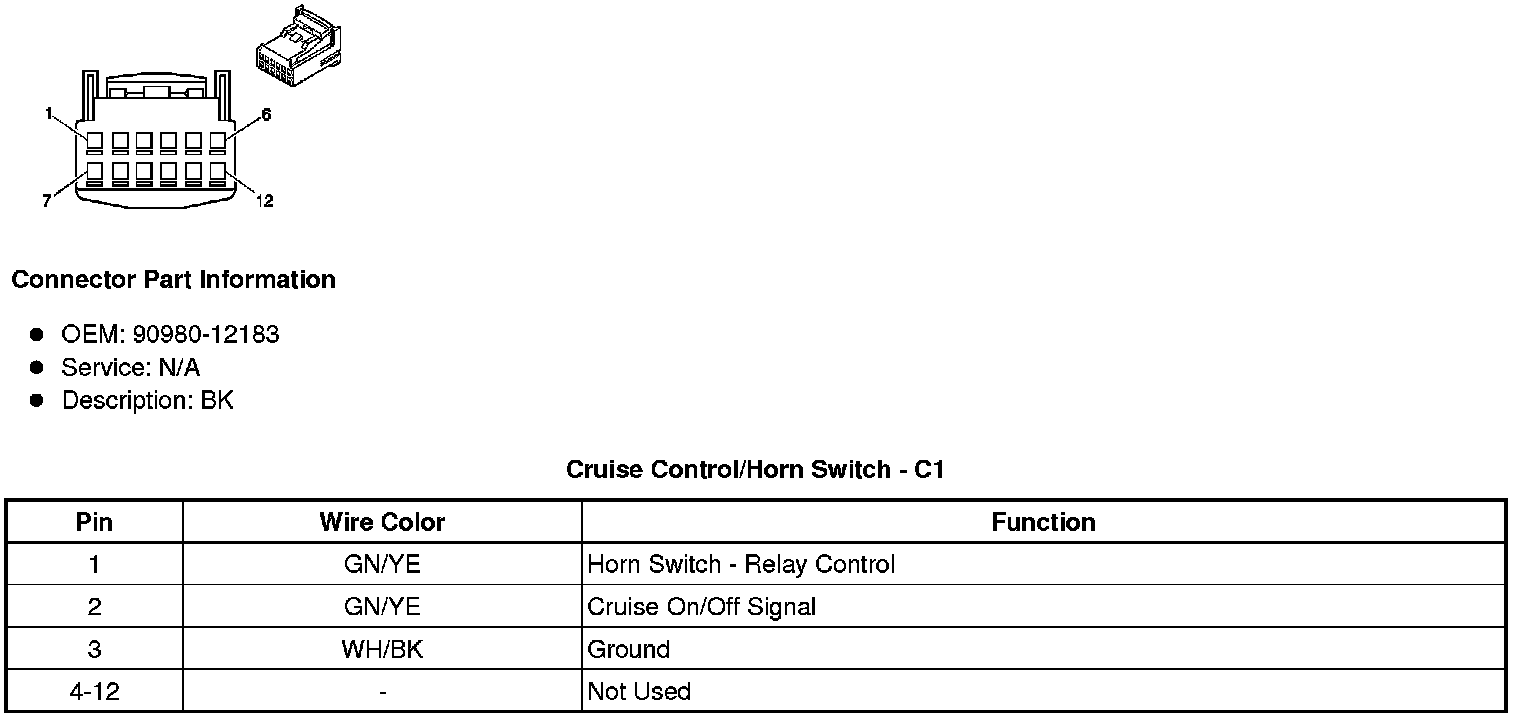

Cruise Control/Horn Switch - C1






Cruise Control/Horn Switch - C2
