System Diagram
Lighting Systems Connector End Views
Ambient Light Sensor
Backup Lamp Switch (Manual Transmission)
Center High Mounted Stop Lamp

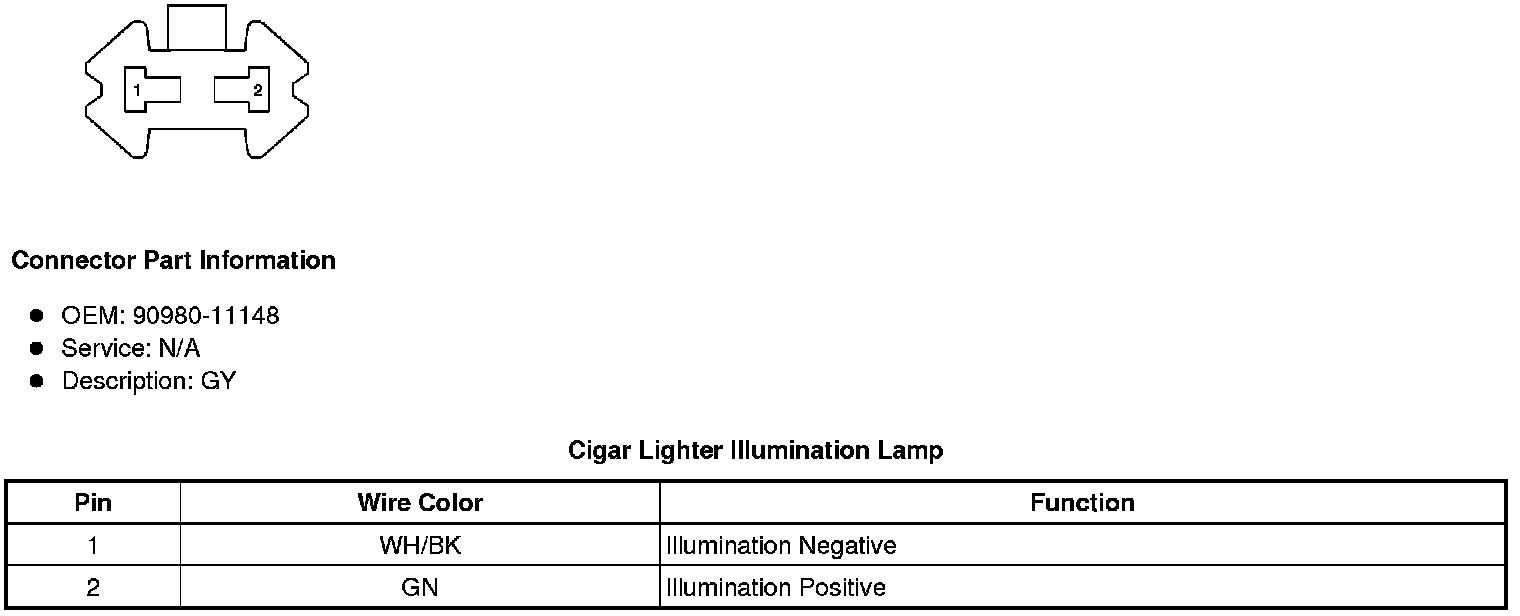

Cigar Lighter Illumination Lamp
Daytime Running Lamps (DRL) Control Module
Flasher Relay

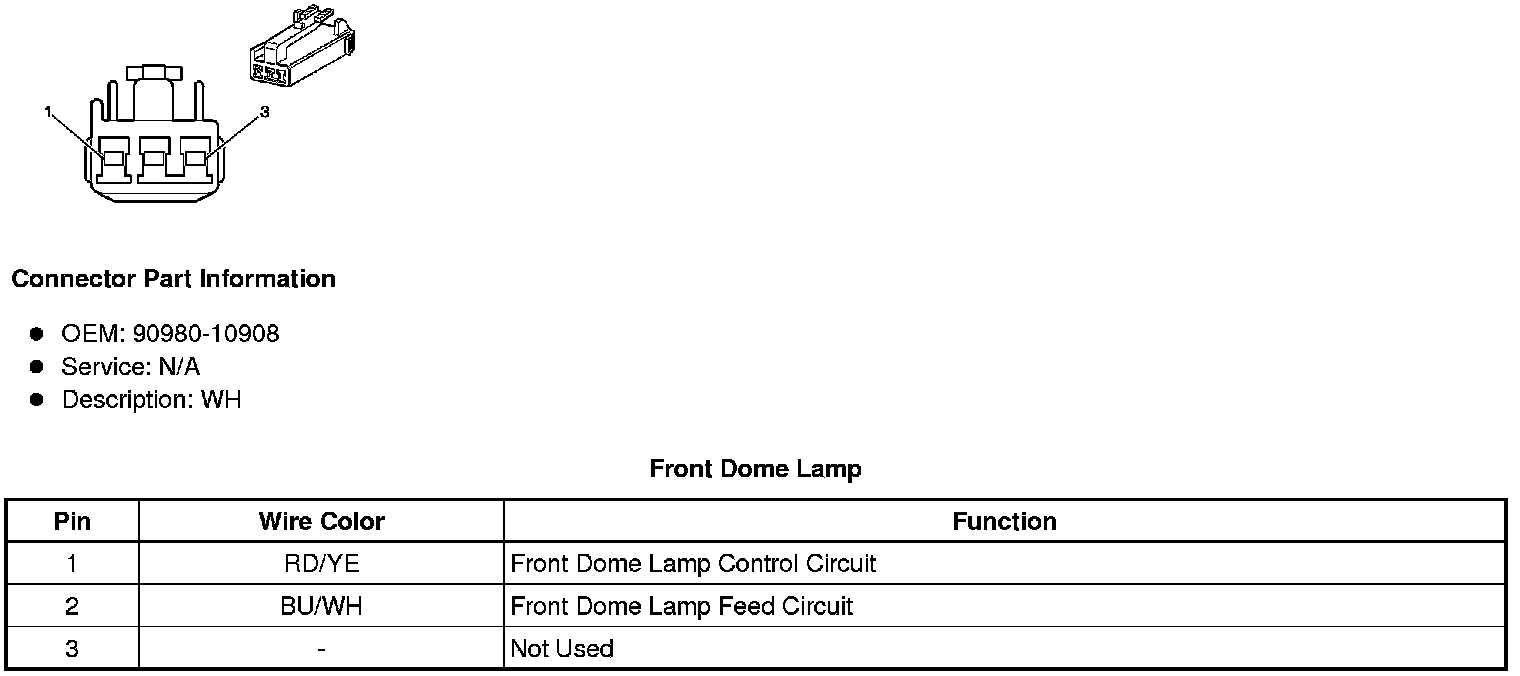

Front Dome Lamp
Hazard Switch
I/P Lamp Dimmer
Left Backup and Rear Fog Lamp
Left Fog Lamp
Left Front Park/Turn Lamp
Left Headlamp

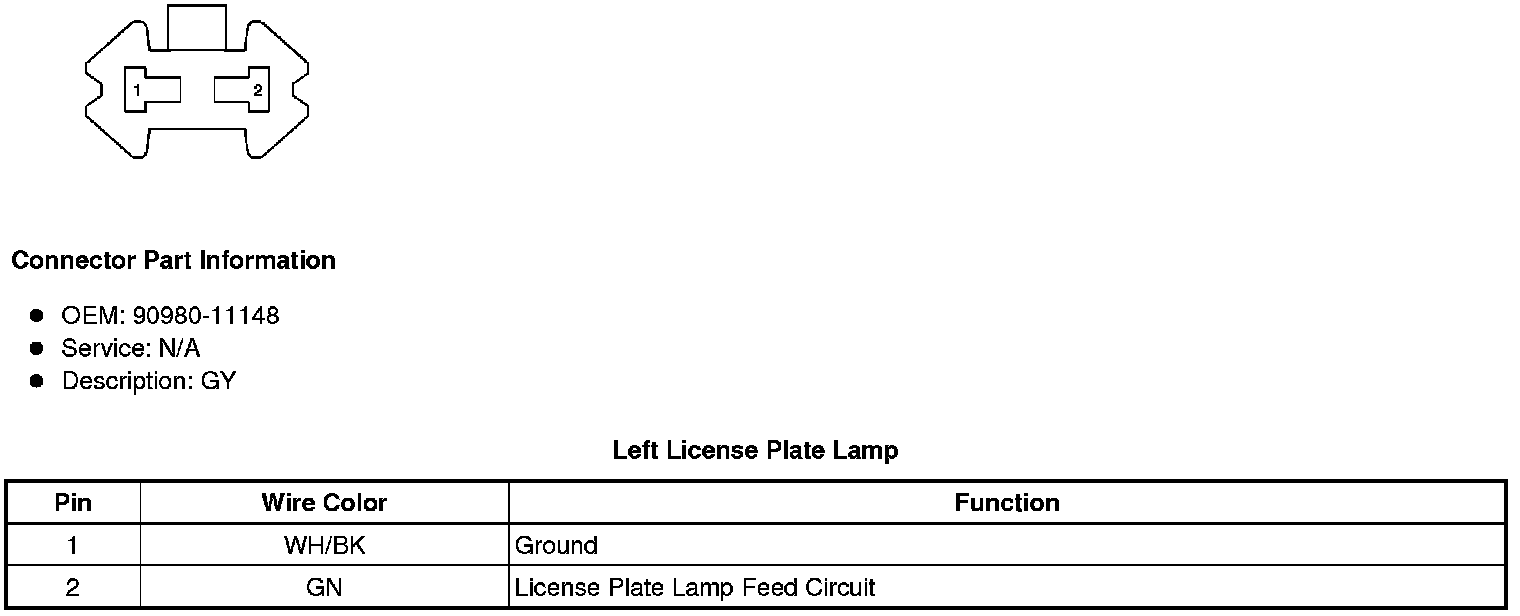

Left License Plate Lamp

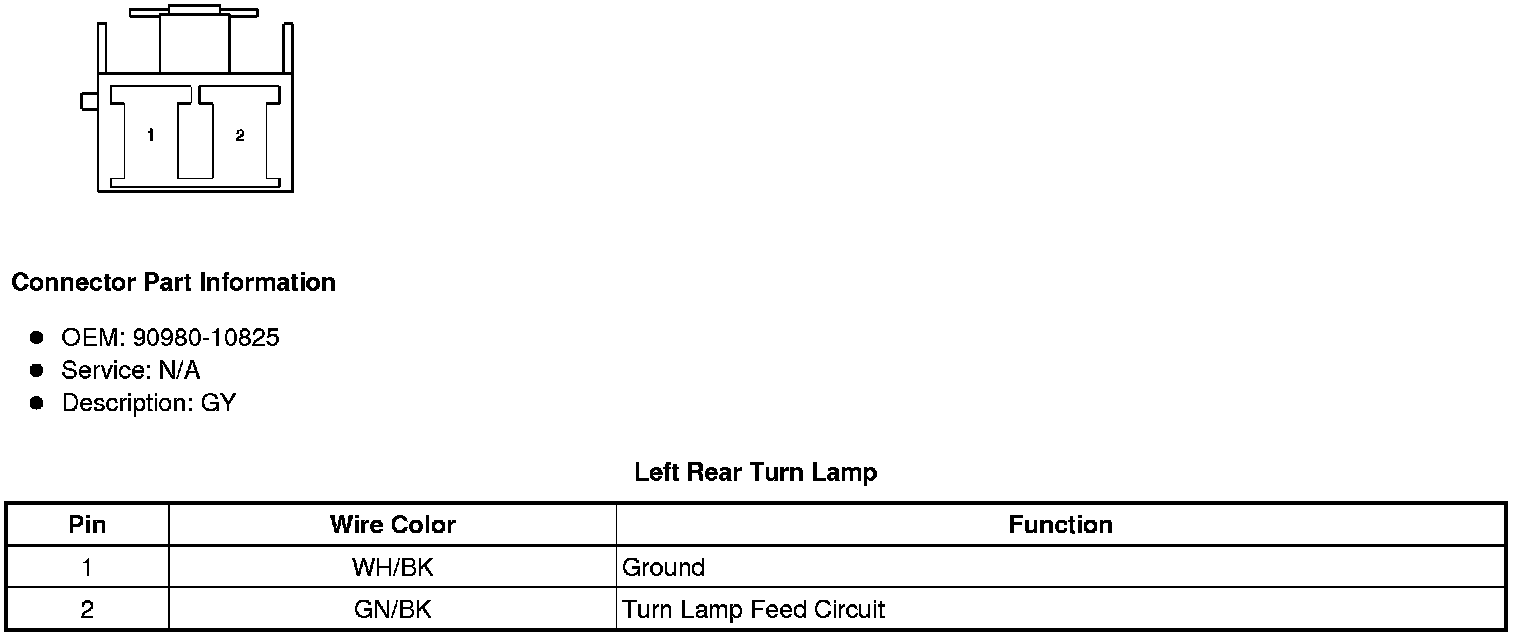

Left Rear Turn Lamp
Left Tail/Stop Lamp
Park/Neutral Position (PNP) Switch
Rear Dome Lamp

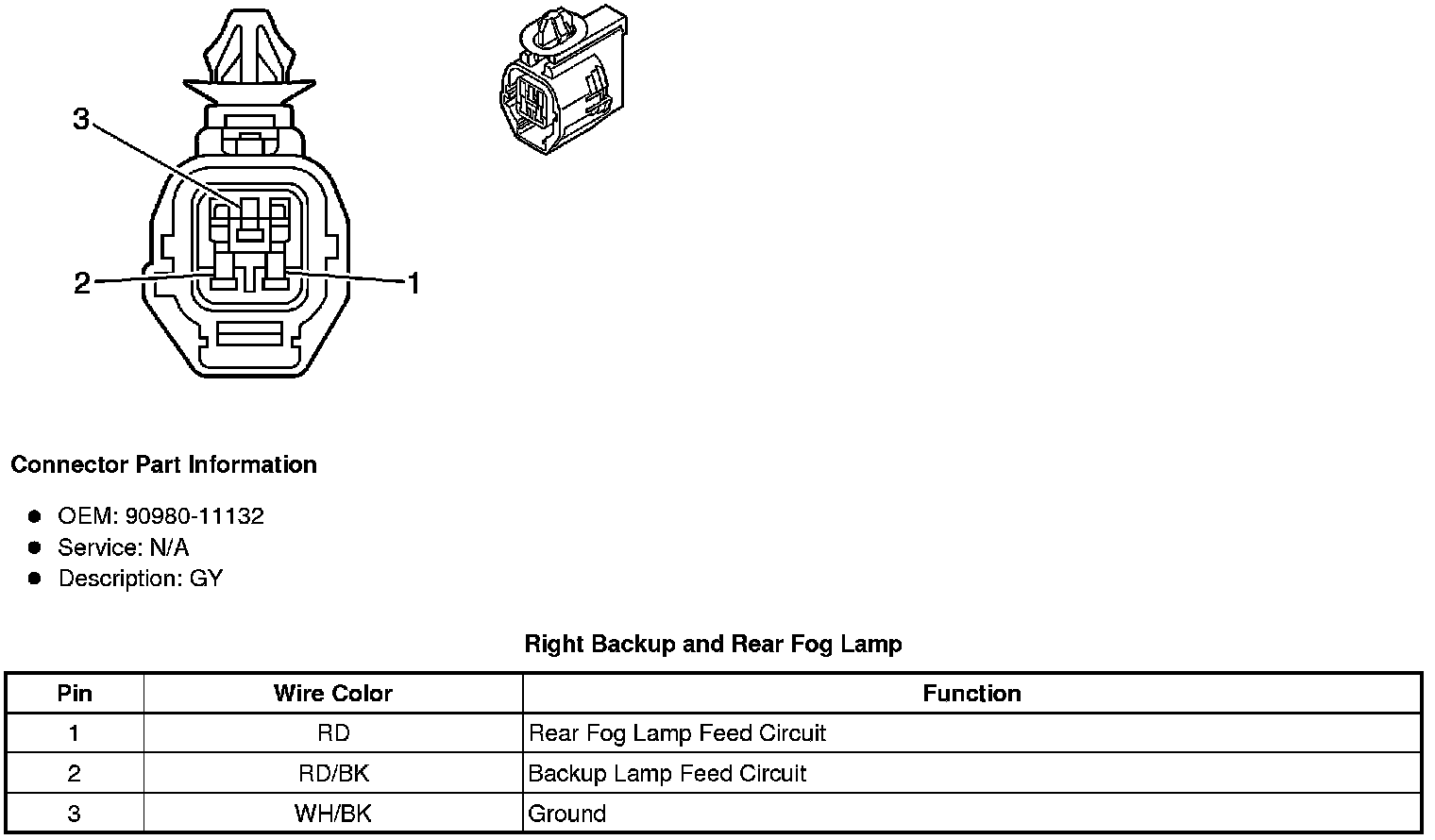

Right Backup and Rear Fog Lamp
Right Fog Lamp

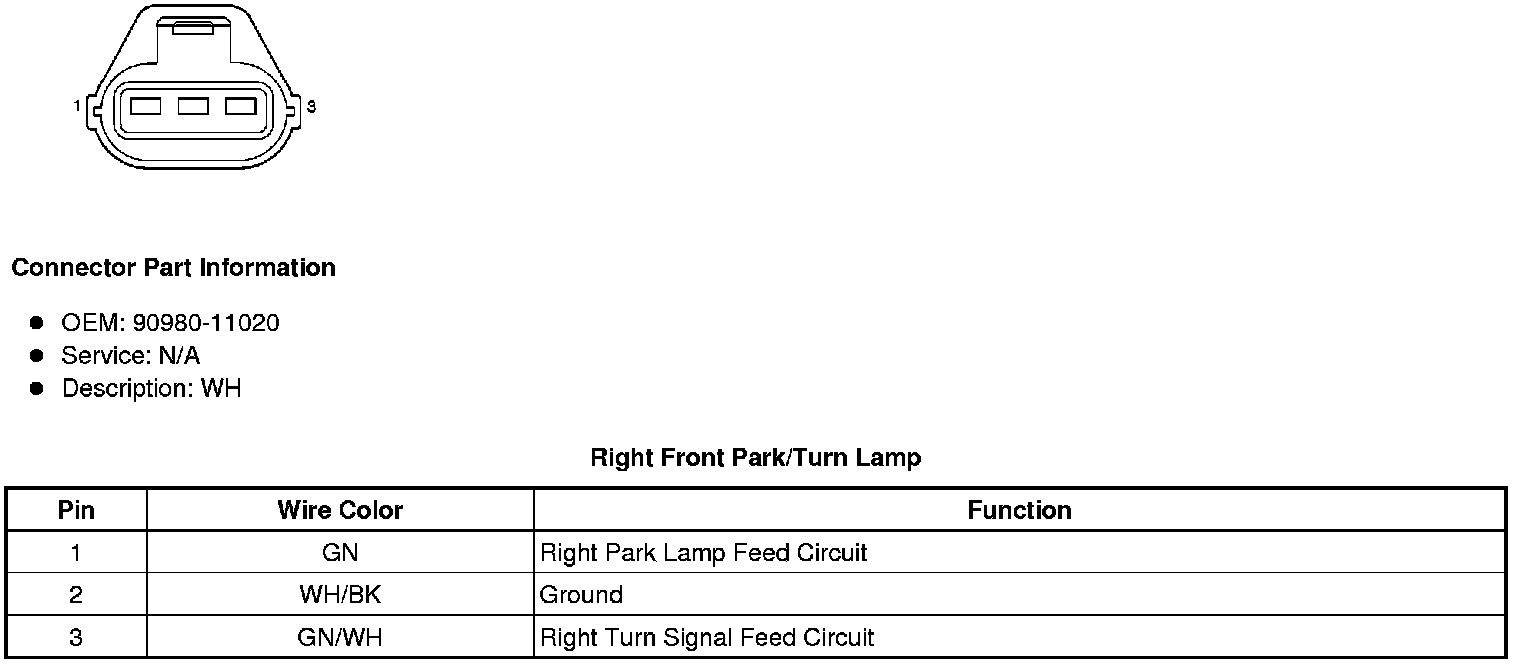

Right Front Park/Turn Lamp
Right Headlamp

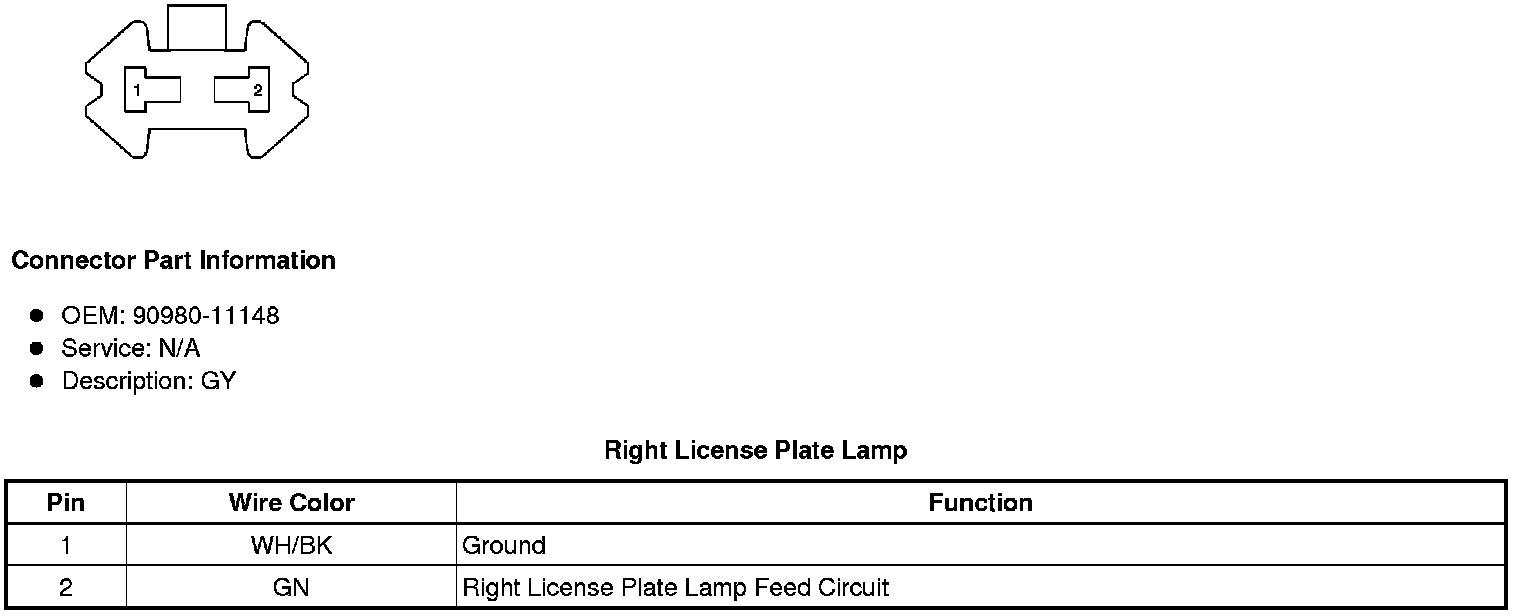

Right License Plate Lamp
Right Rear Turn Lamp

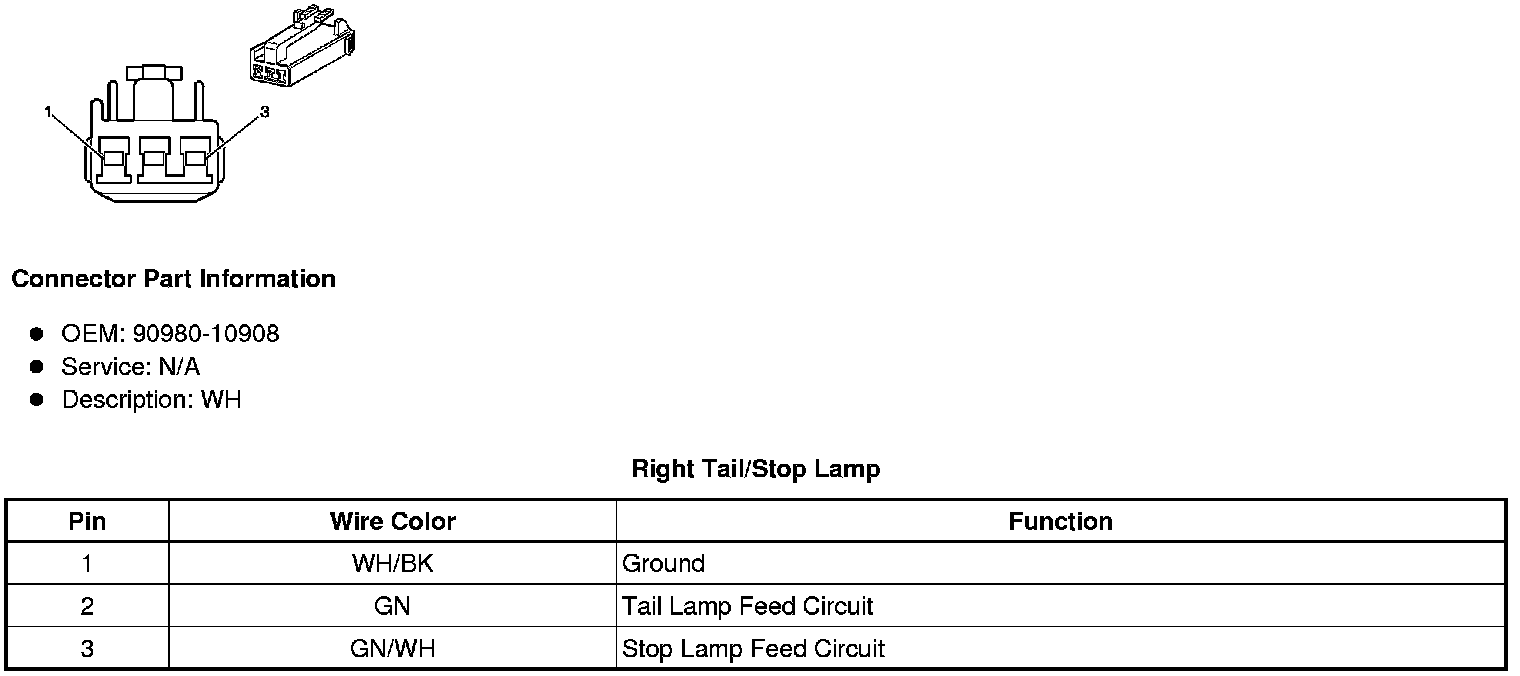

Right Tail/Stop Lamp
Stop Lamp Switch
Turn Signal/Headlamp Switch
