System Diagram



Mirror Connector End Views

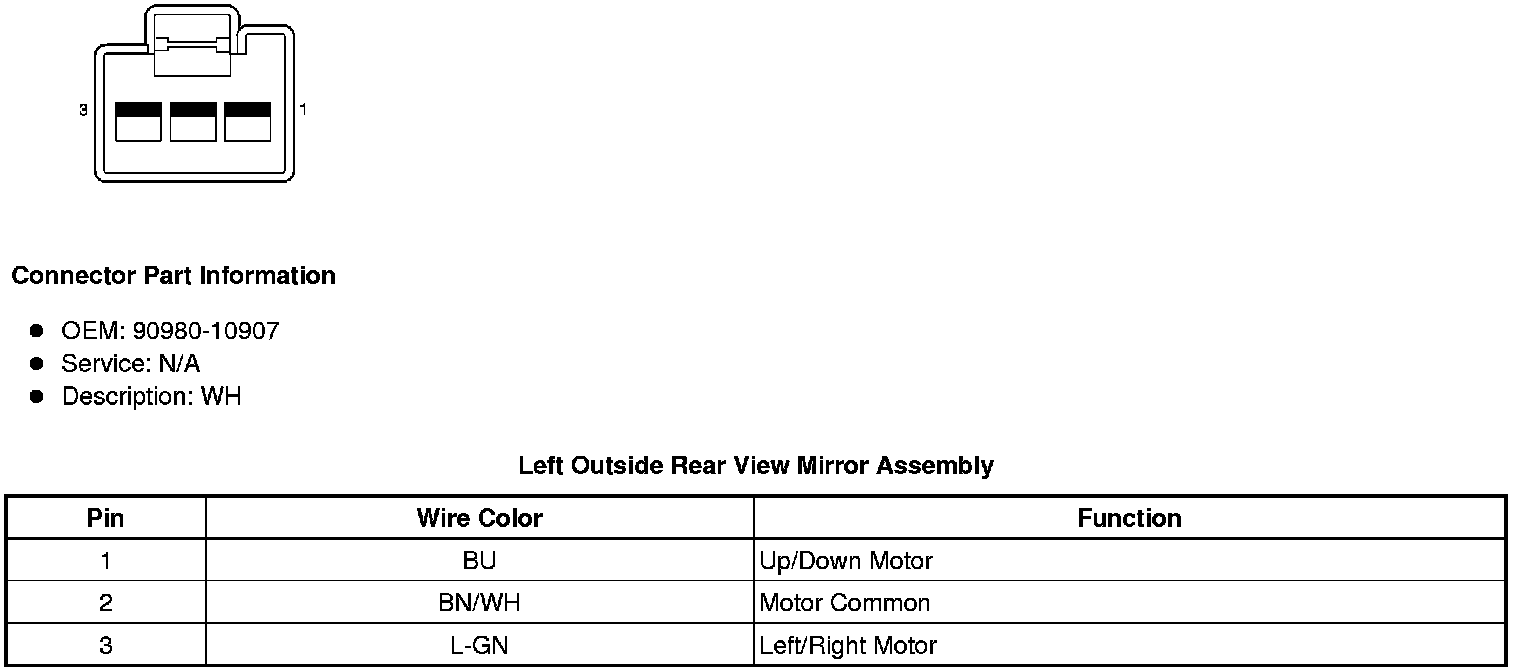

Left Outside Rear View Mirror Assembly






Power Mirror Switch






Right Outside Rear View Mirror Assembly
