System Diagram



Seat Belt Connector End Views

Driver Seat Belt Switch






Passenger Seat Belt Switch

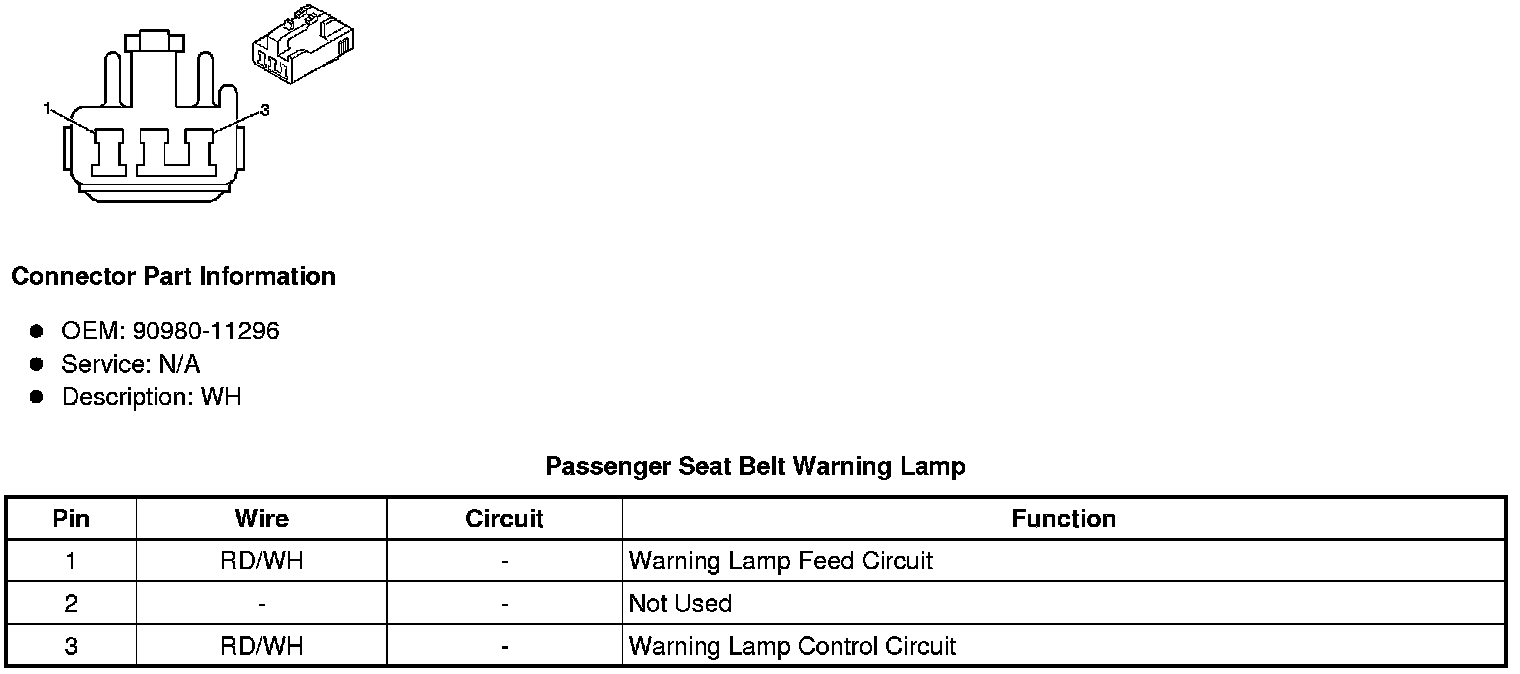

Passenger Seat Belt Warning Lamp

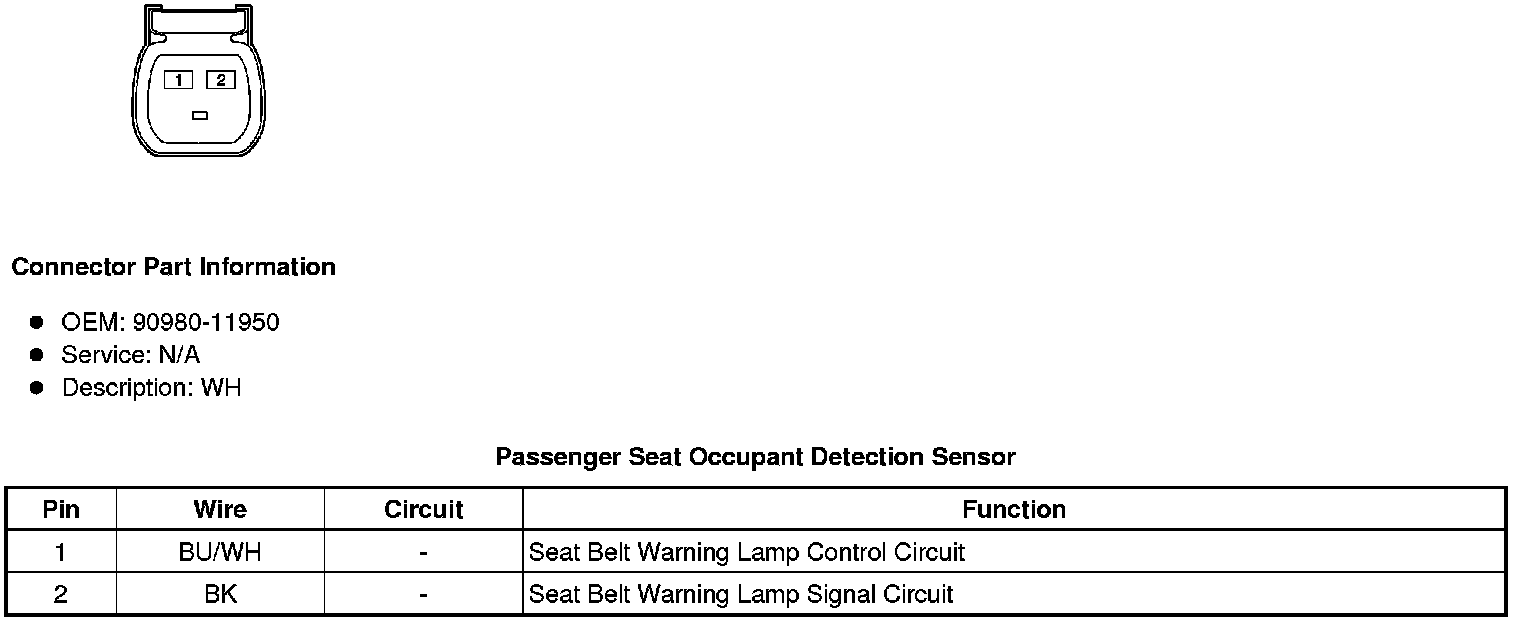

Passenger Seat Occupant Detection Sensor
